Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#114002) — 412 parça

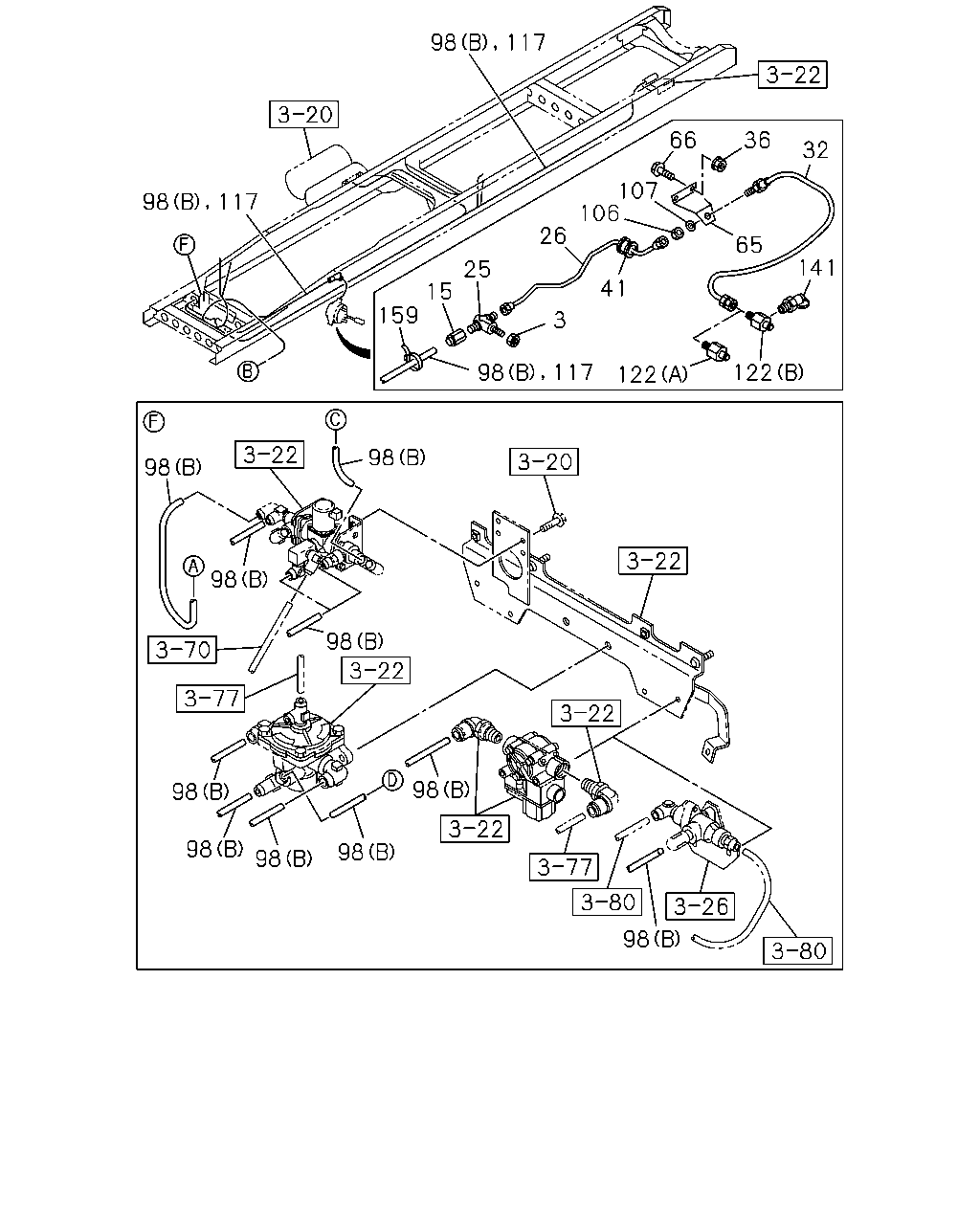

98 117 98 117 159 15 25 26 3 98 106 107 66 36 65 32 141 122 41 122 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	NUT; PIPE UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12	0-91111-512-0	02	1	1302-1505	●
3	NUT; PIPE UNION 6HK1-TCS ENG(80L) M12	0-91111-512-0	02	1	1302-1505		●
3	NUT; PIPE UNION 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12	0-91111-512-0	02	1	1506-	●
3	NUT; PIPE UNION 6HK1-TCS ENG(80L) M12	0-91111-512-0	02	1	1506-		●
15	CONNECTOR; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1302-1505	●
15	CONNECTOR; AIR PIPE 6HK1-TCS ENG(80L) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1302-1505		●
15	CONNECTOR; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1506-	●
15	CONNECTOR; AIR PIPE 6HK1-TCS ENG(80L) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1506-		●
25	UNION; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16X2 2WAY ELBOW	1-09654-148-1	02	1	1302-1505	●
25	UNION; AIR PIPE 6HK1-TCS ENG(80L) M16X2 2WAY ELBOW	1-09654-148-1	02	1	1302-1505		●
25	UNION; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16X2 2WAY ELBOW	1-09654-148-1	02	1	1506-	●
25	UNION; AIR PIPE 6HK1-TCS ENG(80L) M16X2 2WAY ELBOW	1-09654-148-1	02	1	1506-		●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=500	8-98091-274-1	01	1	1302-1505	●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L) L=500	8-98091-274-1	01	1	1302-1505		●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=500	8-98091-274-1	01	1	1506-	●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L) L=500	8-98091-274-1	01	1	1506-		●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=657	8-98126-150-1	01	1	1302-1505	●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L) L=657	8-98126-150-1	01	1	1302-1505		●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=657	8-98126-150-1	01	1	1506-	●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L) L=657	8-98126-150-1	01	1	1506-		●
32	HOSE; FLEX,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	1302-1505	●
32	HOSE; FLEX,FRT 6HK1-TCS ENG(80L)	8-98090-844-0	02	1	1302-1505		●
32	HOSE; FLEX,FRT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	1506-	●
32	HOSE; FLEX,FRT 6HK1-TCS ENG(80L)	8-98090-844-0	02	1	1506-		●
36	NUT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	04	1	1302-1505	●
36	NUT; HOSE BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	04	1	1302-1505		●
36	NUT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	04	1	1506-	●
36	NUT; HOSE BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	04	1	1506-		●
41	GROMMET; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	1302-1505	●
41	GROMMET; AIR PIPE 6HK1-TCS ENG(80L) ID=28 OD=35 T=25	1-09332-011-1	02	1	1302-1505		●
41	GROMMET; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	1506-	●
41	GROMMET; AIR PIPE 6HK1-TCS ENG(80L) ID=28 OD=35 T=25	1-09332-011-1	02	1	1506-		●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-210-0	01	1	1302-1505	●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L)	1-47476-210-0	01	1	1302-1505		●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-210-0	01	1	1506-	●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L)	1-47476-210-0	01	1	1506-		●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-211-0	01	1	1302-1505	●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L)	1-47476-211-0	01	1	1302-1505		●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-211-0	01	1	1506-	●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L)	1-47476-211-0	01	1	1506-		●
66	BOLT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	04	1	1302-1505	●
66	BOLT; HOSE BRKT 6HK1-TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	04	1	1302-1505		●
66	BOLT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	04	1	1506-	●
66	BOLT; HOSE BRKT 6HK1-TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	04	1	1506-		●
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-120-0	01	1	1302-1304	●
98	TUBE; NYLON 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-120-0	01	1	1305-	●
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98158-188-0	01	1	1302-1304	●
98	TUBE; NYLON 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98158-188-0	01	1	1305-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BUMPER W/HEADLAMPS<SLB> CAB SUSPENSION FULL FLOATING<W16> (A)	8-98141-345-0	01	1	1302-1505	●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BUMPER W/HEADLAMPS<SLB> CAB SUSPENSION FULL FLOATING<W16> (A)	8-98141-345-0	01	1	1506-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1302-1505	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1302-1505		●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1506-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1506-		●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1302-1505	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1302-1505		●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1506-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1506-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1302-	●	●
106	NUT; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	1302-1505	●
106	NUT; FLEX HOSE 6HK1-TCS ENG(80L) M16	0-91111-516-0	02	1	1302-1505		●
106	NUT; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	1506-	●
106	NUT; FLEX HOSE 6HK1-TCS ENG(80L) M16	0-91111-516-0	02	1	1506-		●
107	WASHER; LK,FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	02	1	1302-1505	●
107	WASHER; LK,FLEX HOSE 6HK1-TCS ENG(80L) ID=16.2	0-91510-816-0	02	1	1302-1505		●
107	WASHER; LK,FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	02	1	1506-	●
107	WASHER; LK,FLEX HOSE 6HK1-TCS ENG(80L) ID=16.2	0-91510-816-0	02	1	1506-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	03	1	1512-	●
117	TUBE; CORRUGATE 4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 4HK1-TCS ENG(RJS) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) SERVICED BY L=2000 ID=15	1-87411-025-0	02	1	1512-		●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1302-	●
122	CONNECTOR; FLEX HOSE BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1302-		●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-	●
122	CONNECTOR; FLEX HOSE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-		●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-		●
141	CONNECTOR; TEST BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1302-	●
141	CONNECTOR; TEST BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1302-		●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	02	1	1302-	●
159	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	02	1	1302-		●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	1302-	●
159	CLIP; NYLON TUBE EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	1302-		●

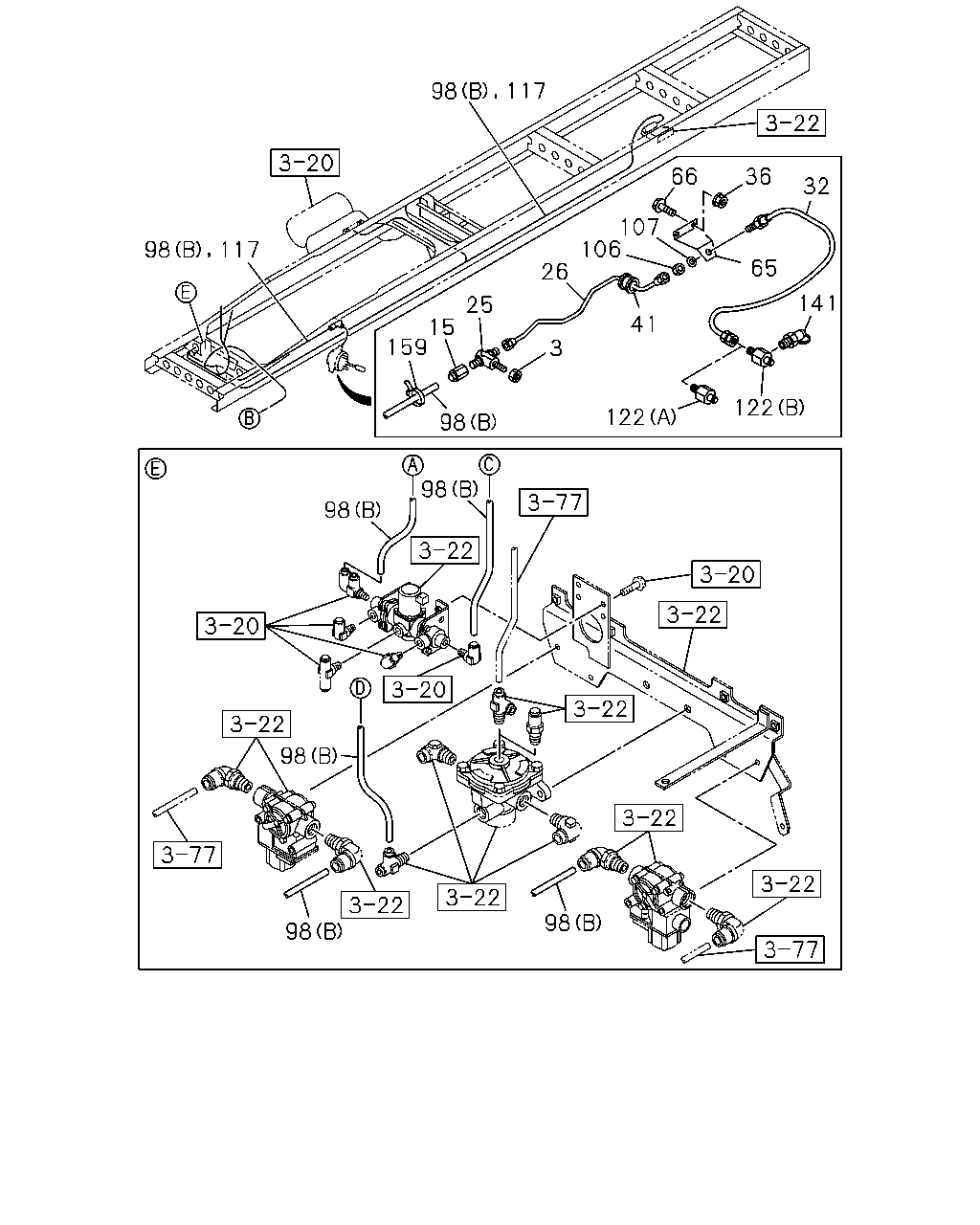

98 117 106 107 66 36 32 65 141 122 122 41 3 26 25 15 159 98 117 117 98 98 98 98 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	NUT; PIPE UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12	0-91111-512-0	02	1	1302-1505	●
3	NUT; PIPE UNION 6HK1-TCS ENG(80L) M12	0-91111-512-0	02	1	1302-1505		●
3	NUT; PIPE UNION 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12	0-91111-512-0	02	1	1506-	●
3	NUT; PIPE UNION 6HK1-TCS ENG(80L) M12	0-91111-512-0	02	1	1506-		●
15	CONNECTOR; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1302-1505	●
15	CONNECTOR; AIR PIPE 6HK1-TCS ENG(80L) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1302-1505		●
15	CONNECTOR; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1506-	●
15	CONNECTOR; AIR PIPE 6HK1-TCS ENG(80L) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1506-		●
25	UNION; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16X2 2WAY ELBOW	1-09654-148-1	02	1	1302-1505	●
25	UNION; AIR PIPE 6HK1-TCS ENG(80L) M16X2 2WAY ELBOW	1-09654-148-1	02	1	1302-1505		●
25	UNION; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16X2 2WAY ELBOW	1-09654-148-1	02	1	1506-	●
25	UNION; AIR PIPE 6HK1-TCS ENG(80L) M16X2 2WAY ELBOW	1-09654-148-1	02	1	1506-		●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=500	8-98091-274-1	01	1	1302-1505	●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L) L=500	8-98091-274-1	01	1	1302-1505		●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=500	8-98091-274-1	01	1	1506-	●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L) L=500	8-98091-274-1	01	1	1506-		●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=657	8-98126-150-1	01	1	1302-1505	●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L) L=657	8-98126-150-1	01	1	1302-1505		●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=657	8-98126-150-1	01	1	1506-	●
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCS ENG(80L) L=657	8-98126-150-1	01	1	1506-		●
32	HOSE; FLEX,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	1302-1505	●
32	HOSE; FLEX,FRT 6HK1-TCS ENG(80L)	8-98090-844-0	02	1	1302-1505		●
32	HOSE; FLEX,FRT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	1506-	●
32	HOSE; FLEX,FRT 6HK1-TCS ENG(80L)	8-98090-844-0	02	1	1506-		●
36	NUT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	04	1	1302-1505	●
36	NUT; HOSE BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	04	1	1302-1505		●
36	NUT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	04	1	1506-	●
36	NUT; HOSE BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	04	1	1506-		●
41	GROMMET; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	1302-1505	●
41	GROMMET; AIR PIPE 6HK1-TCS ENG(80L) ID=28 OD=35 T=25	1-09332-011-1	02	1	1302-1505		●
41	GROMMET; AIR PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	1506-	●
41	GROMMET; AIR PIPE 6HK1-TCS ENG(80L) ID=28 OD=35 T=25	1-09332-011-1	02	1	1506-		●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-210-0	01	1	1302-1505	●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L)	1-47476-210-0	01	1	1302-1505		●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-210-0	01	1	1506-	●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L)	1-47476-210-0	01	1	1506-		●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-211-0	01	1	1302-1505	●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L)	1-47476-211-0	01	1	1302-1505		●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-211-0	01	1	1506-	●
65	BRACKET; FLEX HOSE 6HK1-TCS ENG(80L)	1-47476-211-0	01	1	1506-		●
66	BOLT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	04	1	1302-1505	●
66	BOLT; HOSE BRKT 6HK1-TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	04	1	1302-1505		●
66	BOLT; HOSE BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	04	1	1506-	●
66	BOLT; HOSE BRKT 6HK1-TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	04	1	1506-		●
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-120-0	01	1	1302-1304	●
98	TUBE; NYLON 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-120-0	01	1	1305-	●
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98158-188-0	01	1	1302-1304	●
98	TUBE; NYLON 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98158-188-0	01	1	1305-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BUMPER W/HEADLAMPS<SLB> CAB SUSPENSION FULL FLOATING<W16> (A)	8-98141-345-0	01	1	1302-1505	●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BUMPER W/HEADLAMPS<SLB> CAB SUSPENSION FULL FLOATING<W16> (A)	8-98141-345-0	01	1	1506-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1302-1505	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1302-1505		●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1506-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1506-		●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1302-1505	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1302-1505		●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1506-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1506-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1302-	●	●
106	NUT; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	1302-1505	●
106	NUT; FLEX HOSE 6HK1-TCS ENG(80L) M16	0-91111-516-0	02	1	1302-1505		●
106	NUT; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	1506-	●
106	NUT; FLEX HOSE 6HK1-TCS ENG(80L) M16	0-91111-516-0	02	1	1506-		●
107	WASHER; LK,FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	02	1	1302-1505	●
107	WASHER; LK,FLEX HOSE 6HK1-TCS ENG(80L) ID=16.2	0-91510-816-0	02	1	1302-1505		●
107	WASHER; LK,FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	02	1	1506-	●
107	WASHER; LK,FLEX HOSE 6HK1-TCS ENG(80L) ID=16.2	0-91510-816-0	02	1	1506-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	03	1	1512-	●
117	TUBE; CORRUGATE 4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 4HK1-TCS ENG(RJS) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) SERVICED BY L=2000 ID=15	1-87411-025-0	02	1	1512-		●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1302-	●
122	CONNECTOR; FLEX HOSE BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1302-		●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-	●
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-	●
122	CONNECTOR; FLEX HOSE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-		●
122	CONNECTOR; FLEX HOSE EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-		●
141	CONNECTOR; TEST BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1302-	●
141	CONNECTOR; TEST BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1302-		●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	02	1	1302-	●
159	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	02	1	1302-		●
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	1302-	●
159	CLIP; NYLON TUBE EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	1302-		●

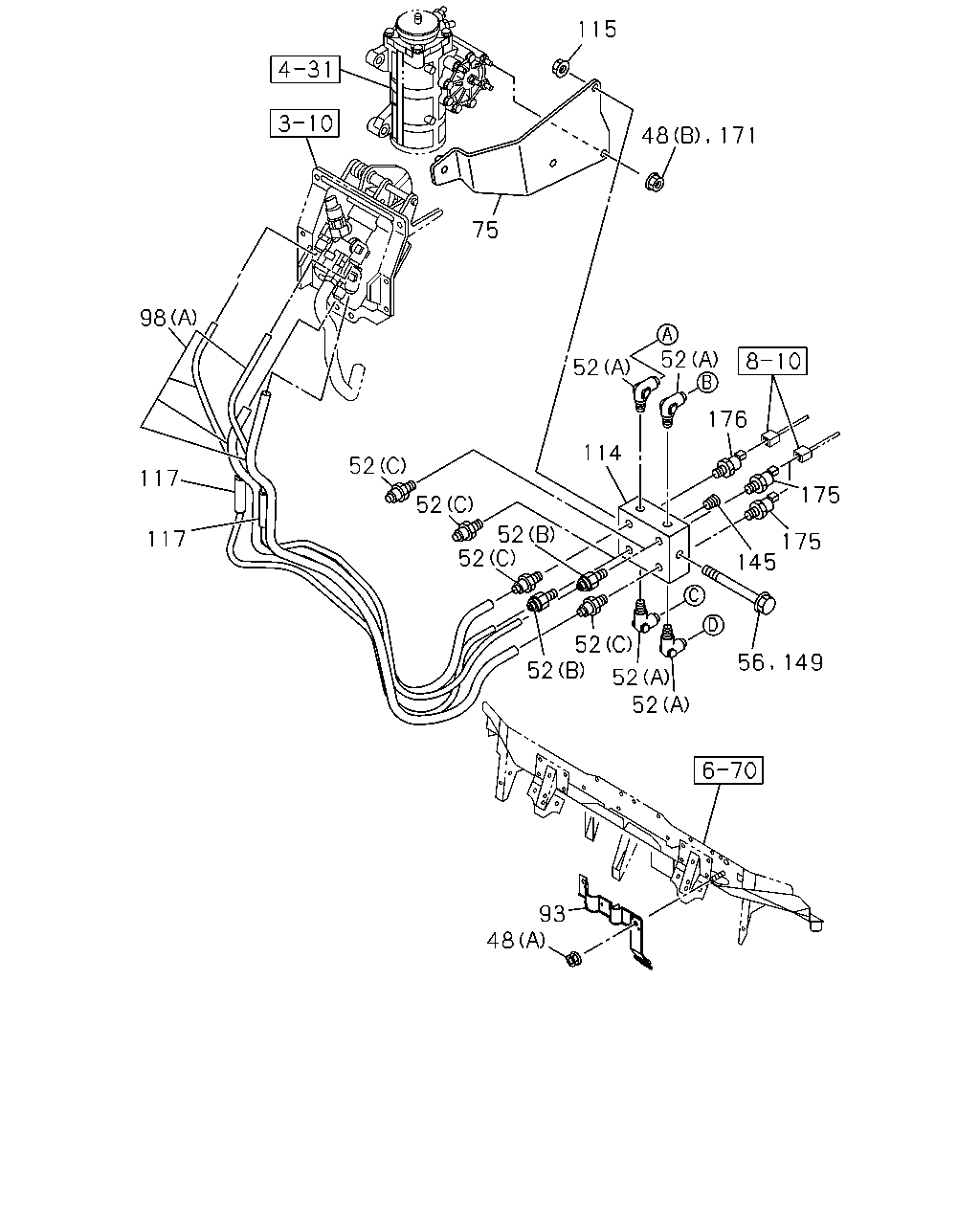

98 117 117 52 52 52 52 114 52 52 176 175 175 145 52 52 52 52 56 149 48 171 115 75 93 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	NUT; UNION BRKT 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M10 FLANGE	0-91180-210-0	02	1	1302-1304	●
48	NUT; UNION BRKT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M10 FLANGE	0-91180-210-0	02	1	1305-	●
48	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M6 FLANGE	0-91180-106-0	02	1	1302-1505	●
48	NUT; UNION BRKT 6HK1-TCS ENG(80L) (A) M6 FLANGE	0-91180-106-0	02	1	1302-1505		●
48	NUT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M6 FLANGE	0-91180-106-0	02	1	1506-	●
48	NUT; UNION BRKT 6HK1-TCS ENG(80L) (A) M6 FLANGE	0-91180-106-0	02	1	1506-		●
52	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	1302-1304	●
52	CONNECTOR; NYLON TUBE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	1305-	●
52	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1302-1304	●
52	CONNECTOR; NYLON TUBE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1305-	●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	1302-1505	●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	1302-1505		●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	1506-	●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	1506-		●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1302-1505	●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1302-1505		●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1506-	●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1506-		●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1302-1505	●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1302-1505		●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1506-	●
52	CONNECTOR; NYLON TUBE 6HK1-TCS ENG(80L) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1506-		●
56	BOLT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X100 FLANGE	0-28050-800-0	01	1	1302-1505	●
56	BOLT; UNION BRKT 6HK1-TCS ENG(80L) M8X100 FLANGE	0-28050-800-0	01	1	1302-1505		●
56	BOLT; UNION BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X100 FLANGE	0-28050-800-0	01	1	1506-	●
56	BOLT; UNION BRKT 6HK1-TCS ENG(80L) M8X100 FLANGE	0-28050-800-0	01	1	1506-		●
75	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98126-944-0	01	1	1302-1304	●
75	BRACKET; UNION 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98126-944-0	01	1	1302-1304	●
75	BRACKET; UNION 6HK1-TCS ENG(80L)	8-98126-944-0	01	1	1302-1304		●
75	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98126-944-0	01	1	1305-1505	●
75	BRACKET; UNION 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98126-944-0	01	1	1305-1505	●
75	BRACKET; UNION 6HK1-TCS ENG(80L)	8-98126-944-0	01	1	1305-1505		●
75	BRACKET; UNION 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98126-944-0	01	1	1506-	●
75	BRACKET; UNION 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98126-944-0	01	1	1506-	●
75	BRACKET; UNION 6HK1-TCS ENG(80L)	8-98126-944-0	01	1	1506-		●
93	BRACKET; UNION,TUBE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98112-515-1	01	1	1302-1505	●
93	BRACKET; UNION,TUBE 6HK1-TCS ENG(80L)	8-98112-515-1	01	1	1302-1505		●
93	BRACKET; UNION,TUBE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98112-515-1	01	1	1506-	●
93	BRACKET; UNION,TUBE 6HK1-TCS ENG(80L)	8-98112-515-1	01	1	1506-		●
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-120-0	01	1	1302-1304	●
98	TUBE; NYLON 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-120-0	01	1	1305-	●
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98158-188-0	01	1	1302-1304	●
98	TUBE; NYLON 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98158-188-0	01	1	1305-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BUMPER W/HEADLAMPS<SLB> CAB SUSPENSION FULL FLOATING<W16> (A)	8-98141-345-0	01	1	1302-1505	●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BUMPER W/HEADLAMPS<SLB> CAB SUSPENSION FULL FLOATING<W16> (A)	8-98141-345-0	01	1	1506-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1302-1505	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1302-1505		●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1506-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1506-		●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1302-1505	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1302-1505		●
98	TUBE; NYLON 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1506-	●
98	TUBE; NYLON 6HK1-TCS ENG(80L) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1506-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1302-	●	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	1302-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	1302-	●	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	03	1	1512-	●
117	TUBE; CORRUGATE 4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. ANTI LOCK BRAKE<JE5> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 4HK1-TCS ENG(RJS) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1512-		●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. IRAN EQUIPMENT(D8T),H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1512-		●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	1302-	●	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) IRAN EQUIPMENT(D8T) BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	02	1	1512-	●
117	TUBE; CORRUGATE 6HK1-TCS ENG(80L) SERVICED BY L=2000 ID=15	1-87411-025-0	02	1	1512-		●
145	PLUG PT1/4	9-99204-513-0	01	1	1302-	●	●
149	BOLT; UNION 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X100 FLANGE	0-28050-800-0	01	1	1302-1304	●
149	BOLT; UNION 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X100 FLANGE	0-28050-800-0	01	1	1305-	●
171	NUT; BRACKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-1505	●
171	NUT; BRACKET 6HK1-TCS ENG(80L) M10 FLANGE	0-91180-210-0	02	1	1302-1505		●
171	NUT; BRACKET 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91180-210-0	02	1	1506-	●
171	NUT; BRACKET 6HK1-TCS ENG(80L) M10 FLANGE	0-91180-210-0	02	1	1506-		●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1302-	●	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
