◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#113999) — 37 parça

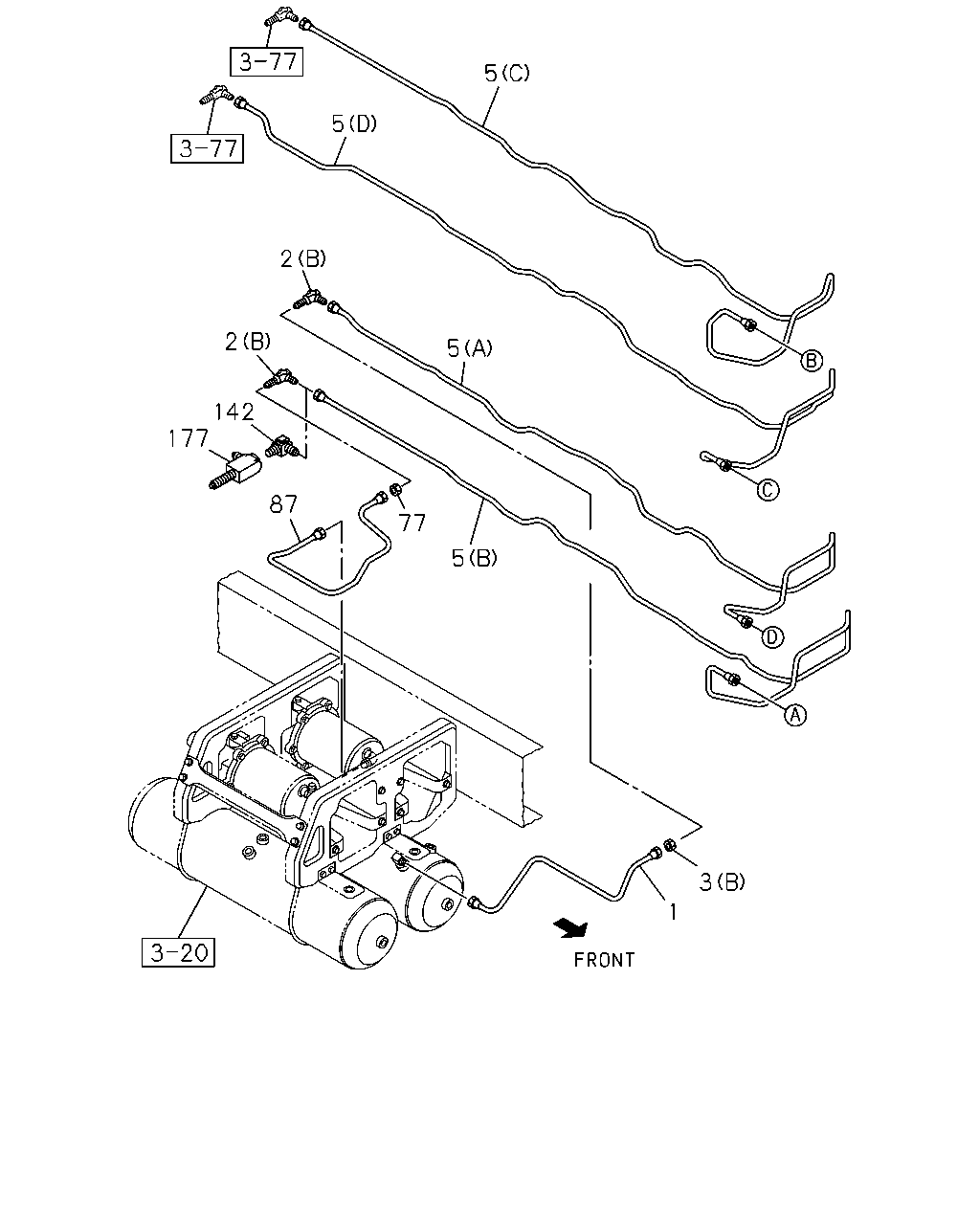

çizim 328102
1 3 5 77 87 177 142 2 2 5 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=580 SERVICED BY L=600 		1-47428-868-0 01 1 1302- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1302- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1302- ●
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1302- ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1302- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1302- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2975 SERVICED BY L=3300 		1-47428-886-0 01 1 1302- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2497 		8-98111-224-1 01 1 1302- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2804 		8-98111-242-1 01 1 1302- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2919 		8-98111-246-0 01 1 1302- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3108 SERVICED BY L=3300 		1-47428-886-0 01 1 1302- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2935 		8-98116-778-1 01 1 1302- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3085 		8-98116-824-0 01 1 1302- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2637 		8-98148-096-1 01 1 1302- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1302- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=745 SERVICED BY L=800 		1-47428-872-0 01 1 1302- ● ●
142 UNION; 3-WAY
TRAILER BRAKE CONTROL<J91> 		1-09656-561-1 01 1 1302- ●
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1302- ●

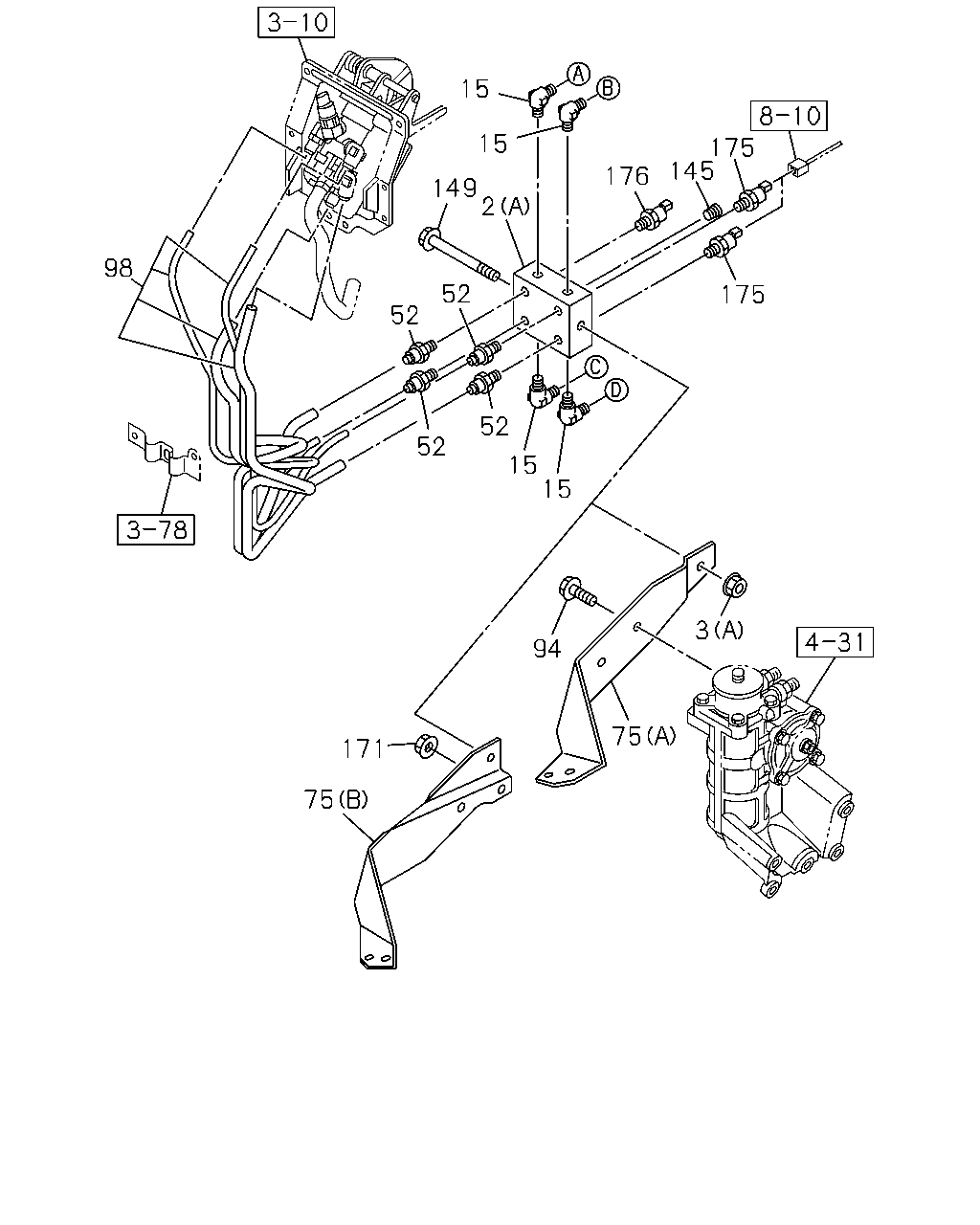

çizim 328348
15 15 176 145 175 175 149 52 52 52 52 15 15 75 94 3 171 75 98 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1302- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1302- ●
2 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1302- ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1302- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1302- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1302- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1302- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1302- ● ●
75 BRACKET; UNION
(A) 		8-98066-785-0 01 1 1302- ●
75 BRACKET; UNION
(B) 		8-98078-734-0 01 1 1302- ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1302- ●
98 TUBE; NYLON 8-98079-175-0 01 1 1302- ●
98 TUBE; NYLON 8-98079-122-0 01 1 1302- ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1302- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1302- ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 1302- ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1302- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1302- ● ●
