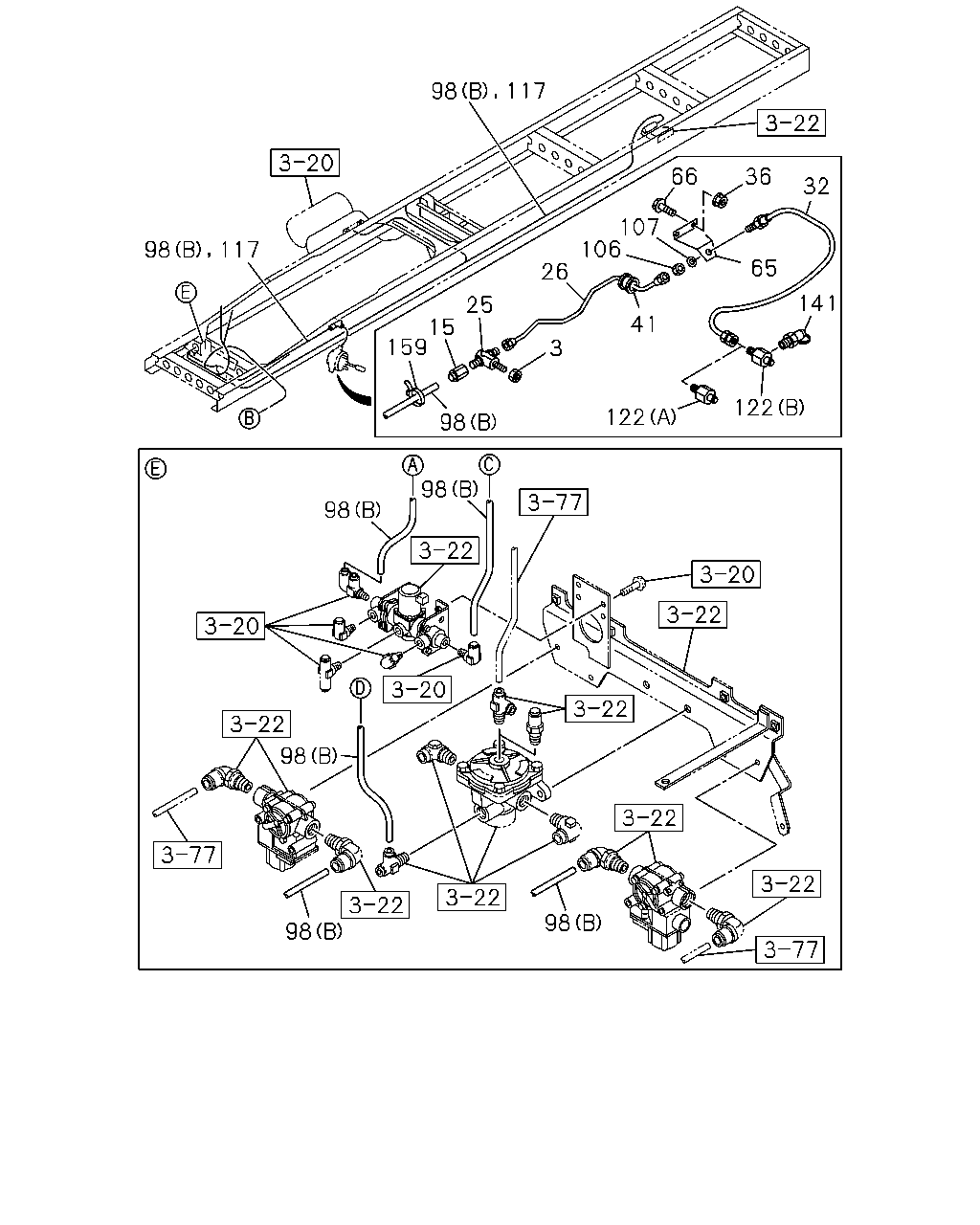

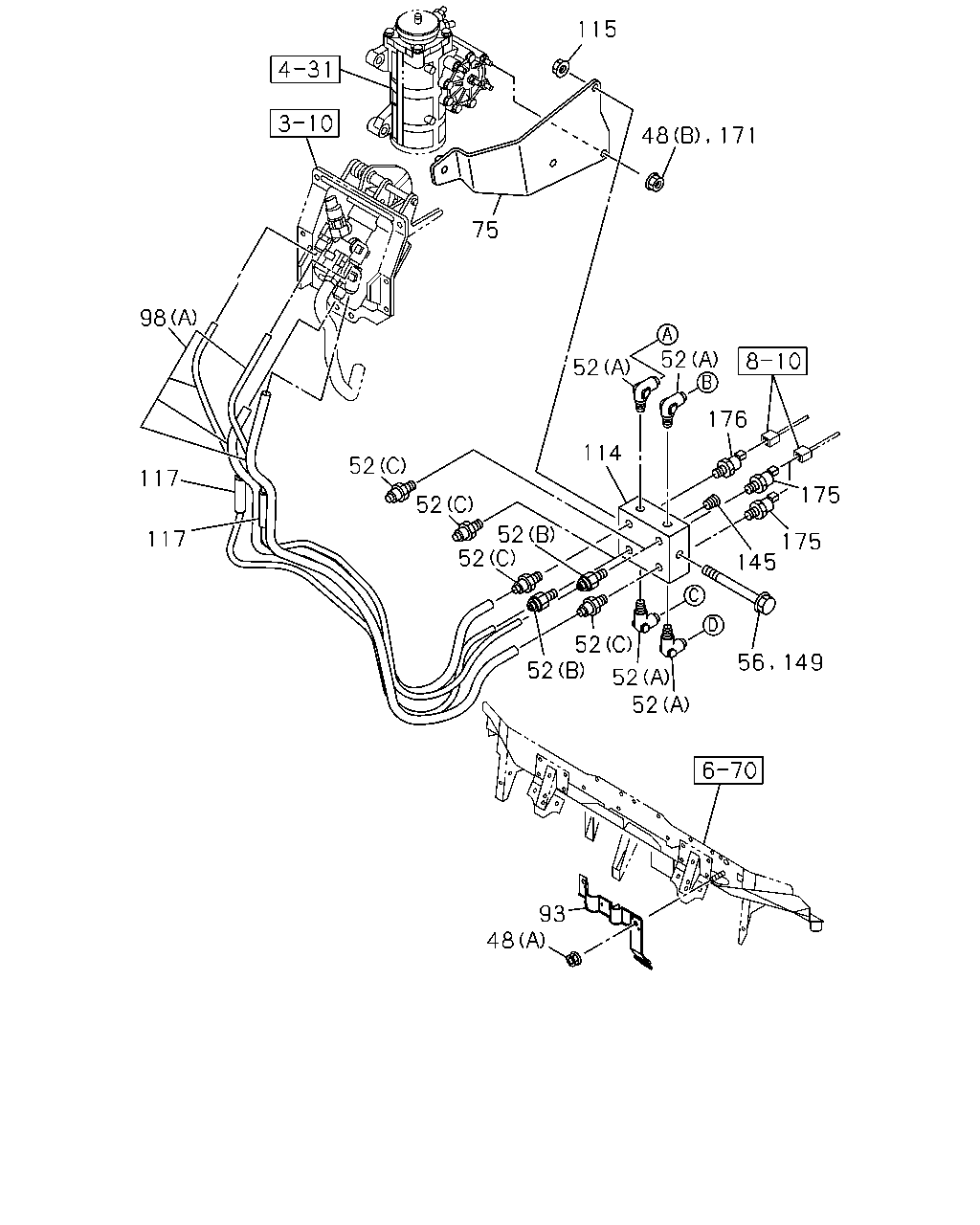

3-75 — BRAKE PIPING; AIR,FRONT (#113998) — 92 parça

98 117 117 98 159 15 25 26 106 107 66 36 65 122 141 41 3 98 122 98 98 98 98 98 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; PIPE UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	0-91111-512-0	02	1	1302-
15	CONNECTOR; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1302-
25	UNION; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X2 2WAY ELBOW	1-09654-148-1	02	1	1302-
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	8-98091-274-1	01	1	1302-
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=657	8-98126-150-1	01	1	1302-
32	HOSE; FLEX,FRT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98090-844-0	02	1	1302-
36	NUT; HOSE BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	1302-
41	GROMMET; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	1302-
65	BRACKET; FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-210-0	01	1	1302-
65	BRACKET; FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-211-0	01	1	1302-
66	BOLT; HOSE BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	04	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1302-
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-120-0	01	1	1302-
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98158-188-0	01	1	1302-
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1302-
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1302-
106	NUT; FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	1302-
107	WASHER; LK,FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	02	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	1302-
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-
122	CONNECTOR; FLEX HOSE BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1302-
141	CONNECTOR; TEST BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1302-
159	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	02	1	1302-
159	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	01	1	1302-

115 48 171 75 98 117 117 52 52 52 176 114 175 175 145 56 149 52 52 52 52 52 52 52 93 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	NUT; UNION BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M6 FLANGE	0-91180-106-0	02	1	1302-
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	1302-
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1302-
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1302-
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	1302-
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1302-
56	BOLT; UNION BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X100 FLANGE	0-28050-800-0	01	1	1302-
75	BRACKET; UNION 6HK1-TCN ENG(82L)	8-98126-944-0	01	1	1302-1304
75	BRACKET; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98126-944-0	01	1	1305-
75	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98126-944-0	01	1	1305-
93	BRACKET; UNION,TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98112-515-1	01	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1302-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1302-
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BUMPER W/HEADLAMPS<SLB> (A)	8-98146-120-0	01	1	1302-
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98158-188-0	01	1	1302-
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> BUMPER W/HEADLAMPS<SLB> (A)	8-98146-119-0	01	1	1302-
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. BUMPER W/HEADLAMPS<SLB> (A)	8-98212-544-0	01	1	1302-
114	UNION; NYLON TUBE 6HK1-TCN ENG(82L)	8-98057-394-1	01	1	1302-1304
114	UNION; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98057-394-1	01	1	1305-
114	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98057-394-1	01	1	1305-
115	NUT; TUBE UNION 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1302-1304
115	NUT; TUBE UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	1305-
115	NUT; TUBE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1305-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1302-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	1302-
145	PLUG 6HK1-TCN ENG(82L) PT1/4	9-99204-513-0	01	1	1302-1304
145	PLUG 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4	9-99204-513-0	01	1	1305-
145	PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4	9-99204-513-0	01	1	1305-
149	BOLT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X100 FLANGE	0-28050-800-0	01	1	1302-
171	NUT; BRACKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1302-
175	SENSOR; AIR PRESS 6HK1-TCN ENG(82L) THREAD R1/4	1-80220-023-1	02	1	1302-1304
175	SENSOR; AIR PRESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) THREAD R1/4	1-80220-023-1	02	1	1305-
175	SENSOR; AIR PRESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) THREAD R1/4	1-80220-023-1	02	1	1305-
176	SWITCH; AIR PRESS 6HK1-TCN ENG(82L) STAMP 0.3	8-98010-857-0	01	1	1302-1304
176	SWITCH; AIR PRESS 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 0.3	8-98010-857-0	01	1	1305-
176	SWITCH; AIR PRESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 0.3	8-98010-857-0	01	1	1305-
