3-75 — BRAKE PIPING; AIR,FRONT (#113997) — 120 parça

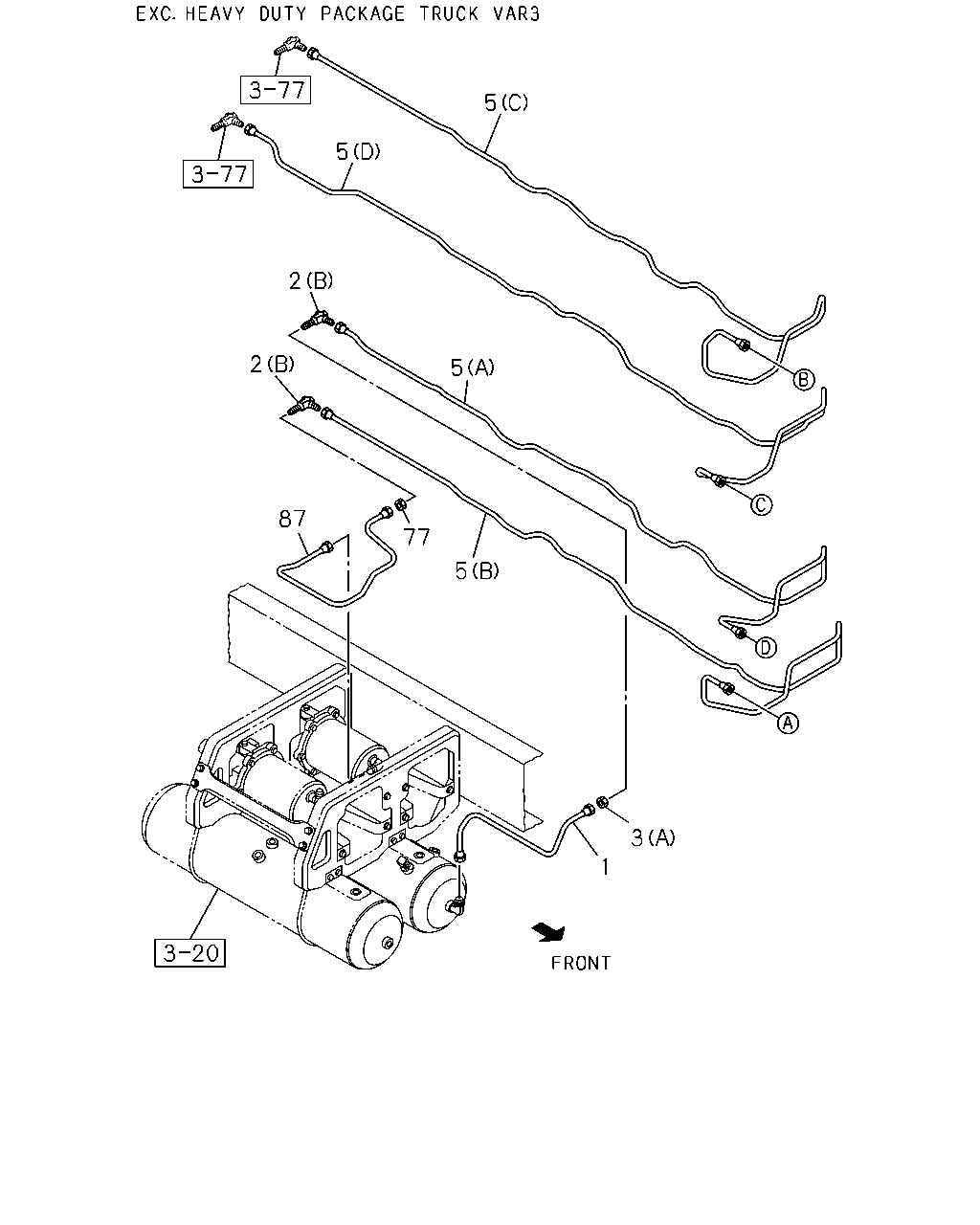

2 2 5 5 5 5 87 3 1 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=300	8-98190-601-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=279	8-98213-359-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=643 SERVICED BY L=660	1-47428-869-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=578 SERVICED BY L=600	1-47428-868-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=440	8-98163-932-0	01	1	1302-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1302-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1302-
3	NUT; PIPE UNION (A) M16	0-91111-516-0	01	1	1302-
3	NUT; PIPE UNION (B) M8 FLANGE	0-91180-108-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2506 SERVICED BY L=2600	1-47428-884-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2807 SERVICED BY L=2900	1-47428-885-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2969 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2915 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2624 SERVICED BY L=2900	1-47428-885-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2633 SERVICED BY L=2900	1-47428-885-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3028 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3070 SERVICED BY L=3300	1-47428-886-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3079 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3091 SERVICED BY L=3300	1-47428-886-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3058 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3027 SERVICED BY L=3300	1-47428-886-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2486 SERVICED BY L=2500	1-47428-883-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2788 SERVICED BY L=2900	1-47428-885-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2946 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2910 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2587 SERVICED BY L=2600	1-47428-884-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2740 SERVICED BY L=2900	1-47428-885-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2964 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2905 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP> L=813 SERVICED BY L=900	1-47428-873-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> L=801 SERVICED BY L=900	1-47428-873-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=865 SERVICED BY L=900	1-47428-873-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=712 SERVICED BY L=730	1-47428-871-0	01	1	1302-

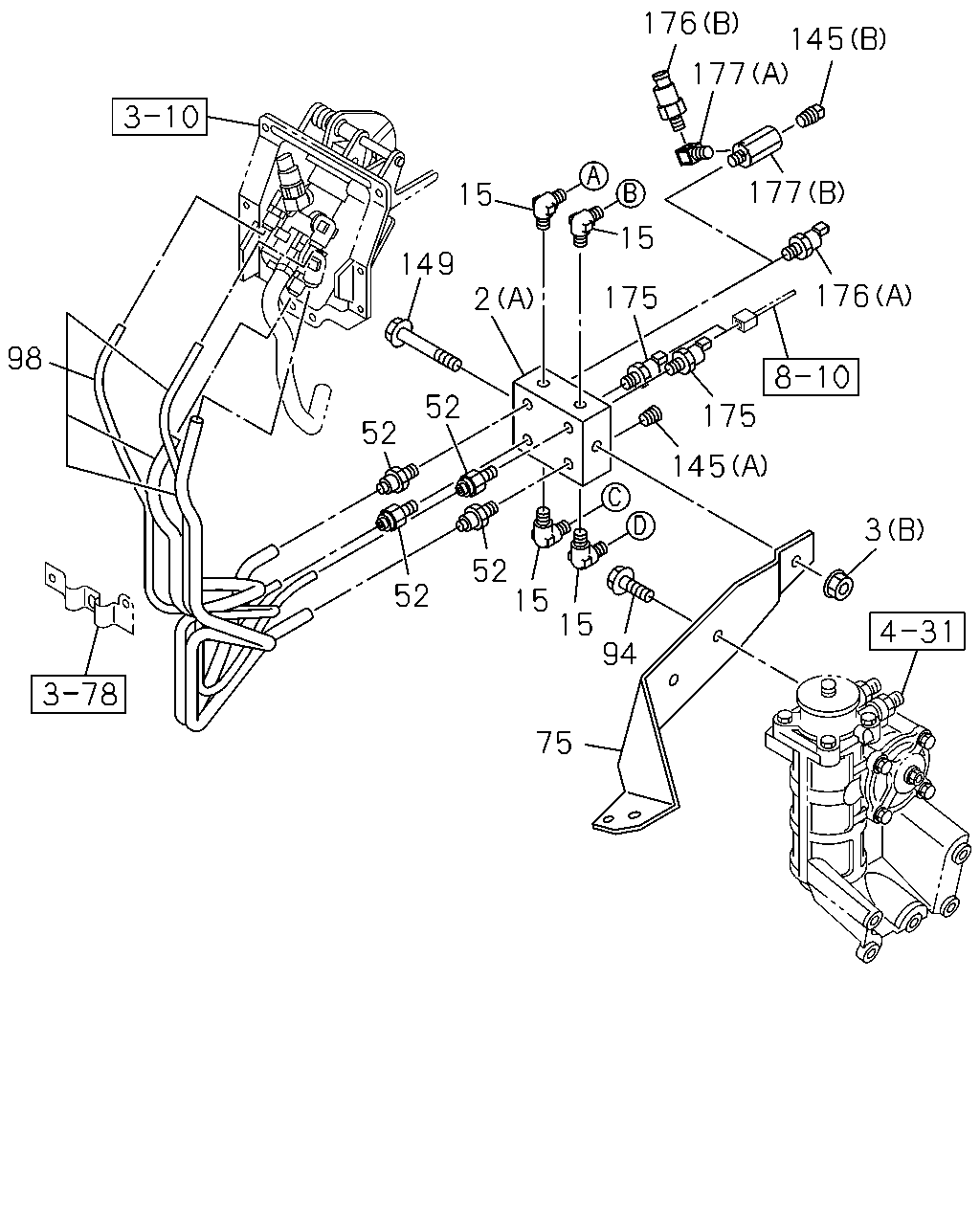

176 145 177 177 176 15 175 175 145 3 15 2 149 52 52 52 15 15 94 75 52 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1302-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1302-
3	NUT; PIPE UNION (A) M16	0-91111-516-0	01	1	1302-
3	NUT; PIPE UNION (B) M8 FLANGE	0-91180-108-0	01	1	1302-
15	CONNECTOR; AIR PIPE M16 & PT1/4 ELBOW	0-92134-310-0	04	1	1302-
52	CONNECTOR; NYLON TUBE DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1302-
75	BRACKET; UNION	8-98066-785-0	01	1	1302-
94	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	1302-
98	TUBE; NYLON 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98079-175-0	01	1	1302-
98	TUBE; NYLON 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98079-179-0	01	1	1302-
98	TUBE; NYLON 6HK1-TCN ENG(82L)	8-98079-179-0	01	1	1302-
145	PLUG (A) PT1/4	9-99204-513-0	01	1	1302-
145	PLUG H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/2	9-09204-521-0	01	1	1302-
149	BOLT; UNION M8X100 FLANGE	0-28050-800-0	01	1	1302-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1302-
176	SWITCH; AIR PRESS (A) STAMP 0.3	8-98010-857-0	01	1	1302-
176	SWITCH; AIR PRESS H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) STAMP 0.7	8-97622-710-0	01	1	1302-
177	CONNECTOR H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 2WAY	1-09660-693-0	01	1	1302-
177	CONNECTOR H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98134-010-0	01	1	1302-

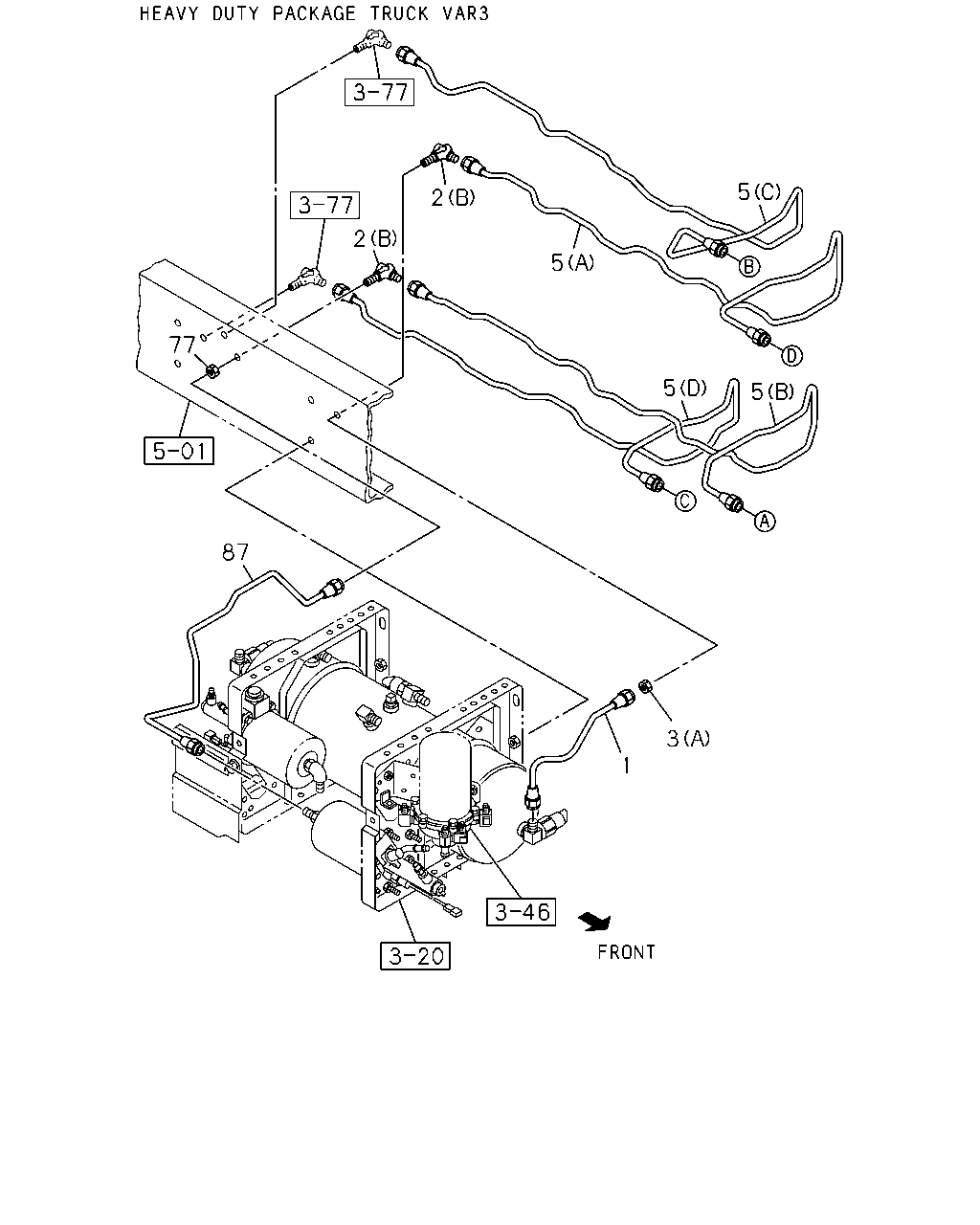

87 2 2 5 5 5 77 5 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=300	8-98190-601-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=279	8-98213-359-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=643 SERVICED BY L=660	1-47428-869-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=578 SERVICED BY L=600	1-47428-868-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=440	8-98163-932-0	01	1	1302-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1302-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1302-
3	NUT; PIPE UNION (A) M16	0-91111-516-0	01	1	1302-
3	NUT; PIPE UNION (B) M8 FLANGE	0-91180-108-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2506 SERVICED BY L=2600	1-47428-884-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2807 SERVICED BY L=2900	1-47428-885-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2969 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2915 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2624 SERVICED BY L=2900	1-47428-885-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2633 SERVICED BY L=2900	1-47428-885-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3028 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3070 SERVICED BY L=3300	1-47428-886-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3079 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3091 SERVICED BY L=3300	1-47428-886-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3058 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3027 SERVICED BY L=3300	1-47428-886-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2486 SERVICED BY L=2500	1-47428-883-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2788 SERVICED BY L=2900	1-47428-885-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2946 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2910 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2587 SERVICED BY L=2600	1-47428-884-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2740 SERVICED BY L=2900	1-47428-885-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2964 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2905 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP> L=813 SERVICED BY L=900	1-47428-873-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> L=801 SERVICED BY L=900	1-47428-873-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=865 SERVICED BY L=900	1-47428-873-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=712 SERVICED BY L=730	1-47428-871-0	01	1	1302-

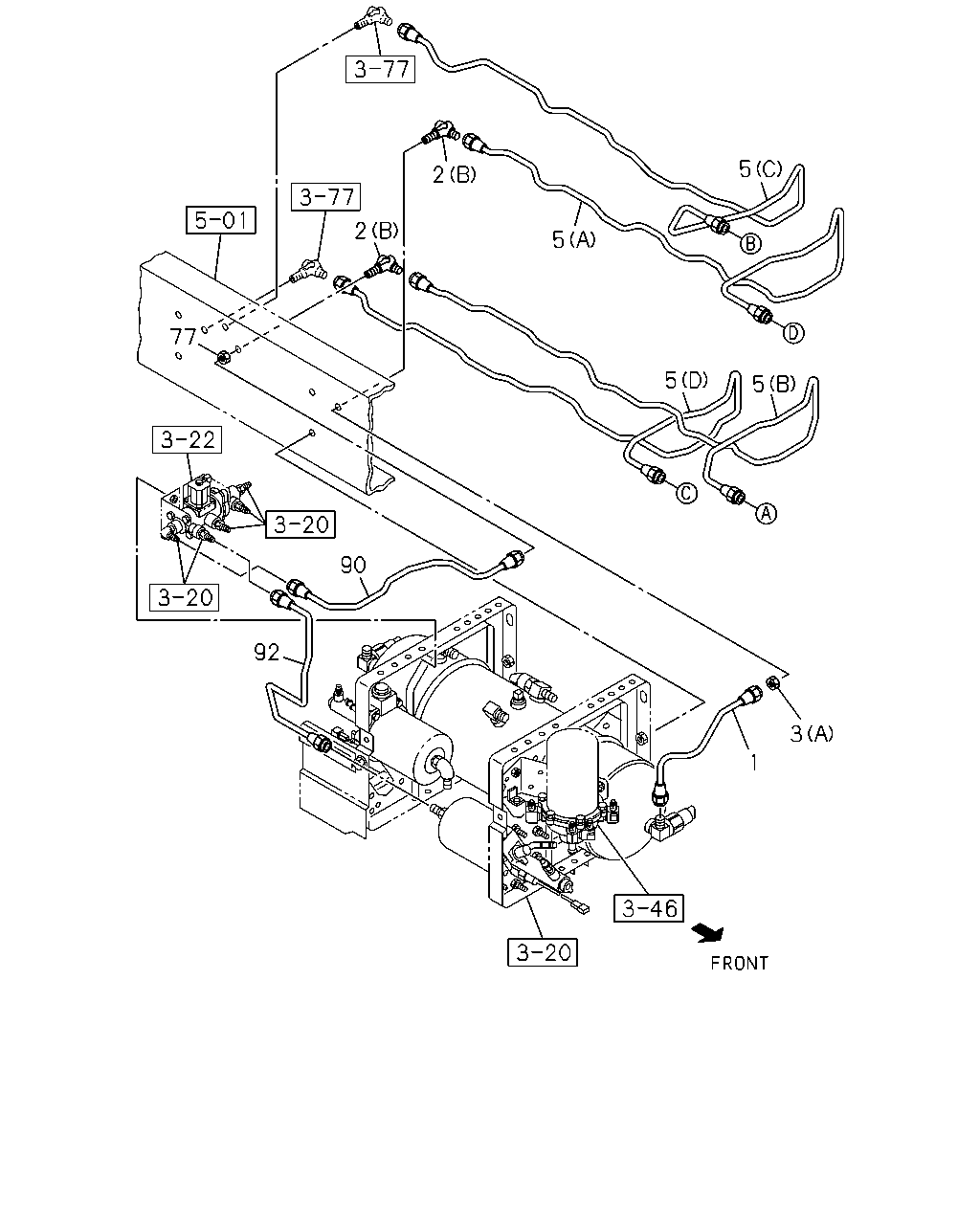

2 5 5 5 5 2 77 90 92 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=300	8-98190-601-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=279	8-98213-359-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=643 SERVICED BY L=660	1-47428-869-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=578 SERVICED BY L=600	1-47428-868-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=440	8-98163-932-0	01	1	1302-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1302-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1302-
3	NUT; PIPE UNION (A) M16	0-91111-516-0	01	1	1302-
3	NUT; PIPE UNION (B) M8 FLANGE	0-91180-108-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2506 SERVICED BY L=2600	1-47428-884-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2807 SERVICED BY L=2900	1-47428-885-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2969 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2915 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2624 SERVICED BY L=2900	1-47428-885-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2633 SERVICED BY L=2900	1-47428-885-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3028 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3070 SERVICED BY L=3300	1-47428-886-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3079 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3091 SERVICED BY L=3300	1-47428-886-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3058 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1404
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3027 SERVICED BY L=3300	1-47428-886-0	01	1	1405-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2486 SERVICED BY L=2500	1-47428-883-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2788 SERVICED BY L=2900	1-47428-885-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2946 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2910 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2587 SERVICED BY L=2600	1-47428-884-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=2740 SERVICED BY L=2900	1-47428-885-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=2964 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=2905 SERVICED BY L=3300	1-47428-886-0	01	1	1302-
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	1302-
90	PIPE; AIR,UNION TO HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=556 SERVICED BY L=600	1-47428-868-0	01	1	1302-
90	PIPE; AIR,UNION TO HSA VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=493	8-98077-878-0	01	1	1302-
92	PIPE; AIR,HSA VLV TO AIR MASTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=494	8-98212-631-0	01	1	1302-
