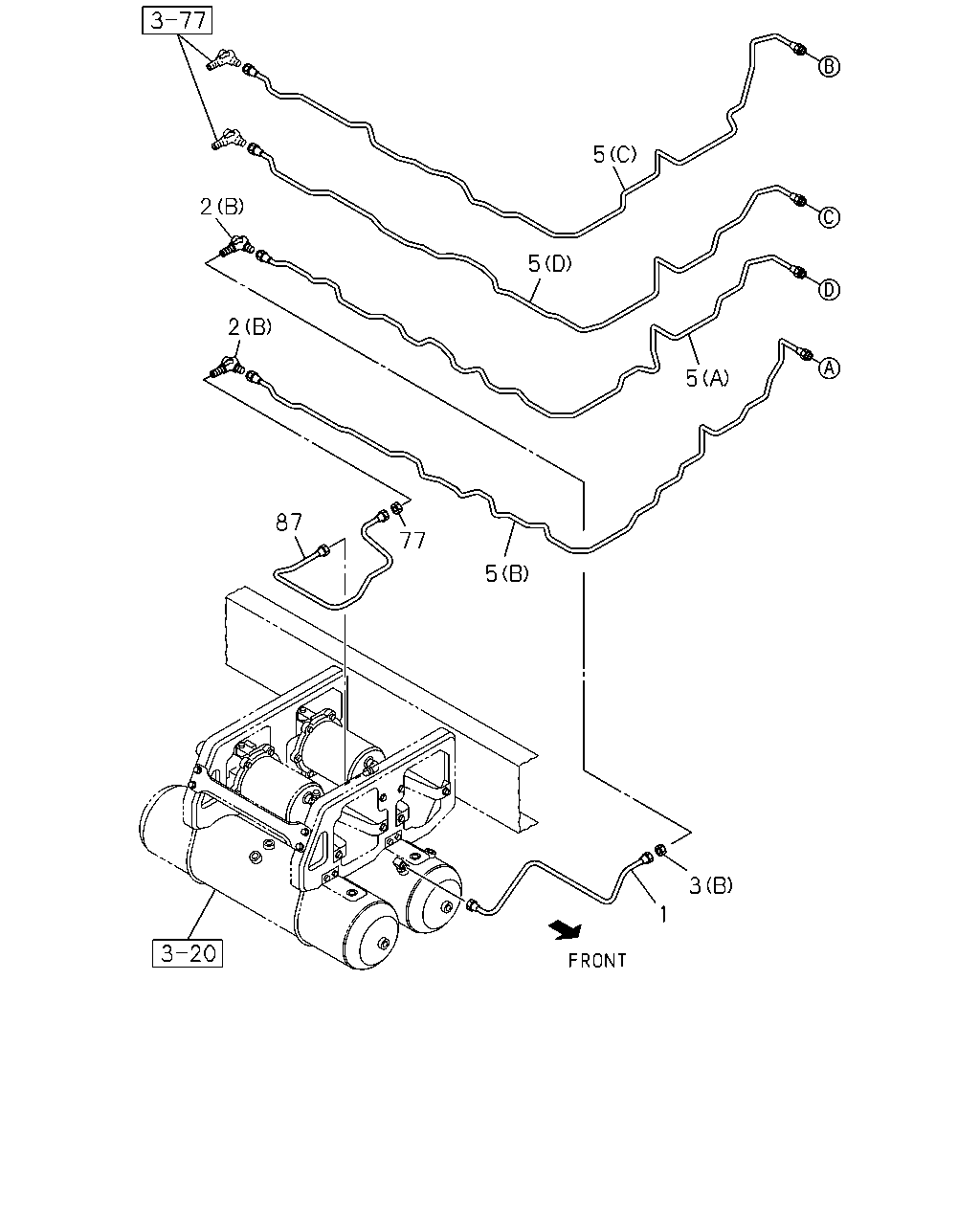

3-75 — BRAKE PIPING; AIR,FRONT (#113996) — 26 parça

1 3 5 77 87 2 2 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION L=580 SERVICED BY L=600	1-47428-868-0	01	1	1302-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1302-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1302-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1302-
3	NUT; PIPE UNION (B) M16	0-91111-516-0	01	1	1302-
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION (A) L=3391	8-98149-207-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION (B) L=3487	8-98149-208-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION (C) L=3485	8-98149-209-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION (D) L=3073	8-98149-210-0	01	1	1302-
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER L=745 SERVICED BY L=800	1-47428-872-0	01	1	1302-

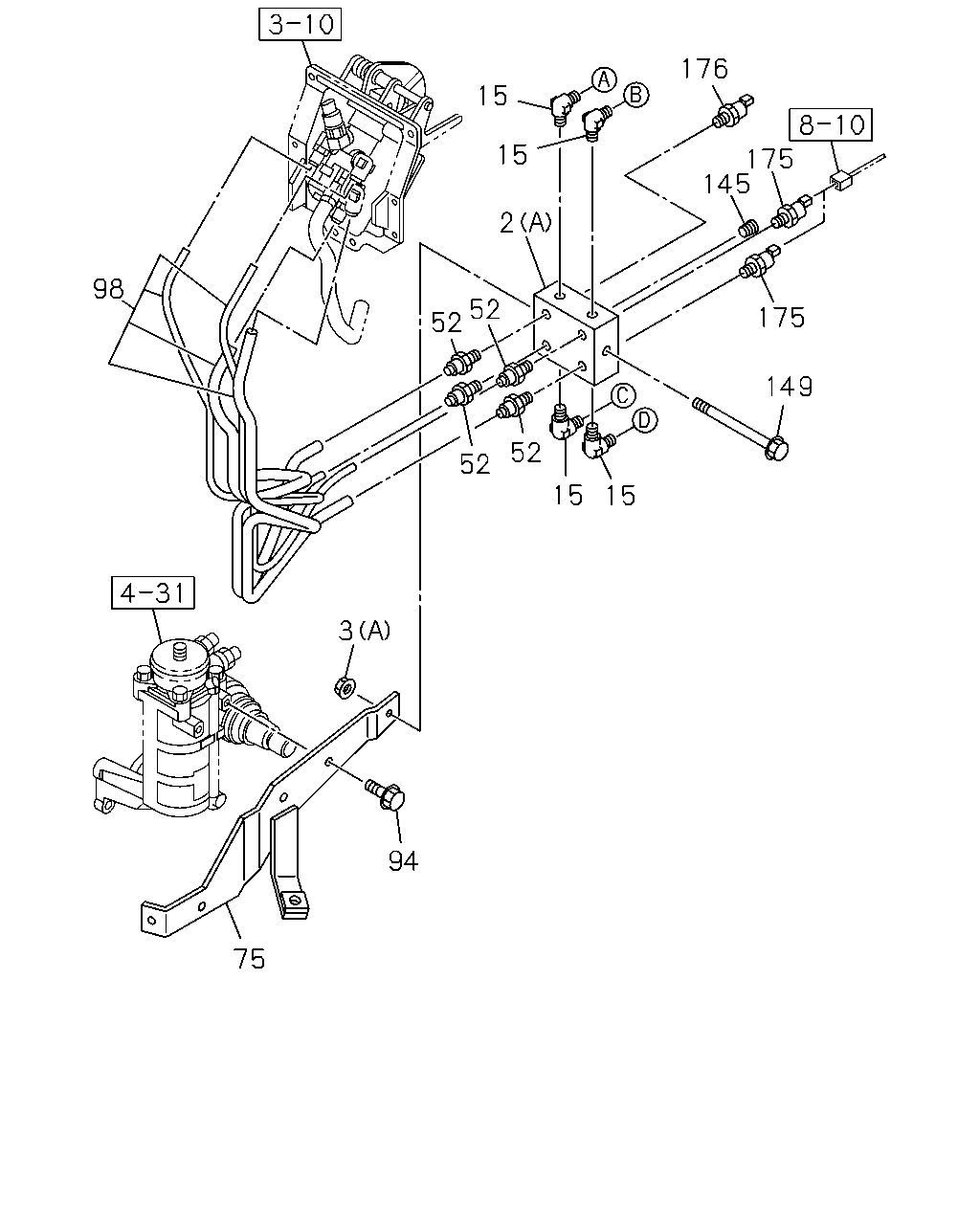

15 176 175 145 175 149 15 15 52 52 15 2 52 52 98 3 94 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1302-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1302-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1302-
3	NUT; PIPE UNION (B) M16	0-91111-516-0	01	1	1302-
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	1302-
15	CONNECTOR; AIR PIPE M16 & PT1/4 ELBOW	0-92134-310-0	04	1	1302-
52	CONNECTOR; NYLON TUBE DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1302-
75	BRACKET; UNION	8-98128-543-0	01	1	1302-
94	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	1302-
98	TUBE; NYLON	8-98124-954-1	01	1	1302-
145	PLUG PT1/4	9-99204-513-0	01	1	1302-
149	BOLT; UNION M8X100 FLANGE	0-28050-800-0	01	1	1302-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1302-
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1302-
