Isuzu WW
▶
TRUCKS
▶
FVM
▶
11516 - FVM(RHD)
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#113995) — 48 parça
◀

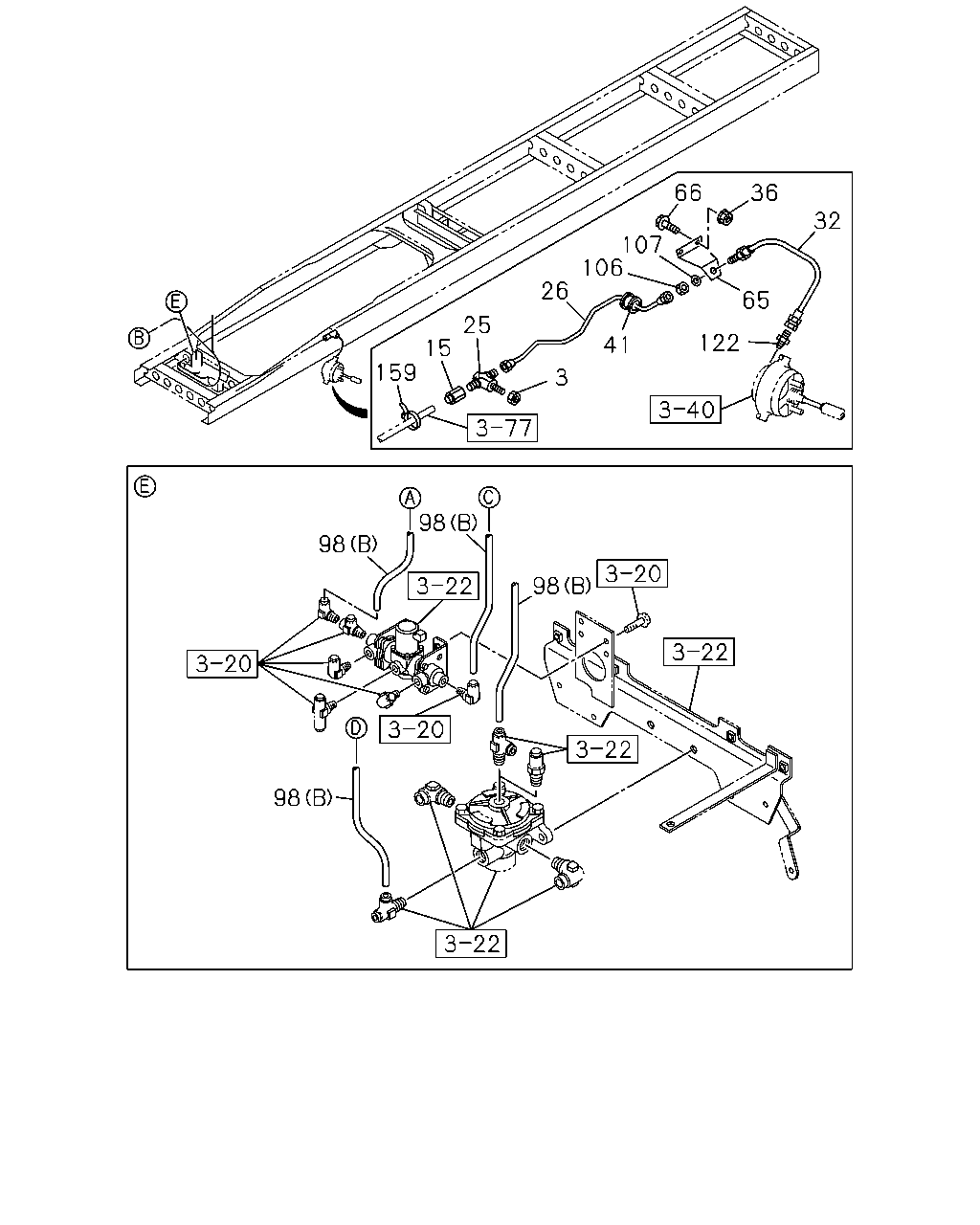

[375A] FRAME SIDE (22 parça)

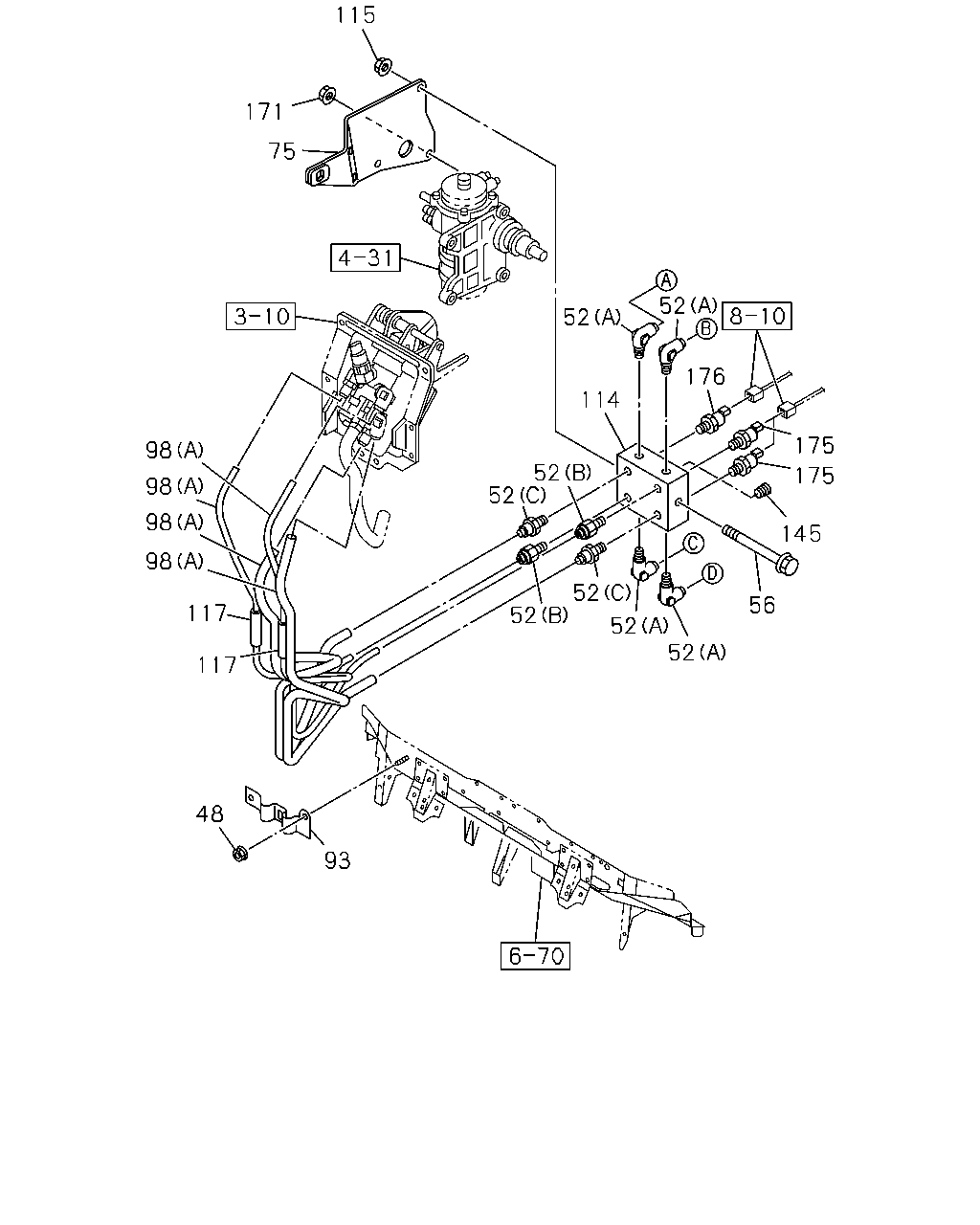

[375A] CAB UNDER (26 parça)
▶
159
15
25
26
106
107
66
36
32
65
122
41
3
98
98
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
NUT; PIPE UNION
M12
0-91111-512-0
02
1
1302-
15
CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1302-
25
UNION; AIR PIPE
M16X2 2WAY ELBOW
1-09654-148-1
02
1
1302-
26
PIPE; AIR,UNION TO FLEX HOSE
L=500
8-98091-274-1
01
1
1302-
26
PIPE; AIR,UNION TO FLEX HOSE
L=657
8-98126-150-1
01
1
1302-
32
HOSE; FLEX,FRT
8-98090-844-0
02
1
1302-
36
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
04
1
1302-
41
GROMMET; AIR PIPE
ID=28 OD=35 T=25
1-09332-011-1
02
1
1302-
65
BRACKET; FLEX HOSE
1-47476-210-0
01
1
1302-
65
BRACKET; FLEX HOSE
1-47476-211-0
01
1
1302-
66
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
04
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1302-
98
TUBE; NYLON
(A)
8-98212-543-0
01
1
1302-
106
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
1302-
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-816-0
02
1
1302-
122
CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT
1-09650-179-1
02
1
1302-
159
CLIP; NYLON TUBE
L=350
1-09707-183-0
01
1
1302-
115
171
75
52
52
114
176
175
175
145
56
52
52
52
52
52
52
98
98
98
98
117
117
48
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
NUT; UNION BRKT
M6 FLANGE
0-91180-106-0
02
1
1302-
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
04
1
1302-
52
CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
1302-
52
CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
02
1
1302-
56
BOLT; UNION BRKT
M8X100 FLANGE
0-28050-800-0
01
1
1302-
75
BRACKET; UNION
8-98099-485-1
01
1
1302-
93
BRACKET; UNION,TUBE
8-98044-013-0
01
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1302-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1302-
98
TUBE; NYLON
(A)
8-98212-543-0
01
1
1302-
114
UNION; NYLON TUBE
8-98057-394-1
01
1
1302-
115
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
01
1
1302-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1302-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1302-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87411-025-0
AR
1
1302-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
1302-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1302-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=28
1-87411-034-0
AR
1
1302-
145
PLUG
PT1/4
9-99204-513-0
01
1
1302-
171
NUT; BRACKET
M10 FLANGE
0-91180-210-0
02
1
1302-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1302-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1302-
