◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#113993) — 84 parça

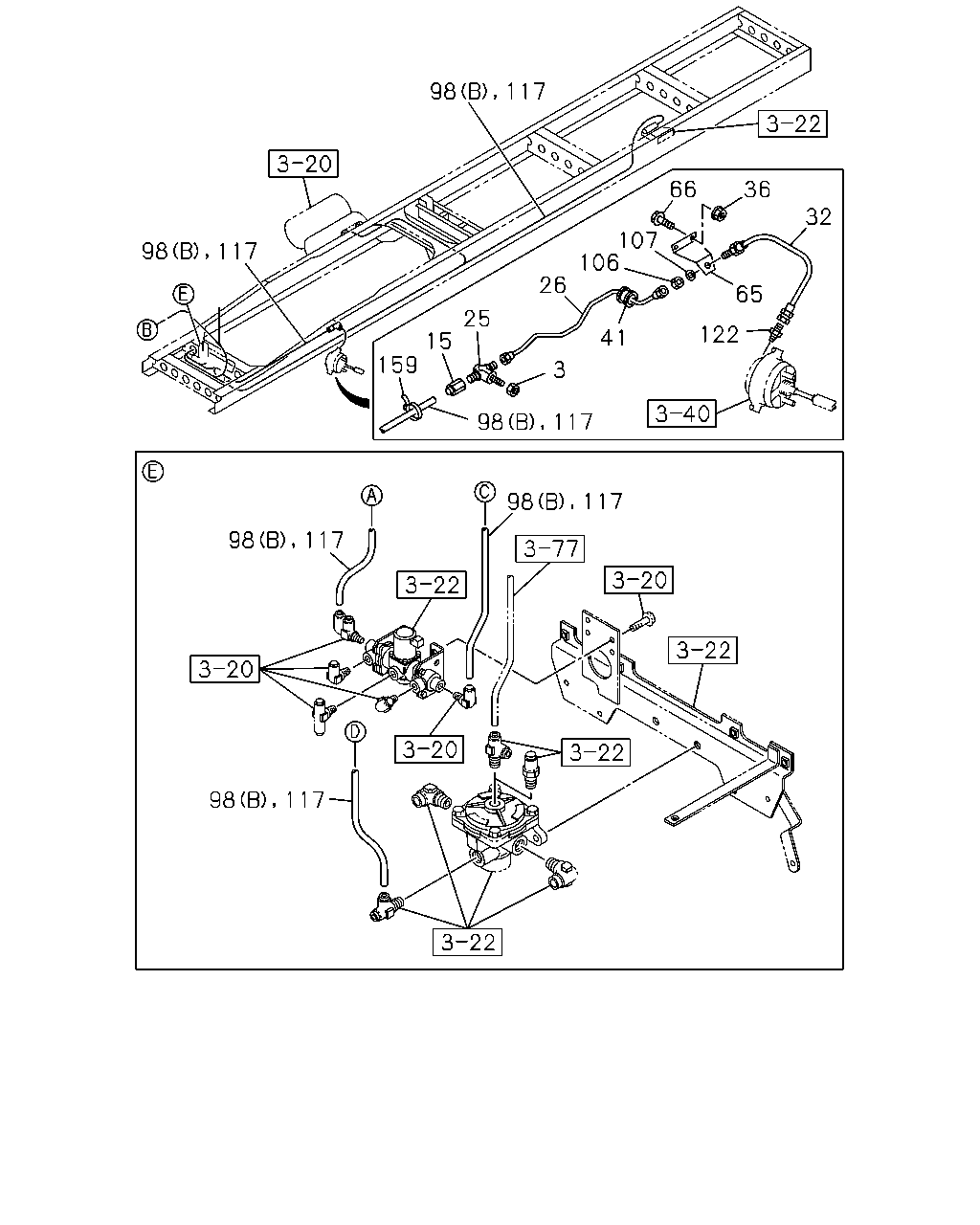

çizim 328134
98 117 98 117 36 66 32 65 122 107 106 26 41 25 15 159 3 98 117 98 117 98 117 98 117
BalonParca AdiParca NoAdetTipApplied Date
3 NUT; PIPE UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		0-91111-512-0 02 1 1302-
15 CONNECTOR; AIR PIPE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1302-
25 UNION; AIR PIPE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X2 2WAY ELBOW 		1-09654-148-1 02 1 1302-
26 PIPE; AIR,UNION TO FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500 		8-98091-274-1 01 1 1302-
26 PIPE; AIR,UNION TO FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=657 		8-98126-150-1 01 1 1302-
32 HOSE; FLEX,FRT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98090-844-0 02 1 1302-
36 NUT; HOSE BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 04 1 1302-
41 GROMMET; AIR PIPE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1302-
65 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47476-210-0 01 1 1302-
65 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47476-211-0 01 1 1302-
66 BOLT; HOSE BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 04 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1302-
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98139-141-0 01 1 1302-
98 TUBE; NYLON
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98212-543-0 01 1 1302-
106 NUT; FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 02 1 1302-
107 WASHER; LK,FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 02 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 1302-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=32 		1-87411-036-0 AR 1 1302-
117 TUBE; CORRUGATE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15 		1-87411-025-0 03 1 1302-
117 TUBE; CORRUGATE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19 		1-87411-027-0 02 1 1302-
117 TUBE; CORRUGATE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15 		1-87411-025-0 05 1 1302-
117 TUBE; CORRUGATE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19 		1-87411-027-0 01 1 1302-1304
117 TUBE; CORRUGATE
4HK1-TCS ENG(RJS) SERVICED BY L=2000 ID=19 		1-87411-027-0 01 1 1305-
117 TUBE; CORRUGATE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19 		1-87411-027-0 01 1 1305-
117 TUBE; CORRUGATE
6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1302-
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 1302-
159 CLIP; NYLON TUBE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350 		1-09707-183-0 01 1 1302-

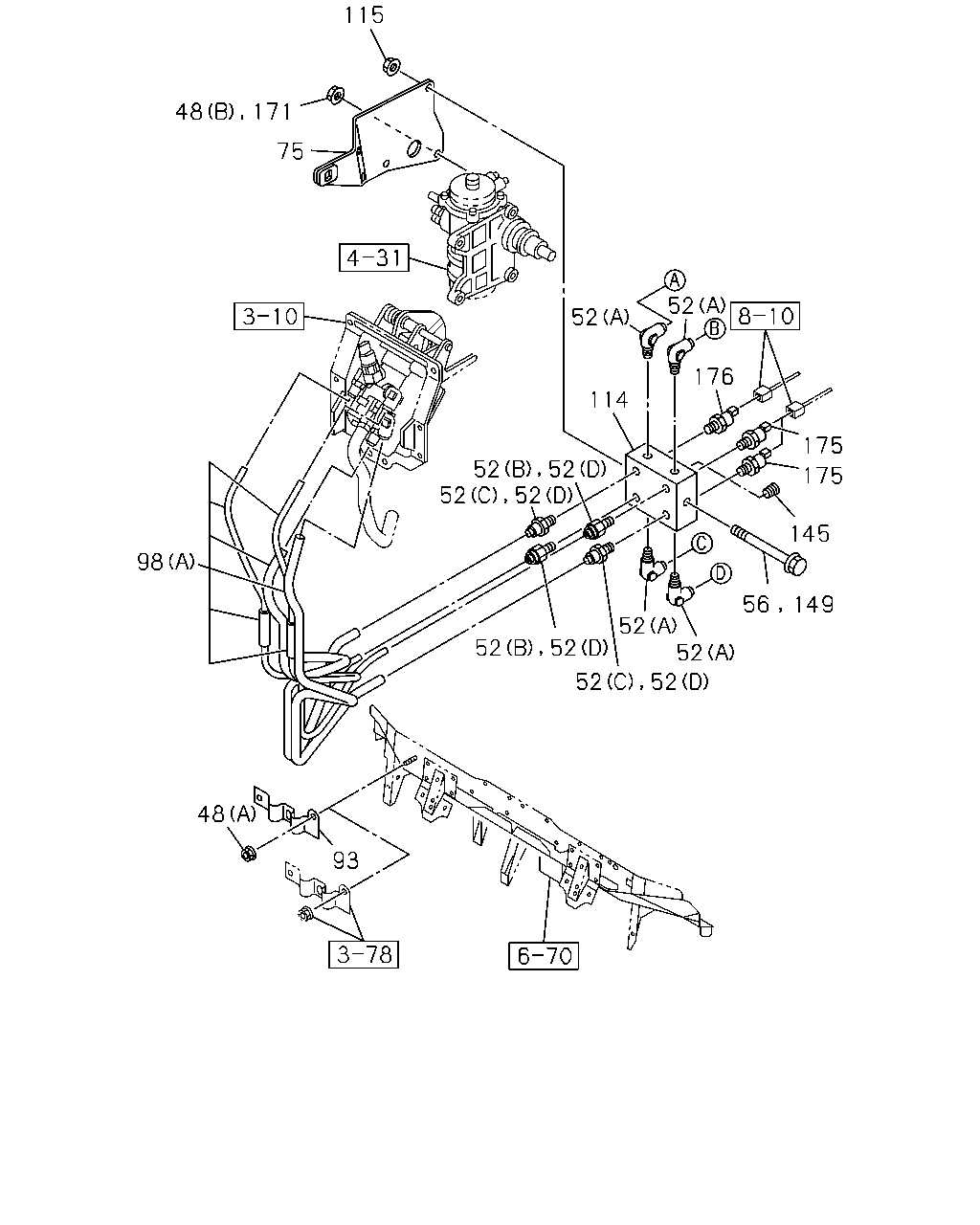

çizim 328388
93 48 98 52 52 52 52 52 52 149 145 175 175 56 176 52 52 114 52 52 52 52 75 171 115 48
BalonParca AdiParca NoAdetTipApplied Date
48 NUT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE 		0-91180-210-0 02 1 1302-1304
48 NUT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE 		0-91180-210-0 02 1 1305-
48 NUT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M6 FLANGE 		0-91180-106-0 02 1 1302-
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 04 1 1302-
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1302-
52 CONNECTOR; NYLON TUBE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 1302-
52 CONNECTOR; NYLON TUBE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 1302-
52 CONNECTOR; NYLON TUBE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1302-
56 BOLT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X100 FLANGE 		0-28050-800-0 01 1 1302-
75 BRACKET; UNION
6HK1-TCN ENG(82L) 		8-98099-485-1 01 1 1302-1304
75 BRACKET; UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98099-485-1 01 1 1305-
75 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98099-485-1 01 1 1305-
93 BRACKET; UNION,TUBE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98044-013-0 01 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1302-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1302-
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98139-141-0 01 1 1302-
98 TUBE; NYLON
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98212-543-0 01 1 1302-
114 UNION; NYLON TUBE
6HK1-TCN ENG(82L) 		8-98057-394-1 01 1 1302-1304
114 UNION; NYLON TUBE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98057-394-1 01 1 1305-
114 UNION; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98057-394-1 01 1 1305-
115 NUT; TUBE UNION
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1302-1304
115 NUT; TUBE UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 01 1 1305-
115 NUT; TUBE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 1305-
145 PLUG
6HK1-TCN ENG(82L) PT1/4 		9-99204-513-0 01 1 1302-1304
145 PLUG
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4 		9-99204-513-0 01 1 1305-
145 PLUG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4 		9-99204-513-0 01 1 1305-
149 BOLT; UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X100 FLANGE 		0-28050-800-0 01 1 1302-1304
149 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X100 FLANGE 		0-28050-800-0 01 1 1305-
171 NUT; BRACKET
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91180-210-0 02 1 1302-
175 SENSOR; AIR PRESS
6HK1-TCN ENG(82L) THREAD R1/4 		1-80220-023-1 02 1 1302-1304
175 SENSOR; AIR PRESS
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) THREAD R1/4 		1-80220-023-1 02 1 1305-
175 SENSOR; AIR PRESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) THREAD R1/4 		1-80220-023-1 02 1 1305-
176 SWITCH; AIR PRESS
6HK1-TCN ENG(82L) STAMP 0.3 		8-98010-857-0 01 1 1302-1304
176 SWITCH; AIR PRESS
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 0.3 		8-98010-857-0 01 1 1305-
176 SWITCH; AIR PRESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 0.3 		8-98010-857-0 01 1 1305-
