3-70 — BRAKE PIPING; AIR,AIR MASTER (#113992) — 70 parça

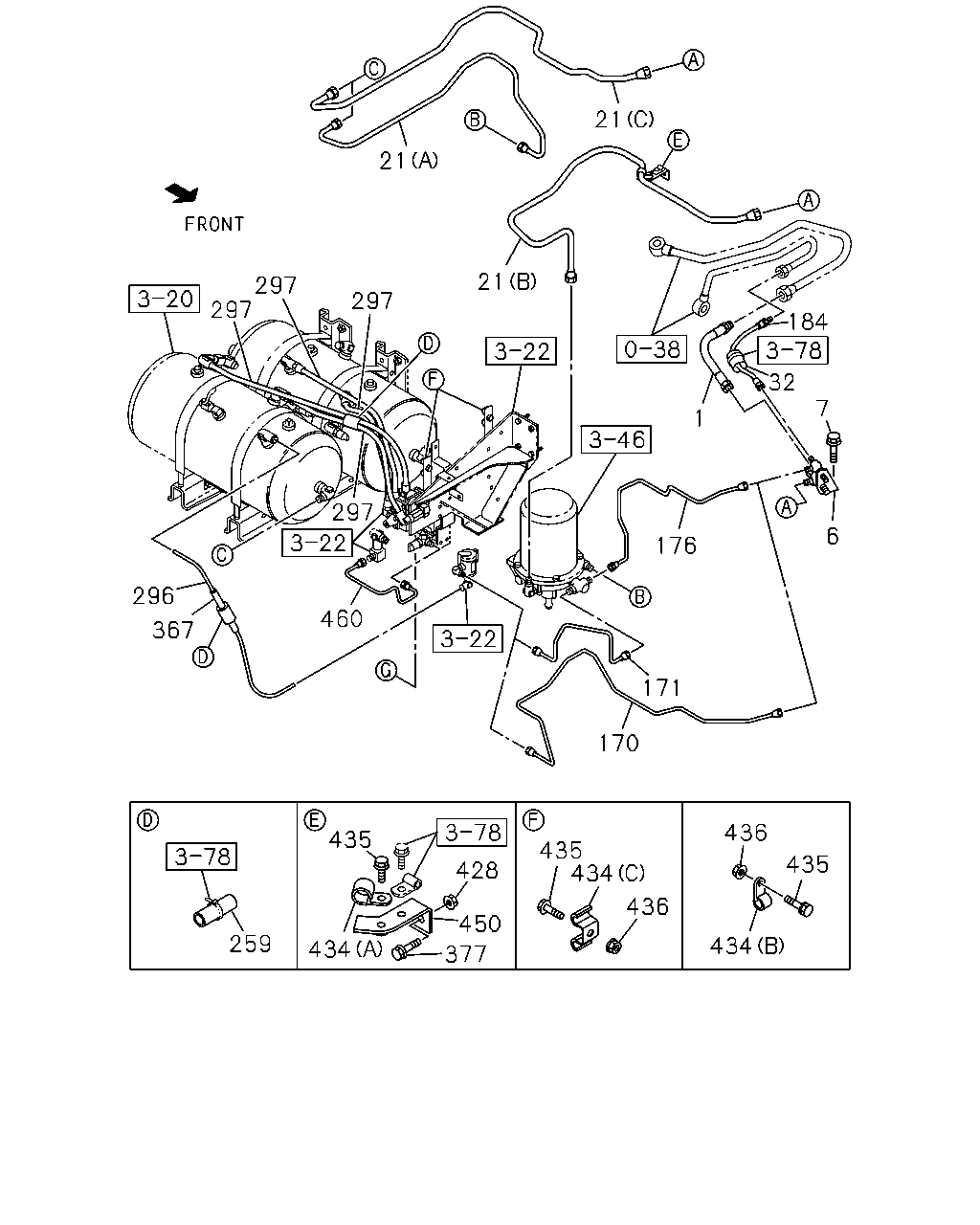

çizim 328097
434 436 435 436 434 435 377 428 450 435 259 434 170 171 176 6 7 32 460 367 296 297 297 297 21 297 21 21 184 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (A) 		8-98184-503-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (B) L=1545 		8-98211-175-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (C) L=1546 		8-98211-191-0 01 1 1302-
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1302-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		8-98211-190-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=864 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1302-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 1309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1302-
367 TUBE; CORRUGATE
WHEEL BASE 5000MM(50W) SERVICED BY L=2000 ID=13 		1-87411-022-0 05 1 1312-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1302-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1302-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1309-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
(D) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1309-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1309-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1302-
450 BRACKET; CLIP 8-98232-692-0 01 1 1302-
460 PIPE; AIR,PROTECTION VALVE 8-98184-394-0 01 1 1302-

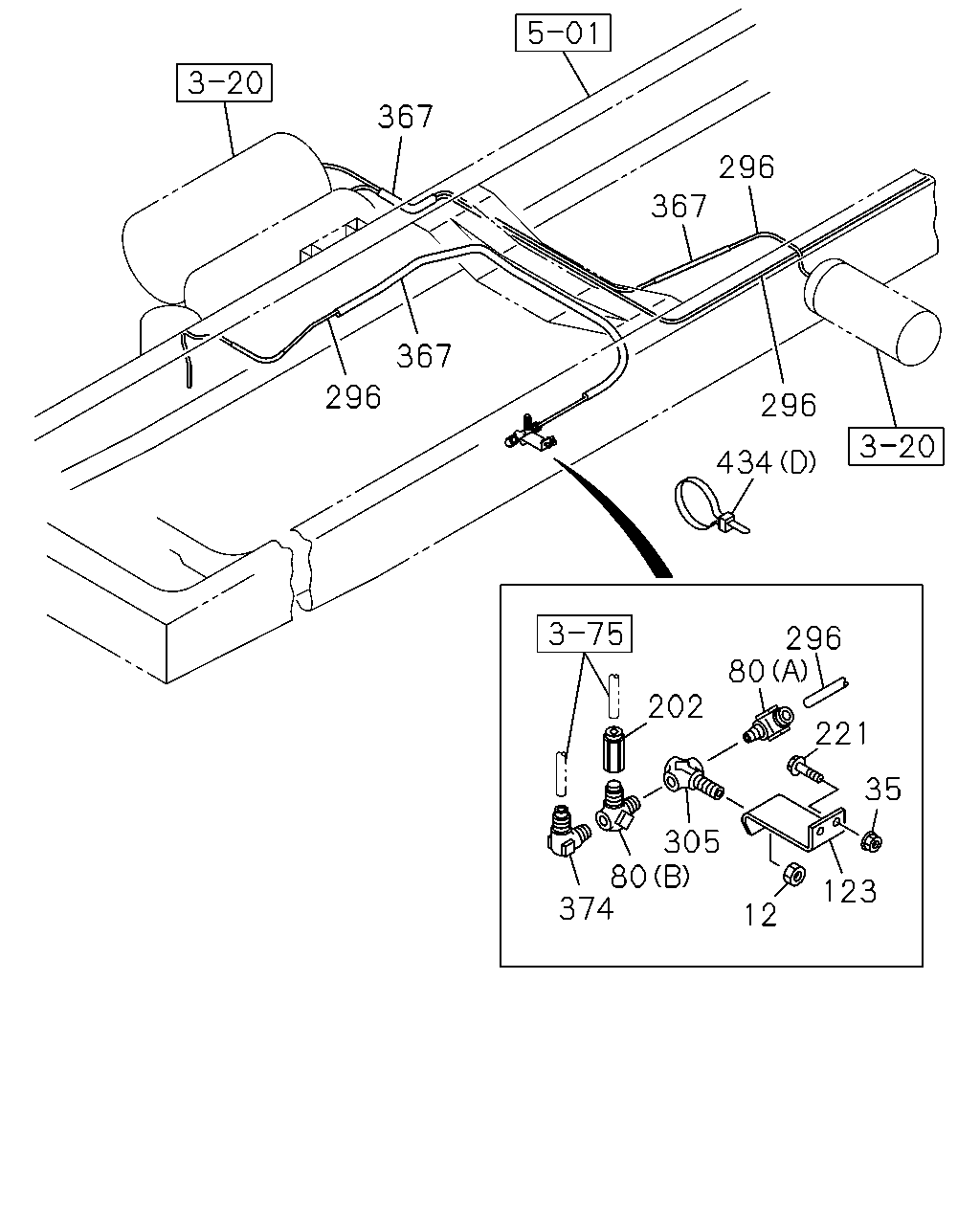

çizim 328286
367 296 367 367 296 296 434 202 80 296 221 123 12 305 374 80 35
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1302-
35 NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 1302-
80 UNION; 3 WAY
EXC. PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1302-
80 UNION; 3 WAY
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
80 UNION; 3 WAY
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
123 BRACKET; UNION
EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1302-
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
202 ADAPTER
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
221 BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1302-
305 UNION ASM; NYLON TUBE
EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1302-
367 TUBE; CORRUGATE
WHEEL BASE 5000MM(50W) SERVICED BY L=2000 ID=13 		1-87411-022-0 05 1 1312-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1302-
374 CONNECTOR
EXC. PTO CONTROL<SV6> M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1309-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
(D) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-

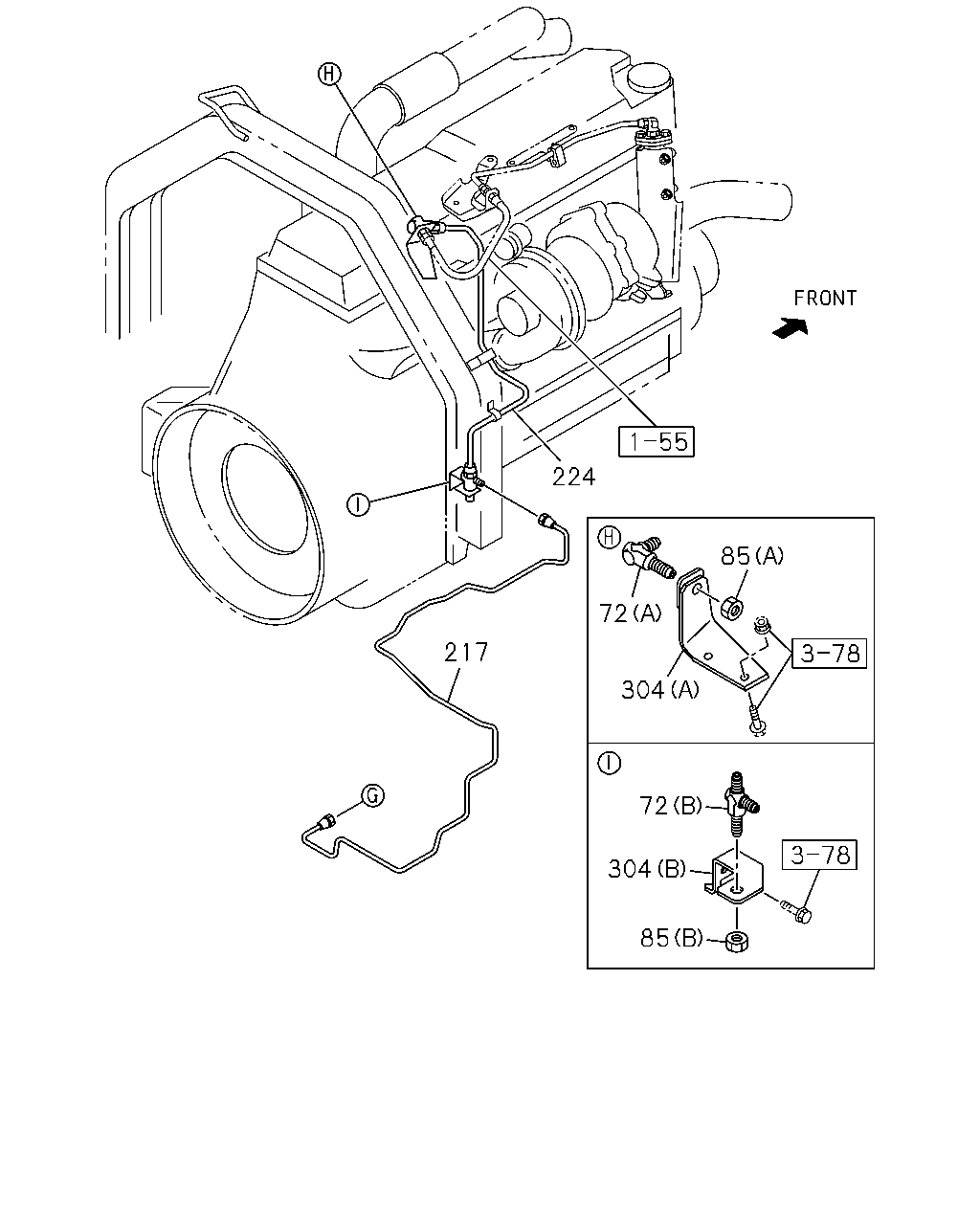

çizim 421570
217 224 85 72 304 72 304 85
BalonParca AdiParca NoAdetTipApplied Date
72 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-006-0 01 1 1302-
72 UNION; AIR PIPE
(B) M12 2WAY 		1-09654-059-2 01 1 1302-
85 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1302-
85 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1302-
217 PIPE; VAC,UNION TO MAG VLV
L=1897 SERVICED BY L=2000 		1-47428-823-0 01 1 1302-
224 PIPE; AIR,UNION TO FLEX HOSE
L=667 SERVICED BY L=700 		1-47428-811-0 01 1 1302-
304 BRACKET; UNION
(B) 		8-98211-164-1 01 1 1302-
304 BRACKET; UNION
(A) 		8-98229-691-0 01 1 1302-
