3-75 — BRAKE PIPING; AIR,FRONT (#113991) — 74 parça

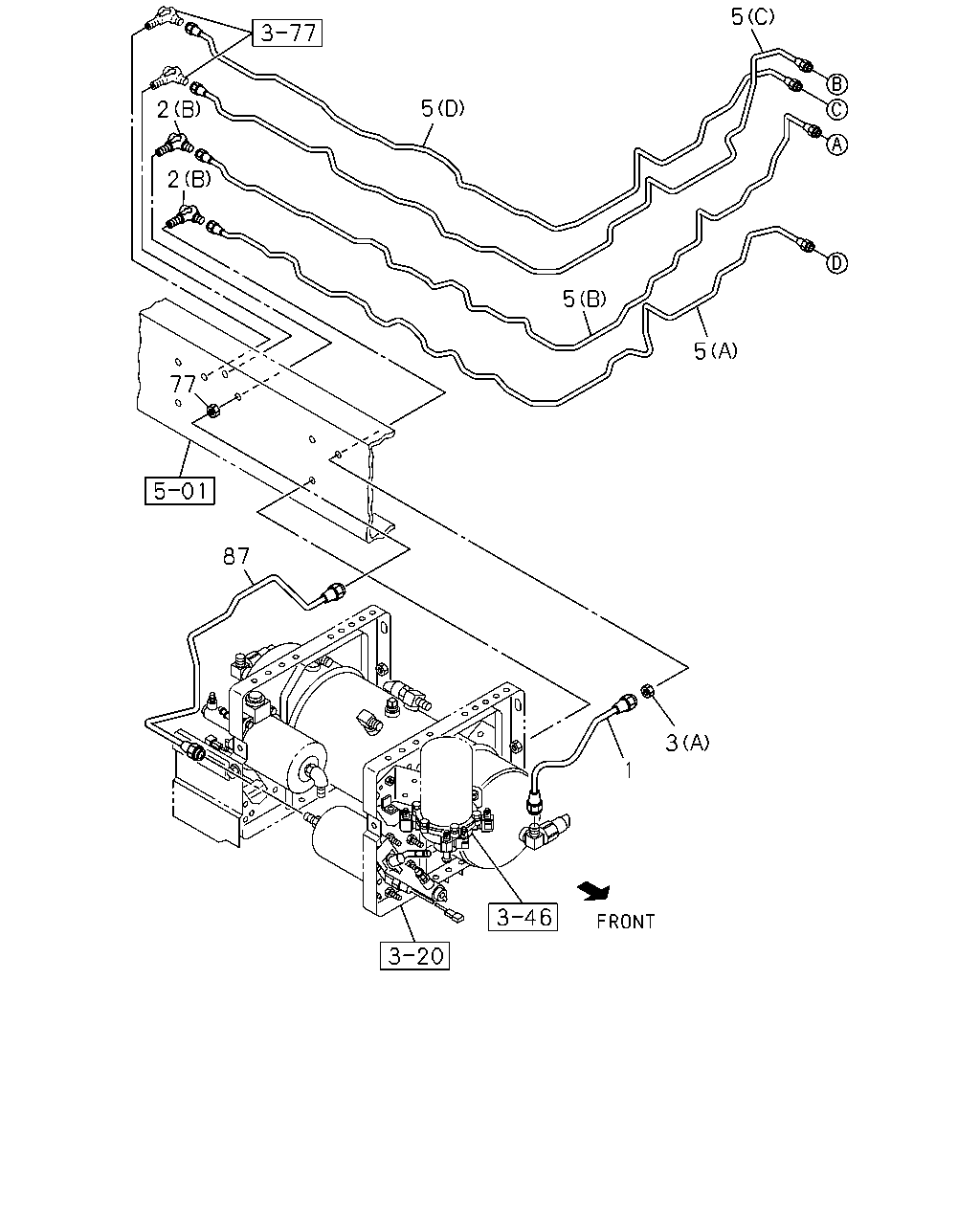

5 5 5 2 2 5 77 87 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) L=279	8-98213-359-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) L=279	8-98213-359-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR(TDU) L=279	8-98213-359-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) L=300	8-98190-601-0	01	1	1302-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1302-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1302-
3	NUT; PIPE UNION (A) M16	0-91111-516-0	01	1	1302-
3	NUT; PIPE UNION (B) M8 FLANGE	0-91180-108-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION EURO5 SPECIFICATION<NT5> (A) L=2826 SERVICED BY L=2900	1-47428-885-0	01	1	1506-
5	PIPE; AIR,UNION TO UNION EURO5 SPECIFICATION<NT5> (B) L=3122	8-98235-086-0	01	1	1506-
5	PIPE; AIR,UNION TO UNION EURO5 SPECIFICATION<NT5> (C) L=3230	8-98235-088-0	01	1	1506-
5	PIPE; AIR,UNION TO UNION EURO5 SPECIFICATION<NT5> (D) L=3227 SERVICED BY L=3300	1-47428-886-0	01	1	1506-
5	PIPE; AIR,UNION TO UNION (A) L=2817 SERVICED BY L=2900	1-47428-885-0	01	1	1302-1505
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) L=2817 SERVICED BY L=2900	1-47428-885-0	01	1	1506-1511
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) L=2817 SERVICED BY L=2900	1-47428-885-0	01	1	1512-
5	PIPE; AIR,UNION TO UNION (D) L=3191 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1505
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (D) L=3191 SERVICED BY L=3300	1-47428-886-0	01	1	1506-1511
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) L=3191 SERVICED BY L=3300	1-47428-886-0	01	1	1512-
5	PIPE; AIR,UNION TO UNION (B) L=3137 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1505
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (B) L=3137 SERVICED BY L=3300	1-47428-886-0	01	1	1506-1511
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) L=3137 SERVICED BY L=3300	1-47428-886-0	01	1	1512-
5	PIPE; AIR,UNION TO UNION (C) L=3203	8-98111-802-1	01	1	1302-1505
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (C) L=3203	8-98111-802-1	01	1	1506-1511
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=3203	8-98111-802-1	01	1	1512-
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> L=801 SERVICED BY L=900	1-47428-873-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) ,H.S.A SYSTEM<6EP> L=801 SERVICED BY L=900	1-47428-873-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ADR(TDU) EXC. H.S.A SYSTEM<6EP> L=783 SERVICED BY L=800	1-47428-872-0	01	1	1302-
87	PIPE; AIR,UNION TO AIR MASTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU),H.S.A SY STEM<6EP> L=813 SERVICED BY L=900	1-47428-873-0	01	1	1302-

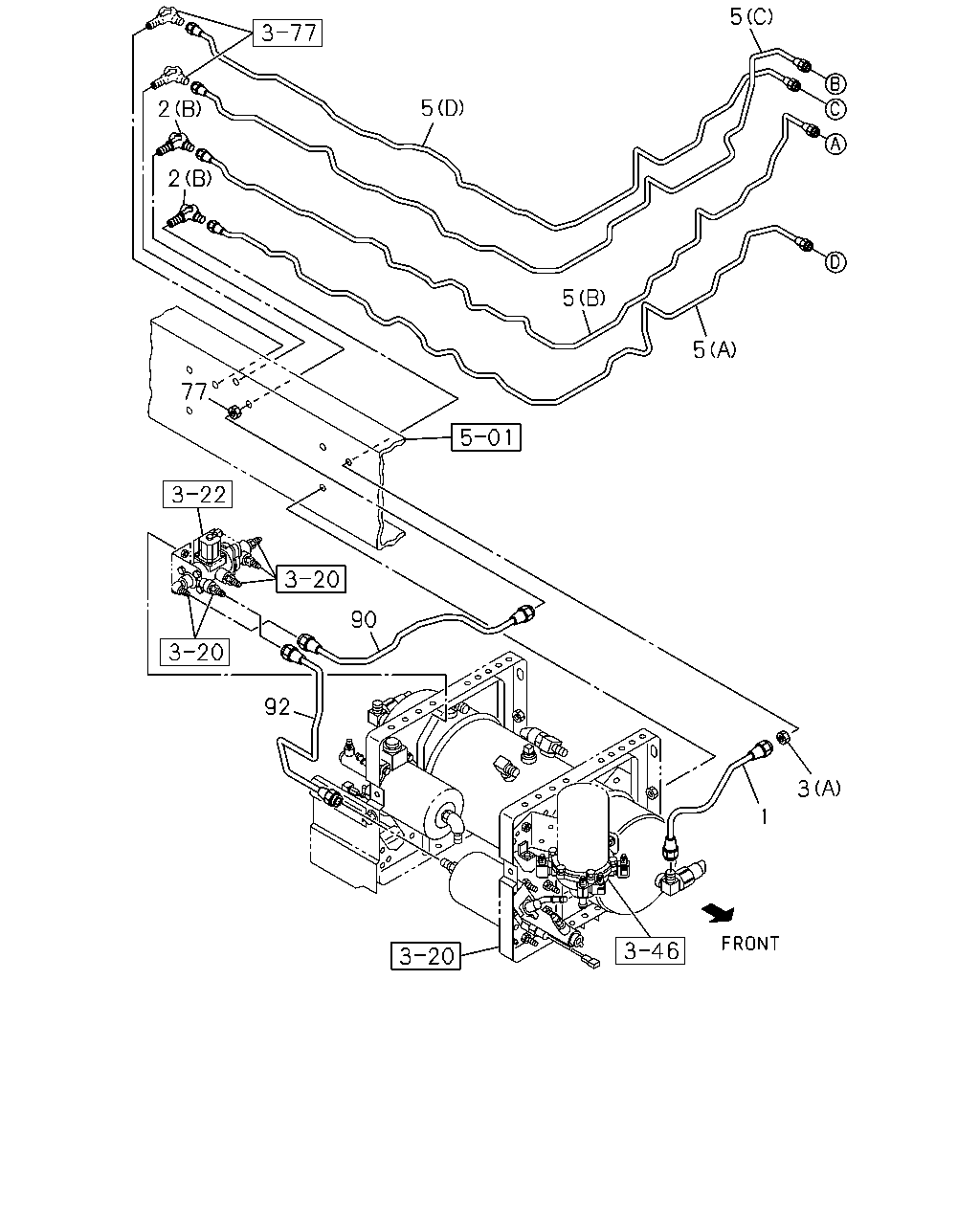

5 5 2 2 5 5 90 92 3 1 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) L=279	8-98213-359-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) L=279	8-98213-359-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION ADR(TDU) L=279	8-98213-359-0	01	1	1302-
1	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) L=300	8-98190-601-0	01	1	1302-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1302-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1302-
3	NUT; PIPE UNION (A) M16	0-91111-516-0	01	1	1302-
3	NUT; PIPE UNION (B) M8 FLANGE	0-91180-108-0	01	1	1302-
5	PIPE; AIR,UNION TO UNION EURO5 SPECIFICATION<NT5> (A) L=2826 SERVICED BY L=2900	1-47428-885-0	01	1	1506-
5	PIPE; AIR,UNION TO UNION EURO5 SPECIFICATION<NT5> (B) L=3122	8-98235-086-0	01	1	1506-
5	PIPE; AIR,UNION TO UNION EURO5 SPECIFICATION<NT5> (C) L=3230	8-98235-088-0	01	1	1506-
5	PIPE; AIR,UNION TO UNION EURO5 SPECIFICATION<NT5> (D) L=3227 SERVICED BY L=3300	1-47428-886-0	01	1	1506-
5	PIPE; AIR,UNION TO UNION (A) L=2817 SERVICED BY L=2900	1-47428-885-0	01	1	1302-1505
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) L=2817 SERVICED BY L=2900	1-47428-885-0	01	1	1506-1511
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) L=2817 SERVICED BY L=2900	1-47428-885-0	01	1	1512-
5	PIPE; AIR,UNION TO UNION (D) L=3191 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1505
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (D) L=3191 SERVICED BY L=3300	1-47428-886-0	01	1	1506-1511
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) L=3191 SERVICED BY L=3300	1-47428-886-0	01	1	1512-
5	PIPE; AIR,UNION TO UNION (B) L=3137 SERVICED BY L=3300	1-47428-886-0	01	1	1302-1505
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (B) L=3137 SERVICED BY L=3300	1-47428-886-0	01	1	1506-1511
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) L=3137 SERVICED BY L=3300	1-47428-886-0	01	1	1512-
5	PIPE; AIR,UNION TO UNION (C) L=3203	8-98111-802-1	01	1	1302-1505
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (C) L=3203	8-98111-802-1	01	1	1506-1511
5	PIPE; AIR,UNION TO UNION EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) L=3203	8-98111-802-1	01	1	1512-
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	1302-
90	PIPE; AIR,UNION TO HSA VLV ANTI LOCK BRAKE(JE5) H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ADR(TDU) L=493	8-98077-878-0	01	1	1302-
90	PIPE; AIR,UNION TO HSA VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) L=493	8-98077-878-0	01	1	1302-
90	PIPE; AIR,UNION TO HSA VLV H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) L=493	8-98077-878-0	01	1	1302-
90	PIPE; AIR,UNION TO HSA VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) L=556 SERVICED BY L=600	1-47428-868-0	01	1	1302-
92	PIPE; AIR,HSA VLV TO AIR MASTER H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) L=476	8-98212-632-0	01	1	1302-
92	PIPE; AIR,HSA VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ADR(TDU) L=494	8-98212-631-0	01	1	1302-

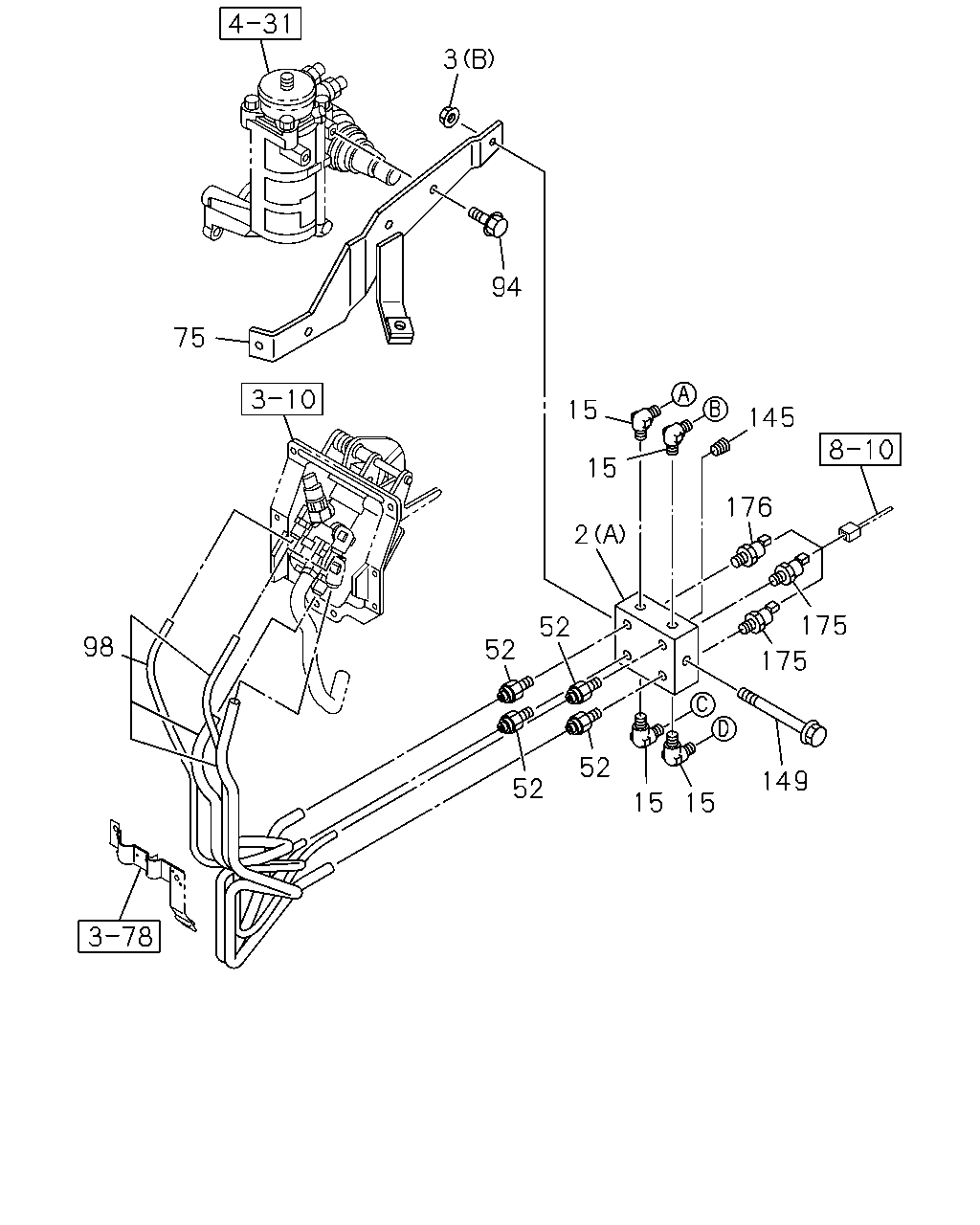

3 94 75 15 145 15 2 176 52 52 52 15 15 52 149 175 175 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1302-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1302-
3	NUT; PIPE UNION (A) M16	0-91111-516-0	01	1	1302-
3	NUT; PIPE UNION (B) M8 FLANGE	0-91180-108-0	01	1	1302-
15	CONNECTOR; AIR PIPE M16 & PT1/4 ELBOW	0-92134-310-0	04	1	1302-
52	CONNECTOR; NYLON TUBE DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1302-
75	BRACKET; UNION	8-98124-802-0	01	1	1302-
94	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	1302-
98	TUBE; NYLON	8-98124-954-1	01	1	1302-
145	PLUG PT1/4	9-99204-513-0	01	1	1302-
149	BOLT; UNION M8X100 FLANGE	0-28050-800-0	01	1	1302-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1302-
176	SWITCH; AIR PRESS H.S.A SYSTEM<6EP> STAMP 0.7	8-97622-710-0	01	1	1302-
176	SWITCH; AIR PRESS EXC. H.S.A SYSTEM<6EP> STAMP 0.3	8-98010-857-0	01	1	1302-
