◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#11399) — 16 parça

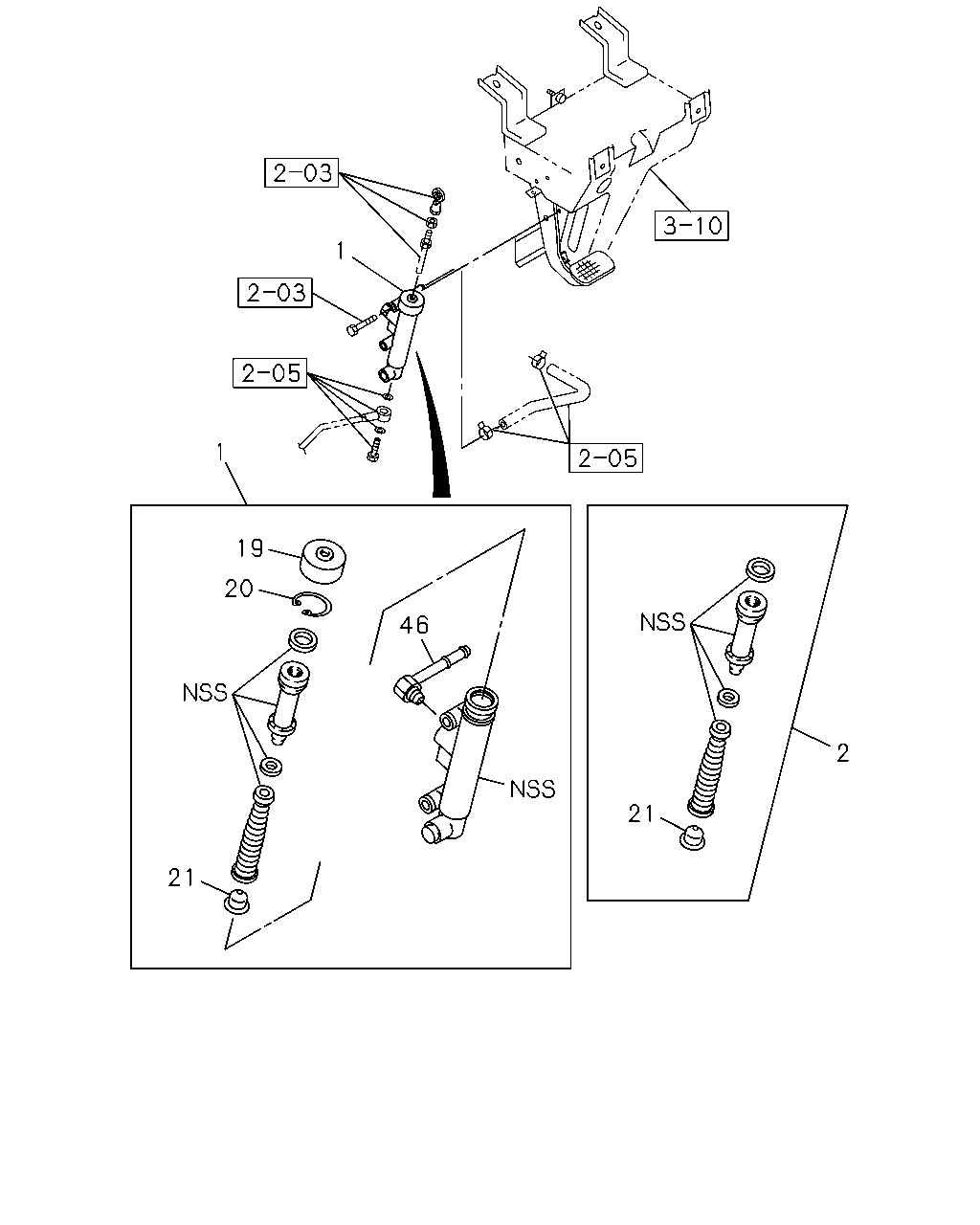

çizim 74676
1 1 19 20 46 21 2 21
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> 		1-47500-232-2 01 1 0106-0108
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0109-
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> 		1-47500-242-2 01 1 0106-0108
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> 		1-85576-114-0 01 1 0106-0108
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0109-
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> 		1-47550-046-0 01 1 0106-0108
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 0106-0108
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0109-
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 0106-0108
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 0106-0108
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0109-
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 0106-0108
21 VALVE; CHECK 1-47565-004-0 01 1 0106-0108
21 VALVE; CHECK 1-47565-004-0 01 1 0109-
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0106-0108
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0109-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
