3-70 — BRAKE PIPING; AIR,AIR MASTER (#113989) — 140 parça

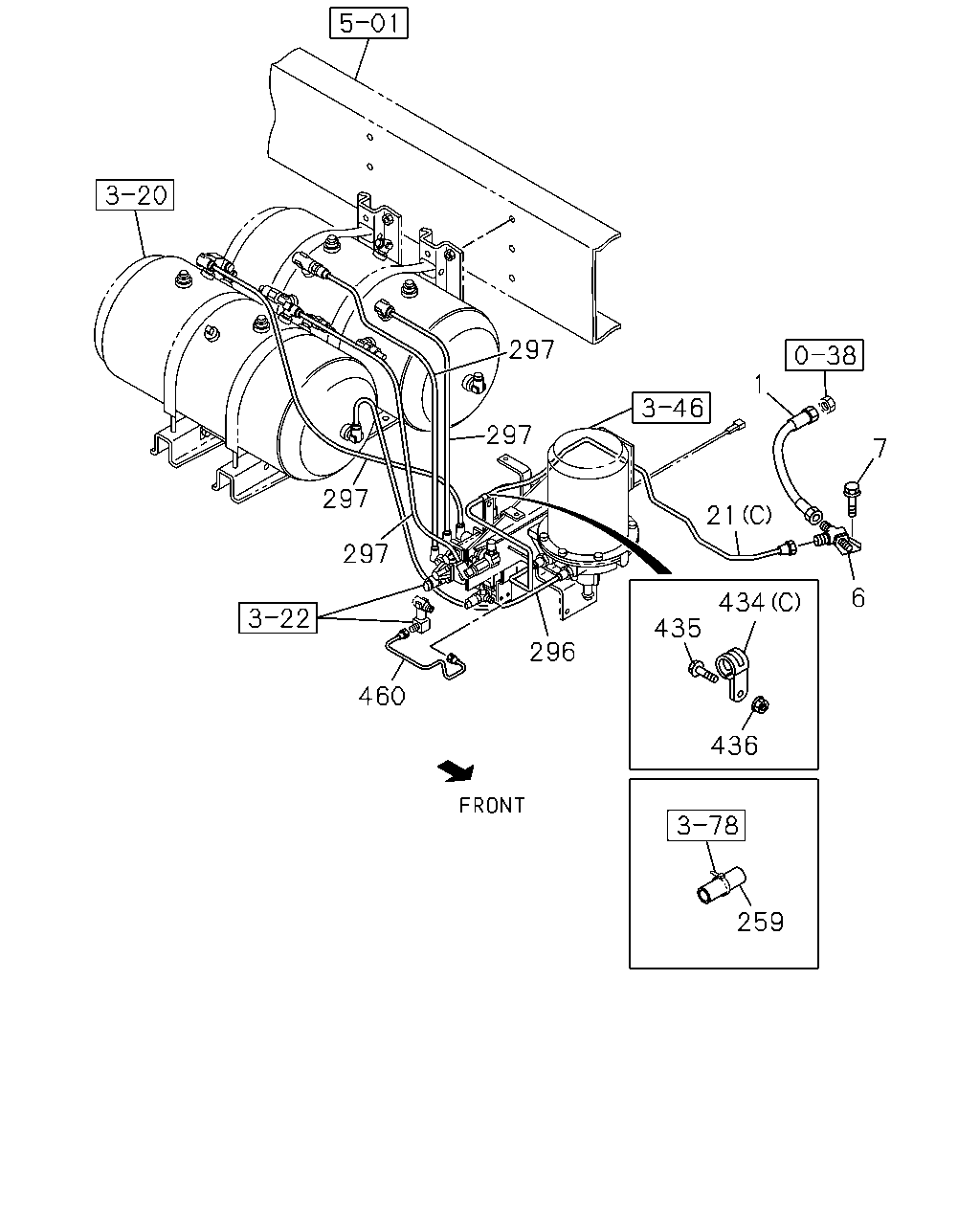

çizim 328098
297 297 297 21 1 6 7 434 435 436 296 460 297 259
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1302-
1 HOSE; FLEX,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> L=320 		8-98067-411-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
TURBO - CONVENTIONAL<Q5T> 		8-98117-117-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> 		8-98076-344-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) 		8-98184-503-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1545 		8-98211-175-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=1707 		8-98226-213-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) L=1546 		8-98211-191-0 01 1 1302-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 1309-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (D) ID=7 L=20 		0-95234-635-0 01 1 1309-
434 CLIP
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20 		0-95235-536-0 02 1 1302-
434 CLIP
BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C> (B) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (B) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1309-
435 BOLT; CLIP
TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 03 1 1302-
435 BOLT; CLIP
EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 02 1 1302-
436 NUT; CLIP
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1302-
436 NUT; CLIP
EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 01 1 1302-1308
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1309-
436 NUT; CLIP
EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 01 1 1309-
460 PIPE; AIR,PROTECTION VALVE
FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> 		8-98184-394-0 01 1 1302-1505
460 PIPE; AIR,PROTECTION VALVE
FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) 		8-98184-394-0 01 1 1302-1505
460 PIPE; AIR,PROTECTION VALVE
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) 		8-98184-394-0 01 1 1302-1505
460 PIPE; AIR,PROTECTION VALVE
ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) 		8-98184-394-0 01 1 1506-
460 PIPE; AIR,PROTECTION VALVE
FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> 		8-98184-394-0 01 1 1506-
460 PIPE; AIR,PROTECTION VALVE
TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) 		8-98184-394-0 01 1 1506-

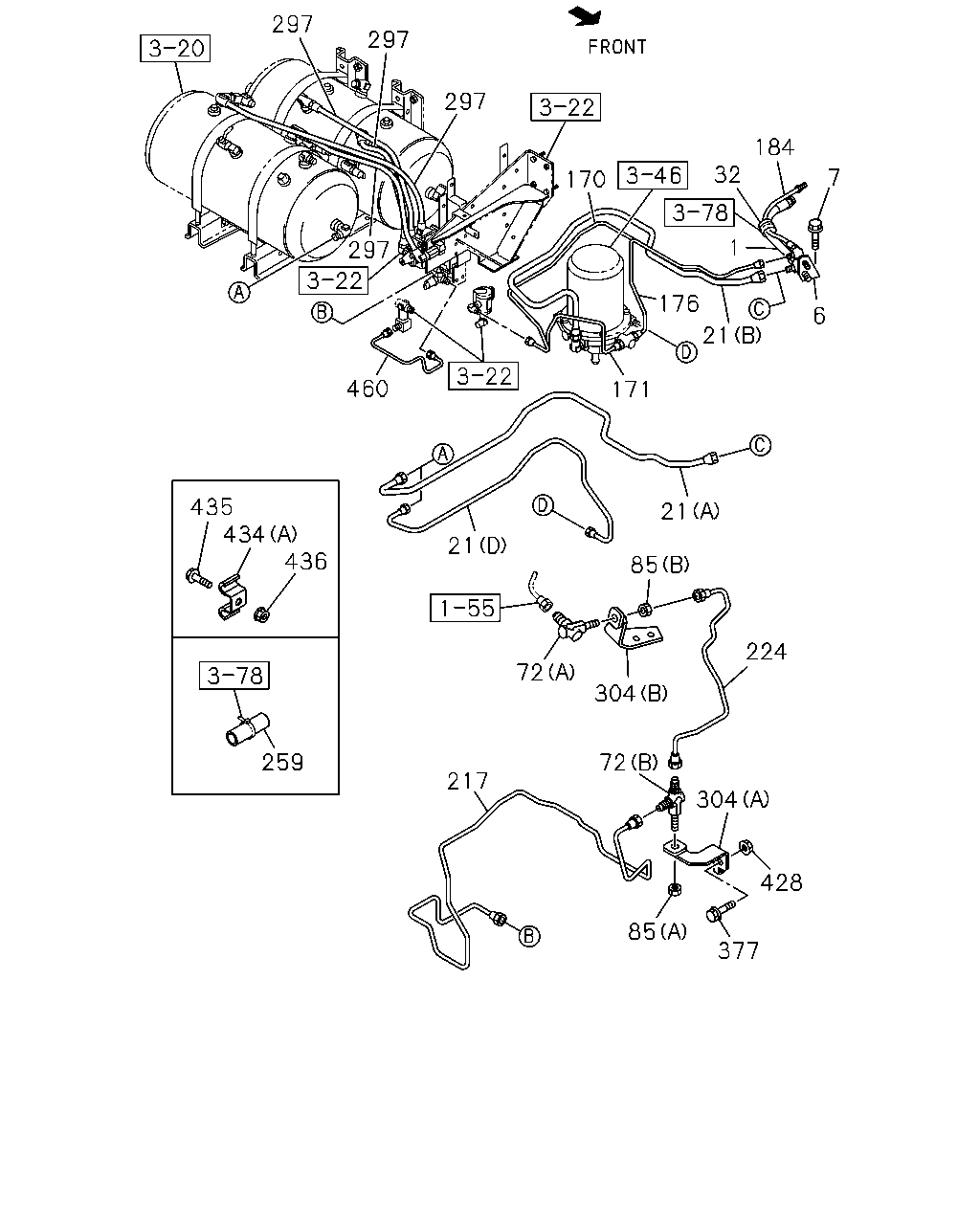

çizim 328316
297 297 297 170 297 32 1 184 7 176 21 6 171 460 435 434 436 259 21 21 85 72 304 224 72 217 304 428 377 85
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1302-
1 HOSE; FLEX,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> L=320 		8-98067-411-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
TURBO - CONVENTIONAL<Q5T> 		8-98117-117-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
EXC. TURBO - CONVENTIONAL<Q5T> 		8-98076-344-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) 		8-98184-503-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1545 		8-98211-175-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=1707 		8-98226-213-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) L=1546 		8-98211-191-0 01 1 1302-
32 SLEEVE; RUBBER,AIR PIPE
TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1302-
72 UNION; AIR PIPE
TURBO - CONVENTIONAL<Q5T> (A) M12 ELBOW 		0-92125-006-0 01 1 1302-
72 UNION; AIR PIPE
TURBO - CONVENTIONAL<Q5T> (B) M12 2WAY 		1-09654-059-2 01 1 1302-
85 NUT; UNION
TURBO - CONVENTIONAL<Q5T> (A) M12 		0-91111-512-0 01 1 1302-
85 NUT; UNION
TURBO - CONVENTIONAL<Q5T> (B) M12 		9-09840-280-0 01 1 1302-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98211-190-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=864 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
184 HOSE; FLEX,AIR GOV
TURBO - CONVENTIONAL<Q5T> L=350 		1-09363-624-0 01 1 1302-
217 PIPE; VAC,UNION TO MAG VLV
TURBO - CONVENTIONAL<Q5T> L=1897 SERVICED BY L=2000 		1-47428-823-0 01 1 1302-
224 PIPE; AIR,UNION TO FLEX HOSE
TURBO - CONVENTIONAL<Q5T> L=667 SERVICED BY L=700 		1-47428-811-0 01 1 1302-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 1309-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 1302-
304 BRACKET; UNION
TURBO - CONVENTIONAL<Q5T> (A) 		8-98211-164-1 01 1 1302-
304 BRACKET; UNION
TURBO - CONVENTIONAL<Q5T> (B) 		8-98229-691-0 01 1 1302-
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C> M8X25 FLANGE 		0-28650-825-0 01 1 1302-
377 BOLT; BRKT FIX
TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE 		0-28650-830-0 01 1 1302-
428 NUT; BRKT
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 01 1 1302-
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (D) ID=7 L=20 		0-95234-635-0 01 1 1309-
434 CLIP
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20 		0-95235-536-0 02 1 1302-
434 CLIP
BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C> (B) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (B) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1309-
435 BOLT; CLIP
TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 03 1 1302-
435 BOLT; CLIP
EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 02 1 1302-
436 NUT; CLIP
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1302-
436 NUT; CLIP
EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 01 1 1302-1308
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1309-
436 NUT; CLIP
EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 01 1 1309-
460 PIPE; AIR,PROTECTION VALVE
FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> 		8-98184-394-0 01 1 1302-1505
460 PIPE; AIR,PROTECTION VALVE
FULLER ES11109 DD M/T(Y5N) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) 		8-98184-394-0 01 1 1302-1505
460 PIPE; AIR,PROTECTION VALVE
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) 		8-98184-394-0 01 1 1302-1505
460 PIPE; AIR,PROTECTION VALVE
ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ADR(TDU) 		8-98184-394-0 01 1 1506-
460 PIPE; AIR,PROTECTION VALVE
FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. TURBO - CONVENTIONAL<Q5T> 		8-98184-394-0 01 1 1506-
460 PIPE; AIR,PROTECTION VALVE
TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ADR(TDU) 		8-98184-394-0 01 1 1506-

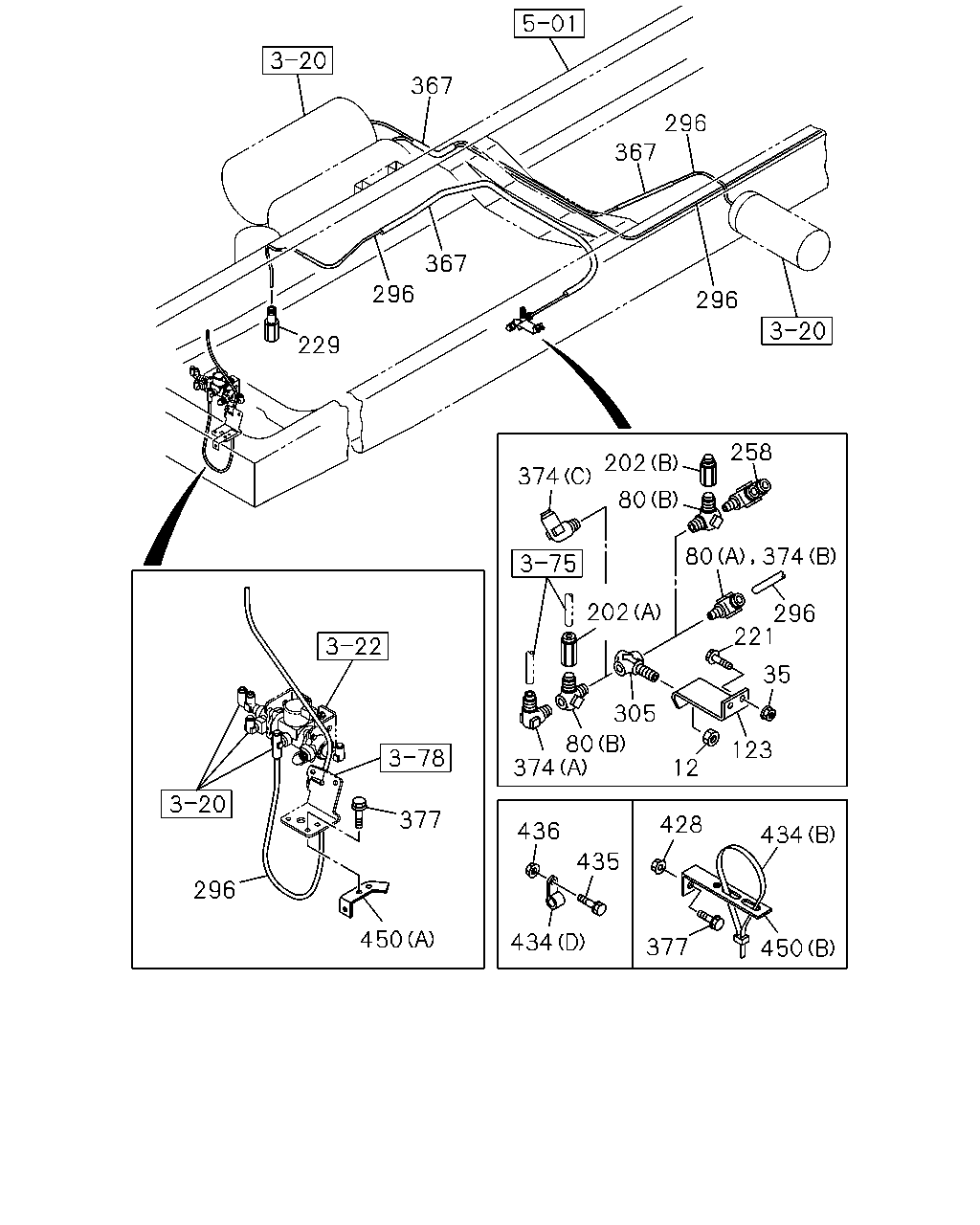

çizim 328445
367 367 296 296 367 296 229 374 202 258 80 80 374 296 221 202 35 123 12 305 80 374 436 435 434 377 428 434 450 377 450 296
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1302-
12 NUT; UNION
FULLER ES11109 DD M/T(Y5N) M12 		0-91111-512-0 01 1 1302-
35 NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 1302-
80 UNION; 3 WAY
FULLER ES11109 DD M/T(Y5N) RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
80 UNION; 3 WAY
FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP> BRAKE REGULATION ADR(TDU) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
80 UNION; 3 WAY
FULLER ES11109 DD M/T(Y5N) BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
80 UNION; 3 WAY
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
80 UNION; 3 WAY
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
80 UNION; 3 WAY
FULLER ES11109 DD M/T(Y5N) EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ADR(TDU),H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 1302-
80 UNION; 3 WAY
FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP> EXC. BRAKE REGULATION ADR(TDU) (B) M12 & PT1/4 3WAY 		1-09656-586-1 02 1 1302-
80 UNION; 3 WAY
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (A) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 1302-
123 BRACKET; UNION
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1302-
123 BRACKET; UNION
FULLER ES11109 DD M/T(Y5N) 		8-98118-545-0 01 1 1302-
202 ADAPTER
FULLER ES11109 DD M/T(Y5N) EXC. BRAKE REGULATION ADR(TDU) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1302-
202 ADAPTER
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
202 ADAPTER
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
202 ADAPTER
FULLER ES11109 DD M/T(Y5N) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
202 ADAPTER
FULLER ES11109 DD M/T(Y5N) H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
221 BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1302-
229 ADAPTER; NYLON TUBE
FULLER ES11109 DD M/T(Y5N) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1302-
258 CONNECTOR; NYLON TUBE
FULLER ES11109 DD M/T(Y5N) DIN13X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1302-
305 UNION ASM; NYLON TUBE
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> 		8-98120-049-0 01 1 1302-
305 UNION ASM; NYLON TUBE
FULLER ES11109 DD M/T(Y5N) 		8-98120-049-0 01 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1302-
374 CONNECTOR
FULLER ES11109 DD M/T(Y5N) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1302-
374 CONNECTOR
ZF9S1110 M/T(Y5E) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1302-
374 CONNECTOR
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
377 BOLT; BRKT FIX
BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C> M8X25 FLANGE 		0-28650-825-0 01 1 1302-
377 BOLT; BRKT FIX
TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE 		0-28650-830-0 01 1 1302-
428 NUT; BRKT
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 01 1 1302-
428 NUT; BRKT
BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (D) ID=7 L=20 		0-95234-635-0 01 1 1309-
434 CLIP
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20 		0-95235-536-0 02 1 1302-
434 CLIP
BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C> (B) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
ZF9S1110 M/T(Y5E) EXC. BRAKE REGULATION ADR(TDU) (B) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1309-
435 BOLT; CLIP
TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 03 1 1302-
435 BOLT; CLIP
EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 02 1 1302-
436 NUT; CLIP
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1302-
436 NUT; CLIP
EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 01 1 1302-1308
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1309-
436 NUT; CLIP
EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 01 1 1309-
450 BRACKET; CLIP
BRAKE REGULATION ADR(TDU) MANUAL TRANSMISSION<X9C> (B) L=225 		1-47477-646-3 01 1 1302-
450 BRACKET; CLIP
TURBO - CONVENTIONAL<Q5T> (A) 		8-98232-692-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
