3-08 — PARKING BRAKE (#113973) — 84 parça

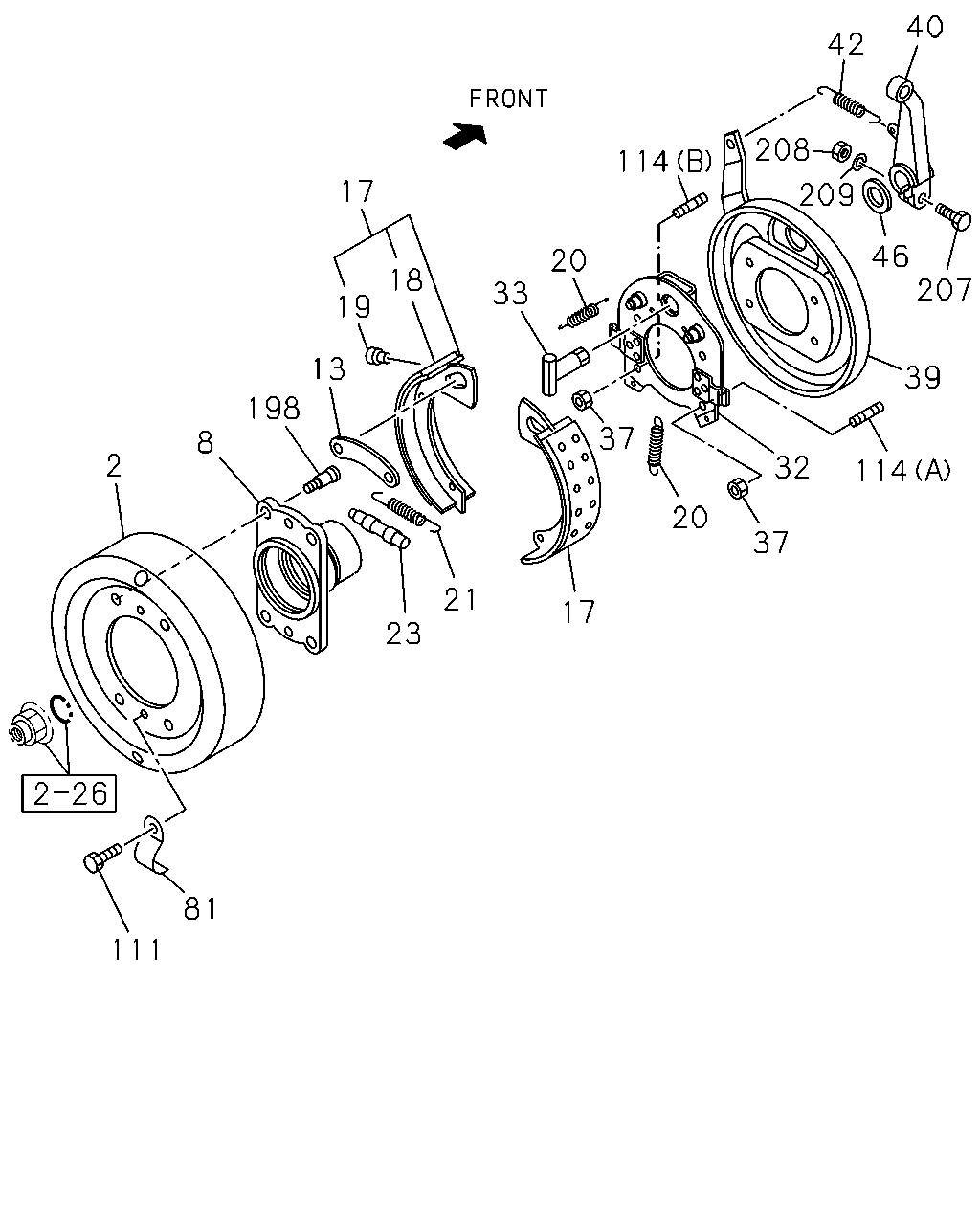

111 81 2 8 23 198 13 19 17 18 21 17 33 20 37 20 37 32 114 39 207 46 209 114 208 42 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46211-019-0	01	1	1302-
2	DRUM; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	1302-
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	8-98153-193-0	01	1	1302-
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1302-
13	BRACE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-46239-002-0	01	1	1302-
13	BRACE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	1302-
17	SHOE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46220-022-1	02	1	1302-
17	SHOE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	1302-
18	LINING; BRK,PARKING PARKING BRAKE DRUM 10"(B1T)	1-46225-023-0	02	1	1302-
19	RIVET; LINING,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-09732-058-0	32	1	1302-
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-09942-434-0	02	1	1302-
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	1302-
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	9-09942-516-0	01	1	1302-
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	1302-
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	1-46240-003-0	01	1	1302-
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	1302-
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-039-0	01	1	1302-
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	1302-
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46251-010-0	01	1	1302-
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	1302-
37	NUT; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M14 FLANGE	8-97365-444-0	04	1	1302-
37	NUT; SUPPORT PLATE 6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M14 FLANGE	8-97365-444-0	04	1	1302-
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-038-0	01	1	1302-
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	1302-
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46252-046-0	01	1	1302-
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	1302-
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 10"(B1T)	1-09583-104-0	01	1	1302-
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	1302-
46	WASHER; LEVER PARKING BRAKE DRUM 10"(B1T)	9-09855-362-0	01	1	1302-
46	WASHER; LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	1302-
81	COVER; CHECK HOLE,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46219-030-0	02	1	1302-
81	COVER; CHECK HOLE,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	1302-
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	1302-
114	STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1302-
114	STUD; SUPPORT PLATE 6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1302-
114	STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
114	STUD; SUPPORT PLATE 6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
198	BOLT; KNURL PARKING BRAKE DRUM 10"(B1T) M16X55	8-98023-172-0	04	1	1302-
198	BOLT; KNURL PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	1302-
207	BOLT; LEVER PARKING BRAKE DRUM 10"(B1T)	8-98061-595-0	01	1	1302-
208	NUT; LEVER PARKING BRAKE DRUM 10"(B1T) M10	0-91111-510-0	01	1	1302-
209	WASHER; SP,LEVER PARKING BRAKE DRUM 10"(B1T) ID=10.2	0-91510-510-0	01	1	1302-

197 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M10X25 FLANGE	0-28751-025-0	03	1	1302-
130	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M10X25 FLANGE	0-28751-025-0	03	1	1302-
197	BRACKET; CENTER BRAKE CABLE PARKING BRAKE DRUM 10"(B1T)	8-98009-002-1	01	1	1302-
197	BRACKET; CENTER BRAKE CABLE PARKING BRAKE DRUM 8.5"(B1S)	8-98020-897-1	01	1	1302-

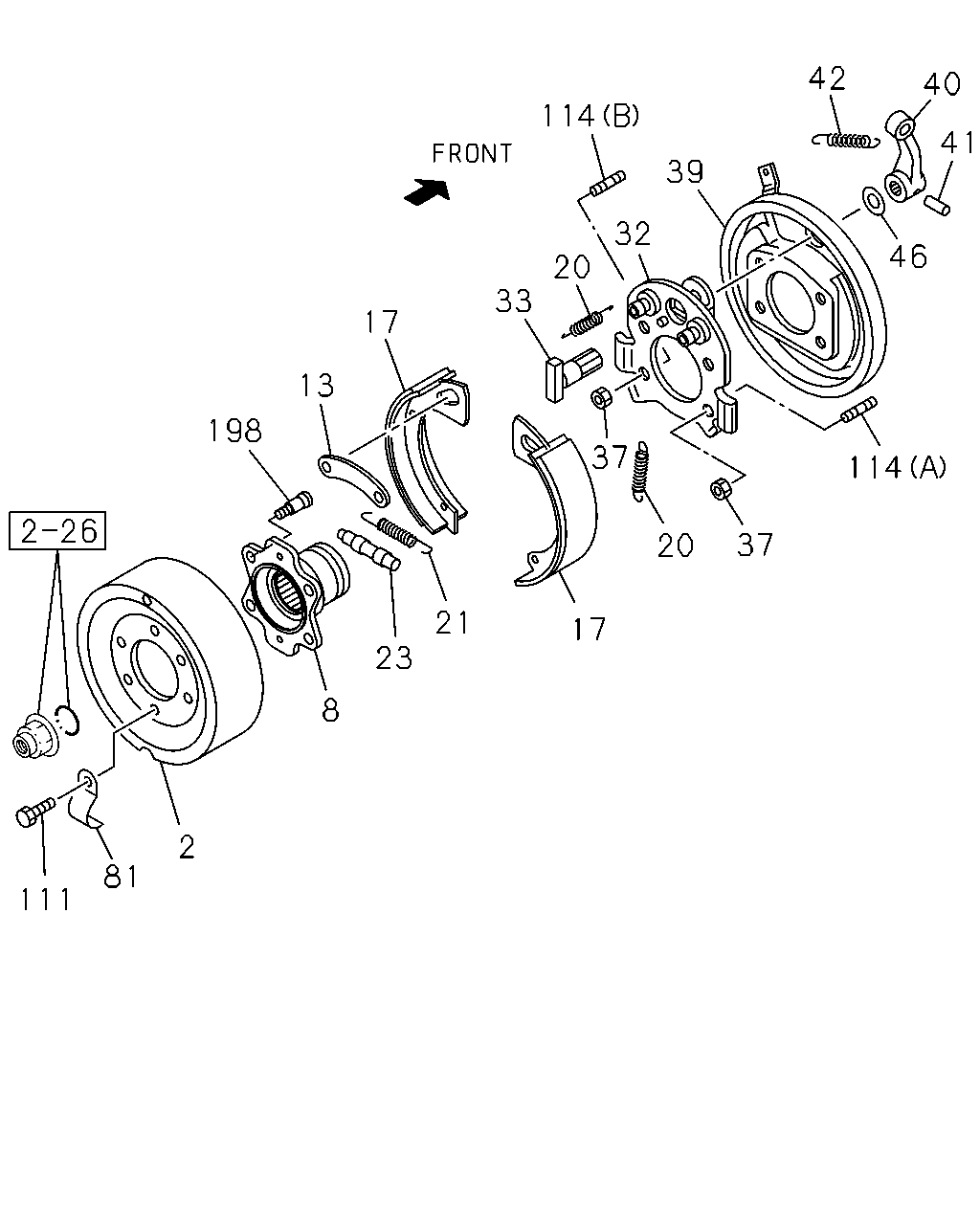

111 198 81 8 2 23 13 17 21 17 37 20 37 33 20 32 39 114 46 41 40 42 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46211-019-0	01	1	1302-
2	DRUM; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	1302-
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	8-98153-193-0	01	1	1302-
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1302-
13	BRACE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-46239-002-0	01	1	1302-
13	BRACE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	1302-
17	SHOE; PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46220-022-1	02	1	1302-
17	SHOE; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	1302-
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	9-09942-434-0	02	1	1302-
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	1302-
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	9-09942-516-0	01	1	1302-
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	1302-
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 10"(B1T)	1-46240-003-0	01	1	1302-
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	1302-
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-039-0	01	1	1302-
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	1302-
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46251-010-0	01	1	1302-
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	1302-
37	NUT; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M14 FLANGE	8-97365-444-0	04	1	1302-
37	NUT; SUPPORT PLATE 6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M14 FLANGE	8-97365-444-0	04	1	1302-
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46213-038-0	01	1	1302-
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	1302-
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46252-046-0	01	1	1302-
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	1302-
41	PIN; KNOCK,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09878-594-0	01	1	1302-
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 10"(B1T)	1-09583-104-0	01	1	1302-
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	1302-
46	WASHER; LEVER PARKING BRAKE DRUM 10"(B1T)	9-09855-362-0	01	1	1302-
46	WASHER; LEVER PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	1302-
81	COVER; CHECK HOLE,PARKING BRK PARKING BRAKE DRUM 10"(B1T)	1-46219-030-0	02	1	1302-
81	COVER; CHECK HOLE,PARKING BRK PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	1302-
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	1302-
114	STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1302-
114	STUD; SUPPORT PLATE 6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1302-
114	STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
114	STUD; SUPPORT PLATE 6HK1-TCN ENG(82L) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
198	BOLT; KNURL PARKING BRAKE DRUM 10"(B1T) M16X55	8-98023-172-0	04	1	1302-
198	BOLT; KNURL PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	1302-
