1 |

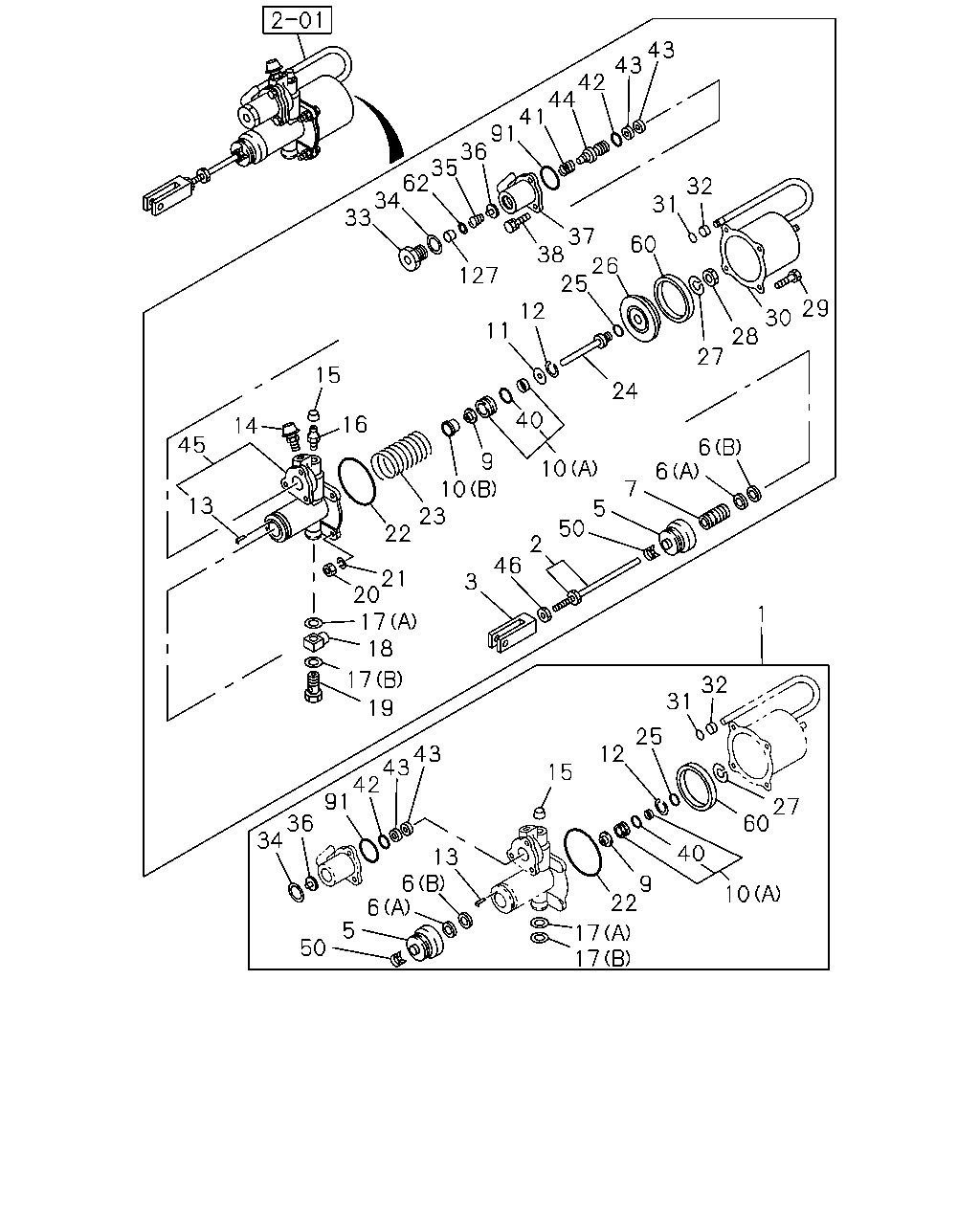

REPAIR KIT; CLU BOOSTER
|
1-31829-500-0 |
01 |
1 |
0106- |
| |
2 |
ROD; PUSH,CLU BOOSTER
|
1-31824-208-0 |
01 |
1 |
0106-0501 |
| |
2 |
ROD; PUSH,CLU BOOSTER
|
1-31824-233-0 |
01 |
1 |
0502- |
| |
3 |
CLEVIS; PUSH ROD,CLU BOOSTER
|
1-31829-287-0 |
01 |
1 |
0106- |
| |
5 |
GUARD; PISTON,CLU BOOSTER
|
1-31829-503-0 |
01 |
1 |
0106- |
| |
6 |
GASKET; PISTON CUP,CLU BOOSTER
(A)
|
1-31829-055-0 |
01 |
1 |
0106- |
| |
6 |
GASKET; PISTON CUP,CLU BOOSTER
(B)
|
1-31829-056-0 |
01 |
1 |
0106- |
| |
7 |
PISTON; CLU BOOSTER
|
1-31821-048-0 |
01 |
1 |
0106- |
| |
9 |
GASKET; PISTON CUP,CLU BOOSTER
|
1-31829-251-0 |
01 |
1 |
0106- |
| |
10 |
RETAINER; PISTON,CLU BOOSTER
(A)
|
1-31829-285-0 |
01 |
1 |
0106- |
| |
10 |
RETAINER; PISTON,CLU BOOSTER
(B)
|
1-31829-428-0 |
01 |
1 |
0106- |
| |
11 |
WASHER; PISTON,CLU BOOSTER
|
1-31829-105-0 |
01 |
1 |
0106- |
| |
12 |
RING; RET,CLU BOOSTER
|
1-31829-142-0 |
01 |
1 |
0106- |
| |
13 |
PIN; SPR
|
1-31829-109-0 |
01 |
1 |
0106- |
| |
14 |
COVER; EXH,CLU BOOSTER
|
1-31829-365-0 |
01 |
1 |
0106-0501 |
| |
14 |
COVER; EXH,CLU BOOSTER
|
1-31829-564-0 |
01 |
1 |
0502- |
| |
15 |
PROTECTOR; END PLATE,CLU BOOSTER
|
9-83335-044-0 |
01 |
1 |
0106- |
| |
16 |
PLUG; END PLATE,CLU BOOSTER
|
9-83331-704-0 |
01 |
1 |
0106- |
| |
17 |
GASKET; CONN,CLU BOOSTER
(A)
|
9-09920-267-0 |
01 |
1 |
0106- |
| |
17 |
GASKET; CONN,CLU BOOSTER
(B)
|
9-09920-268-0 |
01 |
1 |
0106- |
| |
18 |
CONNECTOR; END PLATE,CLU BOOSTER
|
1-31829-248-0 |
01 |
1 |
0106- |
| |
19 |
BOLT; EYE,END PLATE,CLU BOOSTER
|
9-83315-047-0 |
01 |
1 |
0106- |
| |
20 |
NUT; END PLATE TO SHELL,CLU BOOSTER
M10
|
9-09111-410-0 |
04 |
1 |
0106- |
| |
21 |
WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2
|
9-09150-510-0 |
04 |
1 |
0106- |
| |
22 |
GASKET; END PLATE TO SHELL,CLU BOOSTER
|
1-31829-281-0 |
01 |
1 |
0106- |
| |
23 |
SPRING; SHELL,CLU BOOSTER
|
1-31829-350-0 |
01 |
1 |
0106- |
| |
24 |
ROD; PUSH,CLU BOOSTER
|
1-31824-158-0 |
01 |
1 |
0106- |
| |
25 |
GASKET; PUSH ROD,CLU BOOSTER
|
1-31829-277-0 |
01 |
1 |
0106- |
| |
26 |
PISTON; SHELL,CLU BOOSTER
|
1-31821-072-0 |
01 |
1 |
0106- |
| |
27 |
SPRING; CLU BOOSTER
|
1-31829-291-0 |
01 |
1 |
0106- |
| |
28 |
NUT; PUSH ROD,CLU BOOSTER
|
1-31829-290-0 |
01 |
1 |
0106- |
| |
29 |
BOLT; END PLATE TO SHELL,CLU BOOSTER
|
9-83315-099-0 |
04 |
1 |
0106- |
| |
30 |
SHELL; CYL,CLU BOOSTER
|
1-31811-117-0 |
01 |
1 |
0106- |
| |
31 |
GASKET; SHELL,CLU BOOSTER
|
1-31829-279-0 |
01 |
1 |
0106- |
| |
32 |
BUSHING; SHELL,CLU BOOSTER
|
1-31829-280-0 |
01 |
1 |
0106- |
| |
33 |
CONNECTOR; UPR,VLV,CLU BOOSTER
|
1-31829-214-0 |
01 |
1 |
0106- |
| |
34 |
GASKET; CONN,CLU BOOSTER
|
1-31829-053-0 |
01 |
1 |
0106- |
| |
35 |
SPRING; POPPET VLV,CLU BOOSTER
|
1-31829-451-0 |
01 |
1 |
0106- |
| |
36 |
VALVE; POPPET,CLU BOOSTER
|
1-31829-452-0 |
01 |
1 |
0106- |
| |
37 |
BODY; UPR,VLV,CLU BOOSTER
|
1-31811-085-0 |
01 |
1 |
0106- |
| |
38 |
SCREW; UPR VLV TO END PLATE,CLU BOOSTE
|
9-83315-113-0 |
03 |
1 |
0106- |
| |
40 |
GASKET; PISTON,CLU BOOSTER
|
1-31829-037-0 |
01 |
1 |
0106- |
| |
41 |
SPRING; DIAPH,CLU BOOSTER
|
1-31829-288-0 |
01 |
1 |
0106-0501 |
| |
41 |
SPRING; DIAPH,CLU BOOSTER
|
1-31829-458-0 |
01 |
1 |
0502- |
| |
42 |
GASKET; FITTING,CLU BOOSTER
|
1-31829-148-0 |
01 |
1 |
0106- |
| |
43 |
GASKET; UPR VLV,CLU BOOSTER
|
1-31829-060-0 |
02 |
1 |
0106- |
| |
44 |
PISTON; UPR VLV,CLU BOOSTER
|
1-31821-058-0 |
01 |
1 |
0106- |
| |
45 |
PLATE; END,CLU BOOSTER
|
1-31811-067-0 |
01 |
1 |
0106- |
| |
46 |
NUT; PUSH ROD,CLU BOOSTER
|
1-31824-126-0 |
02 |
1 |
0106-0501 |
| |
46 |
NUT; PUSH ROD,CLU BOOSTER
M10
|
9-09111-410-0 |
02 |
1 |
0502- |
| |
50 |
CLAMP; PISTON GUARD,CLU BOOSTER
|
1-31829-504-0 |
01 |
1 |
0106- |
| |
60 |
GASKET; SHELL,CLU BOOSTER
|
1-31829-454-0 |
01 |
1 |
0106- |
| |
62 |
RETAINER; POPPET
|
1-31829-489-0 |
01 |
1 |
0106- |
| |
91 |
GASKET; CLU BOOSTER
|
1-31829-103-0 |
01 |
1 |
0106- |
| |
127 |
FILTER; POPPET
|
1-31829-495-0 |
01 |
1 |
0106- |
