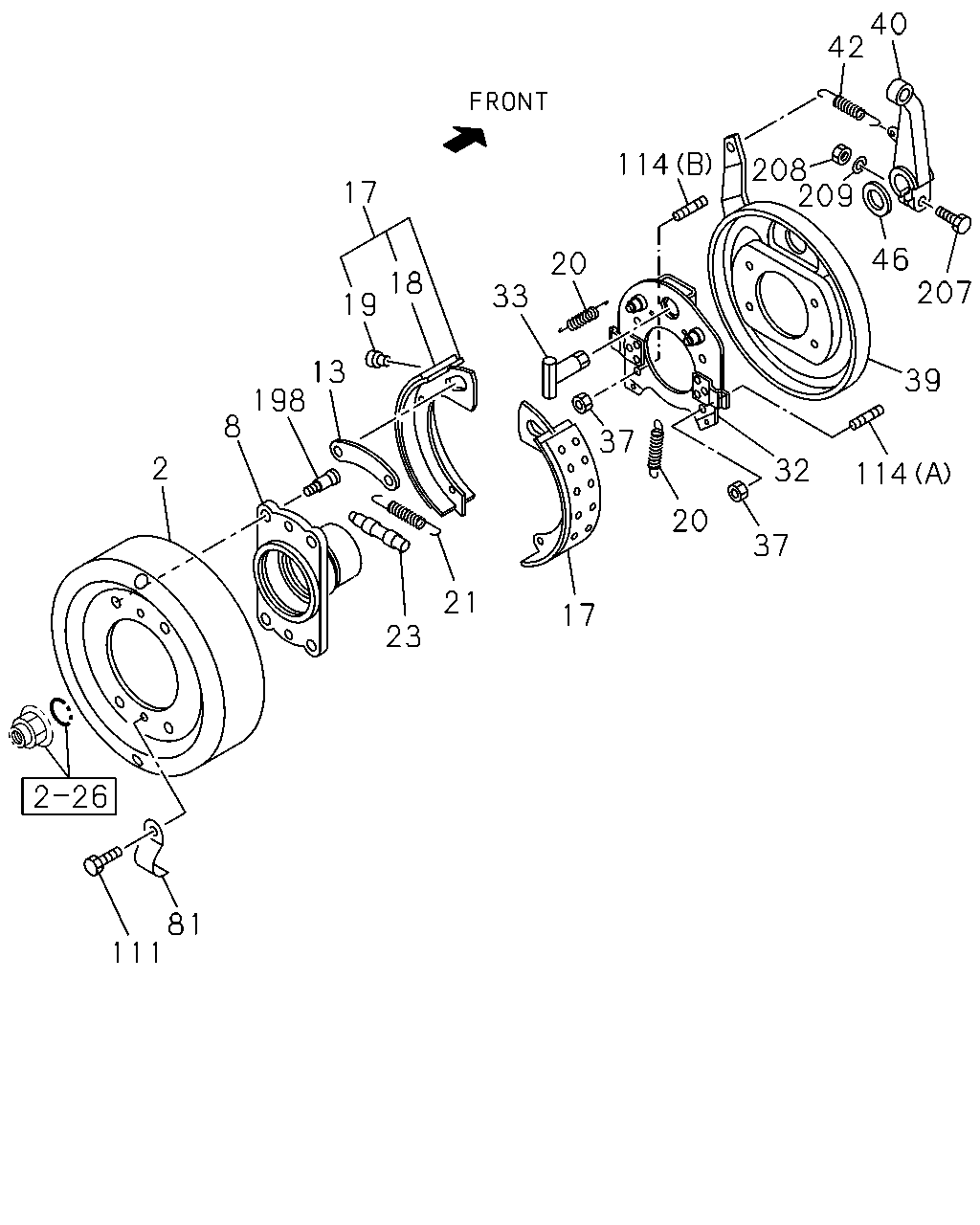

3-08 — PARKING BRAKE (#113968) — 116 parça

111 81 2 8 198 13 19 18 17 23 21 17 20 37 32 114 39 207 46 209 208 42 40 114 20 33 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46211-019-0	01	1	1302-
2	DRUM; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	1302-
2	DRUM; PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	1302-
8	FLANGE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	8-98153-193-0	01	1	1302-
8	FLANGE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1302-
8	FLANGE; PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1302-
13	BRACE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	9-46239-002-0	01	1	1302-
13	BRACE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	1302-
13	BRACE; PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	1302-
17	SHOE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46220-022-1	02	1	1302-
17	SHOE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	1302-
17	SHOE; PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	1302-
18	LINING; BRK,PARKING 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46225-023-0	02	1	1302-
19	RIVET; LINING,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-09732-058-0	32	1	1302-
20	SPRING; RETURN,SECONDARY,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	9-09942-434-0	02	1	1302-
20	SPRING; RETURN,SECONDARY,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	1302-
20	SPRING; RETURN,SECONDARY,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	1302-
21	SPRING; RETURN,PARKING BRK SHOE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	9-09942-516-0	01	1	1302-
21	SPRING; RETURN,PARKING BRK SHOE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	1302-
21	SPRING; RETURN,PARKING BRK SHOE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	1302-
23	SCREW; ADJ,PARKING BRK SHOE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46240-003-0	01	1	1302-
23	SCREW; ADJ,PARKING BRK SHOE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	1302-
23	SCREW; ADJ,PARKING BRK SHOE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	1302-
32	PLATE; SUPPORT,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46213-039-0	01	1	1302-
32	PLATE; SUPPORT,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	1302-
32	PLATE; SUPPORT,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	1302-
33	SHAFT; CAM,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46251-010-0	01	1	1302-
33	SHAFT; CAM,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	1302-
33	SHAFT; CAM,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	1302-
37	NUT; SUPPORT PLATE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M14 FLANGE	8-97365-444-0	04	1	1302-
37	NUT; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S) M14 FLANGE	8-97365-444-0	04	1	1302-
39	COVER; DUST,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46213-038-0	01	1	1302-
39	COVER; DUST,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	1302-
39	COVER; DUST,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	1302-
40	LEVER; CM/SHF,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46252-046-0	01	1	1302-
40	LEVER; CM/SHF,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	1302-
40	LEVER; CM/SHF,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	1302-
42	SPRING; RETURN,LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-09583-104-0	01	1	1302-
42	SPRING; RETURN,LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	1302-
42	SPRING; RETURN,LEVER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	1302-
46	WASHER; LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	9-09855-362-0	01	1	1302-
46	WASHER; LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	1302-
46	WASHER; LEVER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	1302-
81	COVER; CHECK HOLE,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46219-030-0	02	1	1302-
81	COVER; CHECK HOLE,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	1302-
81	COVER; CHECK HOLE,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	1302-
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER	0-50740-820-0	02	1	1302-
114	STUD; SUPPORT PLATE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1302-
114	STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S) (A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1302-
114	STUD; SUPPORT PLATE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
114	STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S) (B) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
198	BOLT; KNURL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) M16X55	8-98023-172-0	04	1	1302-
198	BOLT; KNURL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	1302-
198	BOLT; KNURL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	1302-
207	BOLT; LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	8-98061-595-0	01	1	1302-
208	NUT; LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) M10	0-91111-510-0	01	1	1302-
209	WASHER; SP,LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ID=10.2	0-91510-510-0	01	1	1302-

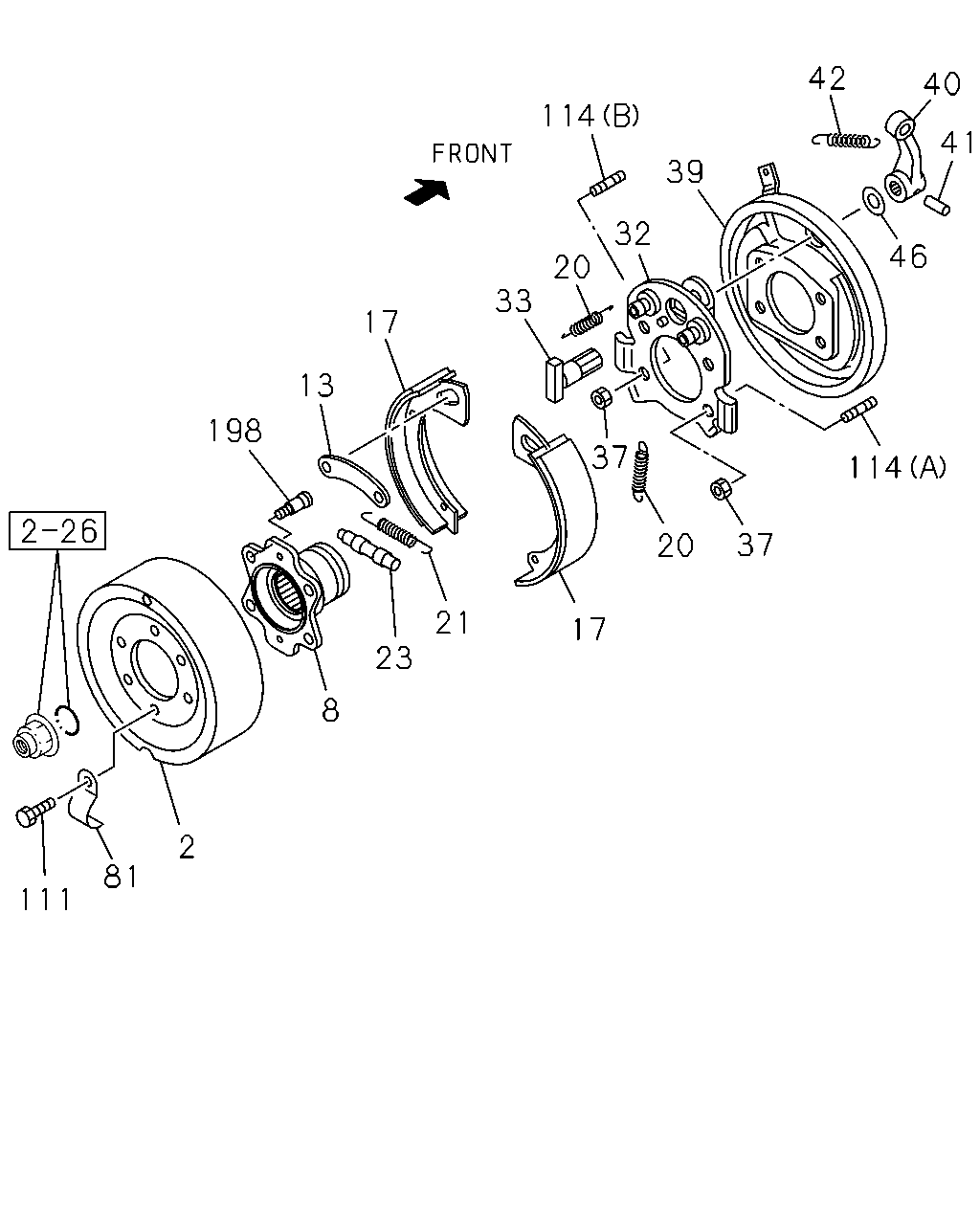

111 2 81 198 8 21 23 13 17 17 37 33 20 37 20 32 39 114 114 42 46 41 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46211-019-0	01	1	1302-
2	DRUM; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	1302-
2	DRUM; PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46211-020-1	01	1	1302-
8	FLANGE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	8-98153-193-0	01	1	1302-
8	FLANGE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1302-
8	FLANGE; PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	8-98153-194-0	01	1	1302-
13	BRACE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	9-46239-002-0	01	1	1302-
13	BRACE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	1302-
13	BRACE; PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-46239-003-0	01	1	1302-
17	SHOE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46220-022-1	02	1	1302-
17	SHOE; PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	1302-
17	SHOE; PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46220-029-0	02	1	1302-
20	SPRING; RETURN,SECONDARY,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	9-09942-434-0	02	1	1302-
20	SPRING; RETURN,SECONDARY,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	1302-
20	SPRING; RETURN,SECONDARY,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-09942-567-1	02	1	1302-
21	SPRING; RETURN,PARKING BRK SHOE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	9-09942-516-0	01	1	1302-
21	SPRING; RETURN,PARKING BRK SHOE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	1302-
21	SPRING; RETURN,PARKING BRK SHOE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-09583-268-0	01	1	1302-
23	SCREW; ADJ,PARKING BRK SHOE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46240-003-0	01	1	1302-
23	SCREW; ADJ,PARKING BRK SHOE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	1302-
23	SCREW; ADJ,PARKING BRK SHOE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-46240-008-0	01	1	1302-
32	PLATE; SUPPORT,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46213-039-0	01	1	1302-
32	PLATE; SUPPORT,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	1302-
32	PLATE; SUPPORT,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46213-023-0	01	1	1302-
33	SHAFT; CAM,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46251-010-0	01	1	1302-
33	SHAFT; CAM,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	1302-
33	SHAFT; CAM,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46251-070-0	01	1	1302-
37	NUT; SUPPORT PLATE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M14 FLANGE	8-97365-444-0	04	1	1302-
37	NUT; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S) M14 FLANGE	8-97365-444-0	04	1	1302-
39	COVER; DUST,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46213-038-0	01	1	1302-
39	COVER; DUST,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	1302-
39	COVER; DUST,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46213-111-0	01	1	1302-
40	LEVER; CM/SHF,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46252-046-0	01	1	1302-
40	LEVER; CM/SHF,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	1302-
40	LEVER; CM/SHF,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46252-052-0	01	1	1302-
41	PIN; KNOCK,LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-09878-594-0	01	1	1302-
41	PIN; KNOCK,LEVER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-09878-594-0	01	1	1302-
42	SPRING; RETURN,LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-09583-104-0	01	1	1302-
42	SPRING; RETURN,LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	1302-
42	SPRING; RETURN,LEVER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-09942-592-0	01	1	1302-
46	WASHER; LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	9-09855-362-0	01	1	1302-
46	WASHER; LEVER 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	1302-
46	WASHER; LEVER 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	9-09855-367-0	01	1	1302-
81	COVER; CHECK HOLE,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	1-46219-030-0	02	1	1302-
81	COVER; CHECK HOLE,PARKING BRK 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	1302-
81	COVER; CHECK HOLE,PARKING BRK 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	1-46219-018-0	02	1	1302-
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER	0-50740-820-0	02	1	1302-
114	STUD; SUPPORT PLATE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1302-
114	STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S) (A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1302-
114	STUD; SUPPORT PLATE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) (B) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
114	STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S) (B) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
198	BOLT; KNURL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) M16X55	8-98023-172-0	04	1	1302-
198	BOLT; KNURL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	1302-
198	BOLT; KNURL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL	8-98014-003-0	04	1	1302-

130 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	BOLT; BRKT 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T) M10X25 FLANGE	0-28751-025-0	03	1	1302-
130	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S) M10X25 FLANGE	0-28751-025-0	03	1	1302-
197	BRACKET; CENTER BRAKE CABLE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T)	8-98009-002-1	01	1	1302-
197	BRACKET; CENTER BRAKE CABLE 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S)	8-98020-897-1	01	1	1302-
197	BRACKET; CENTER BRAKE CABLE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> PARKING BRAKE DRUM 8.5"(B1S)	8-98020-897-1	01	1	1302-
