◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51275 - NLR/NMR(85) AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-06 - REAR DISC BRAKE CALIPER ▶
3-06 — REAR DISC BRAKE CALIPER (#113967) — 53 parça

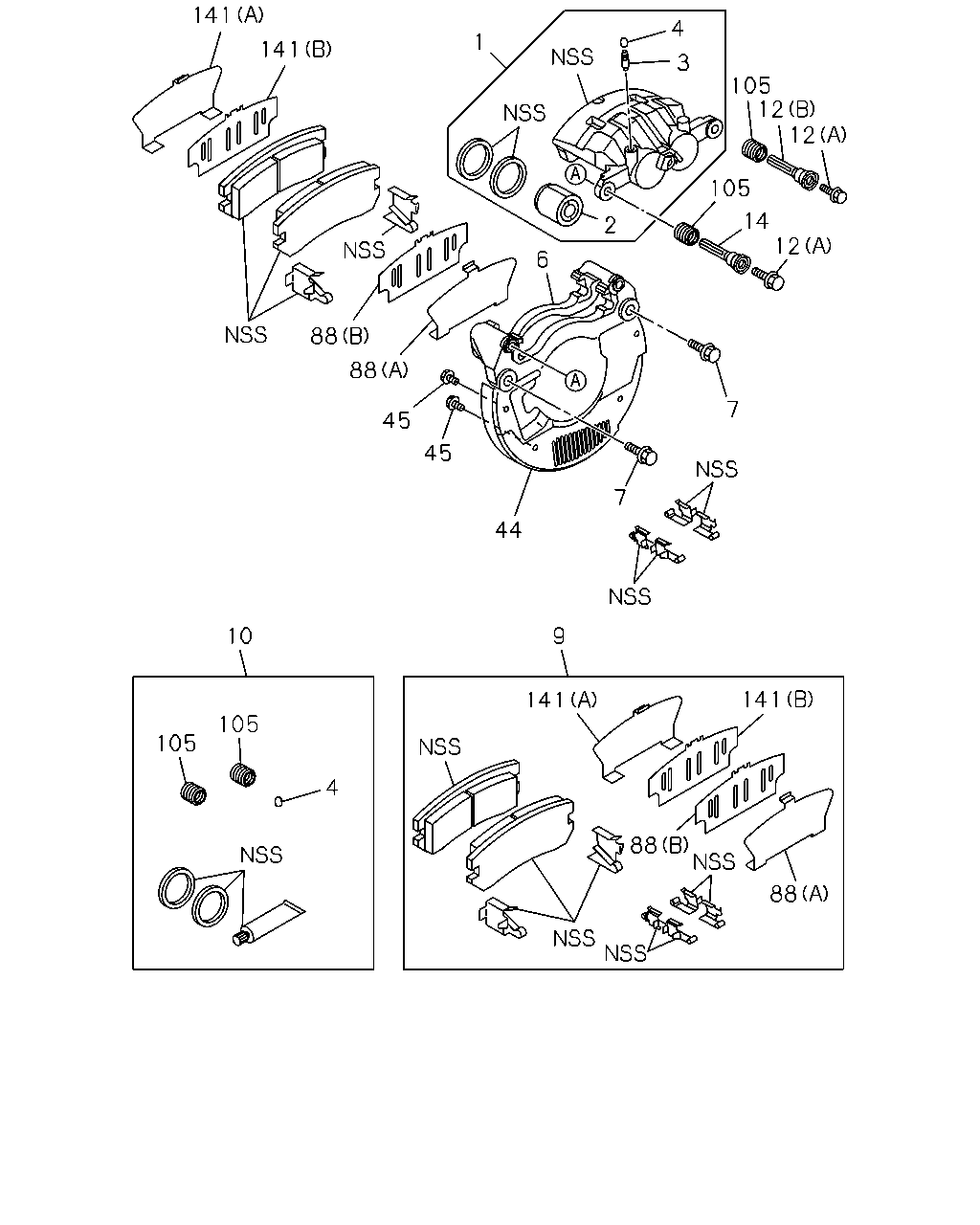

çizim 327790
141 141 1 4 3 105 12 12 105 12 14 2 6 88 88 45 45 44 7 7 141 141 9 88 88 4 105 105 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98089-670-0 01 1 1309-1310 ●
1 04.665 CALIPER; RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98251-564-0 01 1 1311-1412 ●
1 04.665 CALIPER; RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98303-463-0 01 1 1501- ●
1 04.665 CALIPER; RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98089-671-0 01 1 1309-1310 ●
1 04.665 CALIPER; RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98251-565-0 01 1 1311-1412 ●
1 04.665 CALIPER; RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98303-464-0 01 1 1501- ●
1 04.665 CALIPER; RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98082-925-0 01 1 1301-1412 ●
1 04.665 CALIPER; RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98303-471-0 01 1 1501- ●
1 04.665 CALIPER; RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98082-926-0 01 1 1301-1412 ●
1 04.665 CALIPER; RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98303-472-0 01 1 1501- ●
2 04.665 PISTON; CALIPER,RR
4 WHEEL DISC BRAKE<JF9> 04.668 		8-97365-269-0 04 1 1309- ●
2 04.665 PISTON; CALIPER,RR
4 WHEEL DISC BRAKE<JF9> 		8-98082-934-0 04 1 1301- ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
4 WHEEL DISC BRAKE<JF9> 04.666 		8-98050-476-0 02 1 1301-1308 ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
4 WHEEL DISC BRAKE<JF9> 04.666 		8-98050-476-0 02 1 1309- ● ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
4 WHEEL DISC BRAKE<JF9> 04.666 		8-98050-479-0 02 1 1301-1308 ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
4 WHEEL DISC BRAKE<JF9> 04.666 		8-98050-479-0 02 1 1309- ● ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98089-674-0 02 1 1309- ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98082-935-0 02 1 1301- ●
7 04.665 BOLT; DISC BRK
4 WHEEL DISC BRAKE<JF9> 04.681 M16X48 FLANGE 		8-98033-656-0 04 1 1301-1308 ●
7 04.665 BOLT; DISC BRK
4 WHEEL DISC BRAKE<JF9> 04.681 M16X48 FLANGE 		8-98033-656-0 04 1 1309- ● ●
9 04.667 PAD KIT; CALIPER,RR
4 WHEEL DISC BRAKE<JF9> 05.017 		8-98216-922-0 01 1 1309- ●
9 04.667 PAD KIT; CALIPER,RR
4 WHEEL DISC BRAKE<JF9> 05.017 		8-98091-271-0 01 1 1301-1301 ●
9 04.667 PAD KIT; CALIPER,RR
4 WHEEL DISC BRAKE<JF9> 05.017 		8-98216-921-0 01 1 1301- ●
10 04.665 REPAIR KIT; DISC BRK,RR
4 WHEEL DISC BRAKE<JF9> 04.667 W/GREASE 		8-98120-357-0 01 1 1309-1310 ●
10 04.665 REPAIR KIT; DISC BRK,RR
4 WHEEL DISC BRAKE<JF9> 04.667 W/GREASE 		8-98248-904-0 01 1 1311-1412 ●
10 04.665 REPAIR KIT; DISC BRK,RR
4 WHEEL DISC BRAKE<JF9> 04.667 W/GREASE 		8-98302-531-0 01 1 1501- ●
10 04.665 REPAIR KIT; DISC BRK,RR
4 WHEEL DISC BRAKE<JF9> 		8-98120-359-0 01 1 1301-1412 ●
10 04.665 REPAIR KIT; DISC BRK,RR
4 WHEEL DISC BRAKE<JF9> 		8-98302-533-0 01 1 1501- ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (B) 		8-98047-531-0 02 1 1309-1310 ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (B) 		8-98248-005-0 02 1 1311- ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (A) 		8-97365-264-0 04 1 1301-1308 ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (A) 		8-97365-264-0 04 1 1309- ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (B) 		8-98047-532-0 02 1 1301- ●
14 04.665 PIN; GUIDE,CALIPER
4 WHEEL DISC BRAKE<JF9> 		8-98047-529-0 02 1 1309- ●
14 04.665 PIN; GUIDE,CALIPER
4 WHEEL DISC BRAKE<JF9> 		8-98047-530-0 02 1 1301- ●
44 04.665 COVER; DUST
4 WHEEL DISC BRAKE<JF9> 		8-98191-950-0 01 1 1309-1502 ●
44 04.665 COVER; DUST
4 WHEEL DISC BRAKE<JF9> 		8-98191-950-0 01 1 1503- ● ●
44 04.665 COVER; DUST
4 WHEEL DISC BRAKE<JF9> 		8-98191-951-0 01 1 1309-1502 ●
44 04.665 COVER; DUST
4 WHEEL DISC BRAKE<JF9> 		8-98191-951-0 01 1 1503- ● ●
44 04.665 COVER; DUST
4 WHEEL DISC BRAKE<JF9> 		8-98083-524-0 01 1 1301-1502 ●
44 04.665 COVER; DUST
4 WHEEL DISC BRAKE<JF9> 		8-98083-525-0 01 1 1301-1502 ●
45 04.665 BOLT; DUST COVER SET
4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1301-1308 ●
45 04.665 BOLT; DUST COVER SET
4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1309- ● ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (A) 		8-97321-116-0 02 1 1309- ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (B) 		8-97321-117-0 02 1 1309- ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (A) 		8-98092-330-0 02 1 1301- ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (B) 		8-98092-331-0 02 1 1301- ●
105 04.665 BOOT; PIN
4 WHEEL DISC BRAKE<JF9> 		8-98120-354-0 04 1 1301-1308 ●
105 04.665 BOOT; PIN
4 WHEEL DISC BRAKE<JF9> 		8-98120-354-0 04 1 1309- ● ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (A) 		8-97321-116-0 02 1 1309- ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (B) 		8-97321-117-0 02 1 1309- ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (A) 		8-98092-330-0 02 1 1301- ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
4 WHEEL DISC BRAKE<JF9> (B) 		8-98092-331-0 02 1 1301- ●
