Isuzu WW
▶
TRUCKS
▶
FRR
▶
11506 - FRR RHD EURO2 EXC.SPACECAB
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶
3-08 — PARKING BRAKE
(#113965) — 22 parça
◀

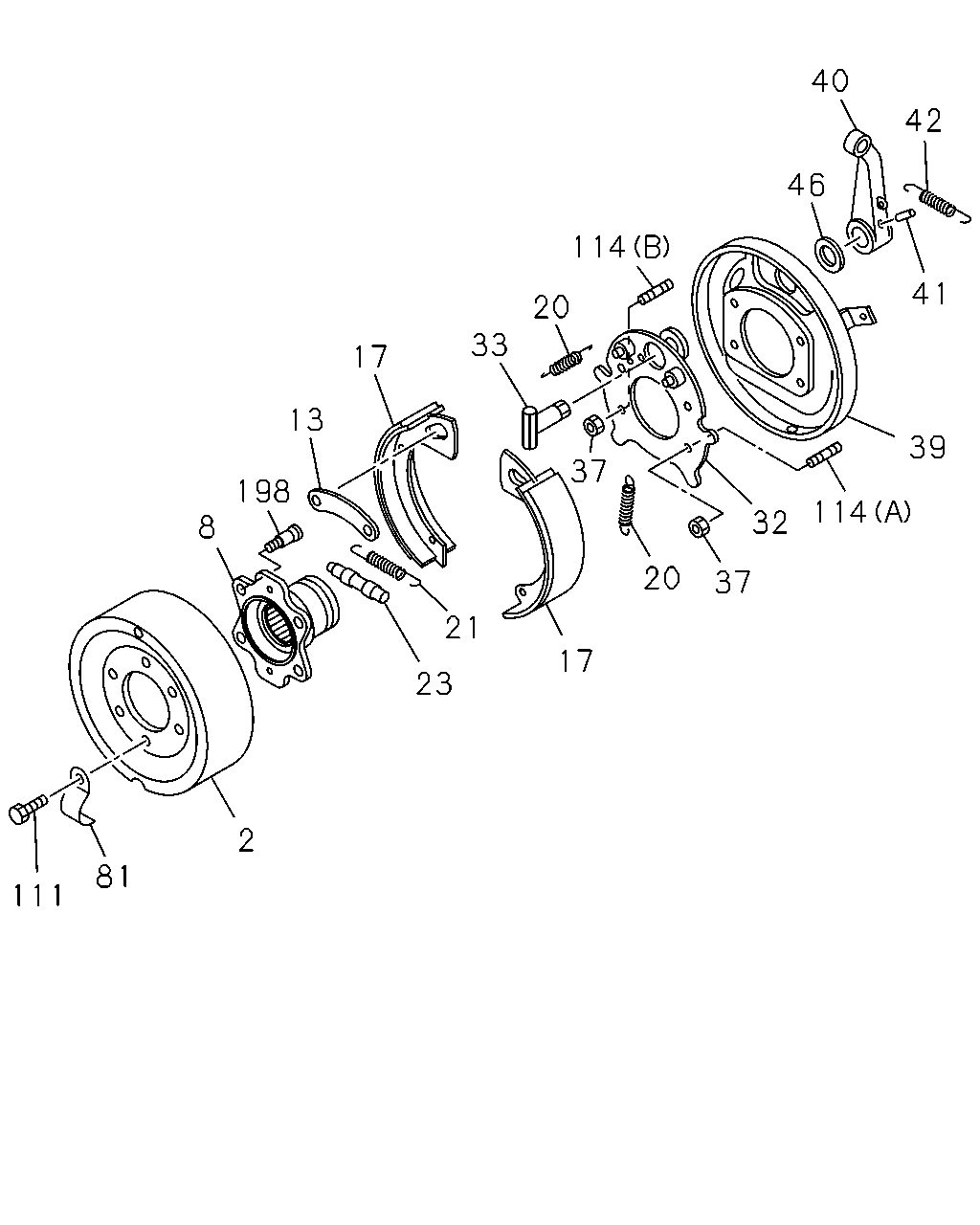

[308A] NO.1 (20 parça)
[308A] NO.2 (2 parça)
▶
111
8
81
2
23
198
13
21
17
37
20
37
32
39
114
41
42
40
46
114
20
33
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46211-020-1
01
1
1302-
8
FLANGE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
8-98153-194-0
01
1
1302-
13
BRACE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
9-46239-003-0
01
1
1302-
17
SHOE; PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46220-029-0
02
1
1302-
20
SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
9-09942-567-1
02
1
1302-
21
SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 8.5"(B1S)
1-09583-268-0
01
1
1302-
23
SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 8.5"(B1S)
9-46240-008-0
01
1
1302-
32
PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46213-023-0
01
1
1302-
33
SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46251-070-0
01
1
1302-
37
NUT; SUPPORT PLATE
PARKING BRAKE DRUM 8.5"(B1S) M14 FLANGE
8-97365-444-0
04
1
1302-
39
COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46213-111-0
01
1
1302-
40
LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46252-052-0
01
1
1302-
41
PIN; KNOCK,LEVER
PARKING BRAKE DRUM 8.5"(B1S)
9-09878-594-0
01
1
1302-
42
SPRING; RETURN,LEVER
PARKING BRAKE DRUM 8.5"(B1S)
9-09942-592-0
01
1
1302-
46
WASHER; LEVER
PARKING BRAKE DRUM 8.5"(B1S)
9-09855-367-0
01
1
1302-
81
COVER; CHECK HOLE,PARKING BRK
PARKING BRAKE DRUM 8.5"(B1S)
1-46219-018-0
02
1
1302-
111
BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 8.5"(B1S) M8X20 W/LK WASHER
0-50740-820-0
02
1
1302-
114
STUD; SUPPORT PLATE
PARKING BRAKE DRUM 8.5"(B1S) (A) M14X22 WO/DRY-ROCK
8-98014-137-0
03
1
1302-
114
STUD; SUPPORT PLATE
PARKING BRAKE DRUM 8.5"(B1S) (B) M14X22 W/DRY-ROCK
8-98014-138-0
01
1
1302-
198
BOLT; KNURL
PARKING BRAKE DRUM 8.5"(B1S) M14X43 KNURL
8-98014-003-0
04
1
1302-
197
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
BOLT; BRKT
PARKING BRAKE DRUM 8.5"(B1S) M10X25 FLANGE
0-28751-025-0
03
1
1302-
197
BRACKET; CENTER BRAKE CABLE
PARKING BRAKE DRUM 8.5"(B1S)
8-98020-897-1
01
1
1302-
