◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#113962) — 42 parça

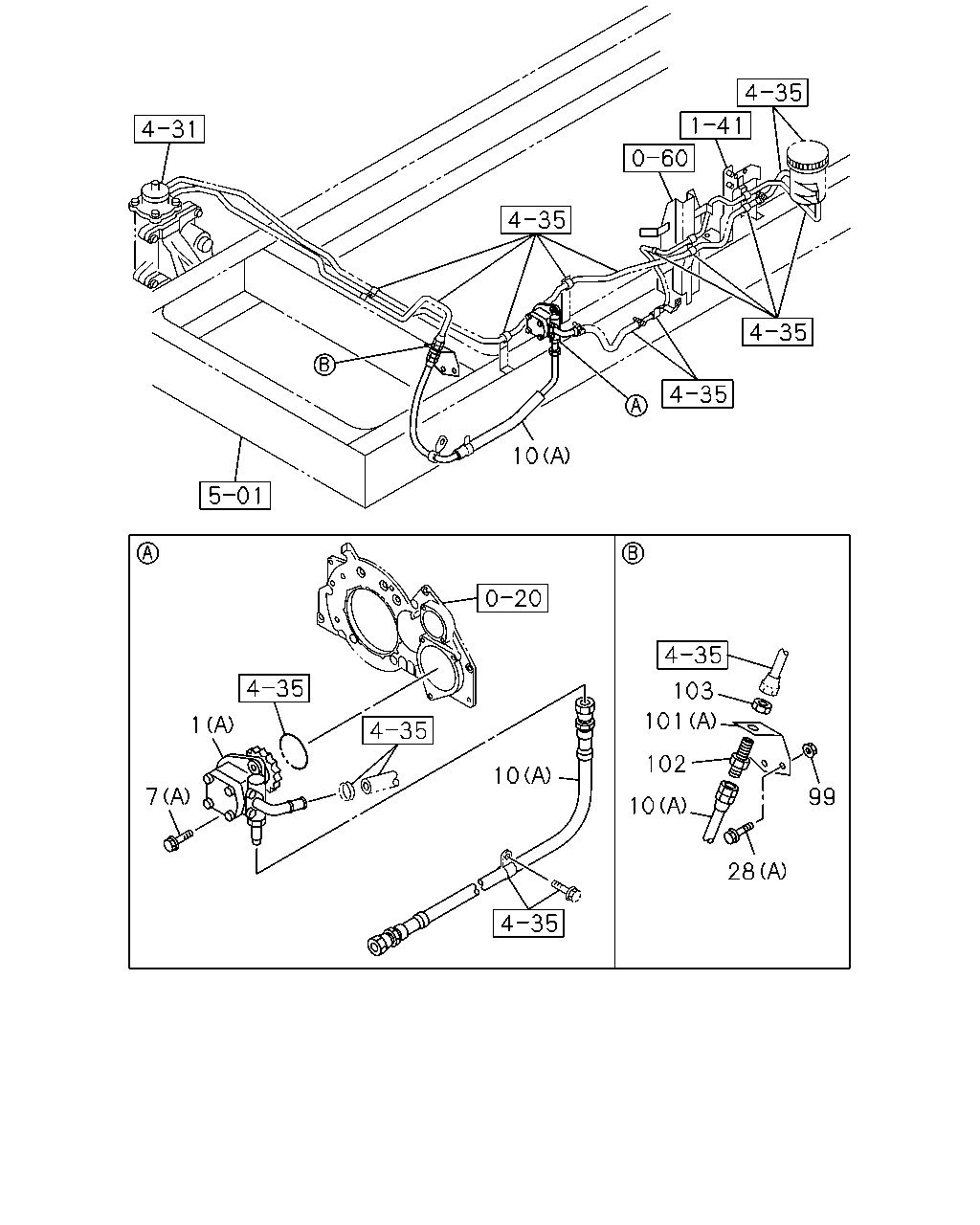

çizim 328517
10 1 7 10 10 101 102 103 99 28
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		8-98190-459-0 01 1 1305-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-629-1 01 1 1302-1304
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) (A) 		1-19500-629-1 01 1 1305-
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28751-030-0 01 1 1305-
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1302-1304
7 BOLT; OIL PUMP,P/S
6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1305-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (B) 		1-21115-205-0 01 1 1305-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (C) 		8-98212-319-0 01 1 1305-
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (A) 		8-98076-172-0 01 1 1302-
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1305-
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
99 NUT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1302-
101 BRACKET; UNION
4HK1-TCS ENG(RJS) (B) 		8-98205-816-0 01 1 1305-
101 BRACKET; UNION
6HK1-TCN ENG(82L) (A) 		8-98052-888-1 01 1 1302-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1302-
103 NUT; UNION
M22 		0-91111-522-0 01 1 1302-

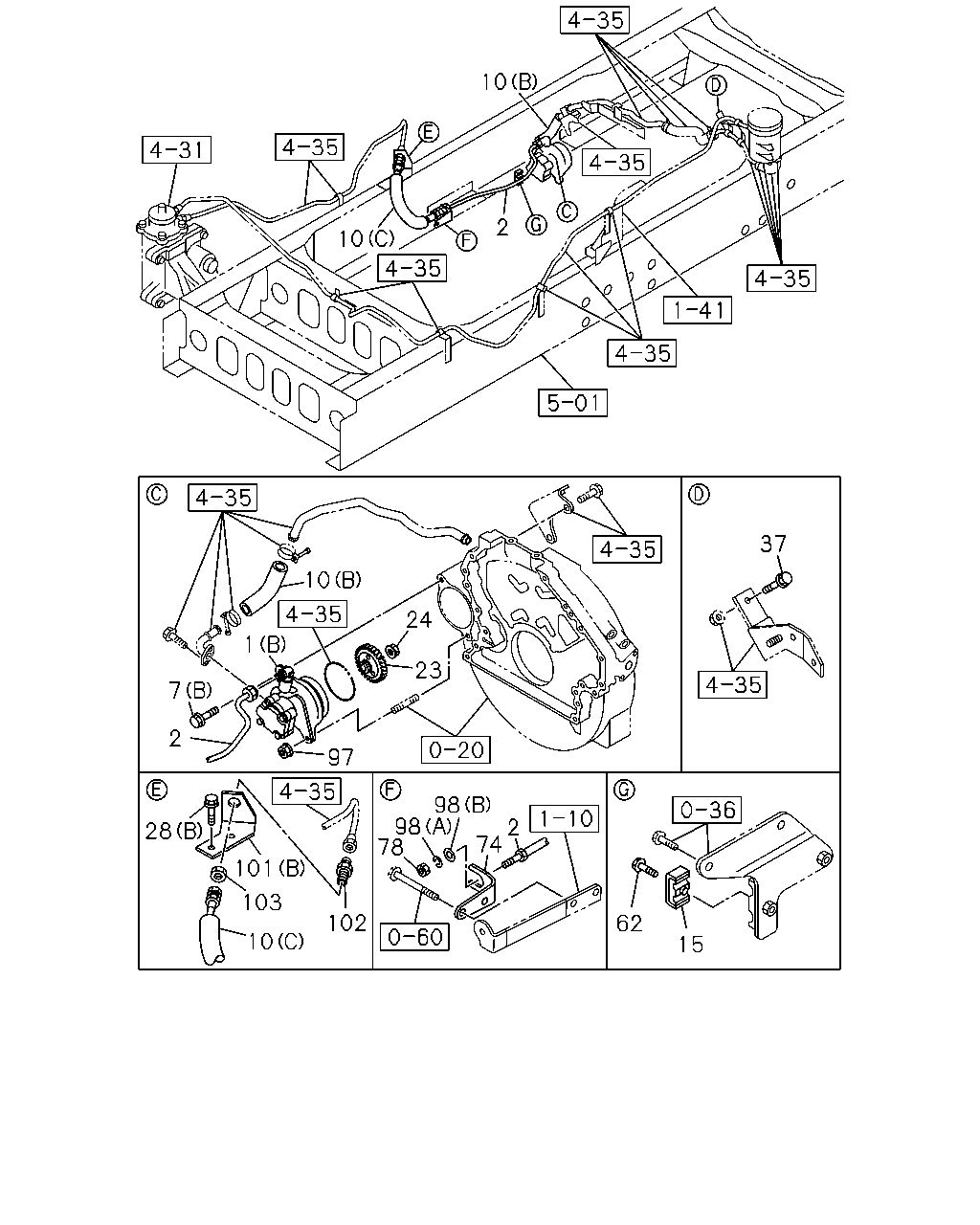

çizim 351079
2 10 10 24 23 37 97 7 1 2 10 28 101 103 102 10 78 98 98 74 2 62 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		8-98190-459-0 01 1 1305-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-629-1 01 1 1302-1304
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) (A) 		1-19500-629-1 01 1 1305-
2 PIPE ASM; OIL,SUCTION
4HK1-TCS ENG(RJS) 		8-98086-746-0 01 1 1305-
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28751-030-0 01 1 1305-
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1302-1304
7 BOLT; OIL PUMP,P/S
6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1305-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (B) 		1-21115-205-0 01 1 1305-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (C) 		8-98212-319-0 01 1 1305-
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (A) 		8-98076-172-0 01 1 1302-
15 CLIP; OIL PIPE SUCTION
4HK1-TCS ENG(RJS) ID=9 & 9 L=25 		1-09701-212-2 01 1 1305-
23 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) Z=30 		8-94390-842-1 01 1 1305-
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-112-0 01 1 1305-
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1305-
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
37 BOLT; P/S PUMP
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 01 1 1305-
62 BOLT; CLIP
4HK1-TCS ENG(RJS) M6X30 FLANGE 		0-28650-630-0 01 1 1305-
74 BRACKET; PIPE
4HK1-TCS ENG(RJS) 		8-98060-044-1 01 1 1305-
78 NUT; BRKT
4HK1-TCS ENG(RJS) M20 		0-91111-520-0 01 1 1305-
97 NUT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-110-0 01 1 1305-
98 WASHER; LK,BRKT
4HK1-TCS ENG(RJS) (A) ID=20.2 		0-91510-620-0 01 1 1305-
98 WASHER; LK,BRKT
4HK1-TCS ENG(RJS) (B) ID=21 		0-91610-520-0 01 1 1305-
101 BRACKET; UNION
4HK1-TCS ENG(RJS) (B) 		8-98205-816-0 01 1 1305-
101 BRACKET; UNION
6HK1-TCN ENG(82L) (A) 		8-98052-888-1 01 1 1302-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1302-
103 NUT; UNION
M22 		0-91111-522-0 01 1 1302-
