2-05 — CLUTCH PIPING (#11396) — 433 parça

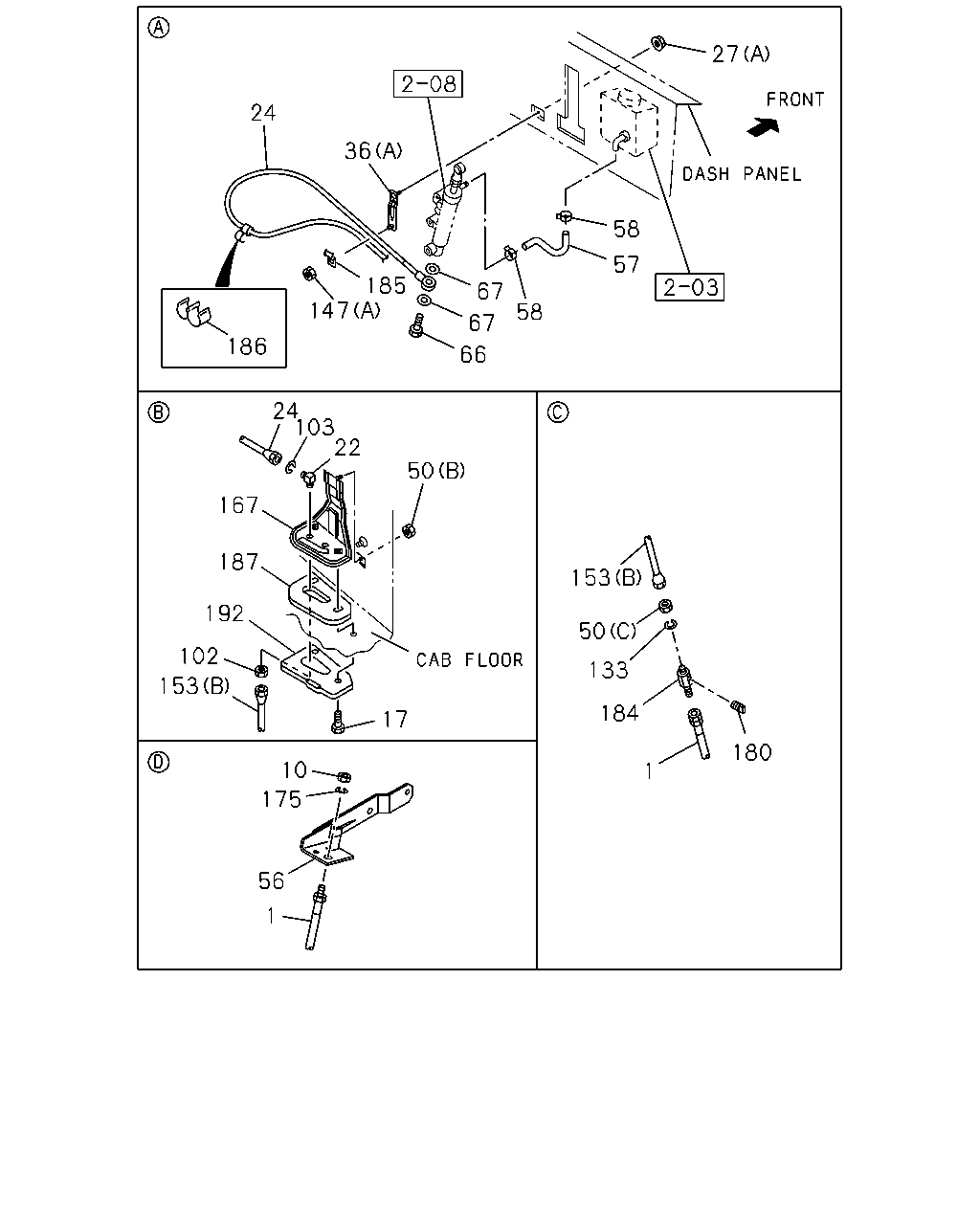

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	0106-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=643	1-47424-529-2	01	1	0106-0108
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0109-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0106-0108
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0106-0110
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0111-0201
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0202-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1618	1-49166-188-0	01	1	0106-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1618	1-49166-188-0	01	1	0109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0108
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1021	1-49164-666-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-
167	BRACKET; UNION	1-71117-183-3	01	1	0106-

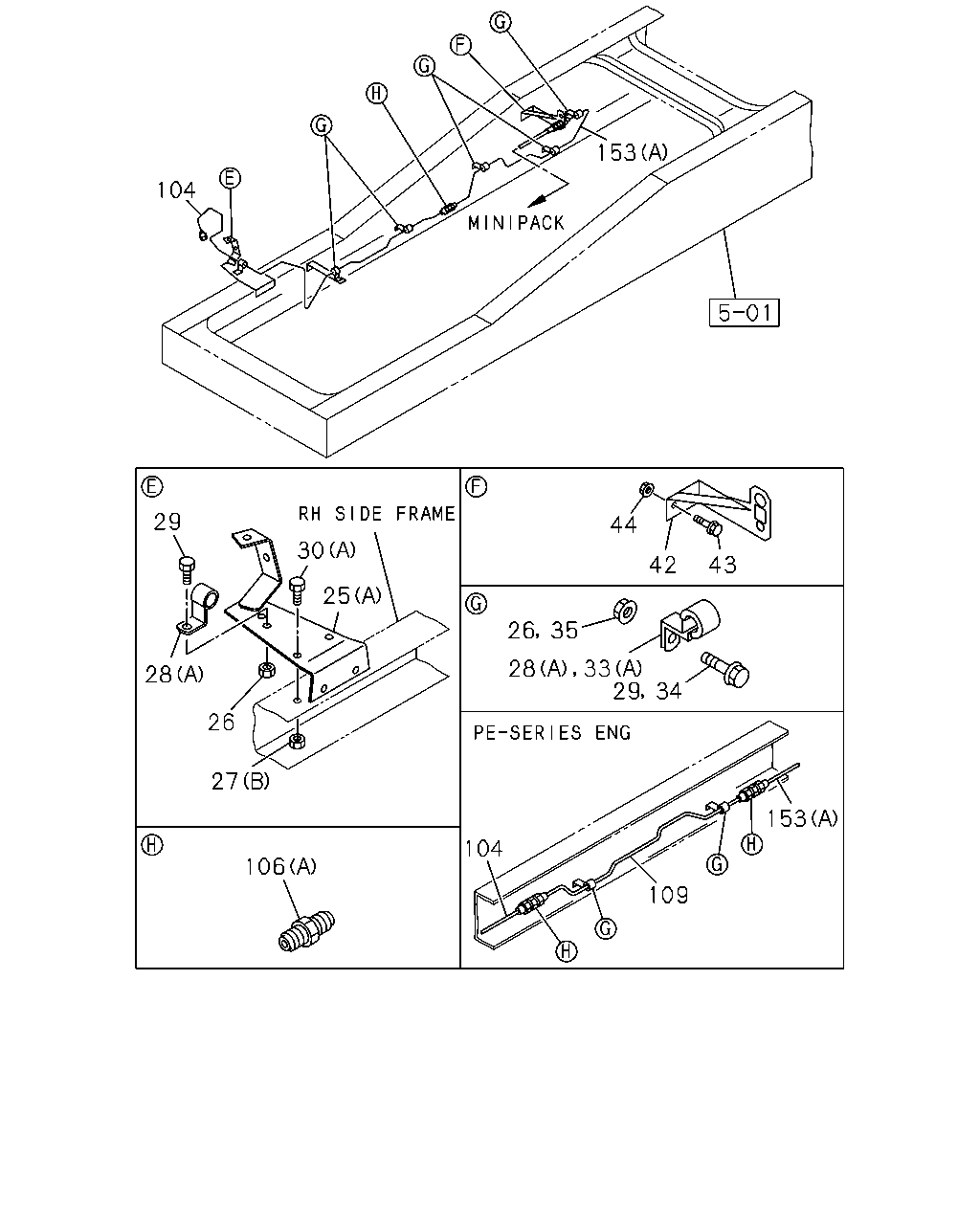

104 153 109 104 106 27 26 28 29 30 25 26 35 33 28 29 34 43 42 44 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0106-0108
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0106-0108
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0109-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0108
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0106-0108
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0106-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0106-0108
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0109-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0106-0108
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0109-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-0108
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-0108
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0106-0108
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0106-0108
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0109-0512
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0106-0108
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	03	1	0106-0108
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0106-0108
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	BOLT; BRKT ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0108
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
30	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-0108
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0109-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0106-0108
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0106-0108
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-0108
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0106-0106
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-0108
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0109-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0106-0108
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-0106
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-0106
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0107-0108
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0109-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-0108
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-414-0	01	1	0106-0108
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-414-0	01	1	0109-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M10X30 FLANGE	0-28681-030-0	02	1	0106-0108
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M10X30 FLANGE	0-28681-030-0	02	1	0109-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M10X30 FLANGE	0-28651-030-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0106-0108
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M10 FLANGE	0-91150-210-0	02	1	0109-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M10 FLANGE	0-91180-210-0	02	1	0603-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1618	1-49166-188-0	01	1	0106-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1618	1-49166-188-0	01	1	0109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0108
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0106-0108
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0106-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	0106-0106
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1102 SERVICED BY L=1000	1-47426-386-0	01	1	0107-0108
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1021	1-49164-666-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-

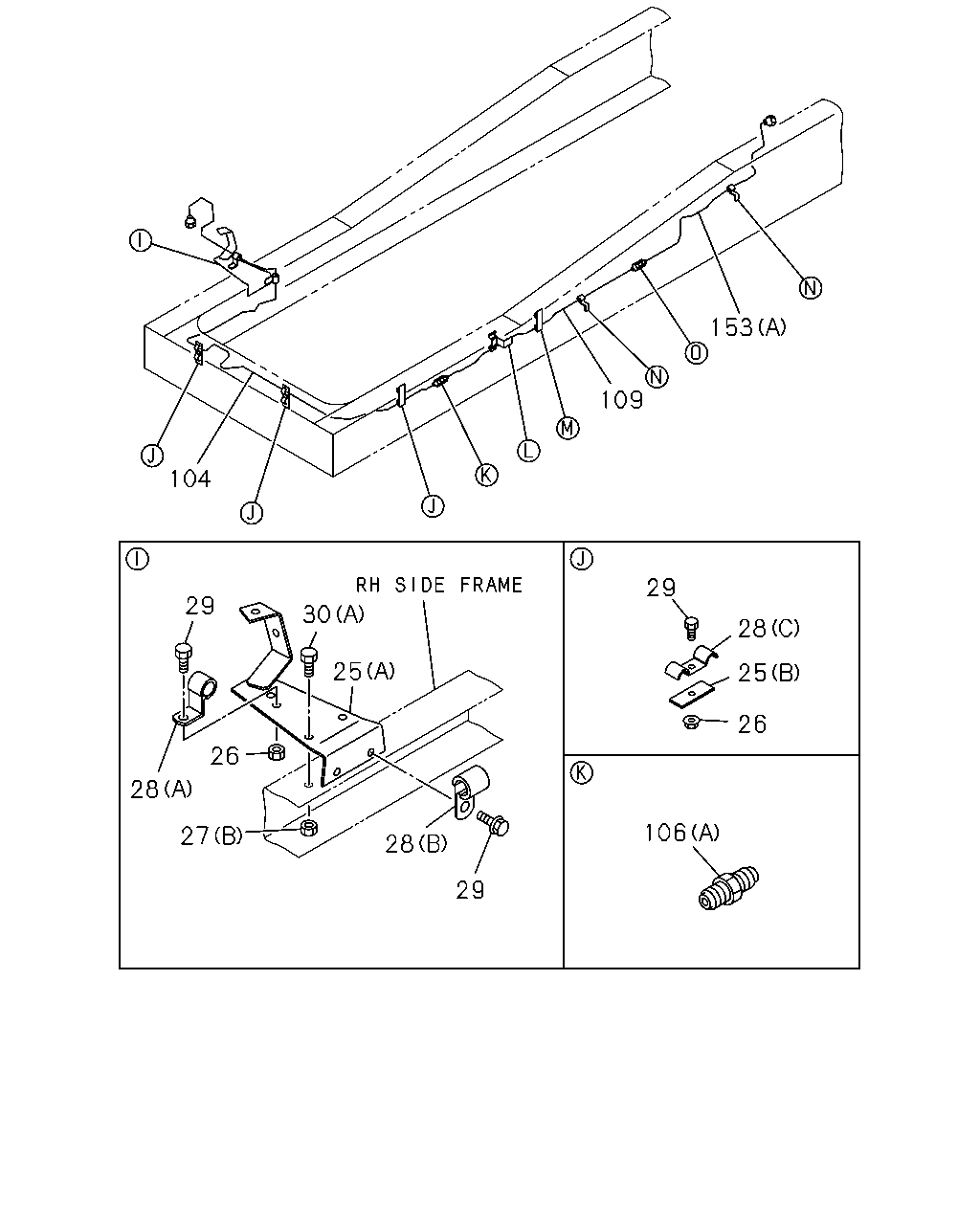

153 109 104 28 29 25 26 106 29 28 25 30 29 26 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0106-0108
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0106-0108
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0109-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0108
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0106-0108
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0106-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0106-0108
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0109-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0106-0108
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0109-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-0108
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-0108
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0106-0108
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0106-0108
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0109-0512
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0106-0108
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	03	1	0106-0108
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0106-0108
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	BOLT; BRKT ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0108
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
30	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1618	1-49166-188-0	01	1	0106-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1618	1-49166-188-0	01	1	0109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0108
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0106-0108
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0106-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	0106-0106
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1102 SERVICED BY L=1000	1-47426-386-0	01	1	0107-0108
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1021	1-49164-666-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-

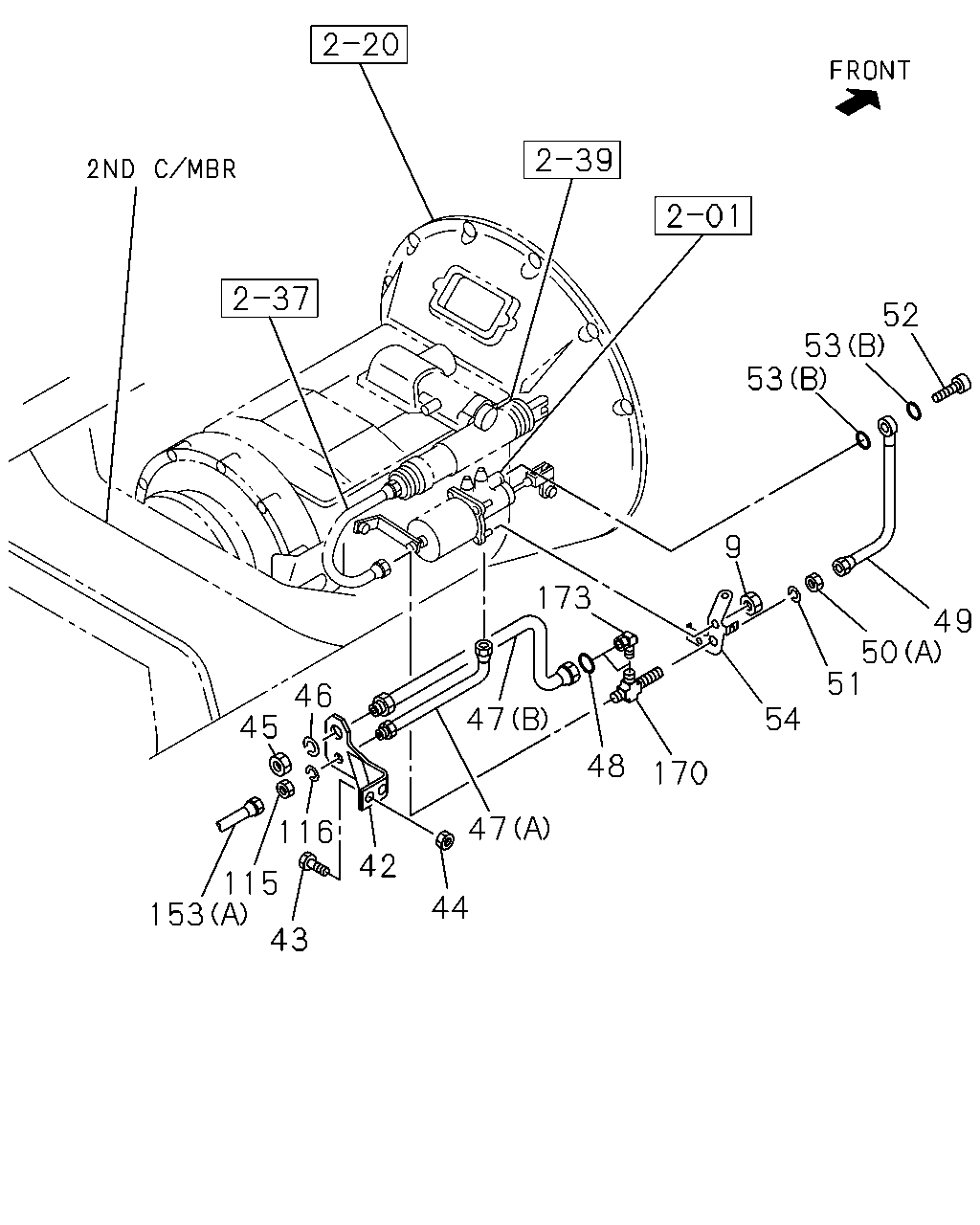

52 53 53 49 50 51 54 9 173 48 170 47 47 44 42 116 46 45 115 153 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJD7R M/T(Y2X) M10 FLANGE	0-91150-210-0	02	1	0106-0108
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0109-0602
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-414-0	01	1	0106-0108
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-414-0	01	1	0109-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M10X30 FLANGE	0-28681-030-0	02	1	0106-0108
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M10X30 FLANGE	0-28681-030-0	02	1	0109-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M10X30 FLANGE	0-28651-030-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0106-0108
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M10 FLANGE	0-91150-210-0	02	1	0109-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M10 FLANGE	0-91180-210-0	02	1	0603-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0106-0108
45	NUT; FLEX HOSE,CLU CONT M20	9-99111-420-0	01	1	0109-0512
45	NUT; FLEX HOSE,CLU CONT M20	0-91111-520-0	01	1	0601-
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0106-0108
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0108
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	9-09150-520-0	01	1	0109-0603
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	0-91510-520-0	01	1	0604-
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0106-0108
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0106-0108
47	HOSE; FLEX,CLU CONT (A) L=500	0-07806-500-1	01	1	0109-0605
47	HOSE; FLEX,CLU CONT (A) L=500	0-57806-500-1	01	1	0606-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=550	1-09364-434-0	01	1	0106-0108
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	0109-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0106-0108
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0106-0108
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJD7 M/T<X9J> L=293	1-49117-734-0	01	1	0106-0108
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	0109-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0106-0108
50	NUT; UNION (A) M20	9-99111-420-0	01	1	0109-0512
50	NUT; UNION (A) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION ZF M/T<X9E> (E) M12 FLANGE	0-91150-212-0	01	1	0106-0108
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0106-0108
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0108
51	WASHER; LK ID=20.2	9-09150-520-0	01	1	0109-0603
51	WASHER; LK ID=20.2	0-91510-520-0	01	1	0604-
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0106-0108
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0106-0108
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0109-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0106-0108
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-0108
53	GASKET; JOINT BOLT (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0106-0108
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-0108
54	BRACKET; AIR,FLEX HOSE MJD7R M/T(Y2X)	1-47477-284-1	01	1	0106-0108
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0109-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0108
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0106-0108
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0109-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0108
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0106-0108
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0109-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1021	1-49164-666-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-
170	UNION; AIR PIPE MJD7 M/T<X9J>	1-09656-640-0	01	1	0106-0108
170	UNION; AIR PIPE	1-09656-640-0	01	1	0109-
173	CONNECTOR MJD7 M/T<X9J> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0106-0108
173	CONNECTOR M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0109-

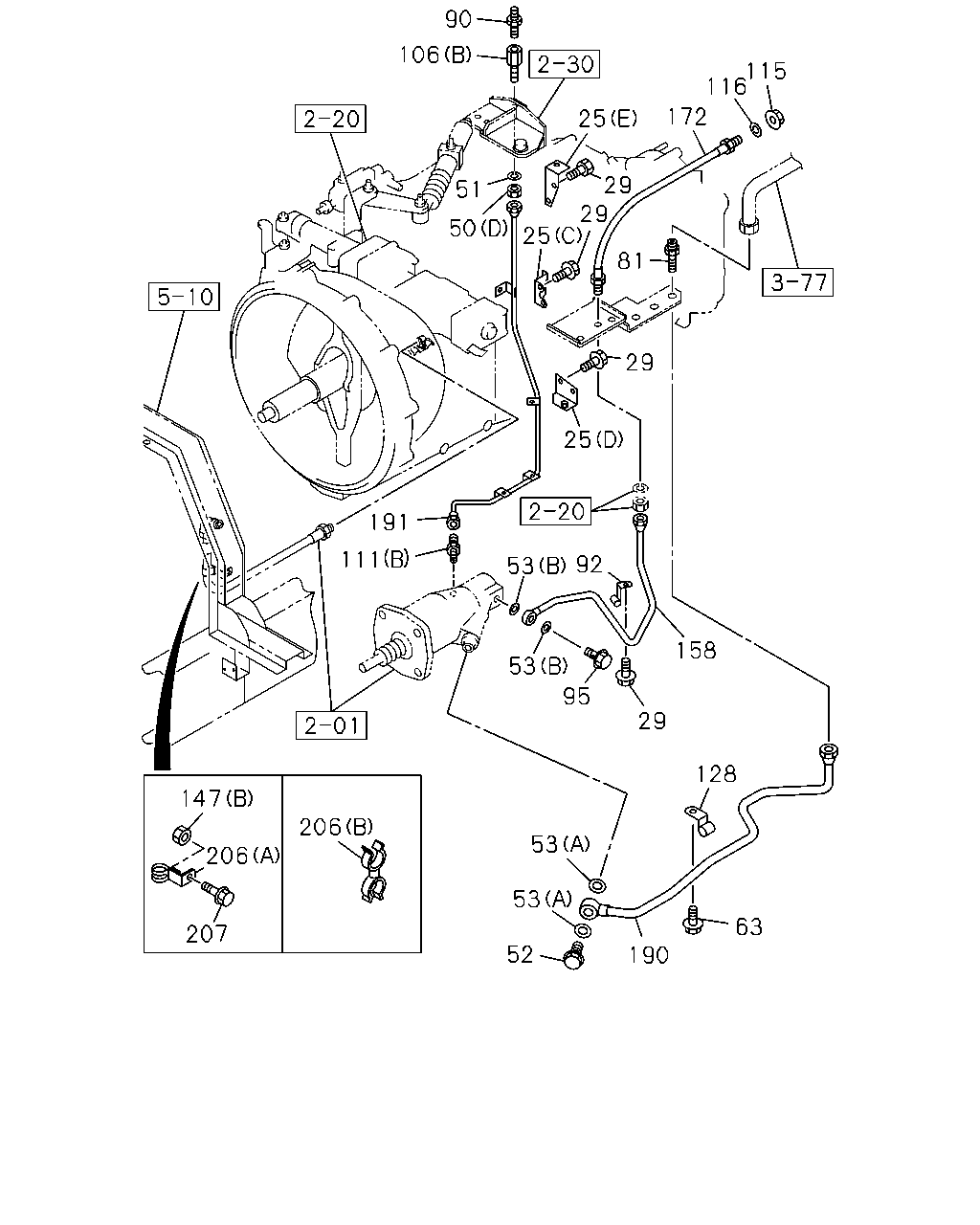

115 116 172 25 106 90 29 29 25 50 51 81 29 25 191 111 53 92 53 158 29 128 95 147 206 206 207 53 53 52 190 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0106-0108
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0106-0108
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0109-0512
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0106-0108
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	03	1	0106-0108
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0106-0108
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0106-0108
50	NUT; UNION (A) M20	9-99111-420-0	01	1	0109-0512
50	NUT; UNION (A) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION ZF M/T<X9E> (E) M12 FLANGE	0-91150-212-0	01	1	0106-0108
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0106-0108
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0108
51	WASHER; LK ID=20.2	9-09150-520-0	01	1	0109-0603
51	WASHER; LK ID=20.2	0-91510-520-0	01	1	0604-
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0106-0108
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0106-0108
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0109-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0106-0108
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-0108
53	GASKET; JOINT BOLT (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0106-0108
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-0108
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	01	1	0106-0108
81	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09664-233-0	01	1	0106-0108
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-31829-485-0	01	1	0106-0108
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0106-0108
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M14X27 FLANGE	1-09675-086-0	01	1	0106-0108
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09654-384-0	01	1	0106-0108
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0106-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0106-0108
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0106-0108
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0108
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0106-0108
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0109-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0108
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0106-0108
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0109-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0106-0108
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0106-0108
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0106-0108
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) L=470	1-09364-929-0	01	1	0106-0108
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0106-0108
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0106-0108
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-0108
206	CLIP; TUBE ZF M/T<X9E> (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0106-0108
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0106-0108
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0106-0108

27 24 36 58 58 67 57 67 185 66 147 186 24 22 103 50 167 187 192 102 153 17 10 175 56 1 153 133 50 184 1 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	0106-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0106-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0106-0607
22	UNION; CLU PIPE M14	0-92125-208-0	01	1	0608-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=643	1-47424-529-2	01	1	0106-0108
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0109-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0106-0108
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0106-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
36	BRACKET; CLIP ZF M/T<X9E> (B) L=50	1-47475-299-2	01	1	0106-0108
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0106-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0106-0108
50	NUT; UNION (A) M20	9-99111-420-0	01	1	0109-0512
50	NUT; UNION (A) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION ZF M/T<X9E> (E) M12 FLANGE	0-91150-212-0	01	1	0106-0108
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0106-0108
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0106-0110
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0111-0201
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0202-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0106-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0106-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0106-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0106-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0106-0108
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1021	1-49164-666-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-
167	BRACKET; UNION	1-71117-183-3	01	1	0106-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0106-
184	UNION; FLEX HOSE	1-09656-679-0	01	1	0106-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0106-0606
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0106-
187	SEAL; BRKT	1-71117-222-0	01	1	0106-
192	PLATE	1-71117-221-0	01	1	0106-

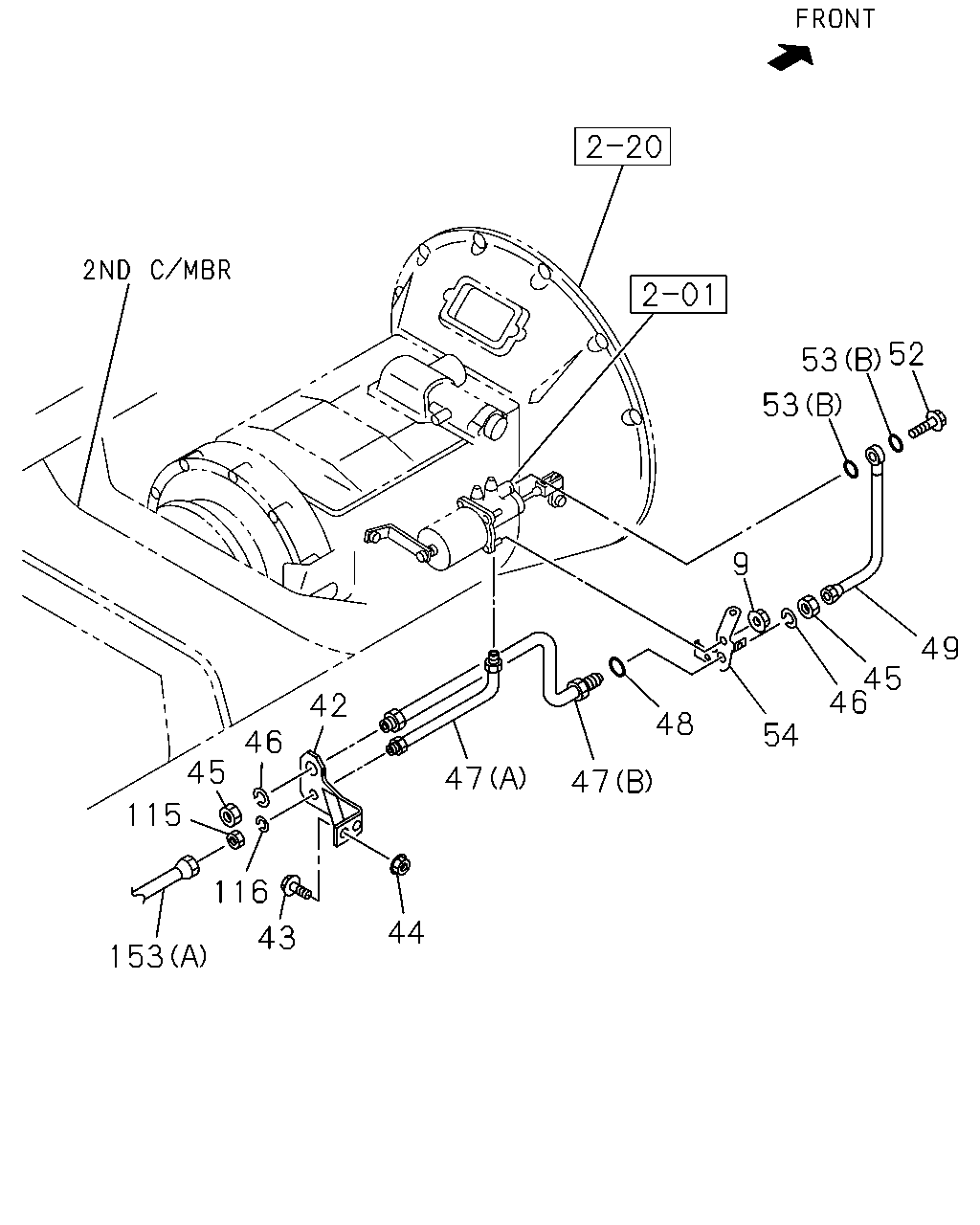

46 49 45 54 48 47 47 42 46 44 116 43 45 115 153 9 53 52 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJD7R M/T(Y2X) M10 FLANGE	0-91150-210-0	02	1	0106-0108
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0109-0602
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-414-0	01	1	0106-0108
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-414-0	01	1	0109-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M10X30 FLANGE	0-28681-030-0	02	1	0106-0108
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M10X30 FLANGE	0-28681-030-0	02	1	0109-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M10X30 FLANGE	0-28651-030-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0106-0108
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M10 FLANGE	0-91150-210-0	02	1	0109-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M10 FLANGE	0-91180-210-0	02	1	0603-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0106-0108
45	NUT; FLEX HOSE,CLU CONT M20	9-99111-420-0	01	1	0109-0512
45	NUT; FLEX HOSE,CLU CONT M20	0-91111-520-0	01	1	0601-
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0106-0108
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0108
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	9-09150-520-0	01	1	0109-0603
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	0-91510-520-0	01	1	0604-
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0106-0108
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0106-0108
47	HOSE; FLEX,CLU CONT (A) L=500	0-07806-500-1	01	1	0109-0605
47	HOSE; FLEX,CLU CONT (A) L=500	0-57806-500-1	01	1	0606-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=550	1-09364-434-0	01	1	0106-0108
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	0109-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0106-0108
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0106-0108
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0109-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJD7 M/T<X9J> L=293	1-49117-734-0	01	1	0106-0108
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	0109-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0106-0108
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0109-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0106-0108
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-0108
53	GASKET; JOINT BOLT (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0109-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0106-0108
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-0108
54	BRACKET; AIR,FLEX HOSE MJD7R M/T(Y2X)	1-47477-284-1	01	1	0106-0108
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0109-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0108
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0106-0108
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0109-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0108
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0106-0108
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0109-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=1021	1-49164-666-0	01	1	0106-0108
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-

50 111 33 29 34 35 28 29 25 36 26 34 29 33 35 32 33 34 30 35 30 31 33 31 32 32 33 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0106-0108
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47478-406-0	01	1	0106-0108
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0106-0108
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0109-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0108
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0106-0108
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0106-0108
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0109-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0106-0108
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0109-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-0108
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-0108
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0106-0108
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0106-0108
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0109-0512
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0106-0108
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	03	1	0106-0108
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0106-0108
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	BOLT; BRKT ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0108
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
30	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
31	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0108
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (A) L=50	1-47475-299-2	01	1	0106-0108
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (B)	1-47475-881-0	01	1	0106-0106
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (C)	1-47477-669-1	01	1	0107-0108
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-0108
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0109-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0106-0108
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0106-0108
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-0108
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0106-0106
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-0108
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0109-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0106-0108
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-0106
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-0106
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0107-0108
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0109-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-0108
36	BRACKET; CLIP ZF M/T<X9E> (B) L=50	1-47475-299-2	01	1	0106-0108
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0106-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0106-0108
50	NUT; UNION (A) M20	9-99111-420-0	01	1	0109-0512
50	NUT; UNION (A) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION ZF M/T<X9E> (E) M12 FLANGE	0-91150-212-0	01	1	0106-0108
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (D) M12	9-09840-280-0	01	1	0106-0108
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0106-0108
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0106-0108

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
