1-50 — EXHAUST PIPE AND SILENCER
(#113951) — 23 parça
◀
[150A] NO.2 (17 parça)
[150A] NO.1 (6 parça)
▶
36
17
1
34
34
36
107
81
118
81
121
75
60
75
56
94
22
63
22
105
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-98212-603-0
01
1
1302-
17
BOLT; EXH PIPE
M12X120
1-09000-293-0
01
1
1302-
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
04
1
1302-
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
1302-
36
NUT; EXH PIPE
M12
1-09400-010-0
03
1
1302-
56
BRACKET; CLAMP,EXH PIPE
L=40 B=50 H=74
1-22139-045-0
02
1
1302-
60
BRACKET; FRAME TO BRKT
8-98183-955-0
02
1
1302-
63
TUBE; DIST,BRKT
L=11
1-22139-026-0
02
1
1302-
70
BOLT; BRKT
M10X50
0-10856-050-0
02
1
1302-
75
RUBBER; SUPPORT,BRKT
OD=30
1-22159-106-1
04
1
1302-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1302-
81
NUT; BRKT
(B) M10 LOCK NUT
0-91370-010-0
02
1
1302-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
04
1
1302-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
04
1
1302-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
1302-
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
1302-
121
WASHER; PL,BRKT
ID=10.5 OD=32
0-91614-810-0
02
1
1302-

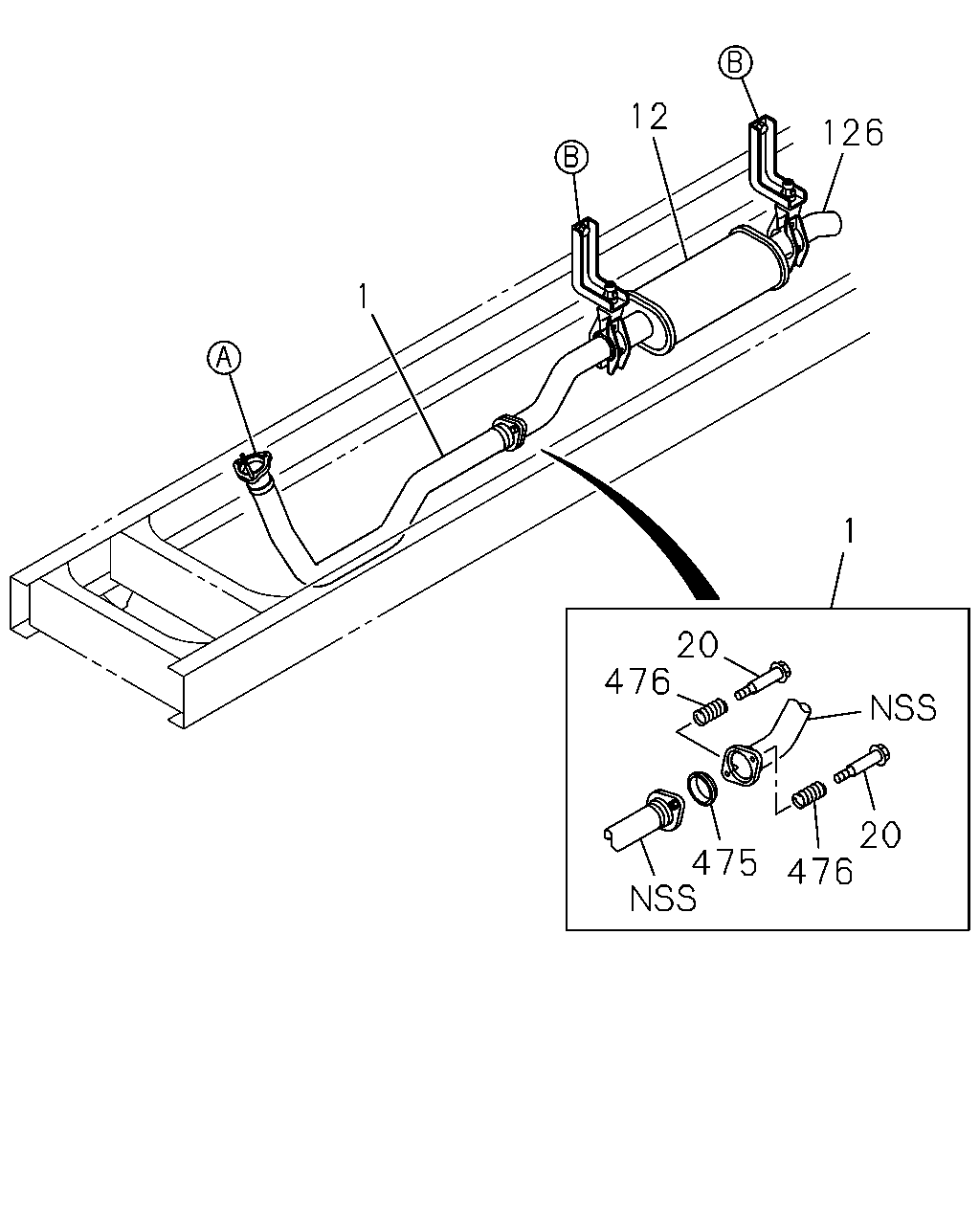

1
12
126
1
20
476
475
476
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-98212-603-0
01
1
1302-
12
SILENCER ASM; EXH
8-98212-605-0
01
1
1302-
20
BOLT; FLANGE,EXH PIPE
M10X49.8
8-97039-586-0
02
1
1302-
126
PIPE; EXH,RR
8-98210-836-0
01
1
1302-
475
BEARING; SEAL,VIBNON,EXH PIPE
OD=112
1-22119-294-1
01
1
1302-
476
SPRING; VIBNON,EXH PIPE
8-94141-851-0
02
1
1302-
