◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11511 - FSS(LHD) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#113941) — 58 parça

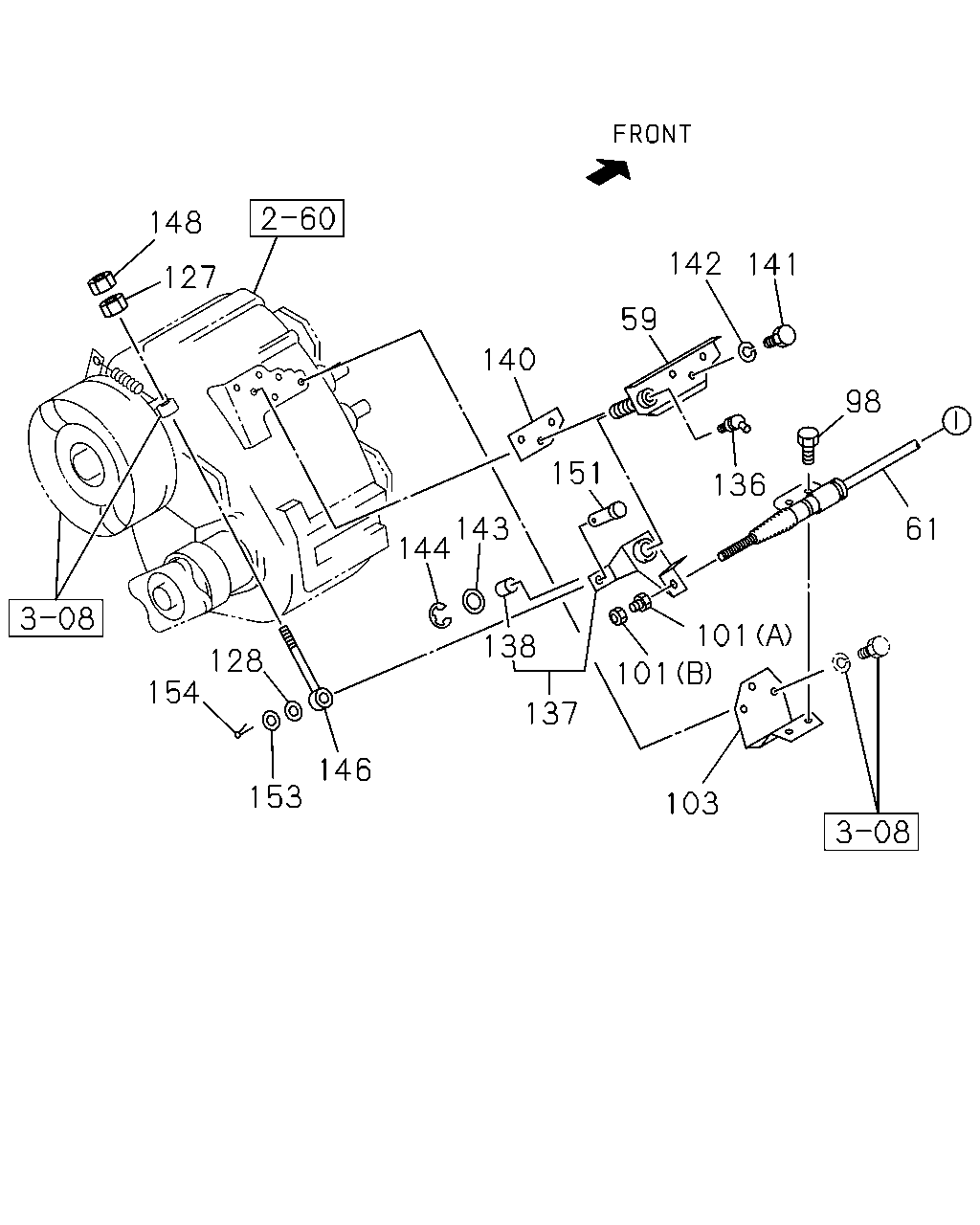

çizim 327776
61 98 141 142 59 136 151 140 144 143 138 137 101 101 103 146 153 128 154 148 127
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; RELAY LEVER 1-46276-030-1 01 1 1302-
61 CABLE; PARKING BRK
L=5067 		8-98074-267-6 01 1 1302-
98 BOLT; RR COVER
M10X30 FLANGE 		0-28651-030-0 02 1 1302-
101 NUT; CABLE TO LEVER
(B) M8 FLANGE 		0-91180-108-0 01 1 1302-
101 NUT; CABLE TO LEVER
(A) M8 		1-46259-007-0 01 1 1302-
103 BRACKET; PARKING BRK CONT 1-46147-052-1 01 1 1302-
127 NUT; LINK 1-09445-001-0 01 1 1302-
128 WASHER; PL,LINK
ID=10.5 		0-91610-510-0 01 1 1302-
136 NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302-
137 LEVER ASM; W/BUSHING 1-46140-119-0 01 1 1302-
138 BUSHING; LEVER 1-46149-031-0 01 1 1302-
140 PLATE; DIST PARKING BRK 1-46149-016-0 01 1 1302-
141 BOLT; BRKT,RELAY LEVER
M12X38 		0-23801-238-0 03 1 1302-
142 WASHER; LK,BRKT,RELAY LEVER
ID=12.2 		0-91510-512-0 03 1 1302-
143 WASHER; PL,BRKT,RELAY LEVER
ID=19 		9-09160-518-0 01 1 1302-
144 RING; SNAP,E TYPE,BRKT
ID=15 		9-09185-015-0 01 1 1302-
146 ROD; LINK,PARKING BRK 1-46142-048-0 01 1 1302-
148 NUT; LK,LINK
M10 		0-91110-510-0 01 1 1302-
151 PIN; LINK TO LEVER
OD=10 L=31 		9-08234-031-0 01 1 1302-
153 WASHER; WAVE,LINK 9-09855-192-0 01 1 1302-
154 PIN; SPLIT,LINK
OD=2.8 L=18 		0-81123-018-0 01 1 1302-

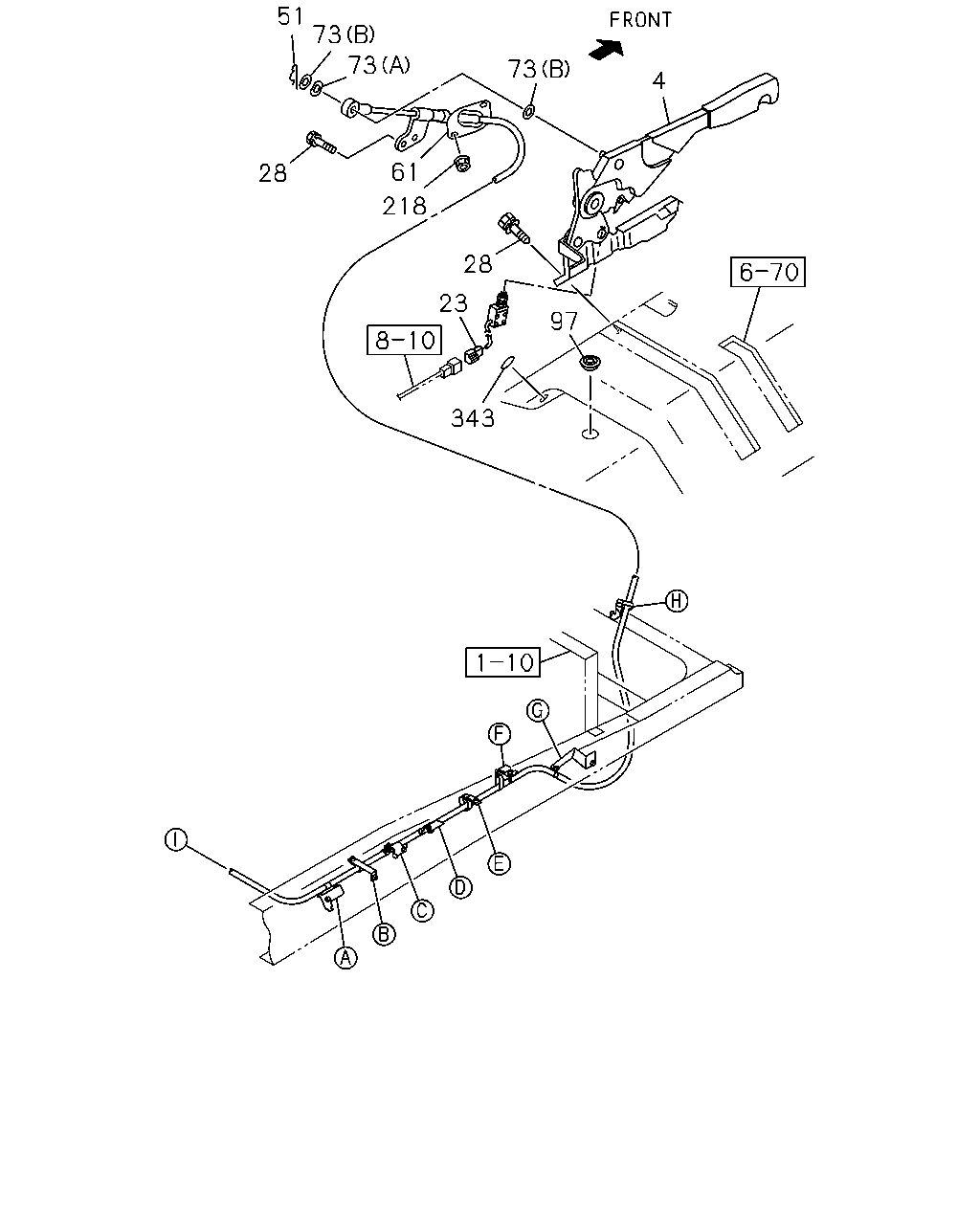

çizim 327949
51 73 73 28 61 73 218 4 28 23 343 97
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK 1-79996-565-0 01 1 1302-
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 1302-
28 BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1302-
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 1302-
61 CABLE; PARKING BRK
L=5067 		8-98074-267-6 01 1 1302-
73 WASHER; PL,CABLE
(A) ID=17 OD=30 		0-91610-516-0 01 1 1302-
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 02 1 1302-
97 GROMMET; PARKING BRK CABLE
OD=35 		8-94122-971-0 01 1 1302-
97 GROMMET; PARKING BRK CABLE
OD=35 		8-94122-971-0 01 1 1302-
218 NUT; BRKT,PARKING BRK CABLE
M8 FLANGE 		0-91180-108-0 02 1 1302-
343 SEAL
OD=25 BLACK 		1-76798-019-0 08 1 1302-

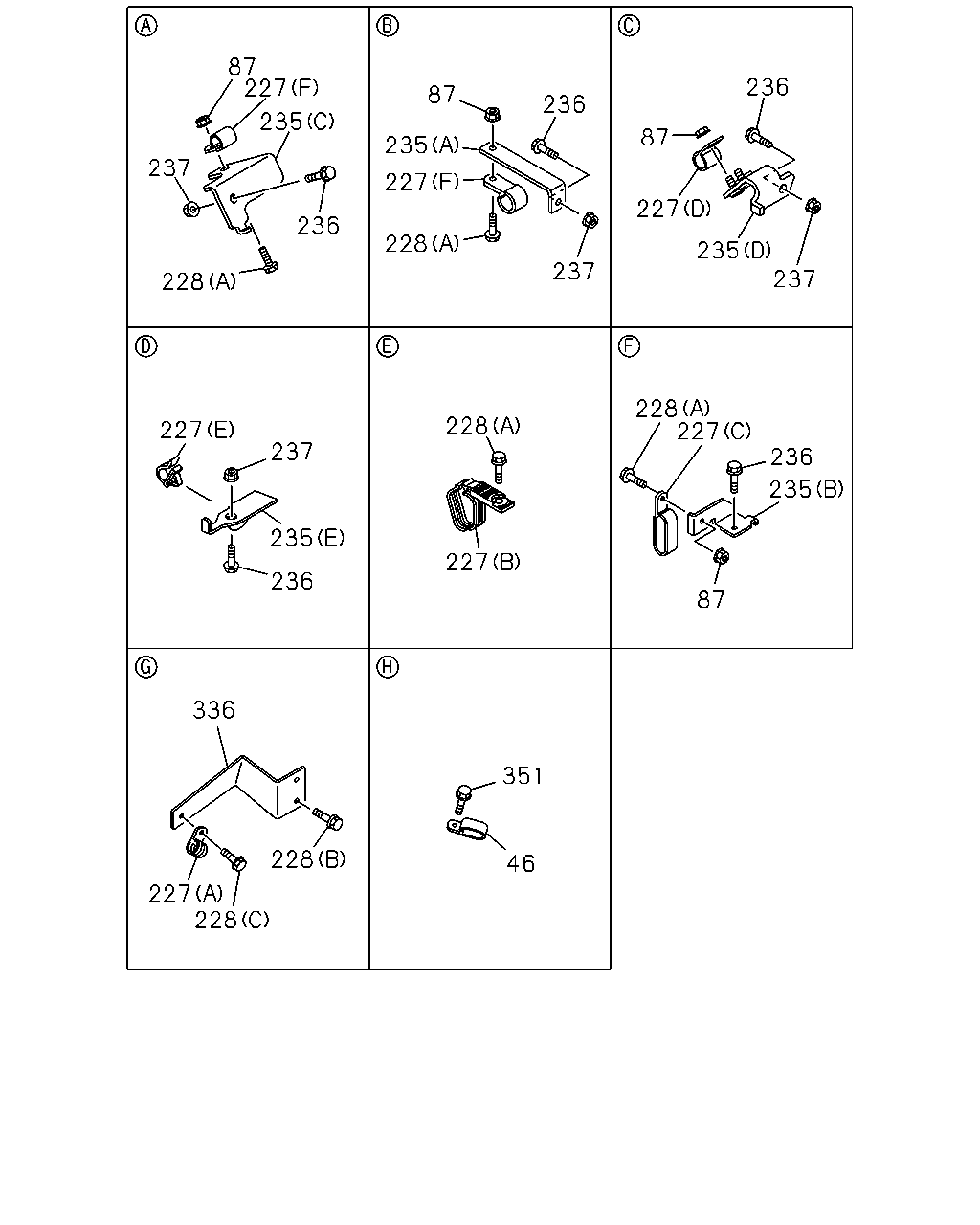

çizim 331533
87 87 87 236 237 235 227 237 228 227 235 236 228 237 235 227 237 227 235 236 228 227 228 227 236 235 87 336 228 228 227 351 46 236
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
ID=16 L=20 		0-95235-535-0 01 1 1302-
87 NUT
M8 FLANGE 		0-91180-108-0 04 1 1302-
227 CLIP; RAD
(F) ID=13 L=20 		0-95235-235-0 02 1 1302-
227 CLIP; RAD
(D) ID=16 L=20 		0-95235-535-0 01 1 1302-
227 CLIP; RAD
(A) ID=26 L=26 		1-09701-236-0 01 1 1302-
227 CLIP; RAD
(E) ID=9.5 		5-09709-020-0 01 1 1302-
227 CLIP; RAD
(C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1302-
227 CLIP; RAD
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1302-1504
227 CLIP; RAD
(B) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505-
228 BOLT; CLIP RAD MTG
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1302-
228 BOLT; CLIP RAD MTG
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
228 BOLT; CLIP RAD MTG
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
228 BOLT; CLIP RAD MTG
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1302-
235 BRACKET; CONT CABLE TO FRAME
(A) 		1-34656-009-0 01 1 1302-
235 BRACKET; CONT CABLE TO FRAME
(C) 		8-97623-989-0 01 1 1302-
235 BRACKET; CONT CABLE TO FRAME
(D) 		8-98077-903-2 01 1 1302-
235 BRACKET; CONT CABLE TO FRAME
(E) 		8-98100-153-0 01 1 1302-
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98126-426-0 01 1 1302-
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 1302-
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 03 1 1302-
236 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 01 1 1302-1504
236 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28051-030-0 01 1 1505-
237 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1302-
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1302-
336 BRACKET; RADIATOR 8-98065-276-0 01 1 1302-
351 BOLT; CLIP
M8X25 W/WASHER 		0-51640-825-0 03 1 1302-
