Isuzu WW
▶
TRUCKS
▶
EXR
▶
10863 - EXR RHD FUEL TANK 200L+200L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01B - CLUTCH
▶
2-01B — CLUTCH
(#11394) — 48 parça
◀

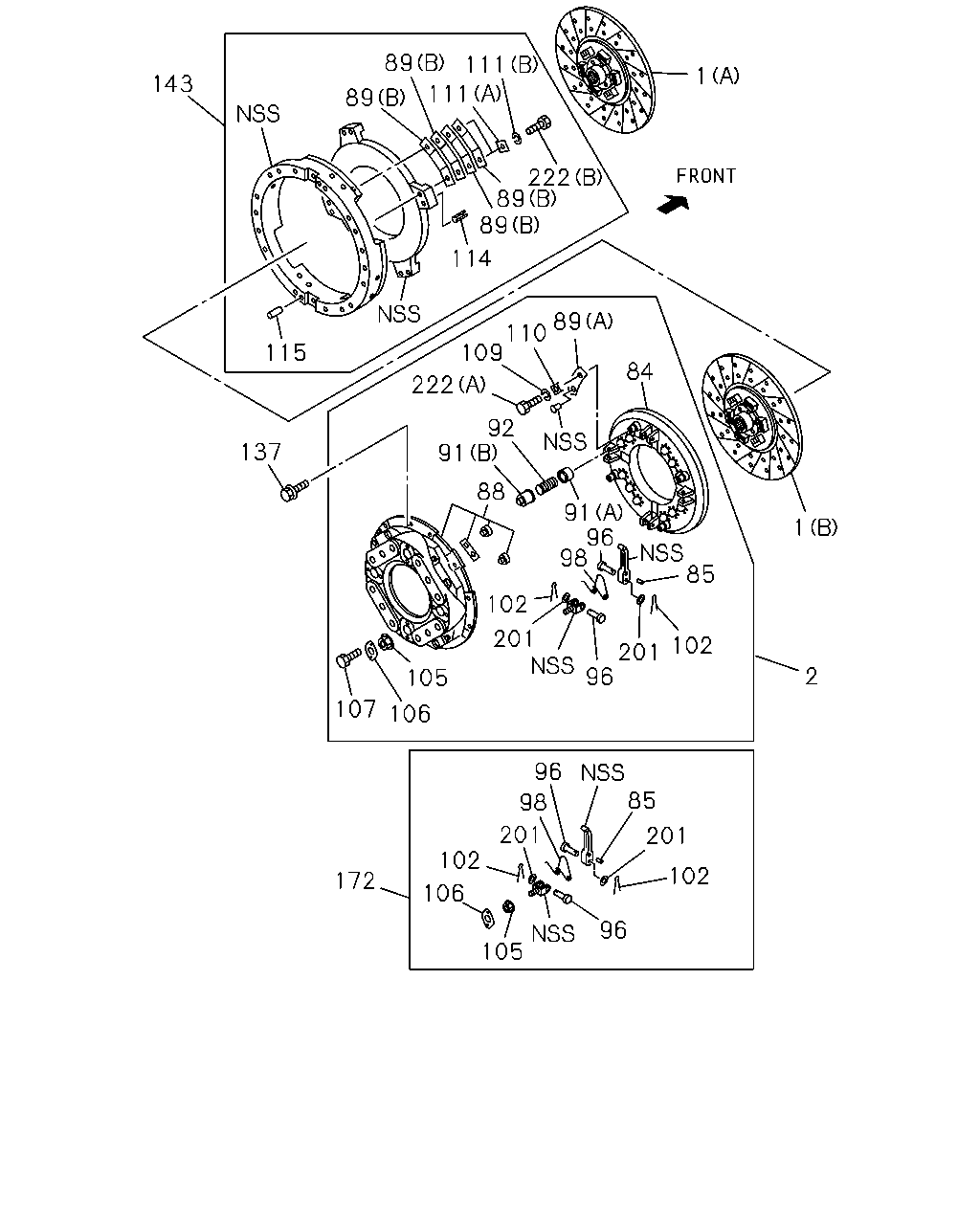

[201B] DISC AND PLATE (31 parça)
[201B] FORK AND BOOSTER (17 parça)
▶
2
102
201
85
96
98
201
102
106
96
105
172
106
107
105
96
85
102
201
201
102
98
96
91
1
84
89
110
109
222
91
137
115
114
89
222
89
1
111
89
89
111
143
92
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
(A) FRONT 15.5"
1-31240-885-0
01
1
0106-0108
1
DISC; CLUTCH
(B) REAR 15.5"
1-31240-886-0
01
1
0106-0108
2
PLATE ASM; PRESSURE,CLU
1-31220-286-0
01
1
0106-0108
84
PLATE; PRESSURE
1-31221-092-0
01
1
0106-0108
85
BUSHING; RELEASE LEVER
1-31239-021-0
16
1
0106-0108
88
COVER SUB ASM; CLU
1-31211-034-0
01
1
0106-0108
89
PLATE; STRAP
(A)
1-31229-010-0
12
1
0106-0108
89
PLATE; STRAP
(B)
1-31229-048-0
16
1
0106-0108
91
SEAT; SPR
(B)
1-31219-045-0
12
1
0106-0108
91
SEAT; SPR
(A)
1-31219-046-0
12
1
0106-0108
92
SPRING; CLU
1-31214-042-0
12
1
0106-0108
96
PIN; RELEASE LEVER
1-31232-013-0
08
1
0106-0108
98
SPRING; RETURN
1-31233-007-0
04
1
0106-0108
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
0106-0108
105
NUT; SUPPORT
M16
1-31239-013-0
04
1
0106-0108
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
0106-0108
107
BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER
1-31239-020-0
08
1
0106-0108
109
WASHER; LK,STRAP
ID=12.2
9-09150-512-0
04
1
0106-0108
110
WASHER; SPECIAL,STRAP
ID=12
1-31229-006-0
04
1
0106-0108
111
WASHER; PL,STRAP
(A) ID=12
1-31229-006-0
08
1
0106-0108
111
WASHER; PL,STRAP
(B) ID=12.2
9-09150-512-0
08
1
0106-0108
114
PIN; STRAIGHT,INTERMEDIATE PLATE
1-09748-033-0
04
1
0106-0108
115
PIN; STRAIGHT,FLYWHEEL,SPACER
D=10 L=25
1-09740-039-1
02
1
0106-0108
137
BOLT; CLU COVER
M12X80
0-28181-280-0
02
1
0106-0108
137
BOLT; CLU COVER
M12X90 FLANGE
0-28181-290-0
10
1
0106-0108
137
BOLT; CLU COVER
M12X30
0-28781-230-0
04
1
0106-0108
143
PLATE; INTERMEDIATE
1-31221-108-0
01
1
0106-0108
172
LEVER KIT; RELEASE,CLU
1-87830-809-0
01
1
0106-0108
201
WASHER; PIN LEVER SUPPORT
ID=14
9-09651-098-0
08
1
0106-0108
222
BOLT; STRAP
(A) M12X30
1-09040-016-0
04
1
0106-0108
222
BOLT; STRAP
(B) M12X26.7
1-09040-086-0
08
1
0106-0108
157
220
155
120
122
71
57
179
23
238
119
116
118
122
120
121
120
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
WASHER; LK,SUPPORT,CLU FORK
1-31349-027-0
01
1
0106-0108
57
FORK; SHIFT,CLU
1-31341-041-0
01
1
0106-0108
71
BOLT
M4X6
9-93490-406-0
01
1
0106-0108
116
BLOCK; SHIFT,CLU
1-31321-087-0
01
1
0106-0108
118
BEARING; CLU RELEASE
1-09820-080-0
01
1
0106-0108
119
SPRING; SHIFT FORK
1-31329-020-0
02
1
0106-0108
120
HOSE; FLEX,SHIFT BLOCK,CLU
(B) L=705
1-09364-850-0
01
1
0106-0108
120
HOSE; FLEX,SHIFT BLOCK,CLU
(A) L=270
1-09364-903-0
01
1
0106-0108
121
NUT; SHIFT FORK
M16 FLANGE
0-91160-216-0
01
1
0106-0108
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(C) PT1/8 ELBOW
8-94338-418-1
01
1
0106-0108
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 L=23
1-09660-710-0
01
1
0106-0108
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 ELBOW 67.5?
9-09031-110-0
01
1
0106-0108
155
BRACKET; MINIPACK
1-31429-361-1
01
1
0106-0108
157
BOLT; BRKT
M8X40 HEX SOCKET
0-58310-840-0
04
1
0106-0108
179
SUPPORT; CLU FORK
1-31349-026-0
01
1
0106-0108
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-404-0
01
1
0106-0108
238
CUP; SUPPORT,CLU FORK
1-31349-025-0
01
1
0106-0108
