Sayfa 8-60 - Isuzu EPC

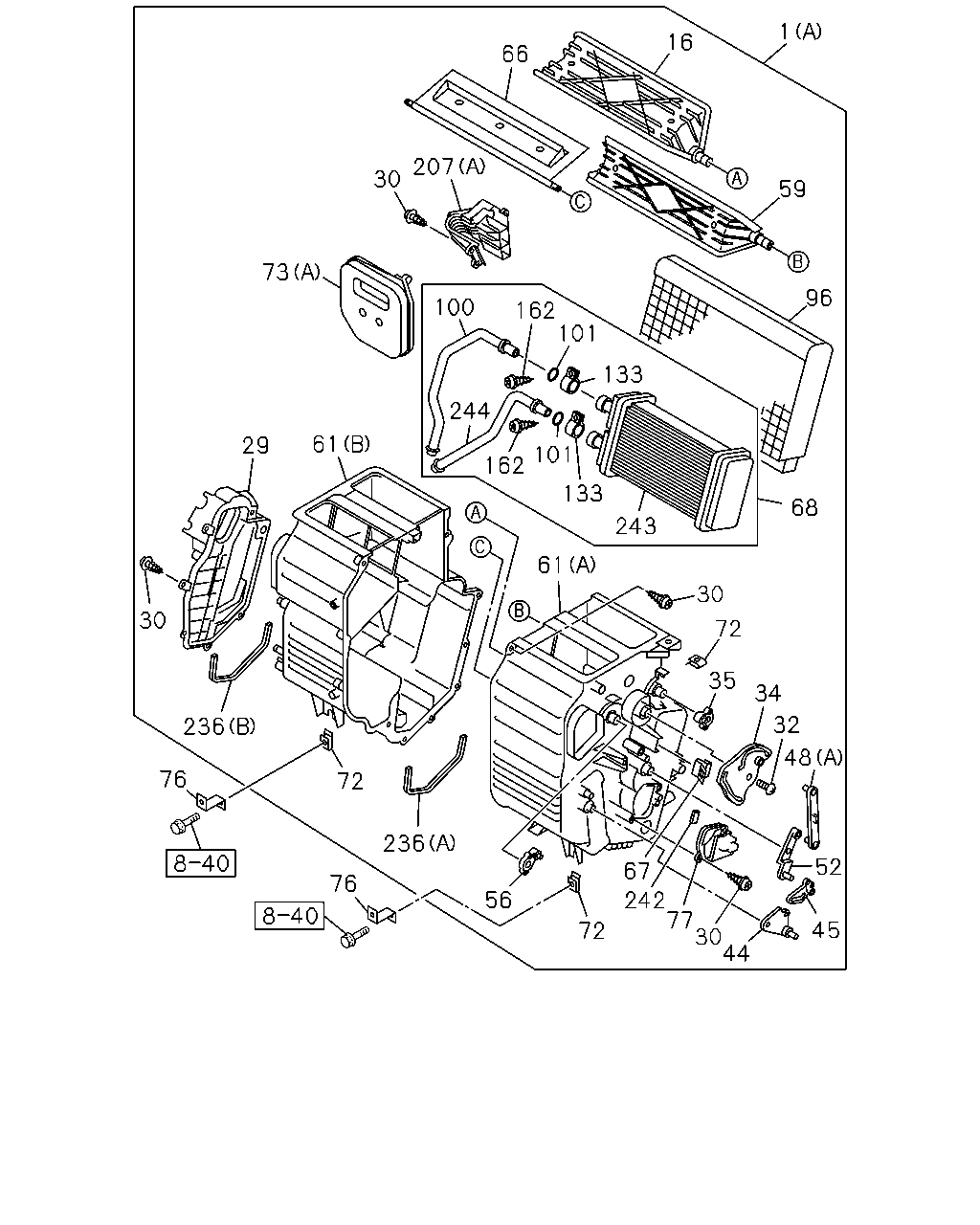

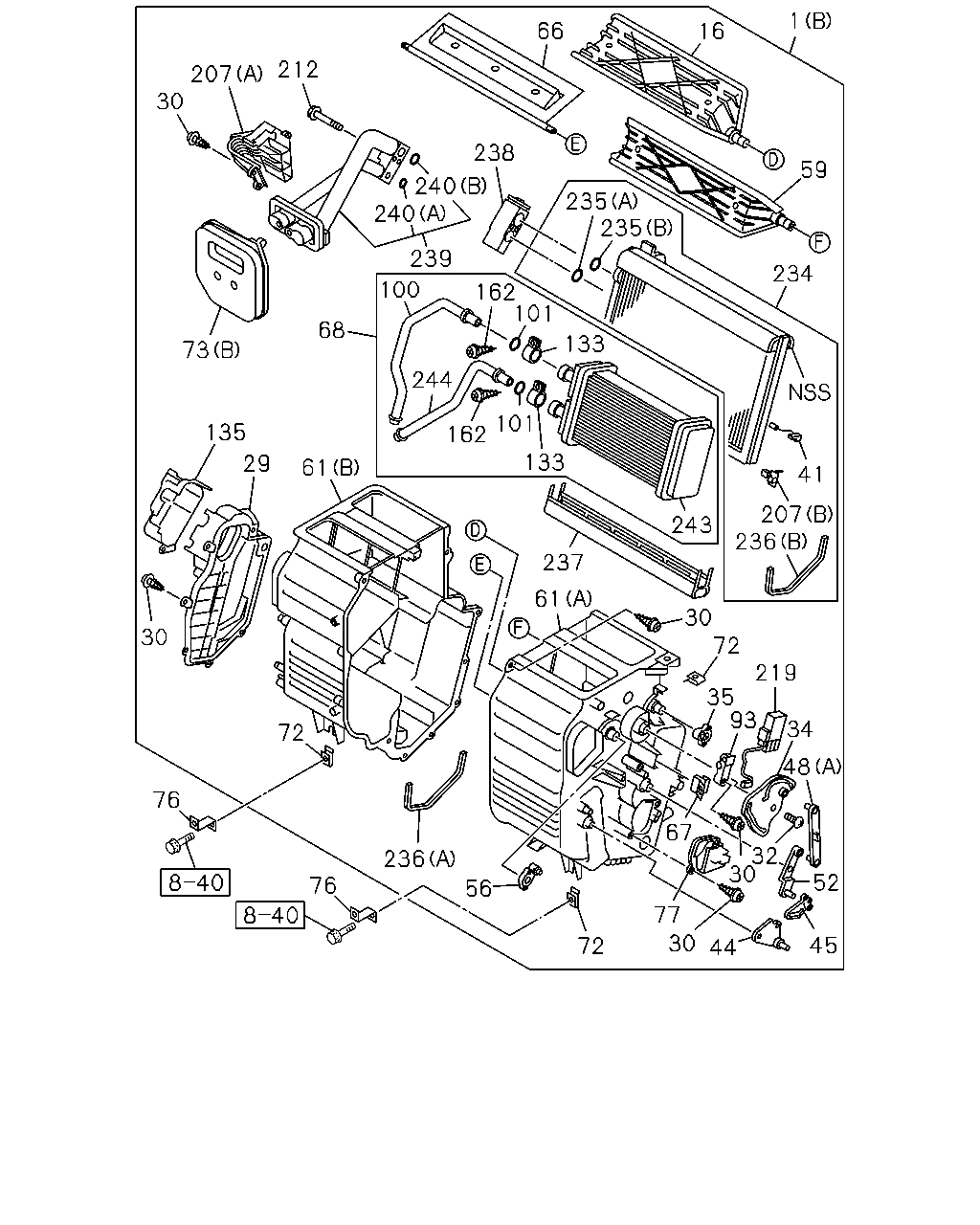

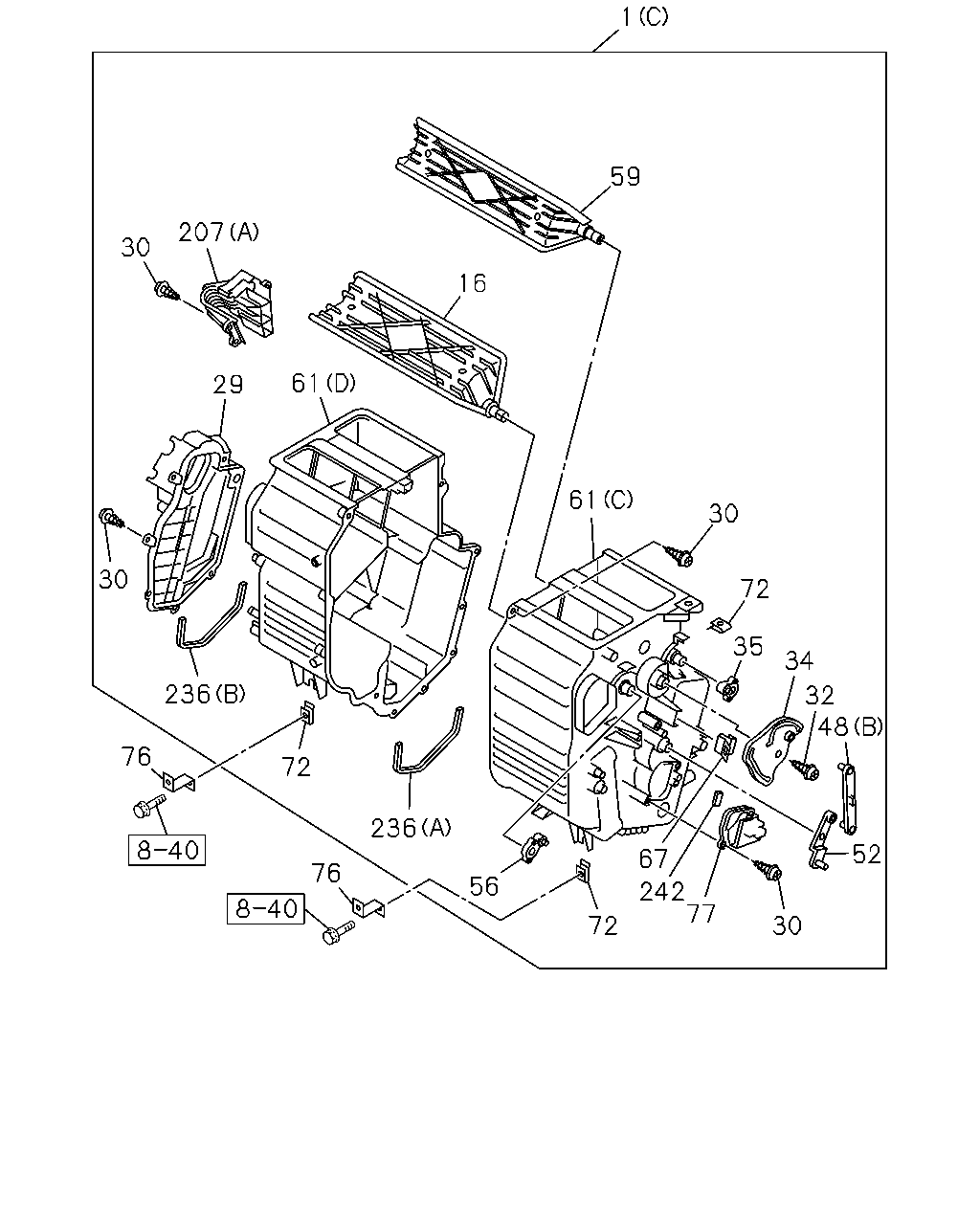

8-60 — HEATER UNIT; FRONT (#113928) — 135 parça

59 1 16 61 30 72 35 34 32 48 52 30 77 242 67 72 56 236 72 76 236 76 30 29 61 207 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98034-145-3	01	1	1302-
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1302-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98214-401-1	01	1	1302-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-387-0	01	1	1302-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-480-0	01	1	1302-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-368-0	01	1	1302-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1302-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	28	1	1302-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1302-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	1302-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1302-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-497-0	01	1	1302-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-500-0	01	1	1302-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1302-
48	LEVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-499-0	01	1	1302-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-498-0	01	1	1302-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-501-0	01	1	1302-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-386-0	01	1	1302-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-478-0	01	1	1302-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-479-0	01	1	1302-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-424-0	01	1	1302-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-425-0	01	1	1302-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1302-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	1302-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6	8-98047-428-0	03	1	1302-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1302-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-482-0	01	1	1302-
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-413-0	01	1	1302-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-493-0	01	1	1302-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98047-420-0	01	1	1302-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-421-0	01	1	1302-
242	GASKET; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-816-0	01	1	1302-1411
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	1412-

1 16 59 96 68 30 72 35 34 32 48 52 45 44 30 77 242 72 56 67 61 133 162 101 133 243 244 101 162 100 66 207 30 73 29 61 30 236 76 72 76 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98034-145-3	01	1	1302-
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1302-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98214-401-1	01	1	1302-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-387-0	01	1	1302-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-480-0	01	1	1302-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-368-0	01	1	1302-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1302-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	28	1	1302-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1302-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	1302-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1302-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-497-0	01	1	1302-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-500-0	01	1	1302-
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-502-0	01	1	1302-
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-503-0	01	1	1302-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1302-
48	LEVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-499-0	01	1	1302-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-498-0	01	1	1302-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-501-0	01	1	1302-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-386-0	01	1	1302-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-478-0	01	1	1302-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-479-0	01	1	1302-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-424-0	01	1	1302-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-425-0	01	1	1302-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-385-0	01	1	1302-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1302-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	1302-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-122-0	01	1	1302-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6	8-98047-428-0	03	1	1302-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-491-0	01	1	1302-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98048-817-0	01	1	1302-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1302-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-482-0	01	1	1302-
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1302-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-532-0	01	1	1302-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-531-0	02	1	1302-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-530-0	02	1	1302-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-529-0	02	1	1302-
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-413-0	01	1	1302-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-493-0	01	1	1302-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98047-420-0	01	1	1302-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-421-0	01	1	1302-
242	GASKET; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-816-0	01	1	1302-1411
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	1412-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-508-0	01	1	1302-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-511-0	01	1	1302-

66 16 1 238 240 212 207 30 240 235 59 235 234 101 133 237 162 244 133 101 100 239 68 61 29 73 135 162 207 61 30 72 219 236 243 41 30 72 236 76 76 56 72 67 30 77 32 93 34 48 52 44 30 45 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98034-145-3	01	1	1302-
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1302-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98214-401-1	01	1	1302-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-387-0	01	1	1302-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-480-0	01	1	1302-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-368-0	01	1	1302-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1302-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	28	1	1302-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1302-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	1302-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1302-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-497-0	01	1	1302-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-500-0	01	1	1302-
41	THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-412-0	01	1	1302-
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-502-0	01	1	1302-
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-503-0	01	1	1302-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1302-
48	LEVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-499-0	01	1	1302-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-498-0	01	1	1302-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-501-0	01	1	1302-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-386-0	01	1	1302-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-478-0	01	1	1302-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-479-0	01	1	1302-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-424-0	01	1	1302-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-425-0	01	1	1302-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-385-0	01	1	1302-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1302-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	1302-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-122-0	01	1	1302-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6	8-98047-428-0	03	1	1302-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-491-0	01	1	1302-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98048-817-0	01	1	1302-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1302-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-482-0	01	1	1302-
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	1302-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-532-0	01	1	1302-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-531-0	02	1	1302-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-530-0	02	1	1302-
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-481-0	01	1	1302-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-529-0	02	1	1302-
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-413-0	01	1	1302-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-493-0	01	1	1302-
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M5X61	8-98047-415-0	02	1	1302-
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-429-0	01	1	1302-
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-120-1	01	1	1302-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	01	1	1302-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	01	1	1302-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98047-420-0	01	1	1302-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-421-0	01	1	1302-
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-382-0	01	1	1302-
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-383-0	01	1	1302-
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-504-0	01	1	1302-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	01	1	1302-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	01	1	1302-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-508-0	01	1	1302-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-511-0	01	1	1302-
