◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#113907) — 552 parça

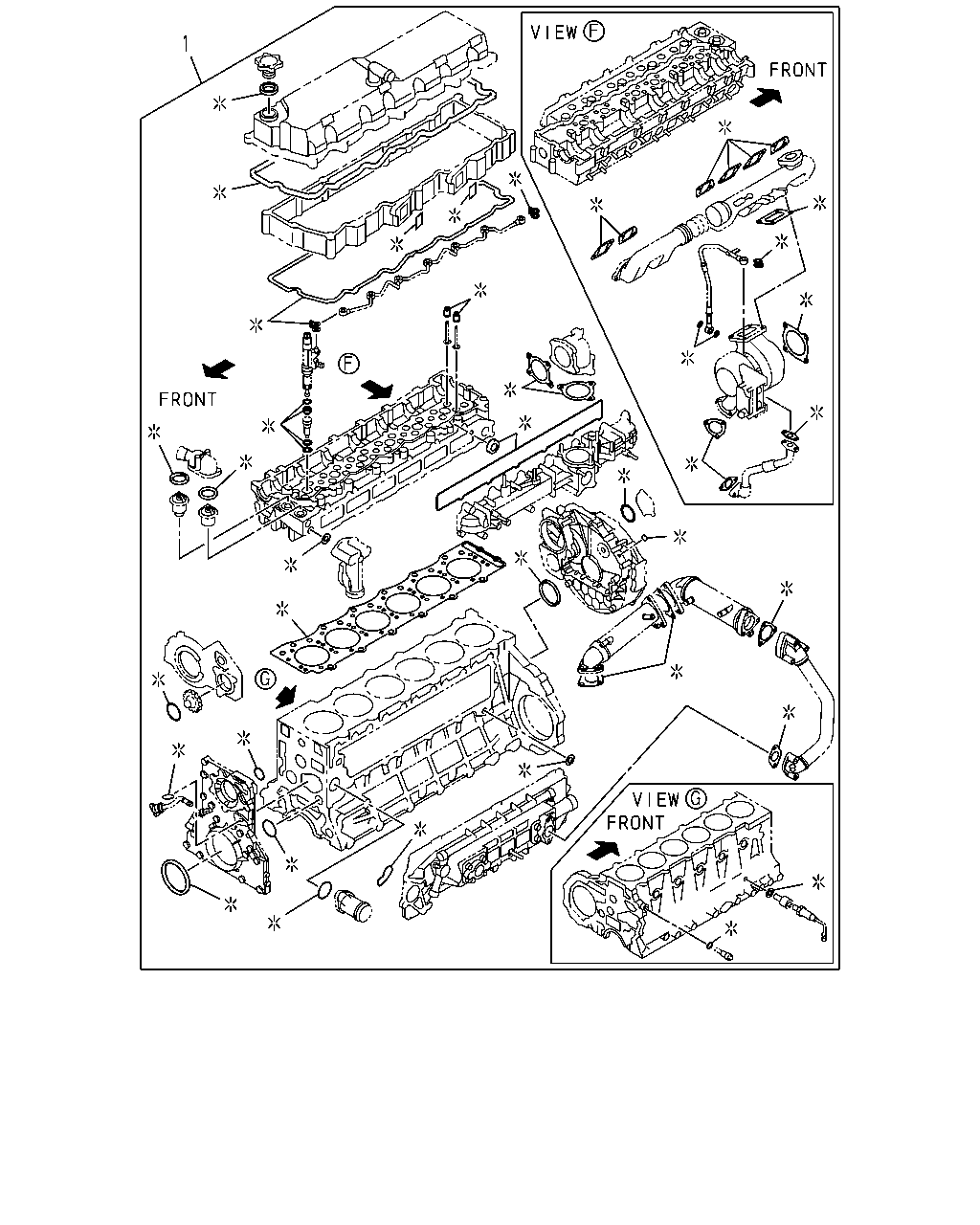

çizim 326036
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-318-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-022-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-358-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-705-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-088-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1512- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-990-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-383-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-714-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-510-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-991-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-384-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-715-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-511-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-992-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-385-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-716-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-512-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-993-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-389-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-717-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-519-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-994-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-390-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-718-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-520-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-995-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-391-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-719-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-521-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-996-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-349-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-720-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-528-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-997-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-350-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-721-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-529-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-998-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-351-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-722-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-530-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●

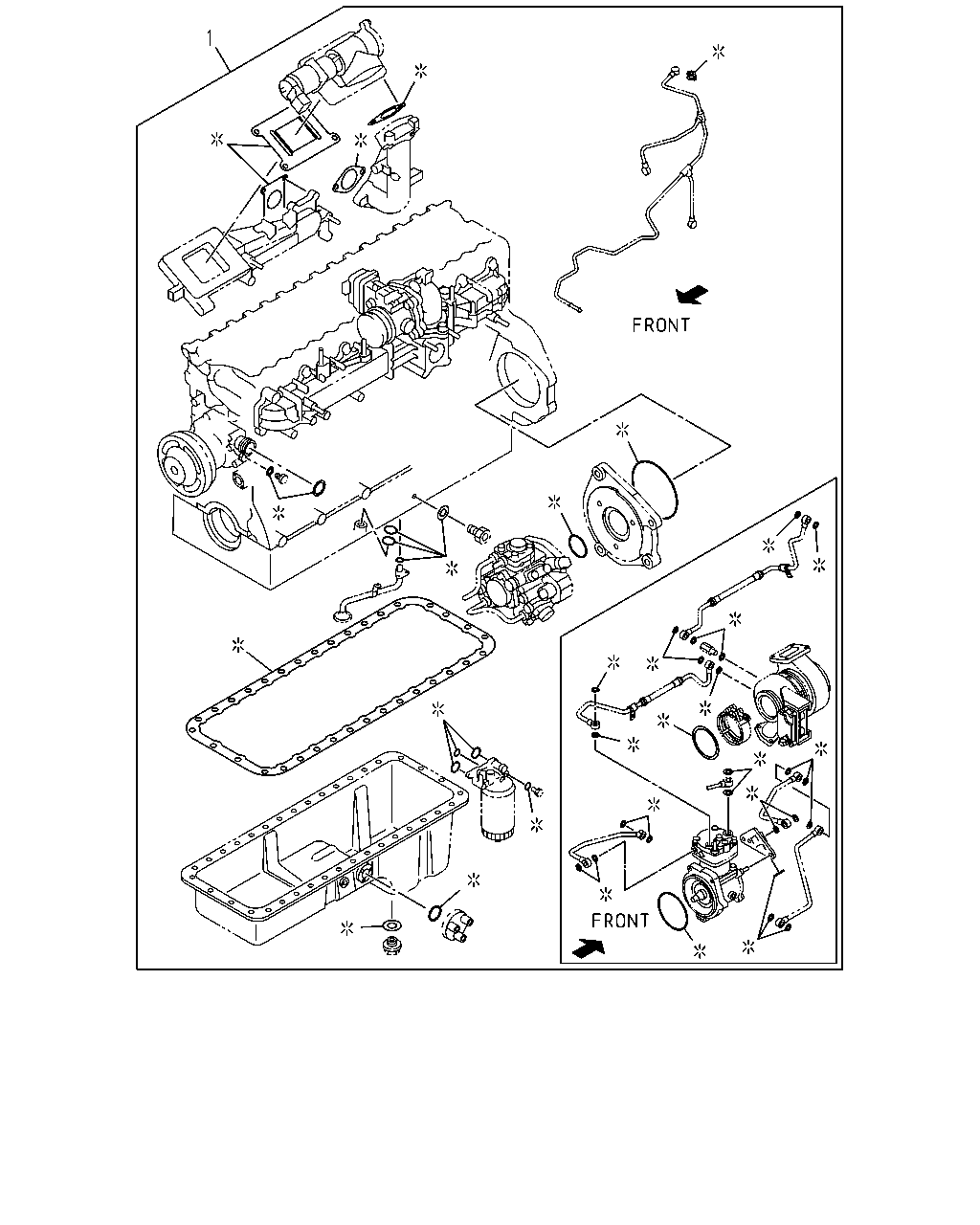

çizim 326041
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-318-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-022-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-358-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-705-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-088-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1512- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-990-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-383-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-714-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-510-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-991-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-384-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-715-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-511-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-992-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-385-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-716-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-512-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-993-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-389-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-717-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-519-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-994-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-390-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-718-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-520-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-995-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-391-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-719-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-521-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-996-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-349-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-720-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-528-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-997-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-350-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-721-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-529-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-998-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-351-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-722-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-530-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●

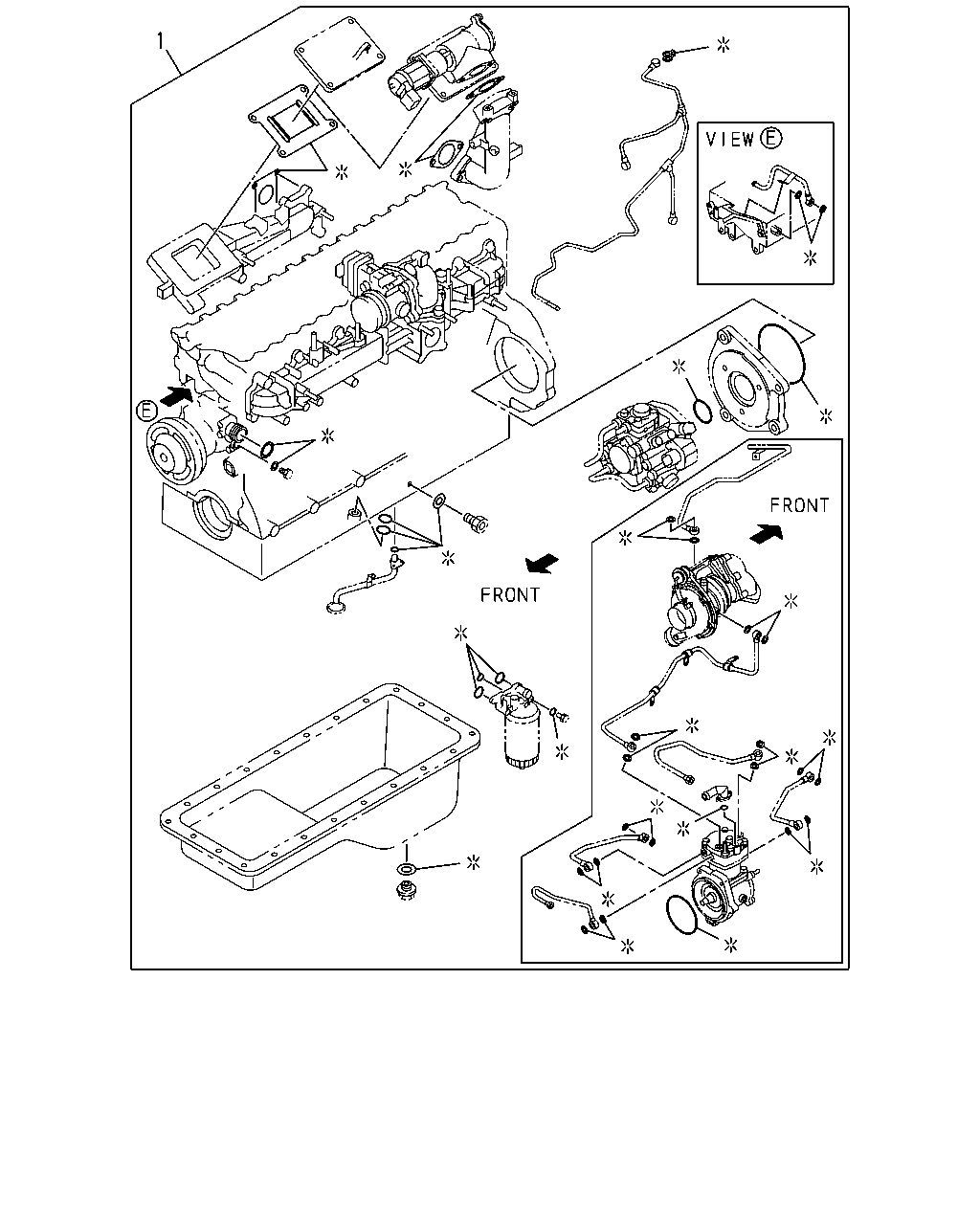

çizim 331243
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-318-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-022-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-358-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-705-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-088-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1512- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-990-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-383-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-714-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-510-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-991-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-384-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-715-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-511-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-992-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-385-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-716-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-512-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-993-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-389-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-717-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-519-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-994-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-390-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-718-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-520-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-995-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-391-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-719-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-521-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-996-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-349-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-720-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-528-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-997-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-350-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-721-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-529-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-998-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-351-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-722-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-530-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●

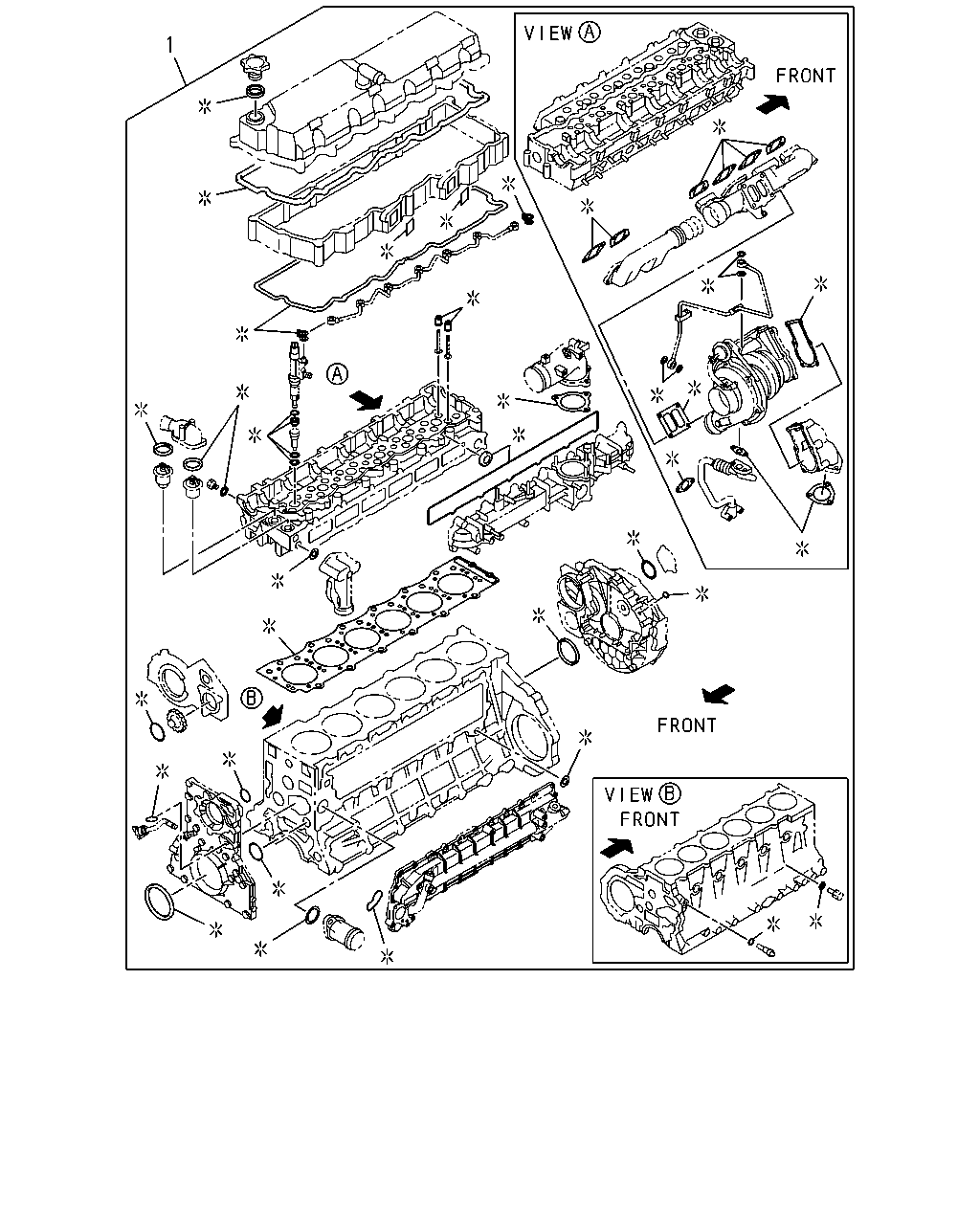

çizim 331260
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-318-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-022-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-358-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-705-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-088-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1512- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-990-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-383-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-714-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-510-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-991-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-384-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-715-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-511-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-992-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-385-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-716-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-512-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-993-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-389-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-717-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-519-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-994-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-390-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-718-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-520-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-995-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-391-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-719-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-521-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-996-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-349-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-720-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-528-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-997-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-350-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-721-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-529-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-998-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-351-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-722-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-530-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●

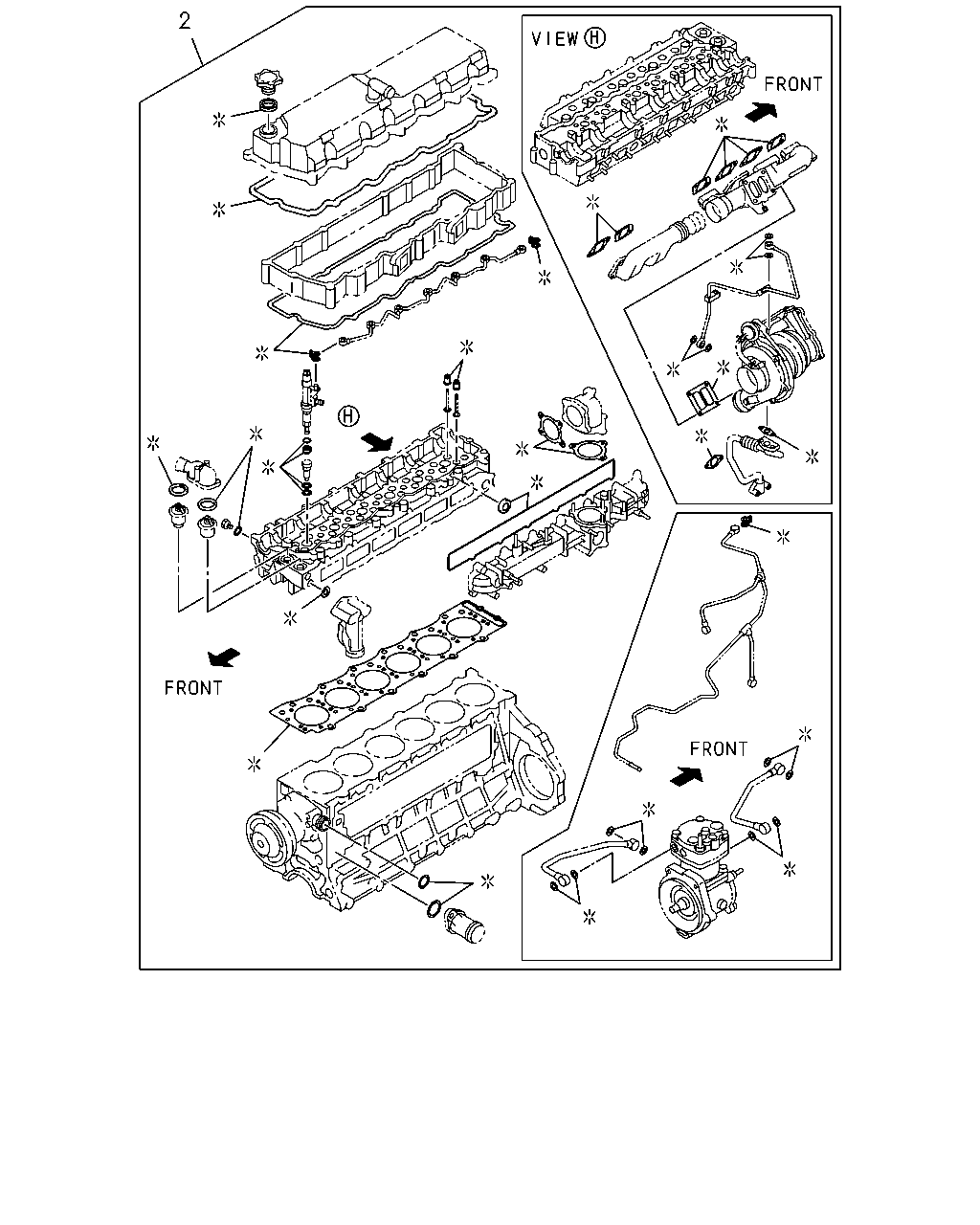

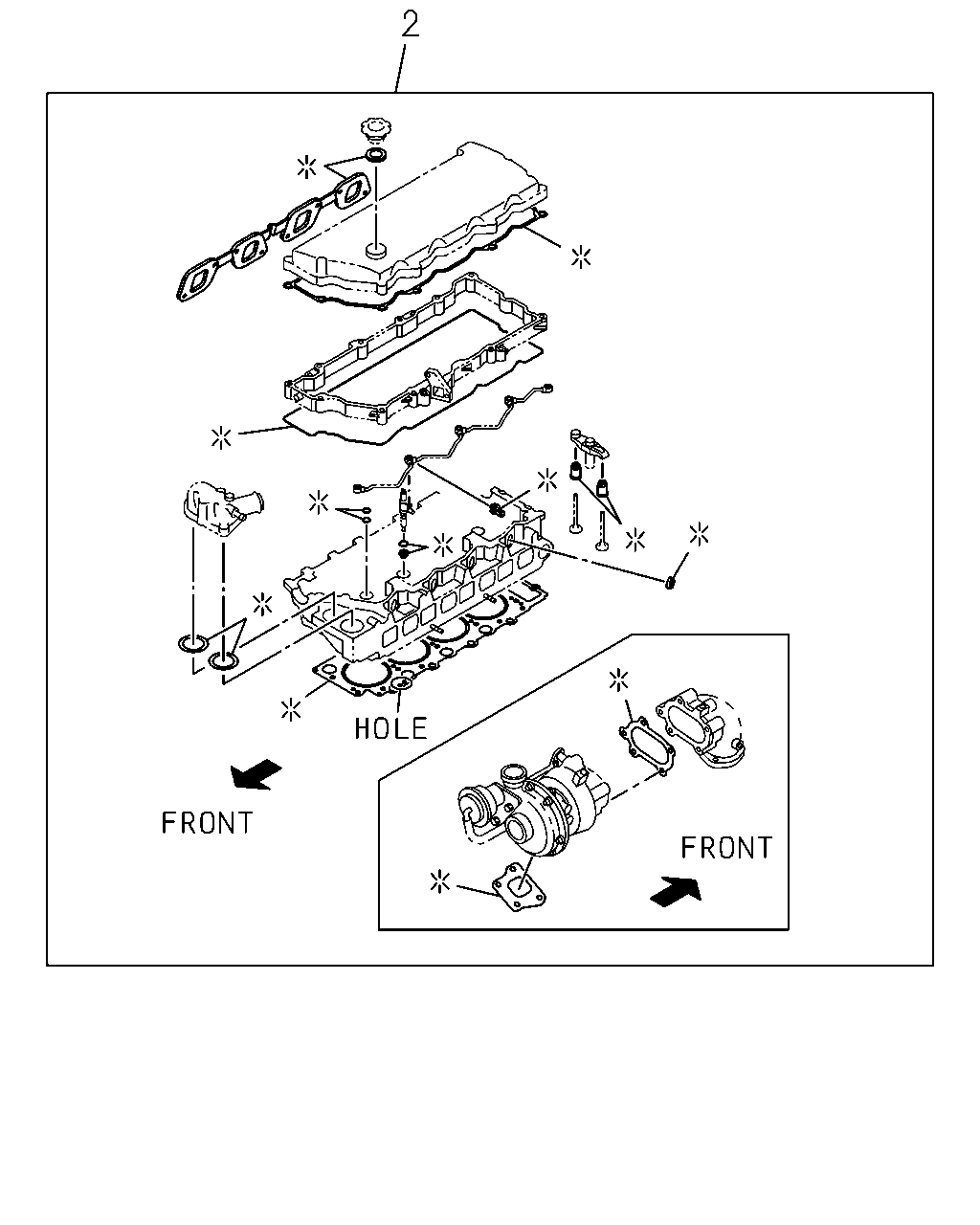

çizim 331275
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET SET; ENG HD OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-058-0 01 1 1506- ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-024-0 01 1 1302-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-360-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-706-0 01 1 1409-1501 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87815-089-0 01 1 1502-1505 ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-089-0 01 1 1506-1511 ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-089-0 01 1 1512- ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-999-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-711-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-513-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-001-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-712-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-514-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-728-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-728-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-002-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-713-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-515-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-729-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-729-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-003-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-723-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-531-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-730-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-004-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-724-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-532-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-731-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-005-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-725-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-533-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-732-0 01 1 1506- ●

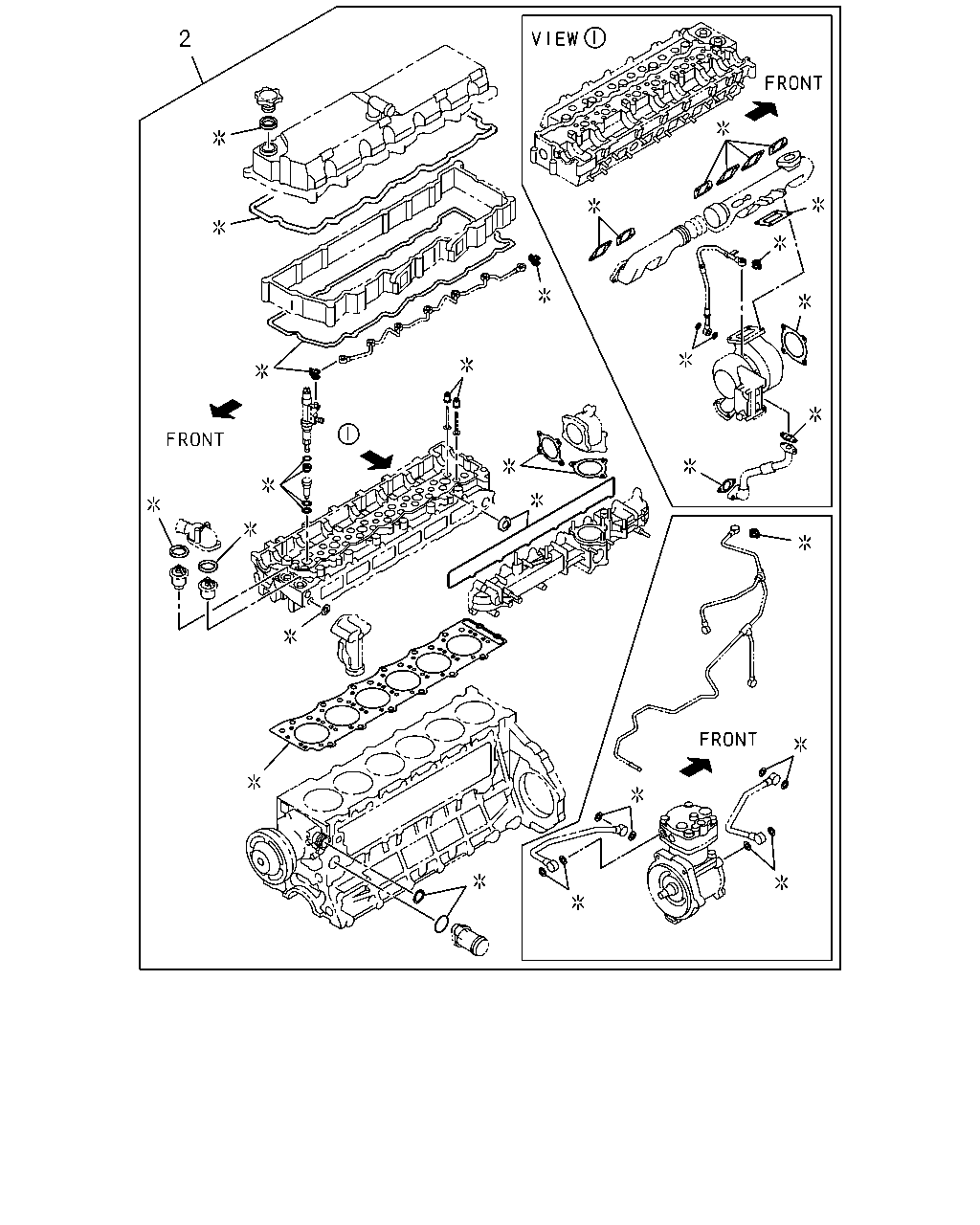

çizim 331282
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET SET; ENG HD OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-058-0 01 1 1506- ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-024-0 01 1 1302-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-360-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-706-0 01 1 1409-1501 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87815-089-0 01 1 1502-1505 ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-089-0 01 1 1506-1511 ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-089-0 01 1 1512- ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-999-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-711-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-513-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-001-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-712-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-514-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-728-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-728-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-002-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-713-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-515-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-729-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-729-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-003-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-723-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-531-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-730-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-004-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-724-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-532-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-731-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-005-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-725-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-533-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-732-0 01 1 1506- ●

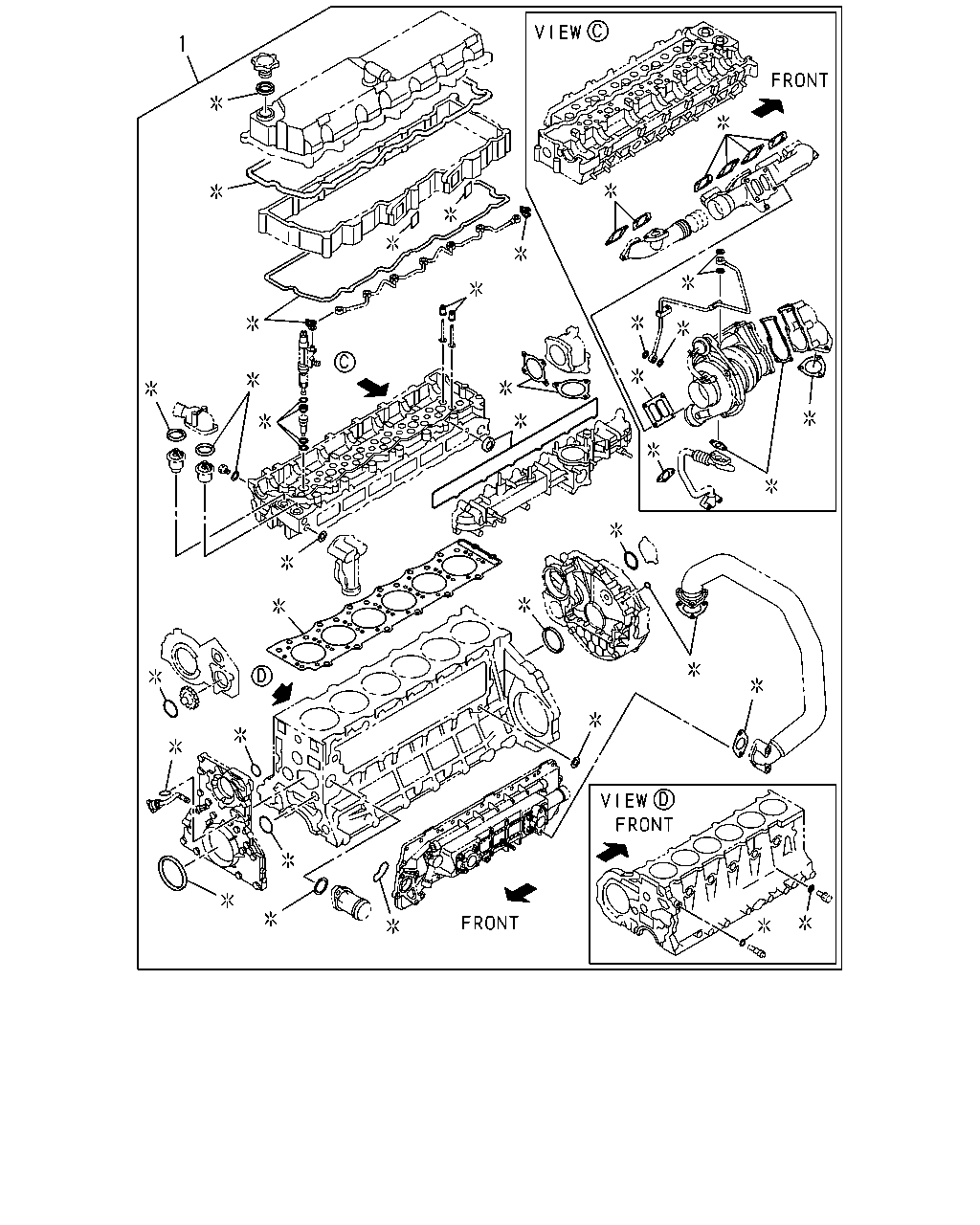

çizim 331291
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-318-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-022-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-358-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-705-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-088-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1512- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-990-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-383-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-714-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-510-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-991-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-384-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-715-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-511-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-992-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-385-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-716-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-512-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-993-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-389-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-717-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-519-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-994-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-390-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-718-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-520-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-995-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-391-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-719-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-521-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-996-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-349-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-720-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-528-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-997-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-350-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-721-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-529-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-998-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-351-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-722-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-530-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●

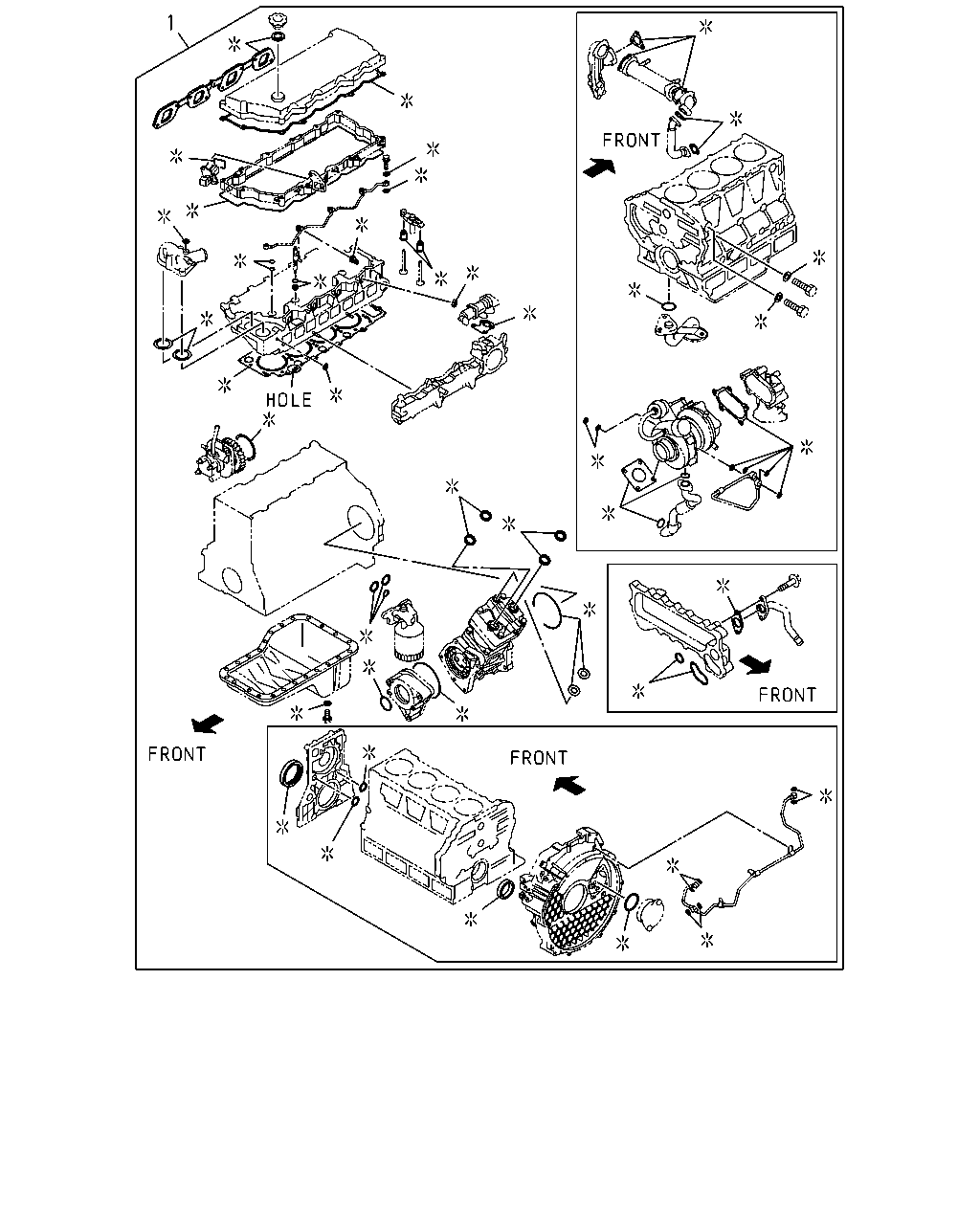

çizim 352041
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-318-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-022-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-358-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-705-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-088-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1512- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-990-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-383-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-714-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-510-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-991-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-384-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-715-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-511-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-992-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-385-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-716-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-512-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-993-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-389-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-717-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-519-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-994-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-390-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-718-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-520-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-995-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-391-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-719-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-521-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-996-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-349-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-720-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-528-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-997-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-350-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-721-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-529-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-998-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-351-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-722-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-530-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●

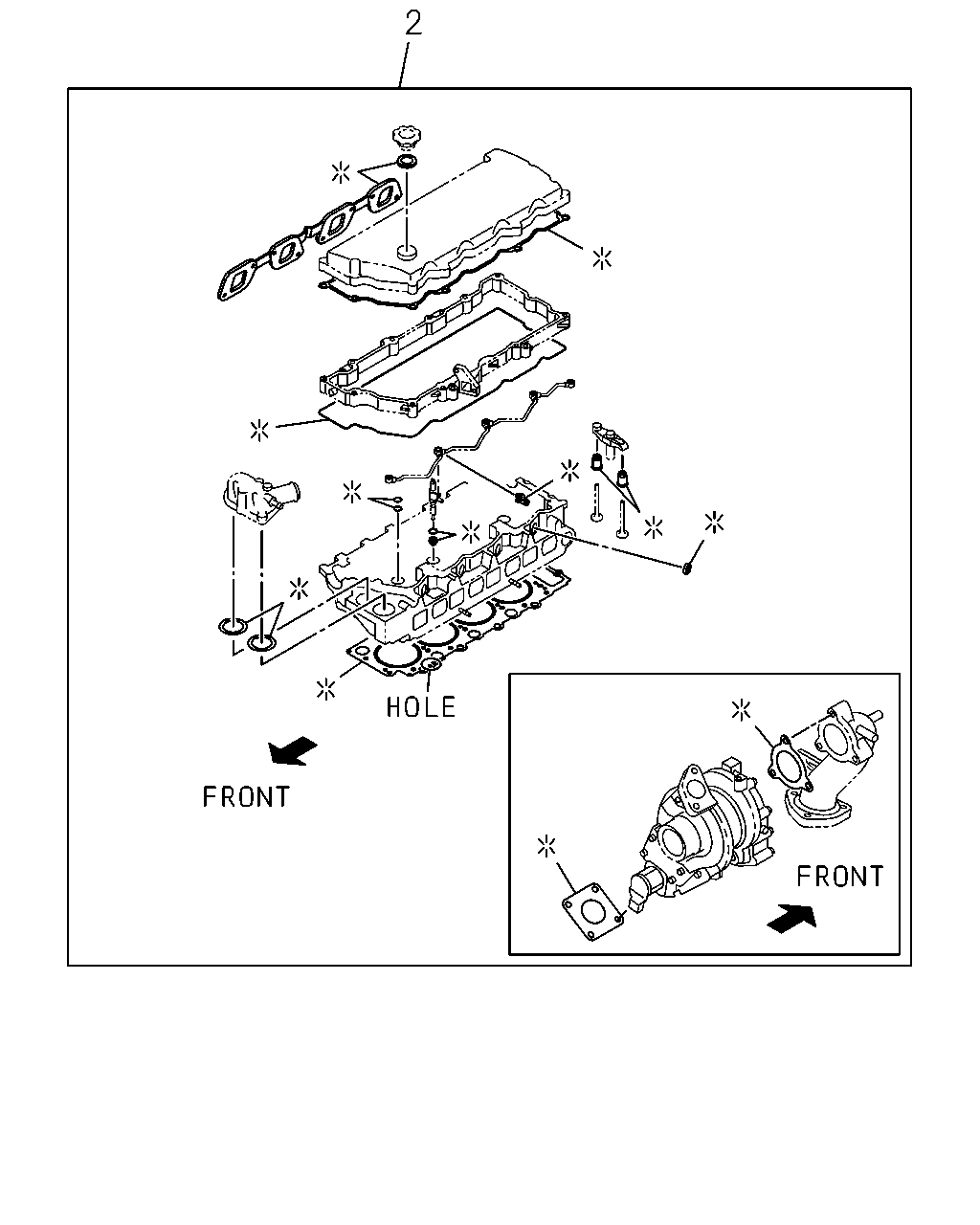

çizim 352290
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET SET; ENG HD OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-058-0 01 1 1506- ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-024-0 01 1 1302-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-360-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-706-0 01 1 1409-1501 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87815-089-0 01 1 1502-1505 ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-089-0 01 1 1506-1511 ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-089-0 01 1 1512- ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-999-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-711-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-513-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-001-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-712-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-514-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-728-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-728-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-002-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-713-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-515-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-729-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-729-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-003-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-723-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-531-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-730-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-004-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-724-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-532-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-731-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-005-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-725-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-533-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-732-0 01 1 1506- ●

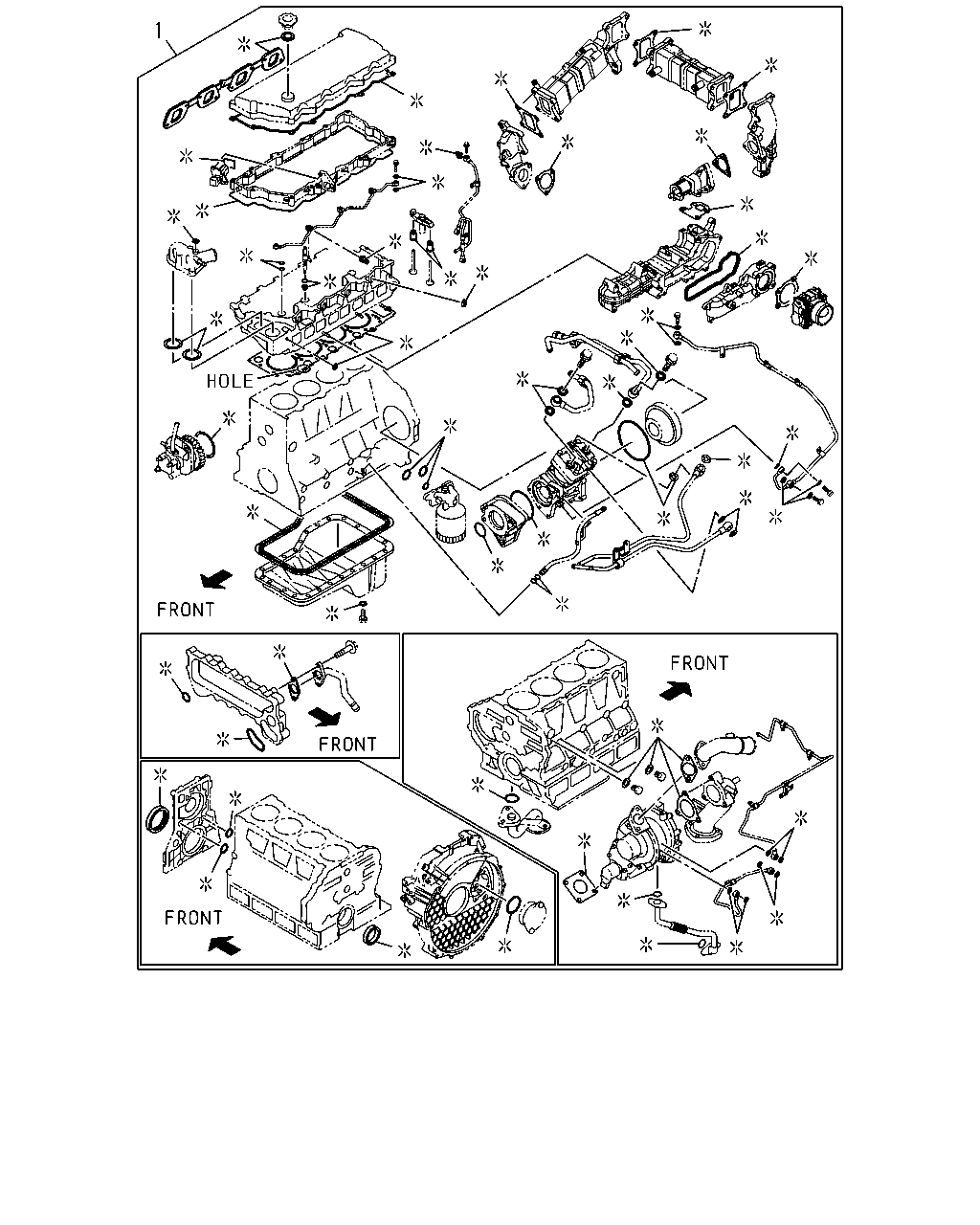

çizim 352303
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-318-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-022-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-358-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-705-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-088-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1512- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-990-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-383-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-714-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-510-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-991-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-384-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-715-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-511-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-992-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-385-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-716-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-512-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-993-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-389-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-717-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-519-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-994-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-390-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-718-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-520-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-995-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-391-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-719-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-521-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-996-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-349-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-720-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-528-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-997-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-350-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-721-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-529-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-998-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-351-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-722-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-530-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●
çizim 352475
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-318-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-022-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-358-0 01 1 1401-1408 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-705-0 01 1 1409-1501 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-088-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-088-0 01 1 1512- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-990-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-383-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-714-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-510-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-991-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-384-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-715-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-511-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-992-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-385-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-716-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-512-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-993-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-389-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-717-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-519-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-994-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-390-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-718-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-520-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-995-0 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-391-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-719-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-521-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-996-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-349-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-720-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-528-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-997-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-350-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-721-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-529-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-998-1 01 1 1305-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-351-0 01 1 1401-1404 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-722-0 01 1 1405-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-530-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●
çizim 352803
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET SET; ENG HD OVERHAUL
EURO5 SPECIFICATION<NT5> 		1-87815-058-0 01 1 1506- ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-024-0 01 1 1302-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-360-0 01 1 1401-1408 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-706-0 01 1 1409-1501 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87815-089-0 01 1 1502-1505 ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		1-87815-089-0 01 1 1506-1511 ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		1-87815-089-0 01 1 1512- ● ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-999-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-711-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-513-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-001-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-712-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-514-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-728-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-728-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-002-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-713-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-515-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-729-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-729-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-003-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-723-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-531-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-730-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-004-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-724-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-532-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-731-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-005-0 01 1 1305-1404 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-725-0 01 1 1405-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-533-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-732-0 01 1 1506- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
