◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11505 - FRR(LHD) SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#113906) — 183 parça

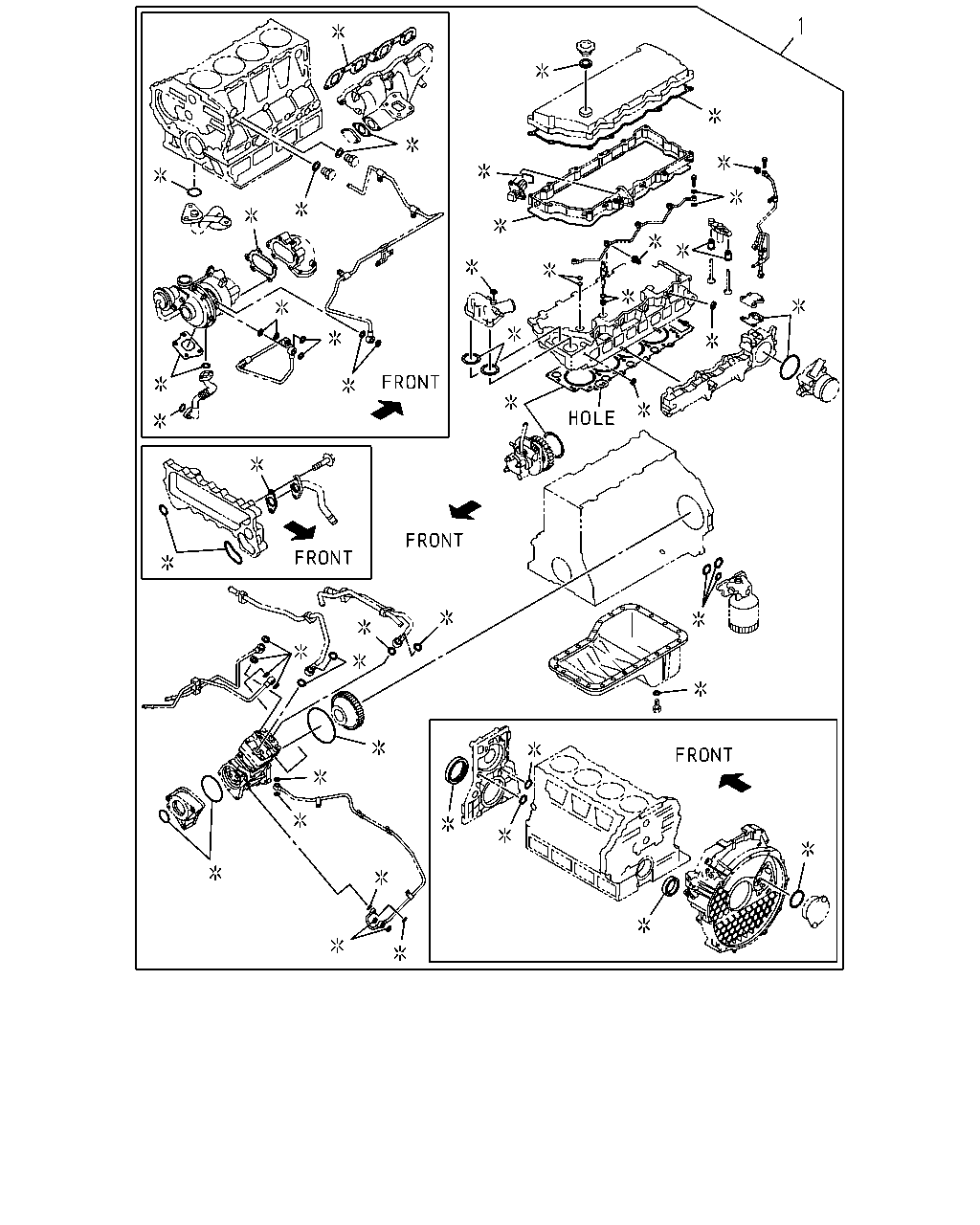

çizim 326011
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-972-1 01 1 1302-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-392-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-522-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-706-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-973-1 01 1 1302-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-393-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-523-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-707-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-974-1 01 1 1302-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-394-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-524-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-708-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-966-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-380-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-504-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-967-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-381-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-505-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-968-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-382-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-506-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-969-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-386-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-516-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-970-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-387-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-517-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-971-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-388-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-518-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ● ●

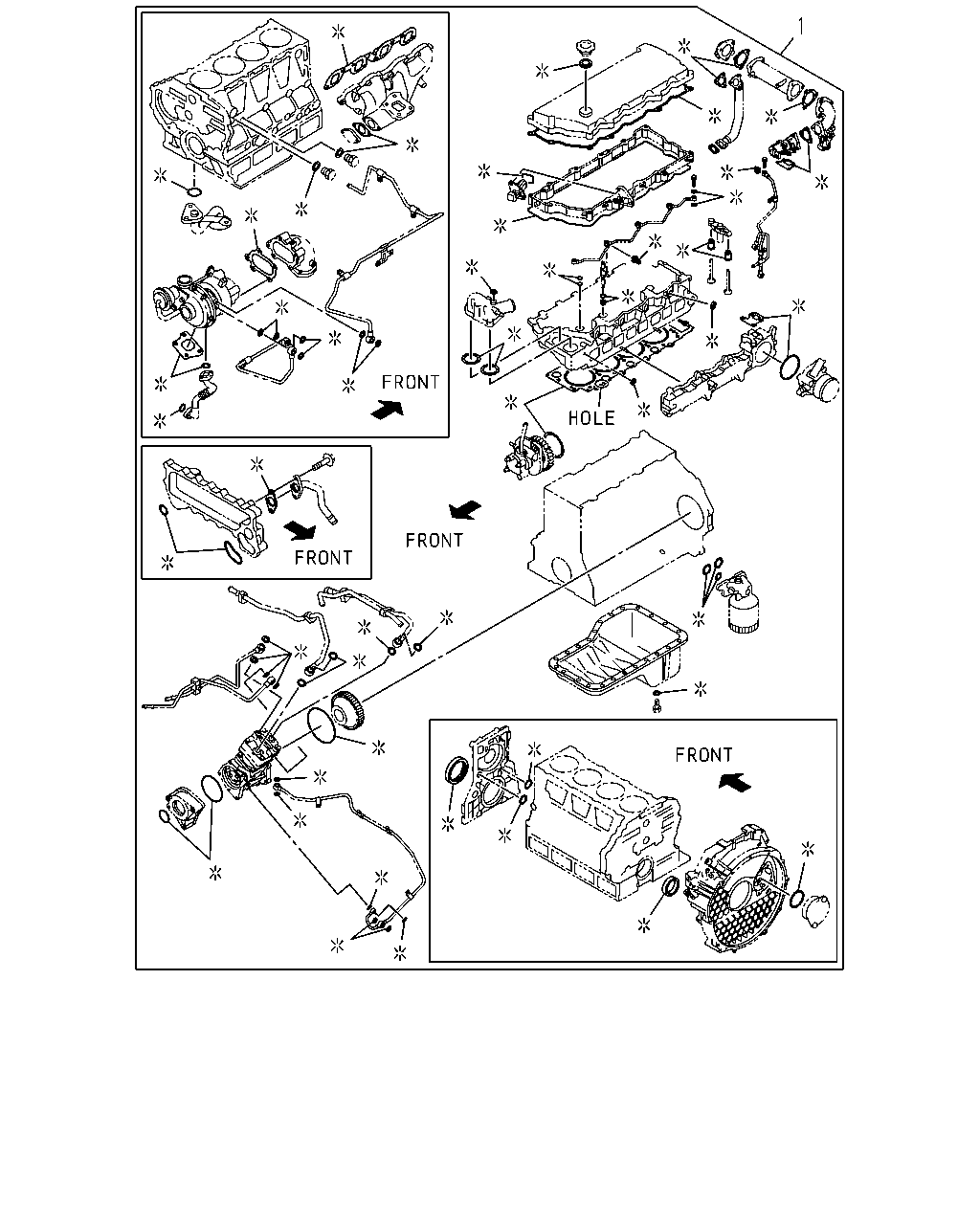

çizim 330867
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-972-1 01 1 1302-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-392-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-522-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-706-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-973-1 01 1 1302-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-393-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-523-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-707-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-974-1 01 1 1302-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-394-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-524-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-708-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-966-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-380-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-504-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-967-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-381-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-505-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-968-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-382-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-506-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-969-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-386-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-516-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-970-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-387-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-517-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-971-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-388-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-518-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ● ●

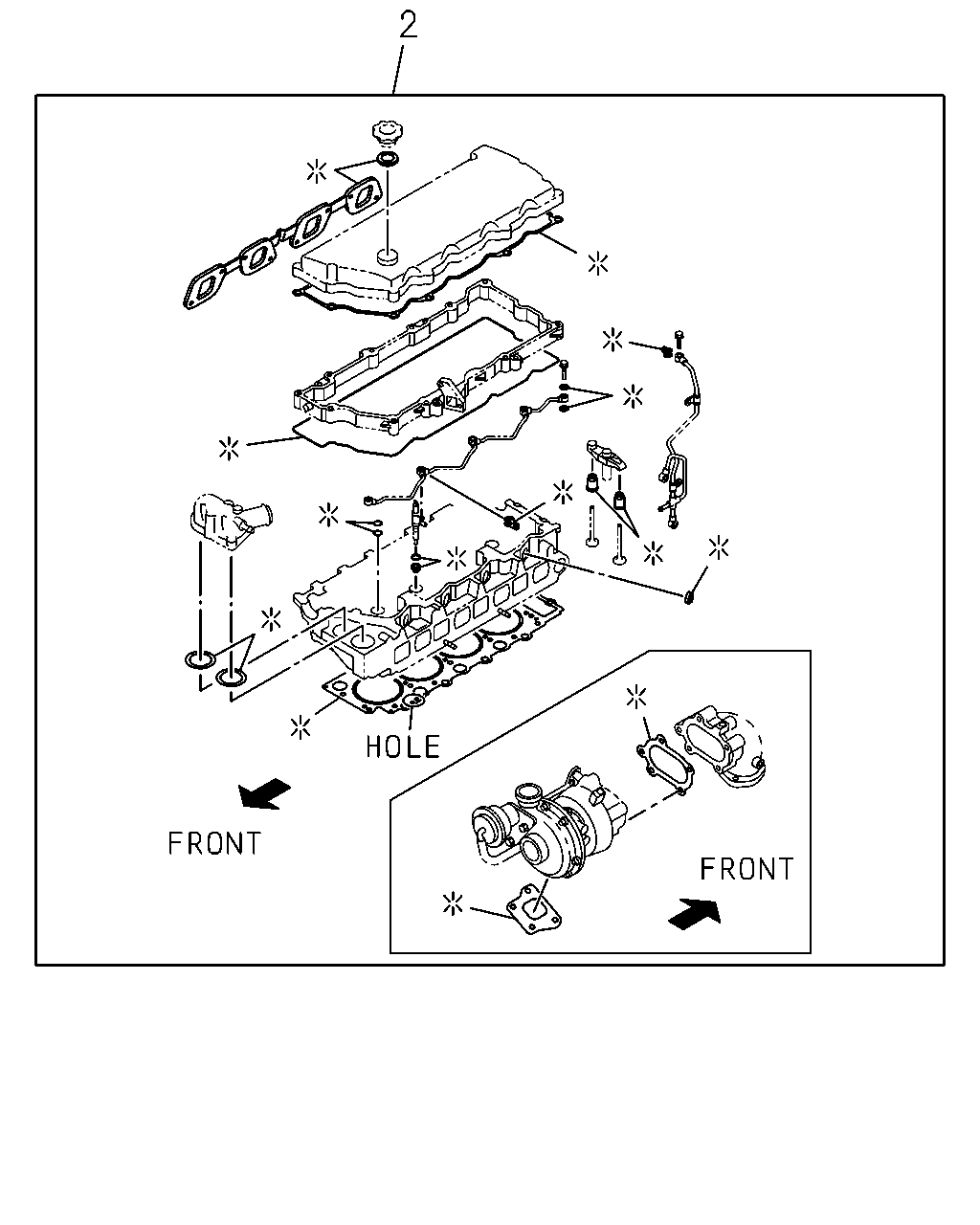

çizim 485020
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-441-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		1-87813-441-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-507-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		1-87815-507-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		1-87815-727-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		1-87815-727-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-442-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		1-87813-442-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-508-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		1-87815-508-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-728-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		1-87815-728-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-728-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		1-87815-728-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-443-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		1-87813-443-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-509-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		1-87815-509-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-729-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		1-87815-729-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-729-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		1-87815-729-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-444-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-525-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=1.475 NON-HOLE 		1-87815-730-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-445-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-526-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=1.525 1-HOLE 		1-87815-731-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-446-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-527-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=1.575 2-HOLE 		1-87815-732-0 01 1 1506- ●

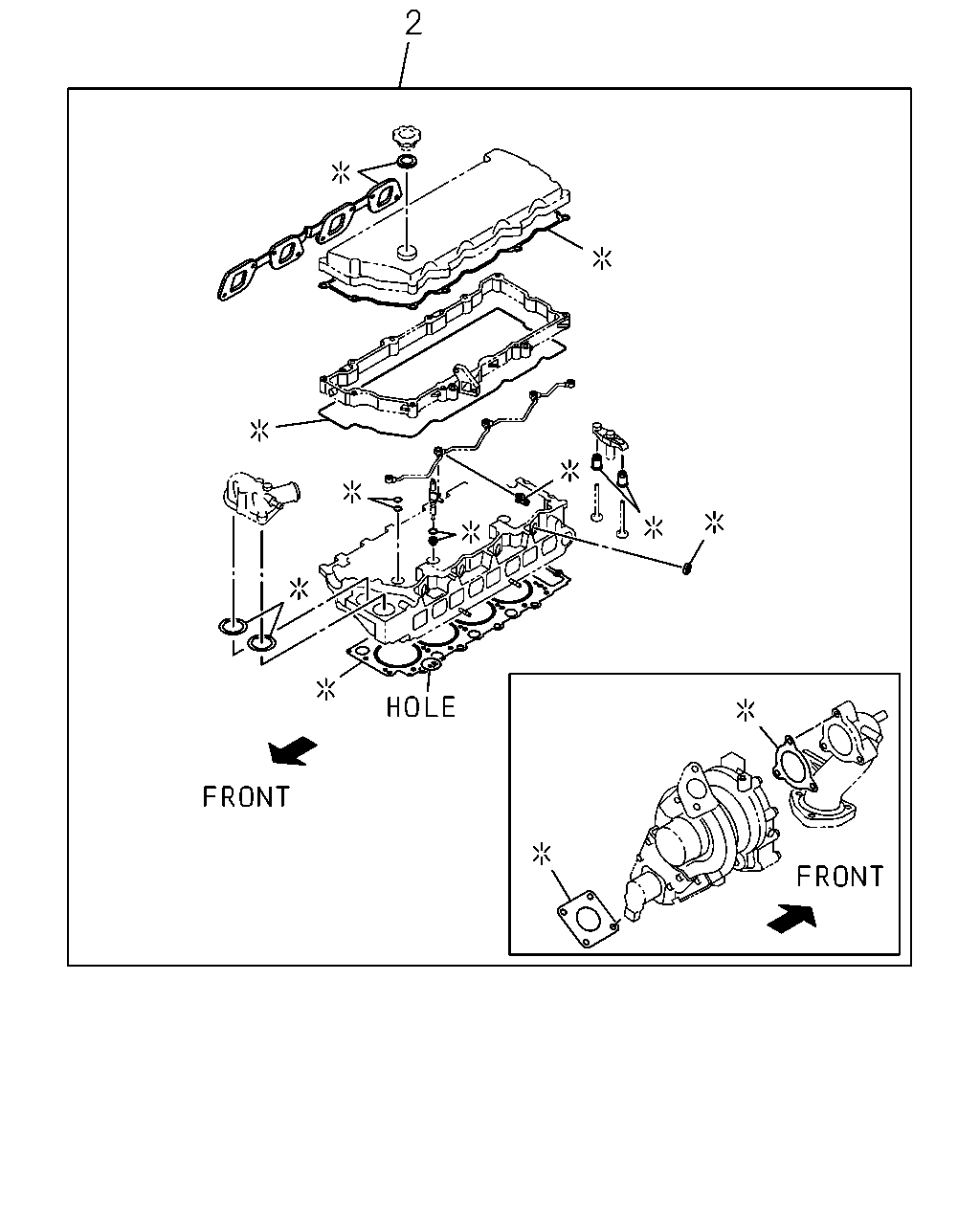

çizim 485370
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-441-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		1-87813-441-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-507-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		1-87815-507-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		1-87815-727-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-727-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		1-87815-727-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-442-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		1-87813-442-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-508-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		1-87815-508-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-728-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		1-87815-728-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-728-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		1-87815-728-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-443-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		1-87813-443-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-509-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		1-87815-509-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-729-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		1-87815-729-0 01 1 1506-1511 ●
2 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-729-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		1-87815-729-0 01 1 1512- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-444-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-525-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=1.475 NON-HOLE 		1-87815-730-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-445-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-526-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=1.525 1-HOLE 		1-87815-731-0 01 1 1506- ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-446-3 01 1 1302-1501 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-527-0 01 1 1502-1505 ●
2 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> T=1.575 2-HOLE 		1-87815-732-0 01 1 1506- ●

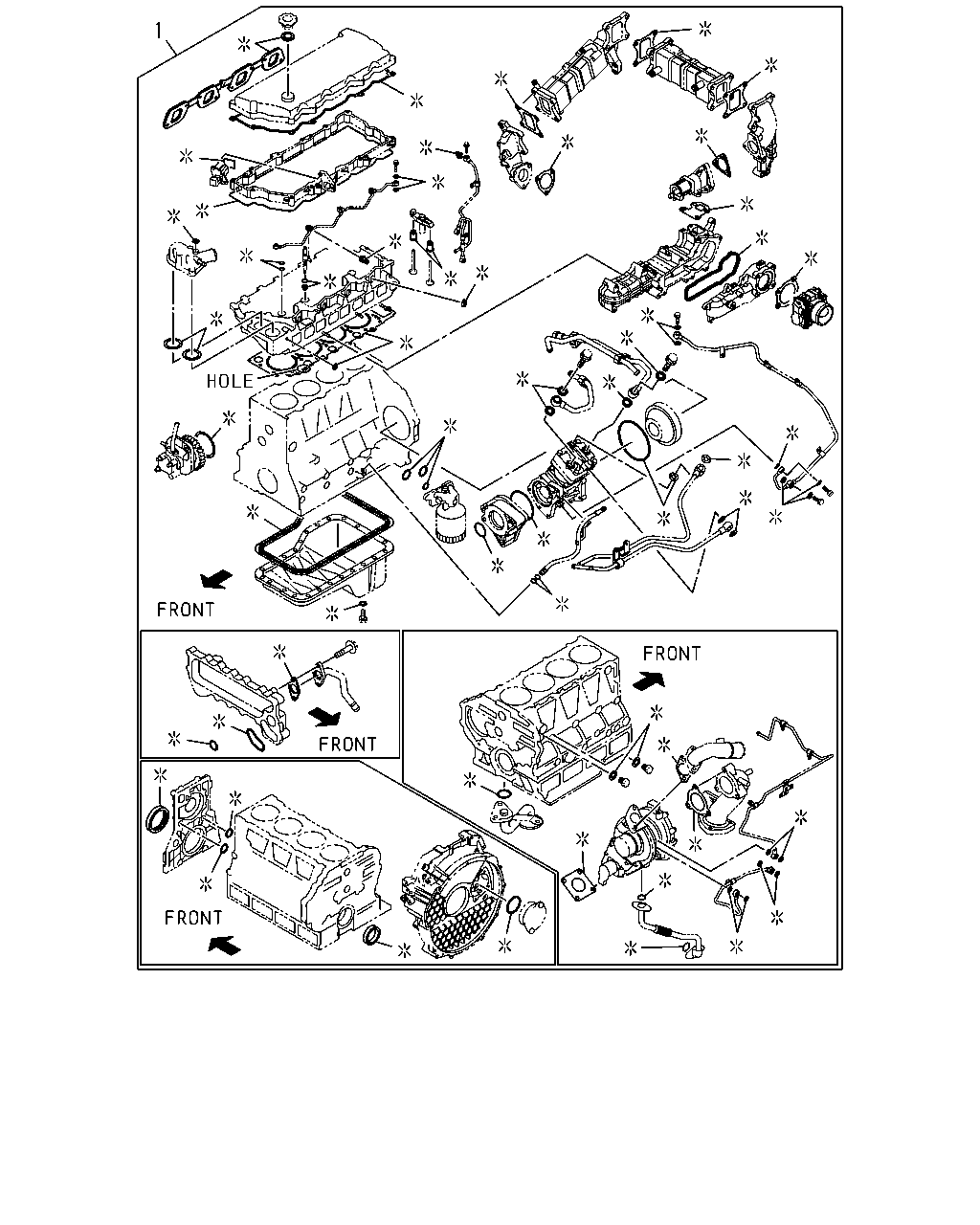

çizim 485386
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> T=1.475 NON-HOLE 		1-87815-733-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> T=1.525 1-HOLE 		1-87815-734-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO5 SPECIFICATION<NT5> T=1.575 2-HOLE 		1-87815-735-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87813-972-1 01 1 1302-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87814-392-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-522-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.475 NON-HOLE 		1-87815-706-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87813-973-1 01 1 1302-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87814-393-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-523-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.525 1-HOLE 		1-87815-707-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87813-974-1 01 1 1302-1312 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87814-394-0 01 1 1401-1501 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-524-0 01 1 1502-1505 ●
1 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION<NT4> T=1.575 2-HOLE 		1-87815-708-0 01 1 1506- ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87813-966-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87814-380-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-504-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.475 NON-HOLE 		1-87815-700-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87813-967-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87814-381-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-505-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.525 1-HOLE 		1-87815-701-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87813-968-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87814-382-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-506-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION<NT2> T=1.575 2-HOLE 		1-87815-702-0 01 1 1506- ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87813-969-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87814-386-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-516-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.475 NON-HOLE 		1-87815-703-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87813-970-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87814-387-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-517-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.525 1-HOLE 		1-87815-704-0 01 1 1506-1511 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87813-971-0 01 1 1302-1312 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87814-388-0 01 1 1401-1501 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-518-0 01 1 1502-1505 ● ●
1 GASKET SET; ENG OVERHAUL
EURO3 SPECIFICATION<NT3> T=1.575 2-HOLE 		1-87815-705-0 01 1 1506-1511 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
