1-50 — EXHAUST PIPE AND SILENCER (#11390) — 126 parça

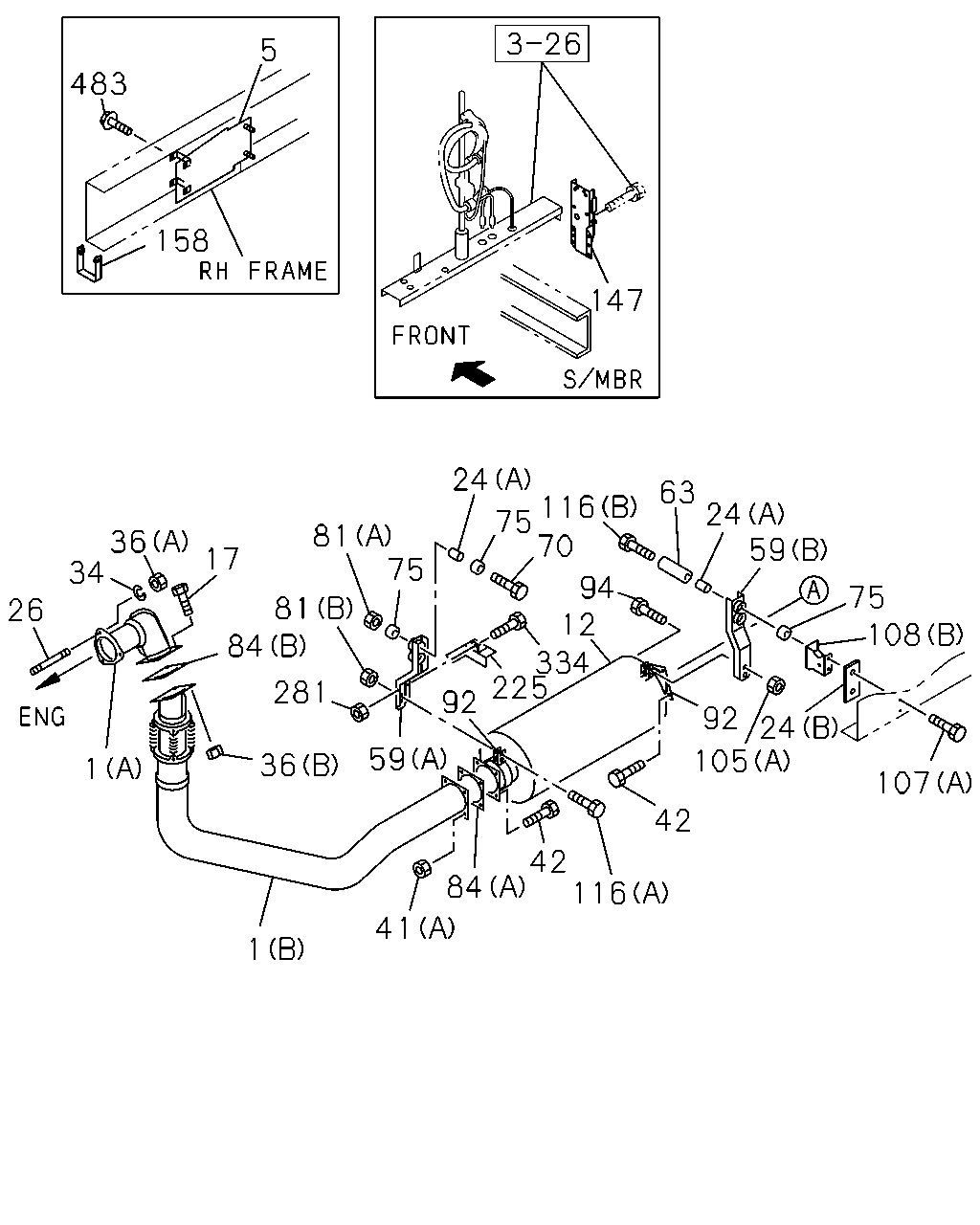

çizim 17812
5 483 158 147 24 63 116 24 75 70 12 94 59 75 108 107 24 92 105 42 116 42 84 41 1 59 92 225 334 81 75 81 84 281 36 1 26 34 36 17
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
ISUZU M/T<X9A> (B) 		1-22122-922-0 01 1 0106-0108
1 PIPE; EXH
(B) 		1-22122-922-0 01 1 0109-
1 PIPE; EXH
(A) 		1-22122-227-1 01 1 0106-
1 PIPE; EXH
EXC. ISUZU M/T<X9A> (B) 		1-22122-622-0 01 1 0106-0108
5 PROTECTOR; HEAT 1-22119-366-0 01 1 0106-
12 SILENCER ASM; EXH 1-22140-937-0 01 1 0106-
17 BOLT; EXH PIPE
M12X25 FLANGE 		1-09000-604-0 04 1 0106-
24 COLLAR; DIST,CLAMP
(B) 		1-22131-688-0 01 1 0305-
24 COLLAR; DIST,CLAMP
(A) L=22 		9-22159-024-0 04 1 0106-
26 STUD; EXH MANIF
M12X140 L=160 		1-09302-163-0 03 1 0106-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 03 1 0106-
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 03 1 0106-
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 0106-0512
36 NUT; EXH PIPE
(B) M12 		0-91110-512-0 04 1 0601-
41 NUT; EXH PIPE TO EXH SILENCER
(B) M12 FLANGE 		0-91150-212-0 04 1 0106-0602
41 NUT; EXH PIPE TO EXH SILENCER
(B) M12 FLANGE 		0-91180-212-0 04 1 0603-
41 NUT; EXH PIPE TO EXH SILENCER
(A) M12 		9-99110-512-0 04 1 0106-0512
41 NUT; EXH PIPE TO EXH SILENCER
(A) M12 		0-91110-512-0 04 1 0601-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 08 1 0106-
59 BRACKET; EXH SILENCER,FRT
ISUZU M/T<X9A> (A) 		1-22151-743-0 01 1 0106-0108
59 BRACKET; EXH SILENCER,FRT
(A) 		1-22151-743-0 01 1 0109-
59 BRACKET; EXH SILENCER,FRT
ISUZU M/T<X9A> (B) 		1-22151-744-0 01 1 0106-0108
59 BRACKET; EXH SILENCER,FRT
(B) 		1-22151-744-0 01 1 0109-
59 BRACKET; EXH SILENCER,FRT
EXC. ISUZU M/T<X9A> (B) 		1-22151-698-0 01 1 0106-0108
59 BRACKET; EXH SILENCER,FRT
EXC. ISUZU M/T<X9A> (A) 		1-22151-828-0 01 1 0106-0108
63 TUBE; DIST,BRKT
L=44.3 		1-14149-170-1 01 1 0106-
70 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 0106-0512
70 BOLT; BRKT
M10X50 FLANGE 		0-28051-050-0 02 1 0601-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 0106-
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 04 1 0106-0602
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0603-
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0106-0602
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0106-0602
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603-
84 GASKET; EXH PIPE
(A) 		1-22116-027-0 01 1 0106-
84 GASKET; EXH PIPE
(B) 		1-22116-030-0 01 1 0106-
92 CLAMP
D=101.4 		1-22133-170-1 02 1 0106-
94 BOLT; CLAMP
M8X40 FLANGE 		0-28080-840-0 02 1 0106-0512
94 BOLT; CLAMP
M8X40 FLANGE 		0-28050-840-0 02 1 0601-
105 NUT; CLAMP
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
105 NUT; CLAMP
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 01 1 0106-0602
105 NUT; CLAMP
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
107 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
107 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0106-0512
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
107 BOLT; BRKT
(A) M10X40 FLANGE 		0-28681-040-0 02 1 0106-0512
107 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 0601-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A) 		1-22131-700-0 01 1 0106-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B) 		1-22131-776-0 01 1 0106-
116 BOLT; BRKT
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0106-0512
116 BOLT; BRKT
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601-
116 BOLT; BRKT
(B) M10X50 FLANGE 		0-28081-050-0 02 1 0106-0304
116 BOLT; BRKT
(B) M10X60 FLANGE 		0-28081-060-0 02 1 0305-0512
116 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 02 1 0601-
147 BRACKET; VERTICAL PIPE 1-48495-176-2 01 1 0106-
147 BRACKET; VERTICAL PIPE 1-48495-181-1 01 1 0106-
158 BRACKET; HEAT PROTECTOR 1-22119-368-0 01 1 0106-
225 PROTECTOR; HEAT
ISUZU M/T<X9A> 		1-22159-310-0 01 1 0106-0108
225 PROTECTOR; HEAT 1-22159-310-0 01 1 0109-
225 PROTECTOR; HEAT
EXC. ISUZU M/T<X9A> 		1-22159-271-0 01 1 0106-0108
281 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
281 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91180-108-0 03 1 0603-
334 BOLT; HEAT PROTECTOR
M8X70 FLANGE 		0-28080-870-0 01 1 0106-0512
334 BOLT; HEAT PROTECTOR
M8X70 FLANGE 		0-28050-870-0 01 1 0601-
483 BOLT; BRKT,HEAT PROTECTOR
M8X30 FLANGE 		0-28680-830-0 01 1 0106-0512
483 BOLT; BRKT,HEAT PROTECTOR
M8X30 FLANGE 		0-28650-830-0 01 1 0601-

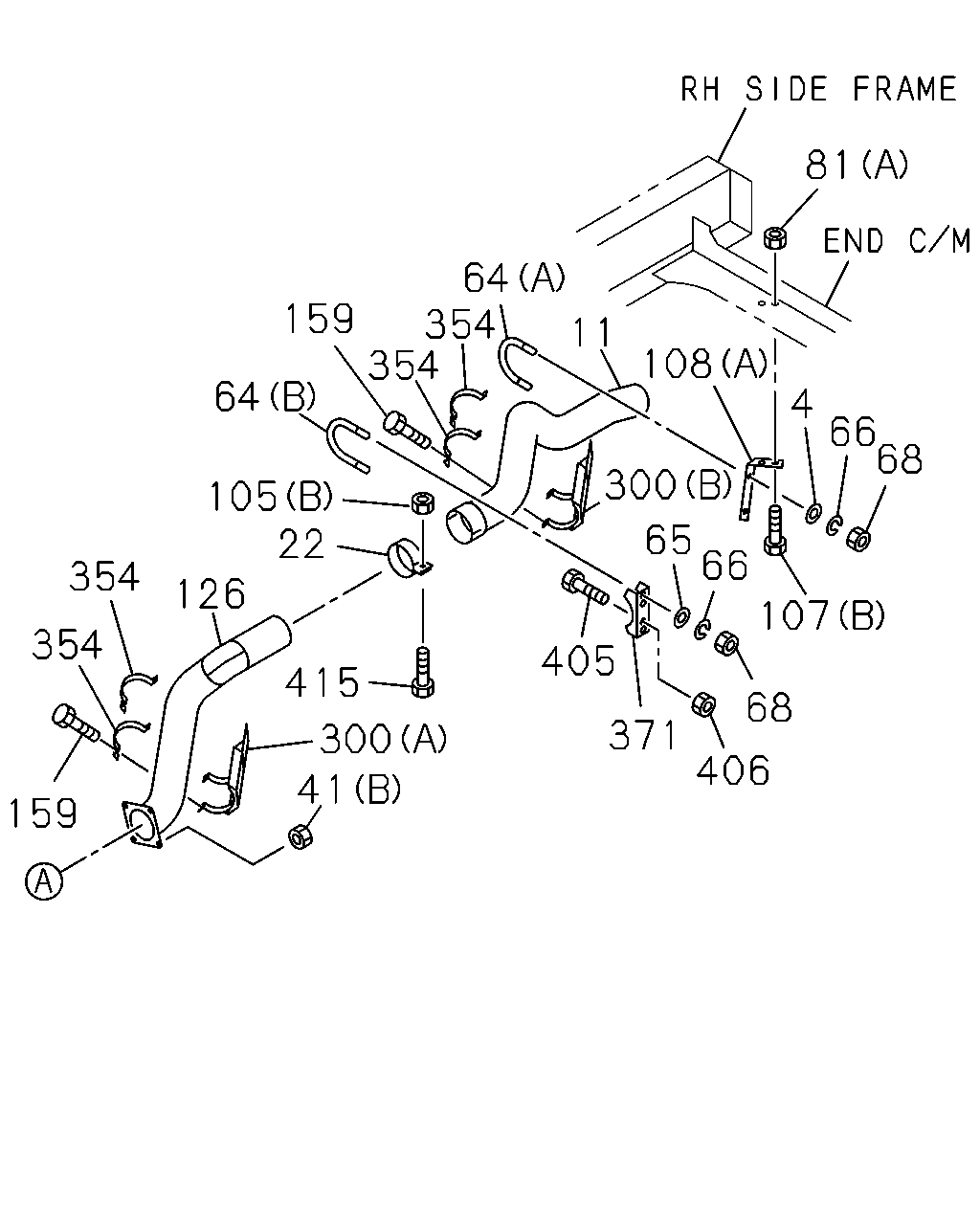

çizim 73099
406 68 107 66 65 300 68 66 4 108 11 81 64 354 354 159 64 105 126 22 354 354 415 41 300 159 405 371
BalonParca AdiParca NoAdetTipApplied Date
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		9-09160-708-0 02 1 0106-0605
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		0-91610-708-0 02 1 0606-
11 PIPE; EXH,RR 1-22122-641-0 01 1 0106-
22 CLAMP; EXH PIPE 1-22133-222-0 01 1 0106-
41 NUT; EXH PIPE TO EXH SILENCER
(B) M12 FLANGE 		0-91150-212-0 04 1 0106-0602
41 NUT; EXH PIPE TO EXH SILENCER
(B) M12 FLANGE 		0-91180-212-0 04 1 0603-
41 NUT; EXH PIPE TO EXH SILENCER
(A) M12 		9-99110-512-0 04 1 0106-0512
41 NUT; EXH PIPE TO EXH SILENCER
(A) M12 		0-91110-512-0 04 1 0601-
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-079-0 01 1 0106-
64 U-BOLT; EXH PIPE,RR
(B) 		1-22113-080-0 01 1 0106-
65 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 02 1 0106-0605
65 WASHER; PL
ID=8.4 OD=22 		0-91610-708-0 02 1 0606-
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 0106-0603
66 WASHER; LK,U BOLT
ID=8.2 		0-91510-508-0 02 1 0604-
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
68 NUT; U BOLT
M8 FLANGE 		0-91180-108-0 02 1 0603-
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 04 1 0106-0602
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0603-
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0106-0602
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0106-0602
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603-
105 NUT; CLAMP
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0602
105 NUT; CLAMP
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 01 1 0106-0602
105 NUT; CLAMP
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
107 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
107 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0106-0512
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
107 BOLT; BRKT
(A) M10X40 FLANGE 		0-28681-040-0 02 1 0106-0512
107 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 0601-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A) 		1-22131-700-0 01 1 0106-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B) 		1-22131-776-0 01 1 0106-
126 PIPE; EXH,RR
ISUZU M/T<X9A> 		1-22126-219-0 01 1 0106-0108
126 PIPE; EXH,RR 1-22126-219-0 01 1 0109-
126 PIPE; EXH,RR
EXC. ISUZU M/T<X9A> 		1-22126-220-0 01 1 0106-0108
159 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 08 1 0106-0512
159 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28650-820-0 08 1 0601-
300 PROTECTOR; HEAT,EXH PIPE
ISUZU M/T<X9A> (A) 		1-22119-383-0 01 1 0106-0108
300 PROTECTOR; HEAT,EXH PIPE
(A) 		1-22119-383-0 01 1 0109-
300 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22119-309-0 01 1 0106-
300 PROTECTOR; HEAT,EXH PIPE
EXC. ISUZU M/T<X9A> (A) 		1-22119-305-0 01 1 0106-0108
354 CLAMP; HEAT PROTECTOR 1-22119-307-0 04 1 0106-
371 PIECE; DIST 1-22113-087-0 01 1 0106-
405 BOLT; DIST PIECE
M8X35 FLANGE 		0-28680-835-0 02 1 0106-0512
405 BOLT; DIST PIECE
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
406 NUT; DIST PIECE
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
406 NUT; DIST PIECE
M8 FLANGE 		0-91180-108-0 02 1 0603-
415 BOLT; CLAMP
M10X40 FLANGE 		0-28081-040-0 01 1 0106-0512
415 BOLT; CLAMP
M10X40 FLANGE 		0-28051-040-0 01 1 0601-
çizim 76251
476 475 476 475 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
ISUZU M/T<X9A> (B) 		1-22122-922-0 01 1 0106-0108
1 PIPE; EXH
(B) 		1-22122-922-0 01 1 0109-
1 PIPE; EXH
(A) 		1-22122-227-1 01 1 0106-
1 PIPE; EXH
EXC. ISUZU M/T<X9A> (B) 		1-22122-622-0 01 1 0106-0108
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=122 		1-22119-297-0 02 1 0106-
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 04 1 0106-
