Isuzu WW
▶
TRUCKS
▶
FVR
▶
10630 - FVR-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

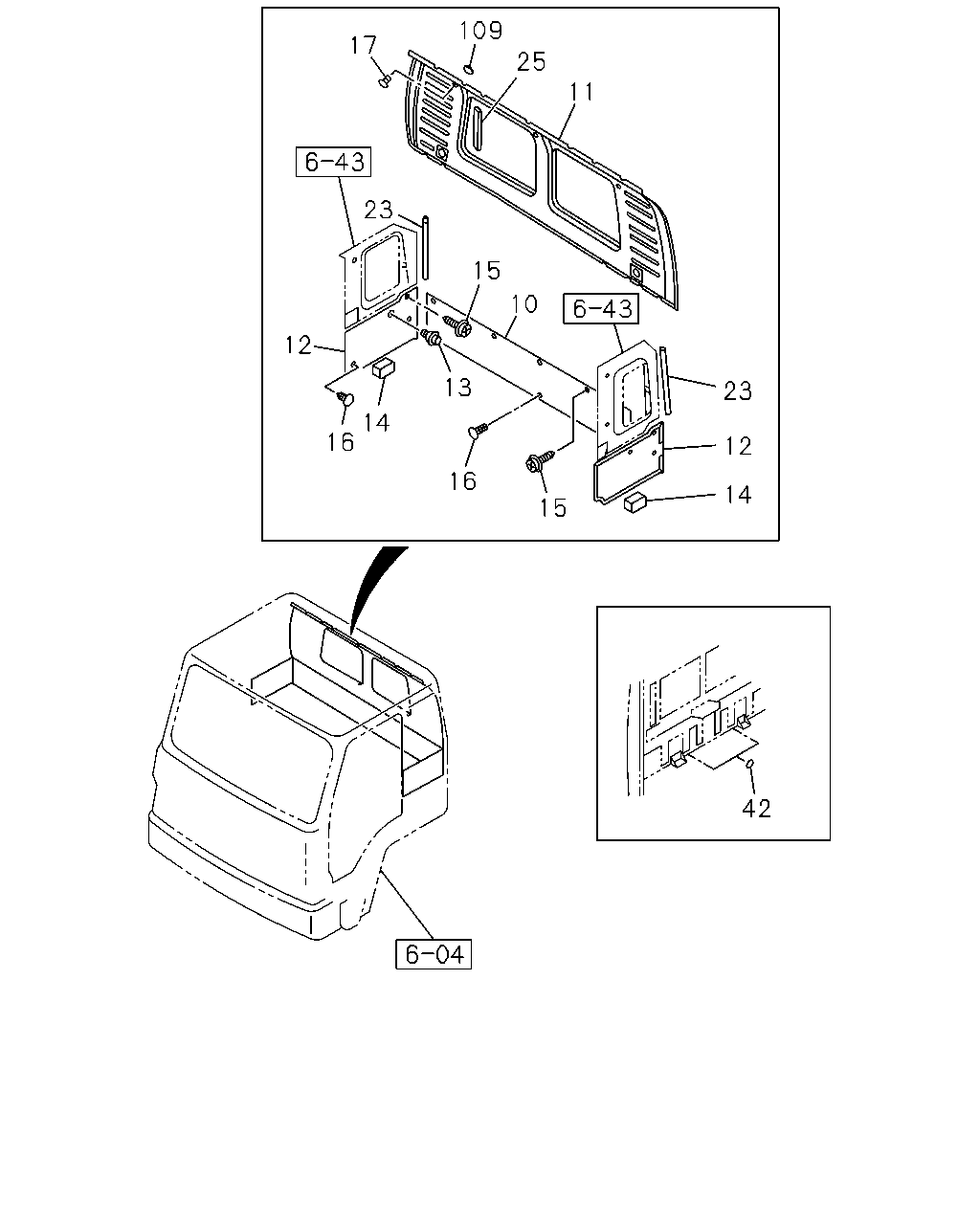

6-84 - BACK TRIM
▶
6-84 — BACK TRIM
(#1139) — 18 parça
Tümü
A - FVR5MC
B - FVR5MF
109
17
25
11
23
15
10
12
13
23
14
16
12
16
14
15
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
TRIM; BED ROOM CENTER
1-73348-358-2
01
1
9202-9312
●
●
10
TRIM; BED ROOM CENTER
1-73348-398-0
01
1
9401-
●
●
11
TRIM; ROOM,BACK INNER
DELUXE CAB(W14) GRAY
1-73348-339-1
01
1
9202-
●
●
12
PAD; TRIM,BED ROOM SIDE
DARK GRAY
1-73348-293-3
01
1
9202-
●
●
12
PAD; TRIM,BED ROOM SIDE
DARK GRAY
1-73348-292-3
01
1
9202-
●
●
13
CLIP; BED ROOM TRIM
1-09987-119-1
02
1
9202-
●
●
14
INSULATOR; FLOOR SIDE REAR
1-73377-160-0
02
1
9202-
●
●
15
HOOK; BED ROOM TRIM
M4X14 HOOK MALE
1-09981-370-0
11
1
9202-
●
●
16
CLIP; TRIM,BED ROOM
D6X23 BLACK
1-09987-114-0
05
1
9202-
●
●
17
CLIP; ANCHOR,TRIM BACK INNER
DELUXE CAB(W14)
1-09987-203-0
03
1
9202-
●
●
23
FINISHER; BACK INNER PANEL
DELUXE CAB(W14) GRAY
1-73338-319-1
02
1
9202-
●
●
23
FINISHER; BACK INNER PANEL
EXC. DELUXE CAB(W14) WHITE
1-73337-264-0
02
1
9202-
●
●
25
SPACER; ROOM TRIM
DELUXE CAB(W14) L=400
1-73348-364-0
02
1
9202-
●
●
25
SPACER; ROOM TRIM
DELUXE CAB(W14) L=450
1-73348-386-0
02
1
9202-
●
●
42
SEAL; BACK OUTER PANEL
OD=36 WHITE
1-76778-007-0
02
1
9202-
●
●
109
SEAL; HOLE
MARINE BLUE
1-76777-075-0
03
1
9202-
●
●
109
SEAL; HOLE
WHITE
1-76777-076-0
03
1
9202-
●
●
109
SEAL; HOLE
OD=20 T=0.4 BLACK
1-76798-020-0
03
1
9202-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
