Isuzu WW
▶
TRUCKS
▶
FTR
▶
11513 - FTR-RHD EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#113899) — 38 parça
Tümü

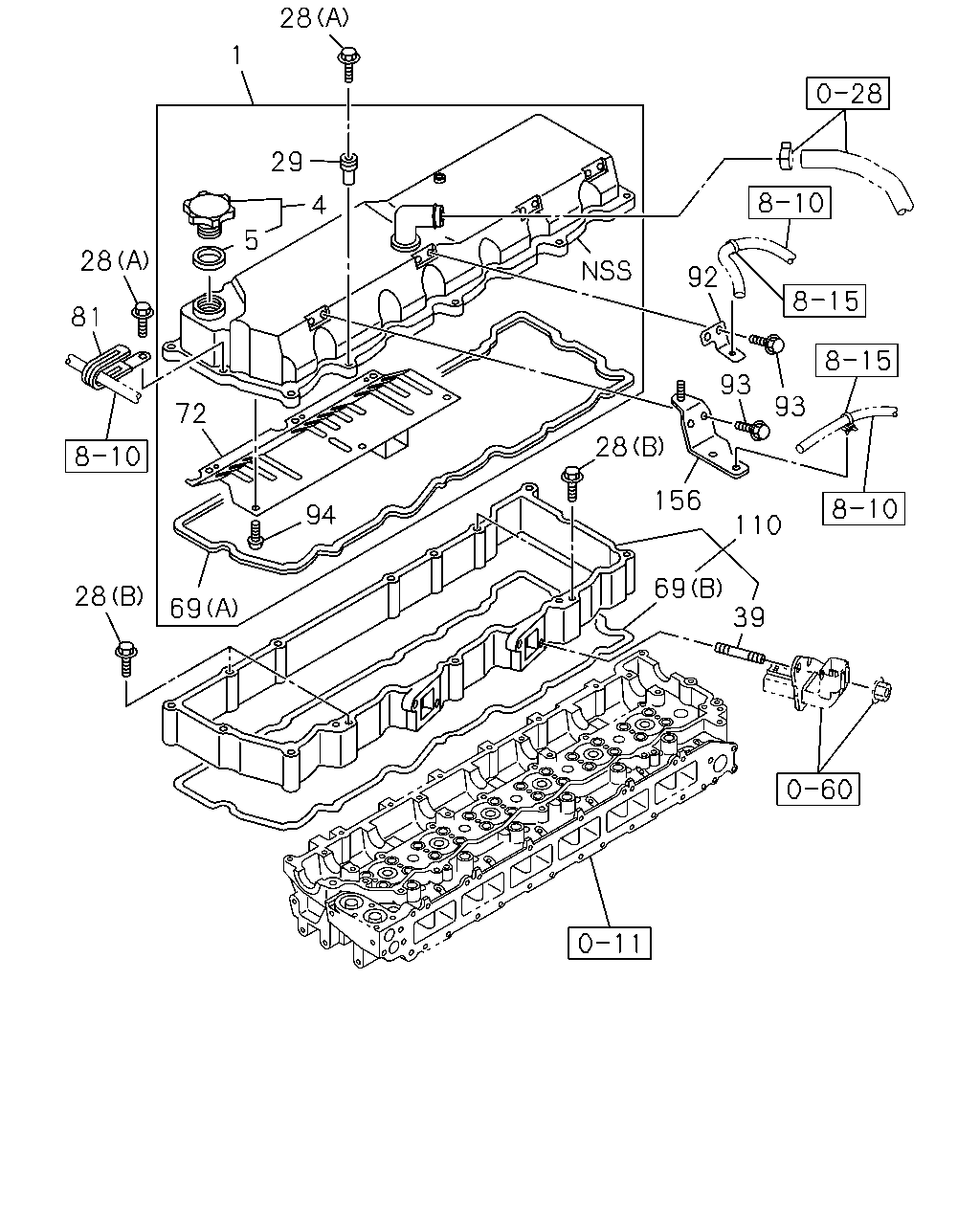

A - 6HK1-TCN ENG

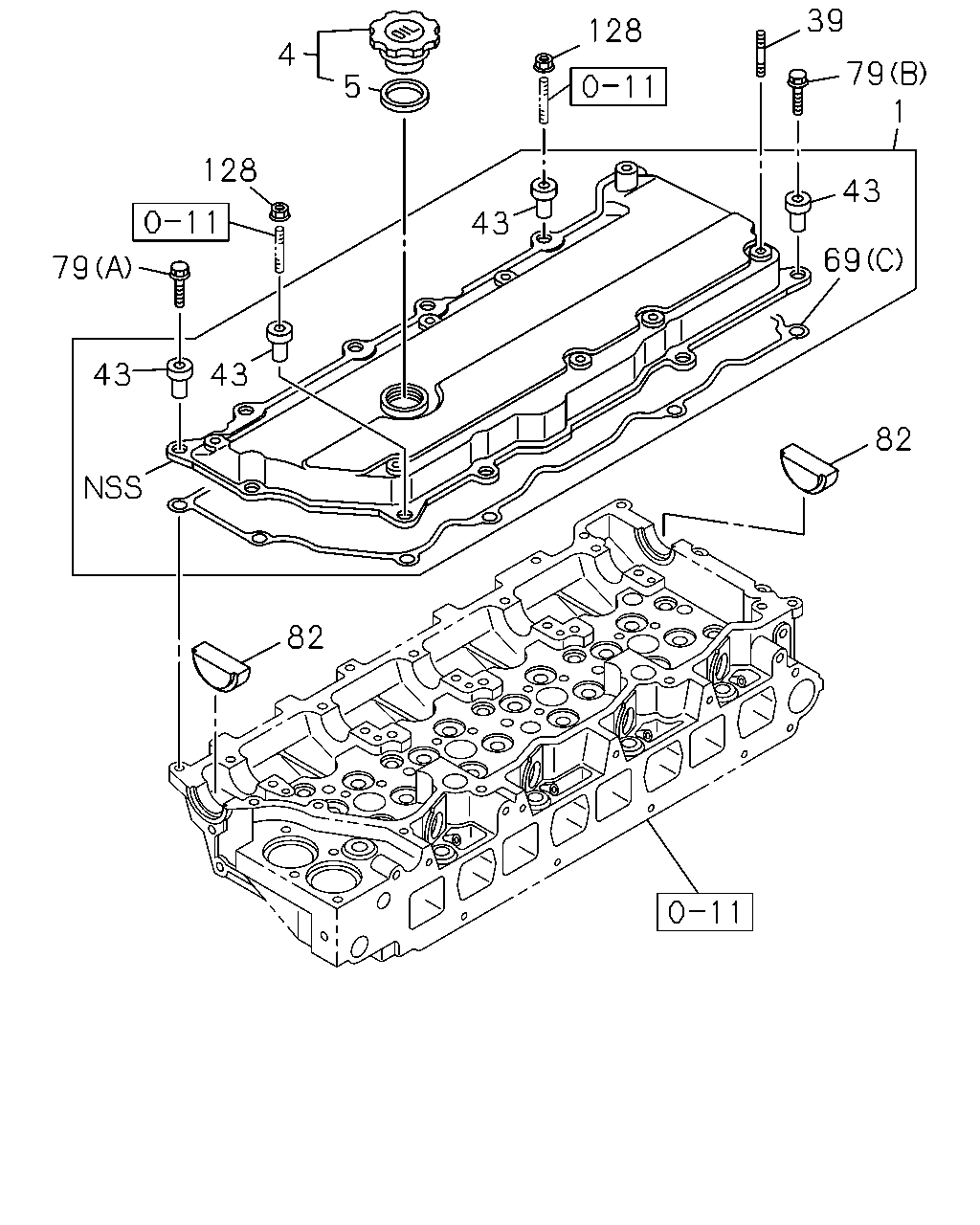

B - 4HK1-TCS ENG
◀
[010A] 6HK1 (22 parça)
[010A] 4HK1 (16 parça)
▶
28
29
1
28
81
72
94
69
28
69
110
156
28
93
92
93
39
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
8-98208-874-0
01
1
1302-
●
1
COVER; CYL HD
8-97331-361-2
01
1
1305-
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
1302-
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
1305-
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
1302-
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
1305-
●
28
BOLT; HD COVER
(B) M8X45 FLANGE
0-28050-845-0
04
1
1302-
●
28
BOLT; HD COVER
(A) M8X70 FLANGE
0-28050-870-0
11
1
1302-
●
29
RUBBER; MTG,HD COVER
8-94392-097-0
11
1
1302-
●
39
STUD; COVER,HD
M8X28 L=38
8-94396-512-0
02
1
1302-
●
39
STUD; COVER,HD
M6X20 L=28
0-41010-620-0
02
1
1305-1312
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
1302-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-94391-380-0
01
1
1302-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)
8-97331-359-1
01
1
1305-
●
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
1302-
●
81
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
02
1
1302-
●
92
BRACKET; CLIP
8-97602-621-0
01
1
1302-1405
●
92
BRACKET; CLIP
8-98271-674-0
01
1
1406-
●
93
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
04
1
1302-
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
0-35050-408-0
06
1
1302-
●
110
COVER; CYL HEAD LWR
8-94390-862-3
01
1
1302-
●
156
BRACKET; ENGINE COVER
8-97616-751-0
01
1
1302-
●
4
5
128
79
43
43
43
128
39
79
43
69
82
82
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
8-98208-874-0
01
1
1302-
●
1
COVER; CYL HD
8-97331-361-2
01
1
1305-
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
1302-
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
1305-
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
1302-
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
1305-
●
39
STUD; COVER,HD
M8X28 L=38
8-94396-512-0
02
1
1302-
●
39
STUD; COVER,HD
M6X20 L=28
0-41010-620-0
02
1
1305-1312
●
43
RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
1305-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
1302-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-94391-380-0
01
1
1302-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)
8-97331-359-1
01
1
1305-
●
79
BOLT; COVER
(A) M8X35 FLANGE
0-28650-835-0
02
1
1305-
●
79
BOLT; COVER
(B) M8X65 FLANGE
1-09044-072-1
07
1
1305-
●
82
PLUG; CYL HD COVER
8-98163-813-0
02
1
1305-
●
128
NUT; COVER,CYL HEAD COVER
M8 FLANGE
0-91180-108-0
02
1
1305-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
