Sayfa 0-11 - Isuzu EPC

0-11 — CYLINDER HEAD (#113891) — 220 parça

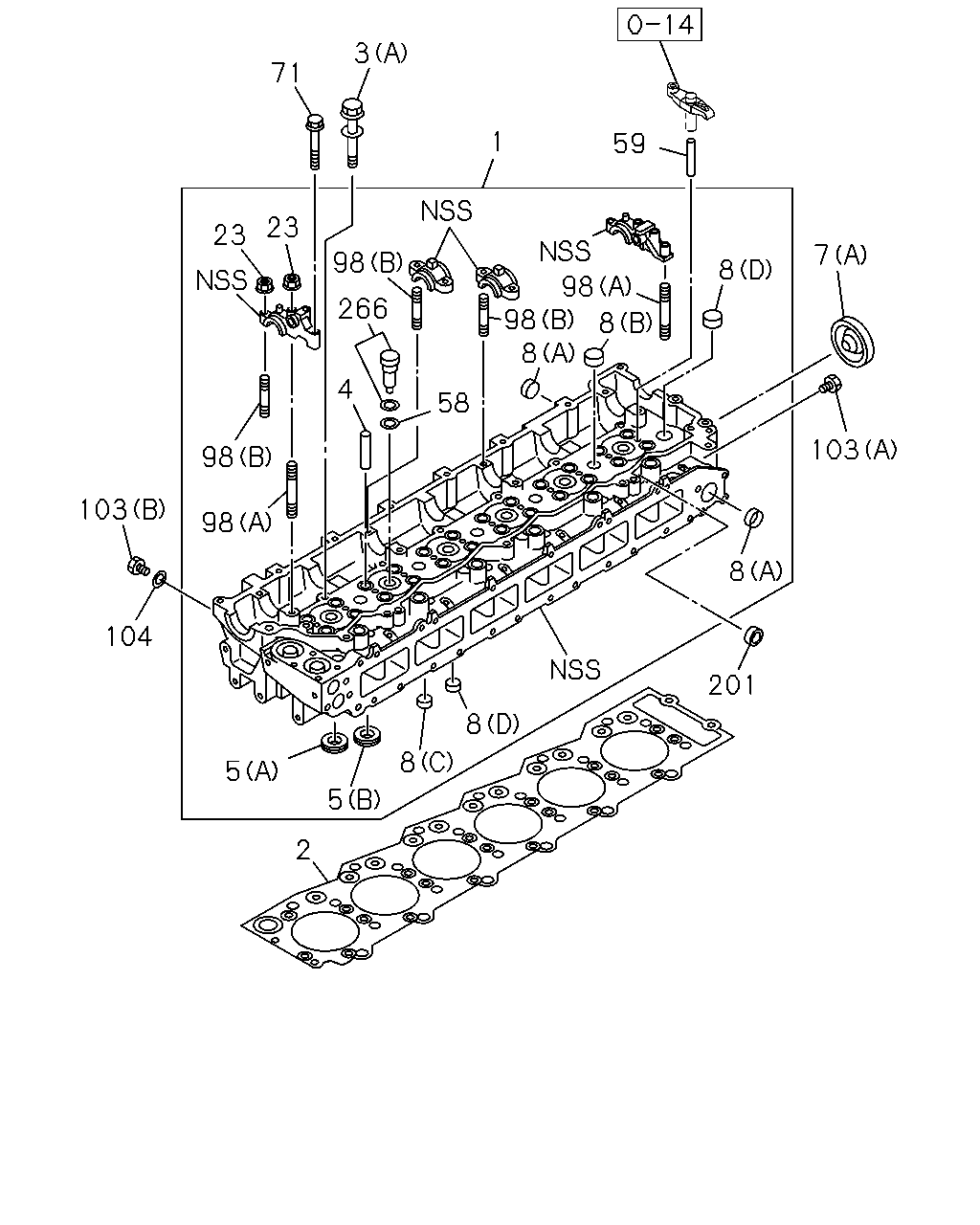

103 8 201 8 8 5 2 5 104 103 98 98 4 58 8 8 7 8 98 98 59 1 98 266 71 3 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL EURO5 SPECIFICATION<NT5>	8-98243-823-0	01	1	1506-	●
1	HEAD ASM; CYL	8-97604-903-7	01	1	1302-1305	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-1405	●
1	HEAD ASM; CYL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4>	8-98243-824-0	01	1	1406-1511	●
1	HEAD ASM; CYL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98243-824-0	01	1	1512-	●
1	HEAD ASM; CYL	8-98170-620-0	01	1	1305-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	01	1	1305-1305		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98245-617-0	01	1	1306-1404		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	01	1	1512-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	01	1	1405-1505		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	01	1	1305-1305		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98245-618-0	01	1	1306-1404		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	01	1	1512-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	01	1	1405-1505		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	01	1	1305-1305		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98245-619-0	01	1	1306-1404		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	01	1	1512-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	01	1	1405-1505		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-819-5	01	1	1302-	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	26	1	1302-1407	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	26	1	1408-	●
3	BOLT; CYL HD TO BLOCK (B) M10X73	8-94399-554-0	01	1	1305-		●
3	BOLT; CYL HD TO BLOCK (C) M10X43	8-94399-555-0	01	1	1305-		●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	18	1	1305-1503		●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	18	1	1504-		●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	1302-	●
4	GUIDE; VLV L=57	8-97376-719-2	16	1	1305-		●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	12	1	1302-	●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	1302-	●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1305-		●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1305-		●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	1302-	●
7	CUP; SEALING,CYL HEAD (B) OD=25	1-09600-016-0	04	1	1305-		●
7	CUP; SEALING,CYL HEAD (C) OD=16	5-11129-006-0	05	1	1305-		●
7	CUP; SEALING,CYL HEAD (E) OD=32	8-97096-821-0	05	1	1305-		●
7	CUP; SEALING,CYL HEAD (D) OD=20	9-11129-128-0	07	1	1305-		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	07	1	1302-	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	1302-	●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	1302-	●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	1302-	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	1302-	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	10	1	1305-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	06	1	1302-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	04	1	1305-		●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	1302-	●
59	GUIDE; BRIDGE	8-97381-603-1	08	1	1305-		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	1302-1304	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	1305-	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	1302-	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	1302-	●
103	PLUG; HD (A) M8X10	8-98003-416-0	01	1	1302-	●
103	PLUG; HD EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M14X14	9-09862-156-0	01	1	1302-1511	●
103	PLUG; HD EURO2 SPECIFICATION<NT2> (B) M14X14	9-09862-156-0	01	1	1512-	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2	1-09630-085-0	01	1	1302-1312	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-1511	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2	8-98251-345-0	01	1	1512-	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	06	1	1302-	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	04	1	1305-		●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	06	1	1302-	●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	04	1	1305-		●

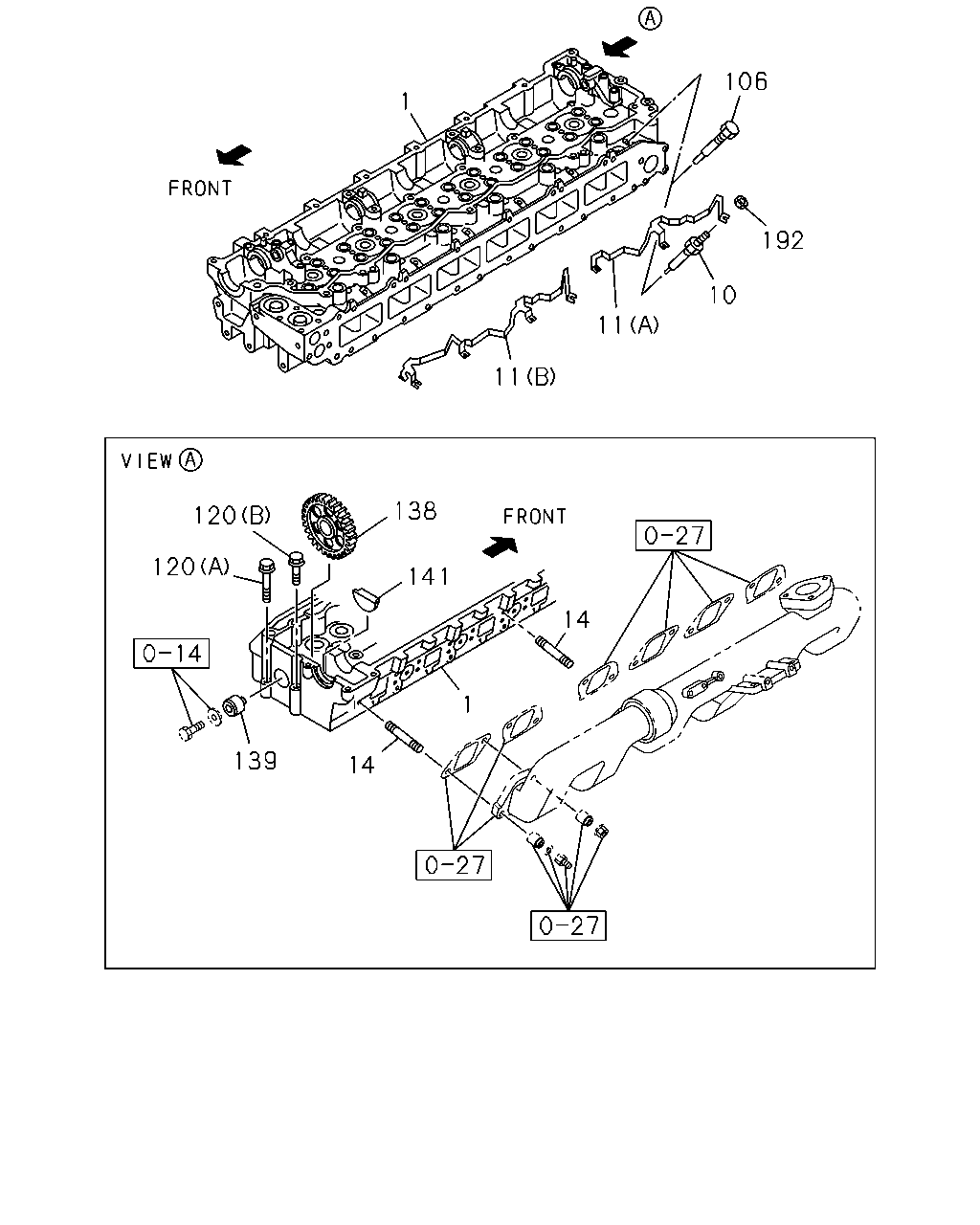

1 106 11 11 10 192 120 120 139 14 1 14 141 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL EURO5 SPECIFICATION<NT5>	8-98243-823-0	01	1	1506-	●
1	HEAD ASM; CYL	8-97604-903-7	01	1	1302-1305	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-1405	●
1	HEAD ASM; CYL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4>	8-98243-824-0	01	1	1406-1511	●
1	HEAD ASM; CYL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98243-824-0	01	1	1512-	●
1	HEAD ASM; CYL	8-98170-620-0	01	1	1305-		●
10	PLUG; GLOW NGK	8-94390-777-6	06	1	1302-1311	●
10	PLUG; GLOW EXC. GLOW SYSTEM DELETE<7RK> NGK	8-94390-777-6	06	1	1312-	●
10	PLUG; GLOW NGK	8-94390-777-6	04	1	1305-1311		●
10	PLUG; GLOW EXC. GLOW SYSTEM DELETE<7RK> NGK	8-94390-777-6	04	1	1312-		●
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	1302-1311	●
11	CONNECTOR; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> (B)	8-98040-648-0	01	1	1312-	●
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	1302-1311	●
11	CONNECTOR; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> (A)	8-98040-649-0	01	1	1312-	●
11	CONNECTOR; GLOW PLUG (C)	8-97332-358-2	01	1	1305-1311		●
11	CONNECTOR; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97332-358-2	01	1	1312-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	1302-	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	1305-		●
106	PLUG; GLOW PLUG HOLE GLOW SYSTEM DELETE<7RK>	8-94392-236-0	04	1	1312-		●
106	PLUG; GLOW PLUG HOLE GLOW SYSTEM DELETE<7RK>	8-94392-236-0	06	1	1312-	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	1302-	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	1302-	●
138	GEAR; IDLE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> Z=41	8-98058-321-1	01	1	1406-1505	●
138	GEAR; IDLE EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> Z=41	8-98058-321-1	01	1	1506-	●
138	GEAR; IDLE EURO5 SPECIFICATION<NT5> Z=41	8-98058-321-1	01	1	1506-	●
138	GEAR; IDLE Z=41	8-97606-929-0	01	1	1302-1401	●
138	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> Z=41	8-97606-929-0	01	1	1402-1511	●
138	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> Z=41	8-97606-929-0	01	1	1512-	●
139	SHAFT; IDLE GEAR ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97606-990-1	01	1	1406-1505	●
139	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97606-990-1	01	1	1506-	●
139	SHAFT; IDLE GEAR EURO5 SPECIFICATION<NT5>	8-97606-990-1	01	1	1506-	●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	1302-1401	●
139	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97186-398-1	01	1	1402-1511	●
139	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97186-398-1	01	1	1512-	●
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1302-	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	06	1	1302-1311	●
192	NUT; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> M4 FLANGE	8-97368-853-0	06	1	1312-	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	04	1	1305-1311		●
192	NUT; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> M4 FLANGE	8-97368-853-0	04	1	1312-		●

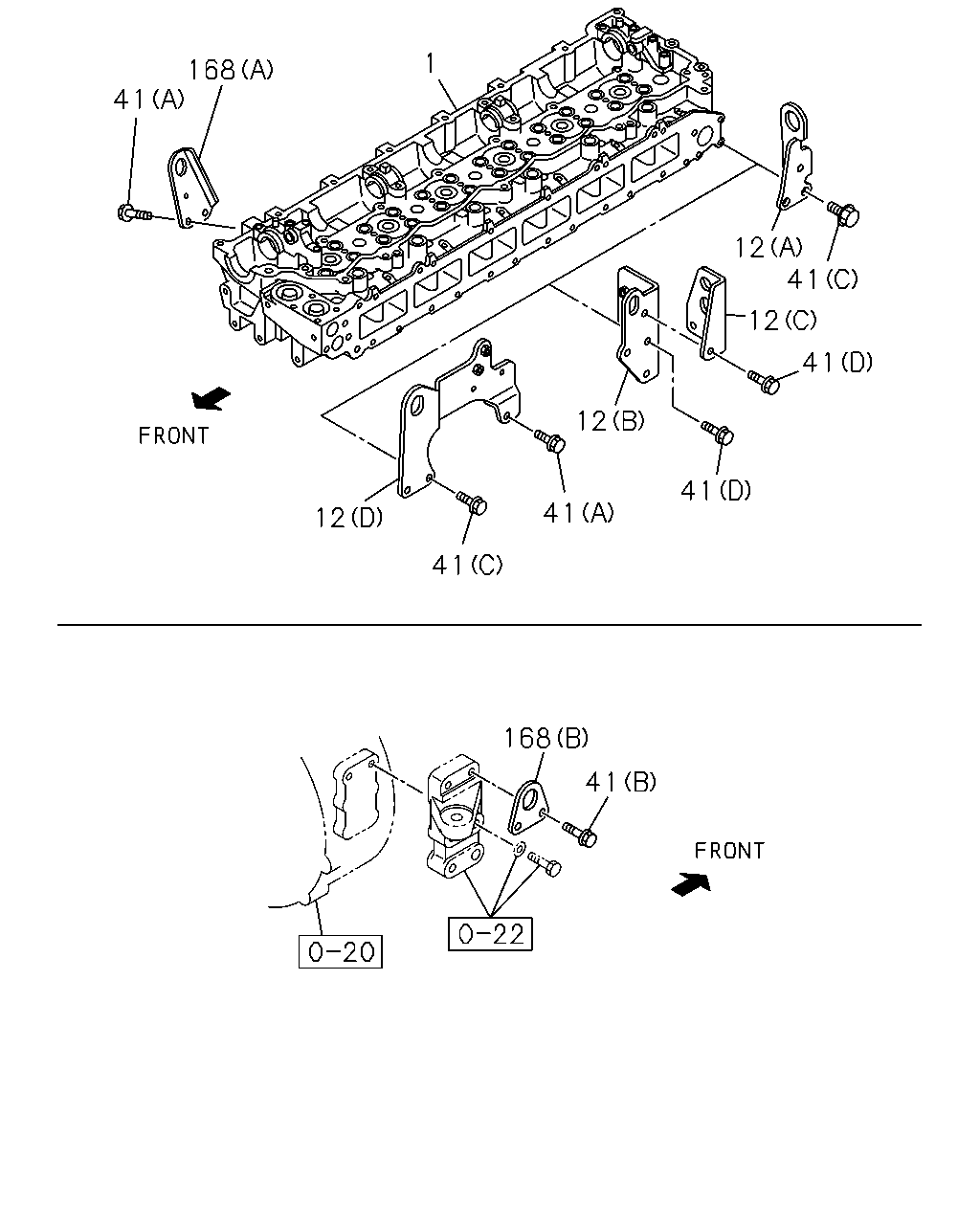

41 41 41 41 12 41 12 12 1 41 12 168 41 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL EURO5 SPECIFICATION<NT5>	8-98243-823-0	01	1	1506-	●
1	HEAD ASM; CYL	8-97604-903-7	01	1	1302-1305	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-1405	●
1	HEAD ASM; CYL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4>	8-98243-824-0	01	1	1406-1511	●
1	HEAD ASM; CYL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98243-824-0	01	1	1512-	●
1	HEAD ASM; CYL	8-98170-620-0	01	1	1305-		●
12	HANGER; ENG,RR EURO2 SPECIFICATION<NT2> (A)	8-94392-081-1	01	1	1302-	●
12	HANGER; ENG,RR EURO3 SPECIFICATION<NT3> (C)	8-97600-639-1	01	1	1302-1511	●
12	HANGER; ENG,RR EURO3 SPECIFICATION<NT3> (B)	8-98167-925-0	01	1	1302-1511	●
12	HANGER; ENG,RR EURO4 SPECIFICATION<NT4> (D)	8-98088-059-0	01	1	1302-1505	●
12	HANGER; ENG,RR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-98088-059-0	01	1	1506-	●
41	BOLT; ENG HANGER EURO5 SPECIFICATION<NT5> (A) M10X20 FLANGE	0-28151-020-0	03	1	1506-	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	02	1	1302-1405	●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) M10X20 FLANGE	0-28151-020-0	02	1	1406-1511	●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M10X20 FLANGE	0-28151-020-0	02	1	1512-	●
41	BOLT; ENG HANGER (B) M10X25 FLANGE	0-28751-025-0	02	1	1302-	●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) M12X25 FLANGE	0-28751-225-0	02	1	1302-1505	●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C) M12X25 FLANGE	0-28751-225-0	02	1	1506-	●
41	BOLT; ENG HANGER EURO3 SPECIFICATION<NT3> (D) M12X30 FLANGE	0-28751-230-0	06	1	1302-1511	●
41	BOLT; ENG HANGER EURO4 SPECIFICATION<NT4> (A) M10X20 FLANGE	0-28151-020-0	01	1	1302-	●
168	HANGER; ENG,FRT (B)	8-94394-398-1	01	1	1302-	●
168	HANGER; ENG,FRT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94394-071-2	01	1	1302-1511	●
168	HANGER; ENG,FRT EURO2 SPECIFICATION<NT2> (A)	8-94394-071-2	01	1	1512-	●
168	HANGER; ENG,FRT EURO4 SPECIFICATION<NT4> (A)	8-98043-134-0	01	1	1302-1505	●
168	HANGER; ENG,FRT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98043-134-0	01	1	1506-	●
168	HANGER; ENG,FRT (C)	8-97383-001-1	01	1	1305-		●

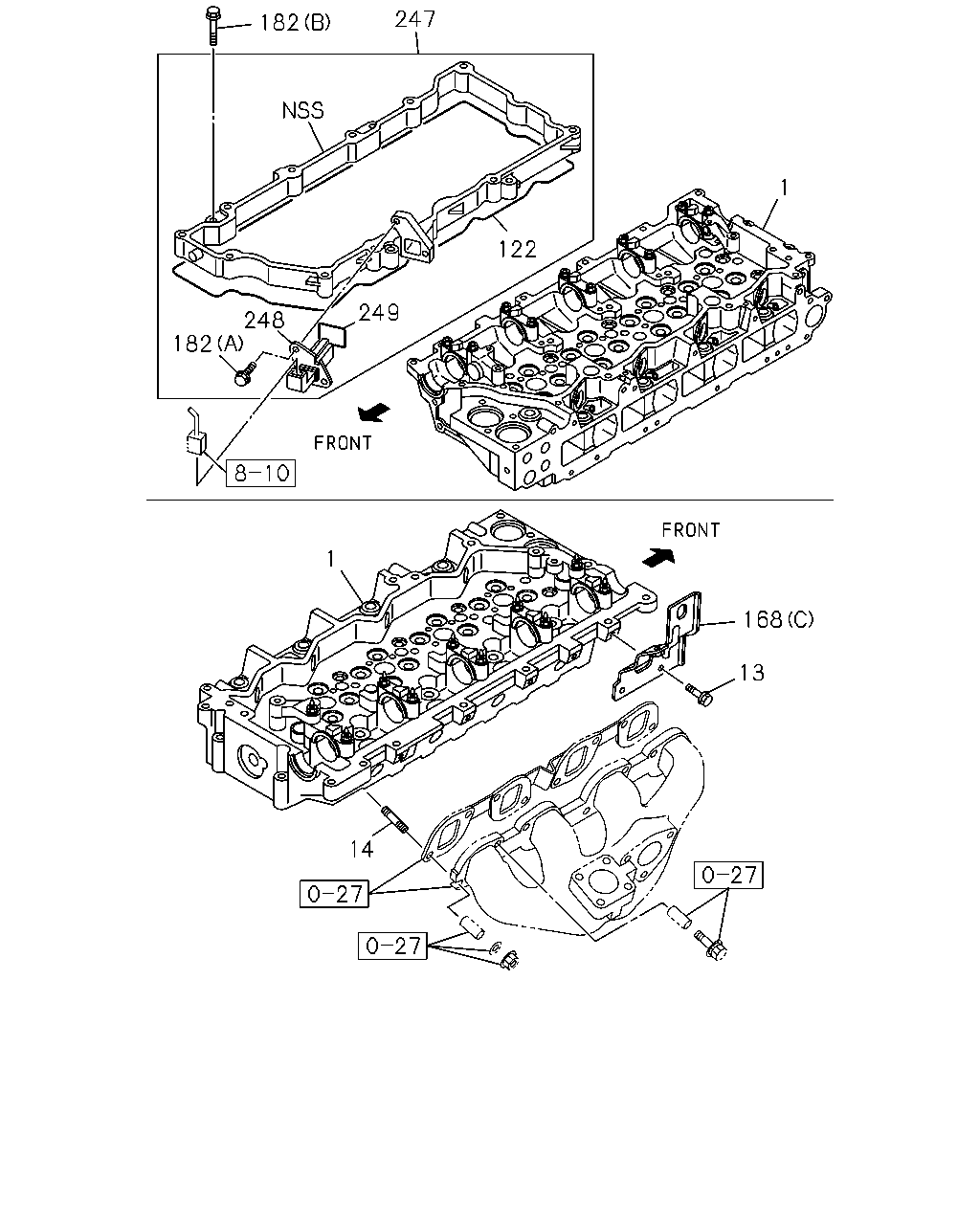

182 247 122 249 248 182 13 14 1 168 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL EURO5 SPECIFICATION<NT5>	8-98243-823-0	01	1	1506-	●
1	HEAD ASM; CYL	8-97604-903-7	01	1	1302-1305	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-1405	●
1	HEAD ASM; CYL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4>	8-98243-824-0	01	1	1406-1511	●
1	HEAD ASM; CYL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98243-824-0	01	1	1512-	●
1	HEAD ASM; CYL	8-98170-620-0	01	1	1305-		●
13	BOLT; HANGER M10X20 FLANGE	0-28151-020-0	02	1	1305-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	1302-	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	1305-		●
122	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-360-1	01	1	1305-		●
168	HANGER; ENG,FRT (B)	8-94394-398-1	01	1	1302-	●
168	HANGER; ENG,FRT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94394-071-2	01	1	1302-1511	●
168	HANGER; ENG,FRT EURO2 SPECIFICATION<NT2> (A)	8-94394-071-2	01	1	1512-	●
168	HANGER; ENG,FRT EURO4 SPECIFICATION<NT4> (A)	8-98043-134-0	01	1	1302-1505	●
168	HANGER; ENG,FRT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98043-134-0	01	1	1506-	●
168	HANGER; ENG,FRT (C)	8-97383-001-1	01	1	1305-		●
182	BOLT; CASE (A) M8X12 FLANGE	0-28050-812-0	02	1	1305-		●
182	BOLT; CASE (B) M8X45 FLANGE	0-28050-845-0	04	1	1305-		●
247	CASE; CYL HEAD,C/H COVER	8-97331-362-1	01	1	1305-		●
248	CONNECTOR	8-94390-858-1	01	1	1305-		●
249	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	01	1	1305-		●

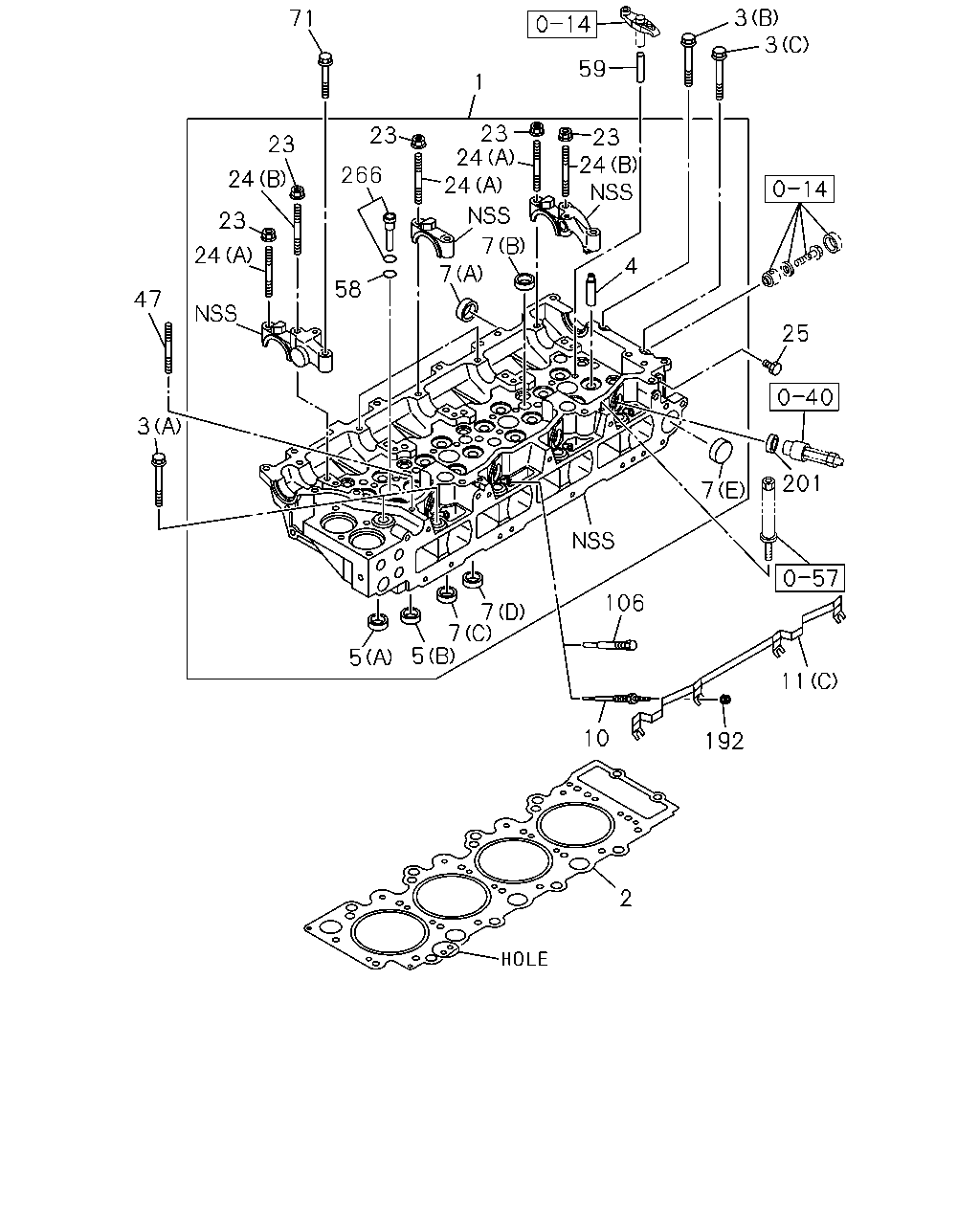

10 192 2 106 5 5 7 7 201 25 11 7 3 59 23 24 24 24 23 7 7 4 58 266 23 71 23 24 23 24 47 3 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL EURO5 SPECIFICATION<NT5>	8-98243-823-0	01	1	1506-	●
1	HEAD ASM; CYL	8-97604-903-7	01	1	1302-1305	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-1405	●
1	HEAD ASM; CYL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4>	8-98243-824-0	01	1	1406-1511	●
1	HEAD ASM; CYL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98243-824-0	01	1	1512-	●
1	HEAD ASM; CYL	8-98170-620-0	01	1	1305-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	01	1	1305-1305		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98245-617-0	01	1	1306-1404		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	01	1	1512-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	01	1	1405-1505		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	01	1	1305-1305		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98245-618-0	01	1	1306-1404		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	01	1	1512-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	01	1	1405-1505		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	01	1	1305-1305		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98245-619-0	01	1	1306-1404		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	01	1	1512-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	01	1	1405-1505		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-819-5	01	1	1302-	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	26	1	1302-1407	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	26	1	1408-	●
3	BOLT; CYL HD TO BLOCK (B) M10X73	8-94399-554-0	01	1	1305-		●
3	BOLT; CYL HD TO BLOCK (C) M10X43	8-94399-555-0	01	1	1305-		●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	18	1	1305-1503		●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	18	1	1504-		●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	1302-	●
4	GUIDE; VLV L=57	8-97376-719-2	16	1	1305-		●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	12	1	1302-	●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	1302-	●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1305-		●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1305-		●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	1302-	●
7	CUP; SEALING,CYL HEAD (B) OD=25	1-09600-016-0	04	1	1305-		●
7	CUP; SEALING,CYL HEAD (C) OD=16	5-11129-006-0	05	1	1305-		●
7	CUP; SEALING,CYL HEAD (E) OD=32	8-97096-821-0	05	1	1305-		●
7	CUP; SEALING,CYL HEAD (D) OD=20	9-11129-128-0	07	1	1305-		●
10	PLUG; GLOW NGK	8-94390-777-6	06	1	1302-1311	●
10	PLUG; GLOW EXC. GLOW SYSTEM DELETE<7RK> NGK	8-94390-777-6	06	1	1312-	●
10	PLUG; GLOW NGK	8-94390-777-6	04	1	1305-1311		●
10	PLUG; GLOW EXC. GLOW SYSTEM DELETE<7RK> NGK	8-94390-777-6	04	1	1312-		●
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	1302-1311	●
11	CONNECTOR; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> (B)	8-98040-648-0	01	1	1312-	●
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	1302-1311	●
11	CONNECTOR; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> (A)	8-98040-649-0	01	1	1312-	●
11	CONNECTOR; GLOW PLUG (C)	8-97332-358-2	01	1	1305-1311		●
11	CONNECTOR; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97332-358-2	01	1	1312-		●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	1302-	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	10	1	1305-		●
24	STUD; CM/SHF BRKT (B) M8X54 L=79	8-94322-512-2	02	1	1305-		●
24	STUD; CM/SHF BRKT (A) M8X41 L=66	8-94322-513-2	08	1	1305-		●
25	PLUG; CYL HD M8X10	8-98003-416-0	01	1	1305-		●
47	STUD; CYL HD M8X60 L=72	0-49140-860-0	02	1	1305-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	06	1	1302-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	04	1	1305-		●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	1302-	●
59	GUIDE; BRIDGE	8-97381-603-1	08	1	1305-		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	1302-1304	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	1305-	●	●
106	PLUG; GLOW PLUG HOLE GLOW SYSTEM DELETE<7RK>	8-94392-236-0	04	1	1312-		●
106	PLUG; GLOW PLUG HOLE GLOW SYSTEM DELETE<7RK>	8-94392-236-0	06	1	1312-	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	06	1	1302-1311	●
192	NUT; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> M4 FLANGE	8-97368-853-0	06	1	1312-	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	04	1	1305-1311		●
192	NUT; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> M4 FLANGE	8-97368-853-0	04	1	1312-		●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	06	1	1302-	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	04	1	1305-		●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	06	1	1302-	●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	04	1	1305-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
