◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11517 - FVM(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#113876) — 57 parça

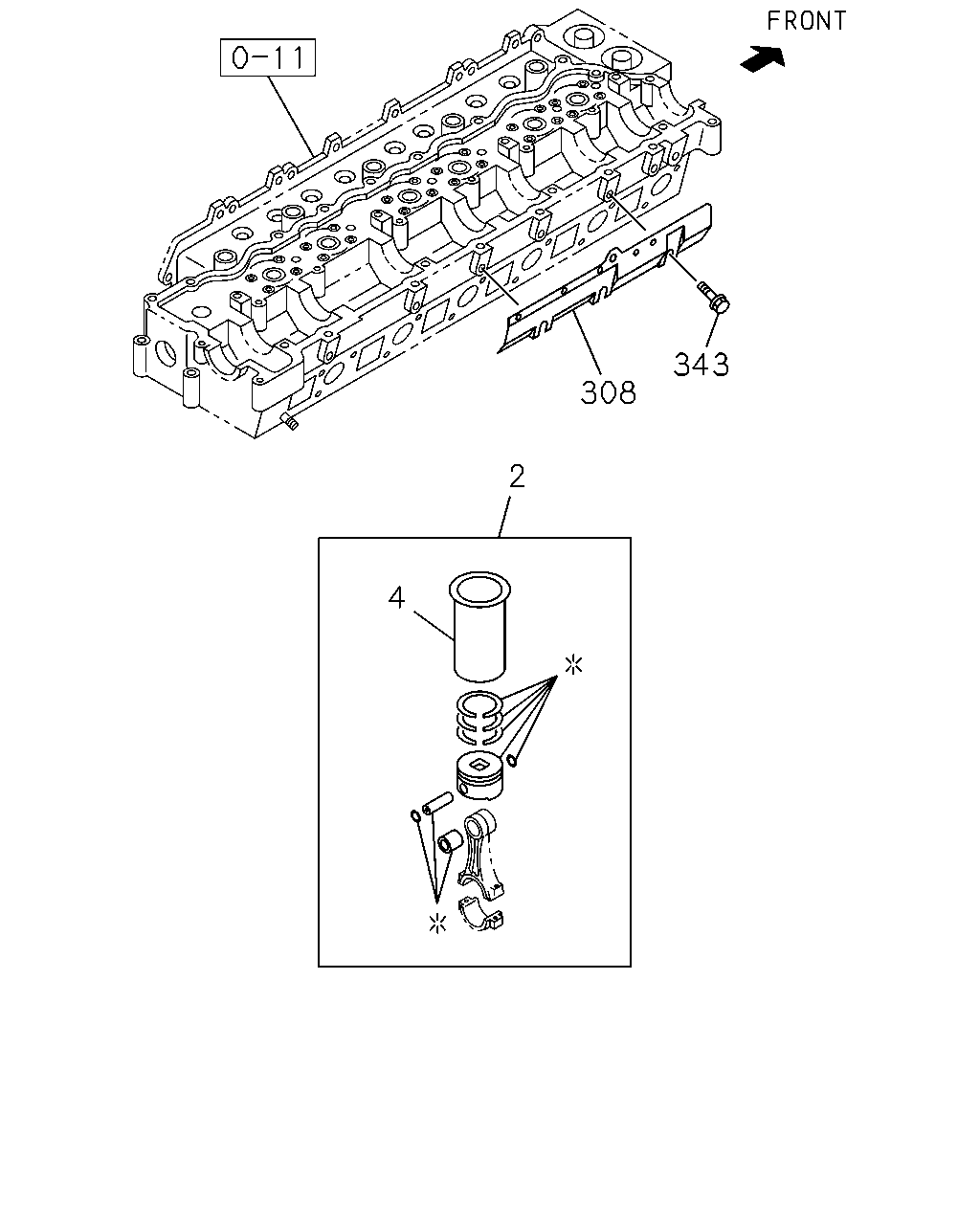

çizim 326127
308 343 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 06 1 1302- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 06 1 1302- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1302- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1302- ● ●
81 PLUG; WATER JACKET
PT3/8 		8-94397-338-0 01 1 1302- ● ●
308 PROTECTOR; HEAT,HD COVER 8-94390-997-0 01 1 1302-1601 ● ●
308 PROTECTOR; HEAT,HD COVER
EURO2 SPECIFICATION<NT2> 		8-94390-997-0 01 1 1602- ● ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 03 1 1302-1601 ● ●
343 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> M8X12 FLANGE 		0-28050-812-0 03 1 1602- ● ●

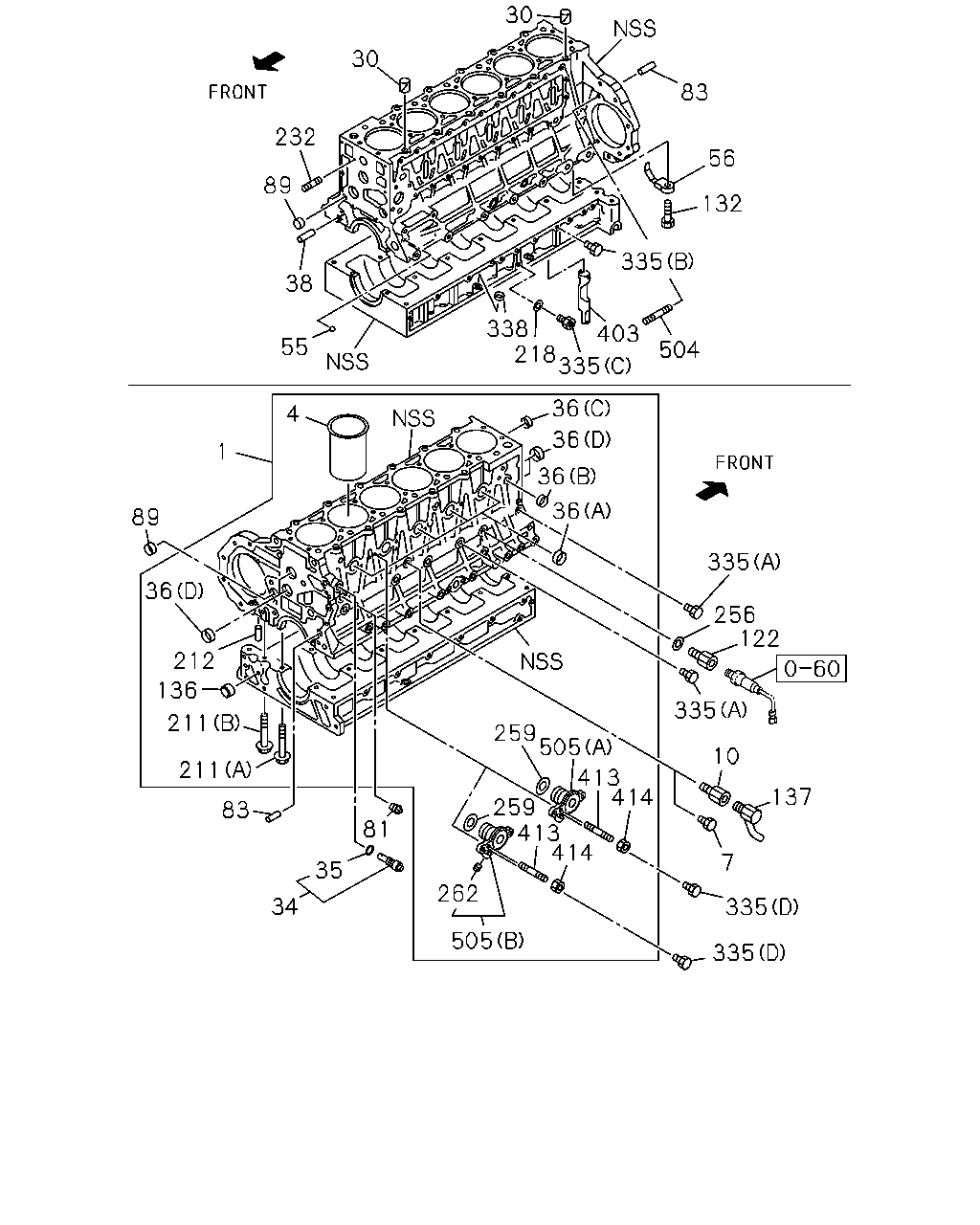

çizim 331250
335 335 505 262 414 413 259 505 259 36 363 36 36 335 256 122 335 10 137 7 211 211 136 212 36 1 89 4 55 38 89 232 30 56 83 132 335 403 335 218 338 504 35 34 83 414 413 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL
EURO4 SPECIFICATION<NT4> 		8-98206-967-0 01 1 1602- ● ●
1 BLOCK ASM; CYL 8-98206-966-0 01 1 1302-1601 ● ●
1 BLOCK ASM; CYL
EURO2 SPECIFICATION<NT2> 		8-98206-966-0 01 1 1602- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1302- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1302- ● ●
7 PLUG; WATER DRAIN
M14X16.5 		8-97329-617-0 01 1 1302-1601 ● ●
7 PLUG; WATER DRAIN
EURO2 SPECIFICATION<NT2> M14X16.5 		8-97329-617-0 01 1 1602- ● ●
10 CONNECTOR; WATER DRAIN
EURO4 SPECIFICATION<NT4> 		8-94396-378-0 01 1 1602- ● ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 1302- ● ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 1302- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 1302- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 1302- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 1302- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 		8-94399-005-0 01 1 1302- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-97096-824-0 04 1 1302- ● ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 1302- ● ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 01 1 1302- ● ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 06 1 1302- ● ●
81 PLUG; WATER JACKET
PT3/8 		8-94397-338-0 01 1 1302- ● ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 1302- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 1302- ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-97603-667-0 01 1 1302- ● ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 1302- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1302- ● ●
137 COCK; DRAIN,WATER
EURO4 SPECIFICATION<NT4> 		8-94393-716-1 01 1 1602- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 1302- ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 1302- ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 1302- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 1302-1312 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1401- ● ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 1302- ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 1302- ● ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 1302- ● ●
262 PLUG; ADAPTER
EURO4 SPECIFICATION<NT4> 		1-13163-002-0 02 1 1602- ● ●
262 PLUG; ADAPTER
M14X14 		9-09862-156-0 01 1 1302-1601 ● ●
262 PLUG; ADAPTER
EURO2 SPECIFICATION<NT2> M14X14 		9-09862-156-0 01 1 1602- ● ●
335 PLUG; C/BL,SIDE
(C) M12X10 		5-13265-001-0 01 1 1302- ● ●
335 PLUG; C/BL,SIDE
(D) M14 		8-94399-225-0 01 1 1302- ● ●
335 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 02 1 1302- ● ●
335 PLUG; C/BL,SIDE
(B) M8X10 		8-98003-416-0 01 1 1302- ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 1302- ● ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 1302- ● ●
413 STUD; ADAPTER
M8X30 L=41 		0-41010-830-0 02 1 1302- ● ●
414 NUT; ADAPTER
M8 FLANGE 		0-91180-208-0 02 1 1302- ● ●
504 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 1302- ● ●
505 ADAPTER; WATER FEED
EURO4 SPECIFICATION<NT4> (B) 		8-98145-412-1 01 1 1602- ● ●
505 ADAPTER; WATER FEED
(A) 		8-97611-854-0 01 1 1302-1601 ● ●
505 ADAPTER; WATER FEED
EURO2 SPECIFICATION<NT2> (A) 		8-97611-854-0 01 1 1602- ● ●
