0-12 — CYLINDER BLOCK (#113875) — 133 parça

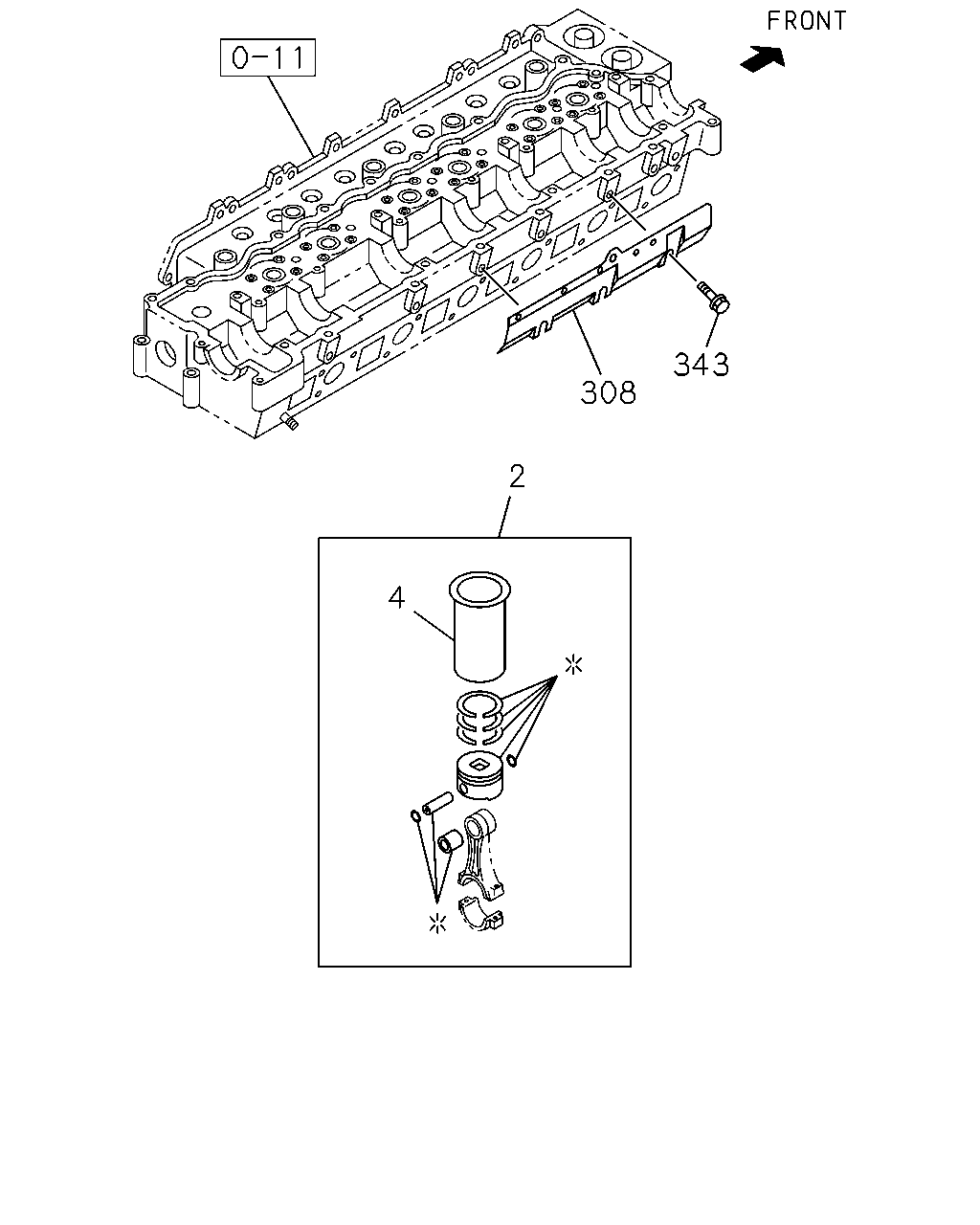

343 308 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87814-897-0	04	1	1305-1405	●
2	LINER SET; ENG CYL GRADE=1X	1-87814-728-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-898-0	04	1	1305-1405	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-729-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1302-		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1302-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1302-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1302-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1305-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1305-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
308	PROTECTOR; HEAT,HD COVER	8-94390-997-0	01	1	1302-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	03	1	1302-		●

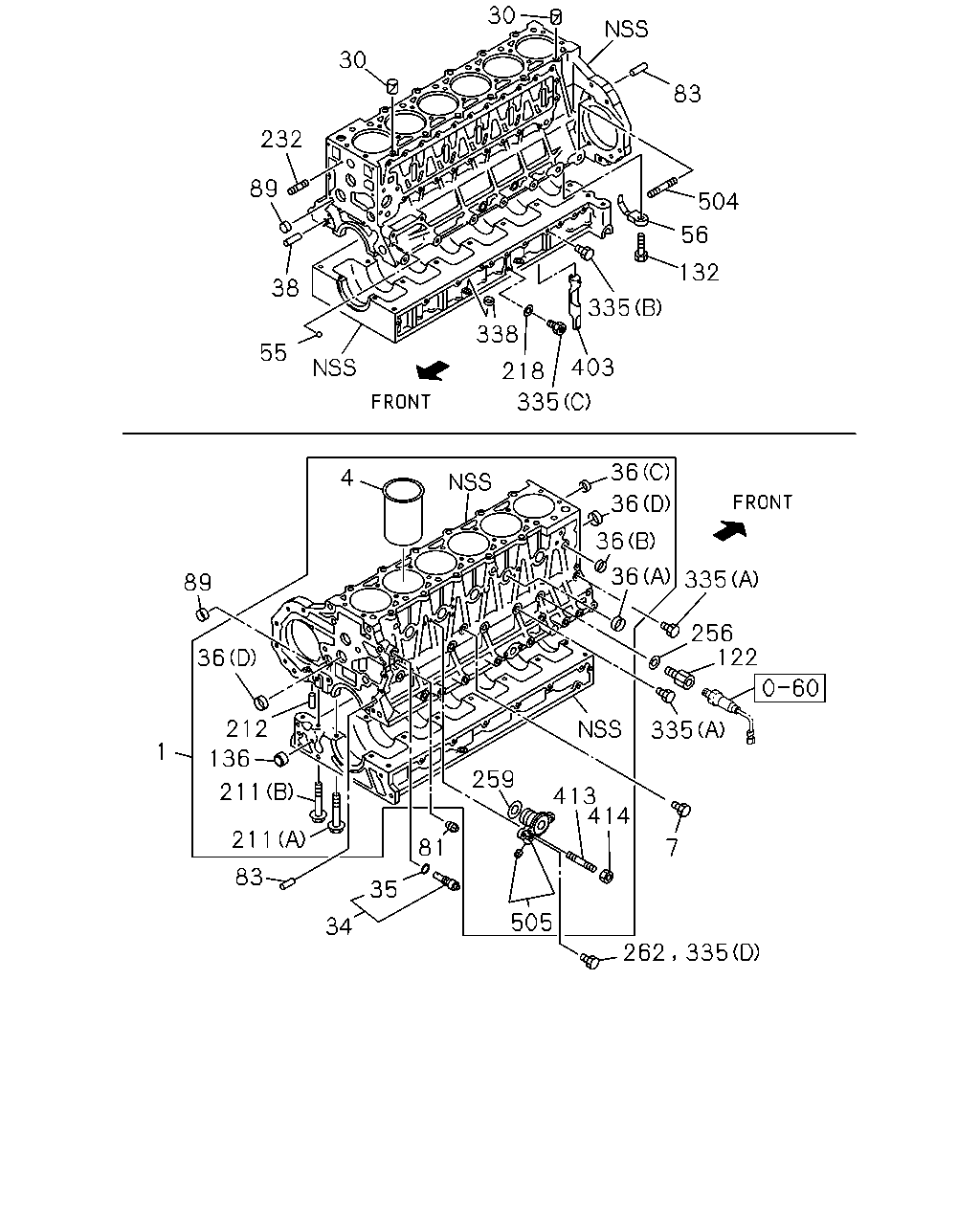

30 30 232 89 38 55 338 335 132 56 504 83 218 36 36 36 256 122 335 505 7 414 413 259 81 35 34 83 211 211 136 36 89 212 36 335 262 335 4 1 403 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98206-966-0	01	1	1302-		●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1305-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1302-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1302-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1305-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1305-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
7	PLUG; WATER DRAIN M14X16.5	8-97329-617-0	01	1	1302-		●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1305-	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1302-		●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1302-		●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1305-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1302-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	1305-	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1302-		●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	1302-		●
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	1302-		●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	1302-		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1302-		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1302-		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1302-		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1305-	●
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	1302-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1302-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1302-1304		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1305-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	1302-		●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1302-		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1305-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1302-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1305-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1302-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1302-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1305-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1305-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1302-		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1305-	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	1302-1312		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1302-		●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1302-		●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1302-		●
262	PLUG; ADAPTER M14X14	9-09862-156-0	01	1	1302-		●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1302-		●
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	01	1	1302-		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1302-1304		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1305-	●	●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1302-		●
335	PLUG; C/BL,SIDE (E) M14X18	8-98038-403-0	01	1	1305-	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1302-		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	1302-		●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1302-		●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	1302-		●
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1302-		●
505	ADAPTER; WATER FEED	8-97611-854-0	01	1	1302-		●

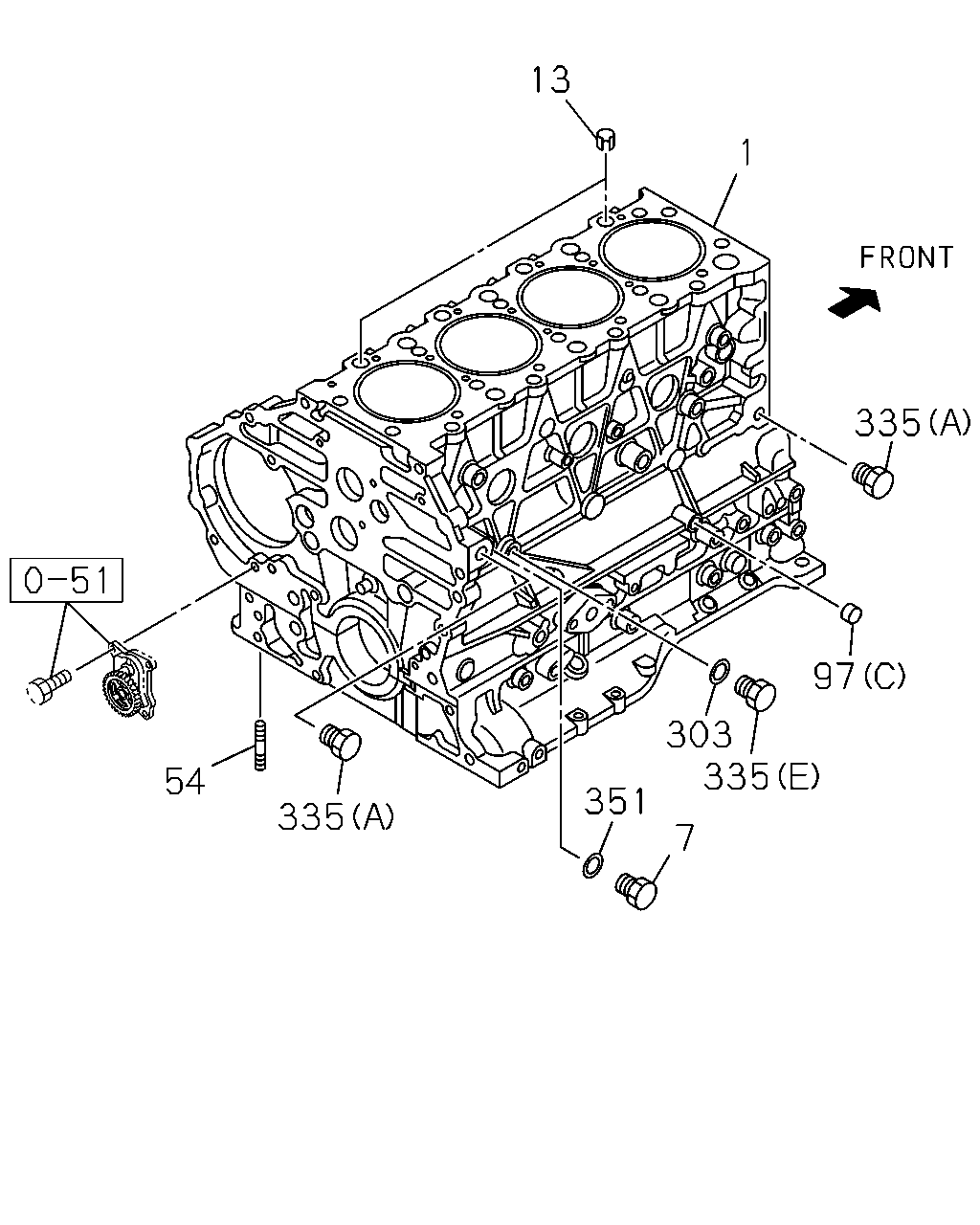

13 1 54 335 351 97 303 335 335 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98206-966-0	01	1	1302-		●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1305-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
7	PLUG; WATER DRAIN M14X16.5	8-97329-617-0	01	1	1302-		●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1305-	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1305-	●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	1305-	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1305-	●
97	CUP; SEALING (B) OD=12	8-97036-335-1	01	1	1305-	●
97	CUP; SEALING (C) OD=22	8-97209-609-0	03	1	1305-	●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	1305-1312	●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1302-		●
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	01	1	1302-		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1302-1304		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1305-	●	●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1302-		●
335	PLUG; C/BL,SIDE (E) M14X18	8-98038-403-0	01	1	1305-	●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1305-	●

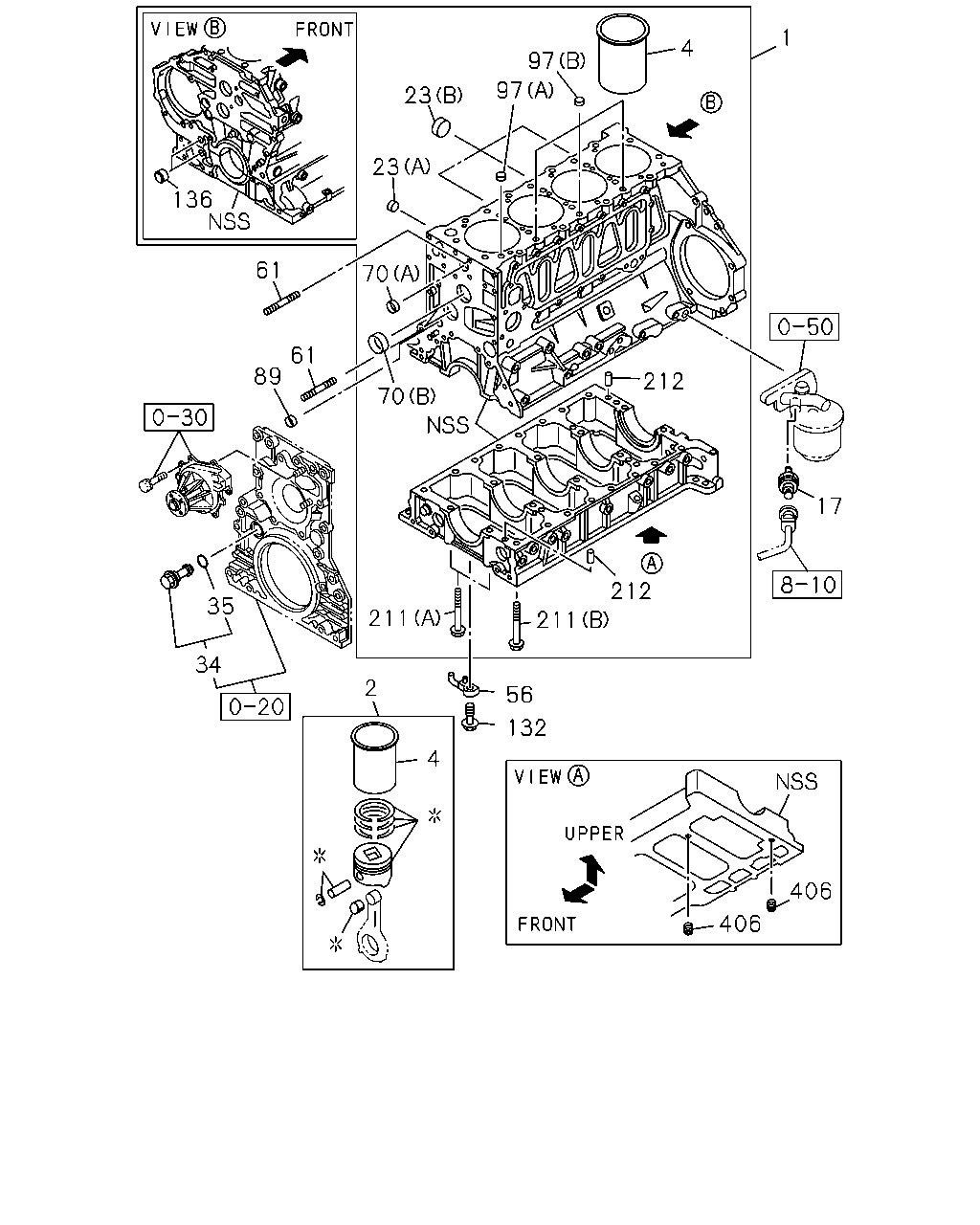

136 61 61 89 70 212 17 56 132 2 4 34 35 23 23 97 97 4 1 212 70 211 211 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98206-966-0	01	1	1302-		●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1305-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87814-897-0	04	1	1305-1405	●
2	LINER SET; ENG CYL GRADE=1X	1-87814-728-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-898-0	04	1	1305-1405	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-729-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1302-		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1302-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1302-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1302-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1305-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1305-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1305-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	1305-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1305-	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1302-		●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1305-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1302-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	1305-	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1302-		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1305-	●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	1305-	●
70	CUP; SEALING,FRT & RR (A) OD=25	1-09600-016-0	01	1	1305-	●
70	CUP; SEALING,FRT & RR (B) OD=40	8-97096-824-0	04	1	1305-	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1302-1304		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1305-	●	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1305-	●
97	CUP; SEALING (B) OD=12	8-97036-335-1	01	1	1305-	●
97	CUP; SEALING (C) OD=22	8-97209-609-0	03	1	1305-	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1302-		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1305-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1302-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1305-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1302-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1302-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1305-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1305-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1302-		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1305-	●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	1305-	●
