0-13 — OIL PAN AND LEVEL GAUGE (#113874) — 381 parça

17 110 108 112 123 24 23 25 24 25 23 123 24 123 24 25 23 24 123 5 6 1

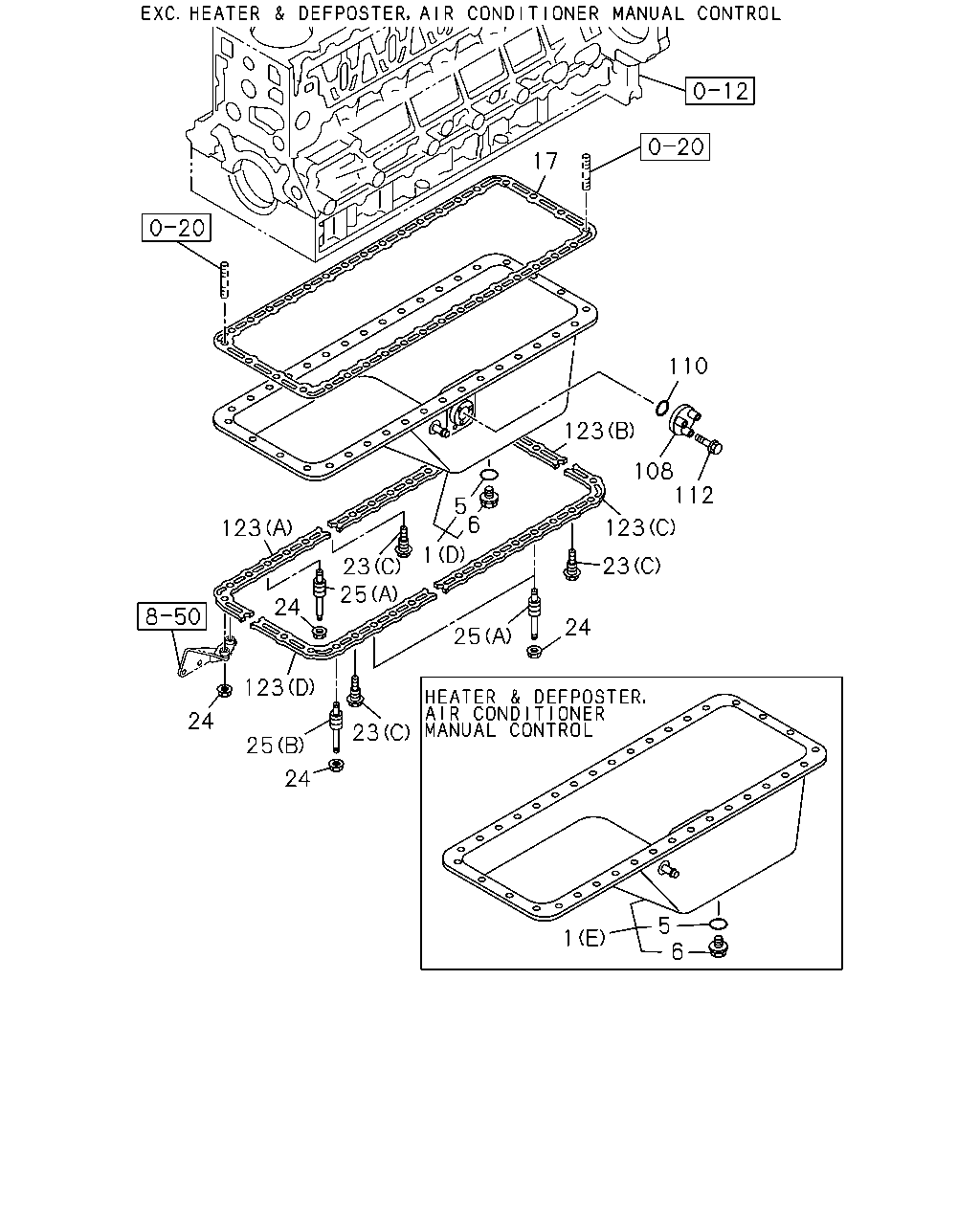

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAN ASM; OIL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97603-410-2	01	1	1506-	●

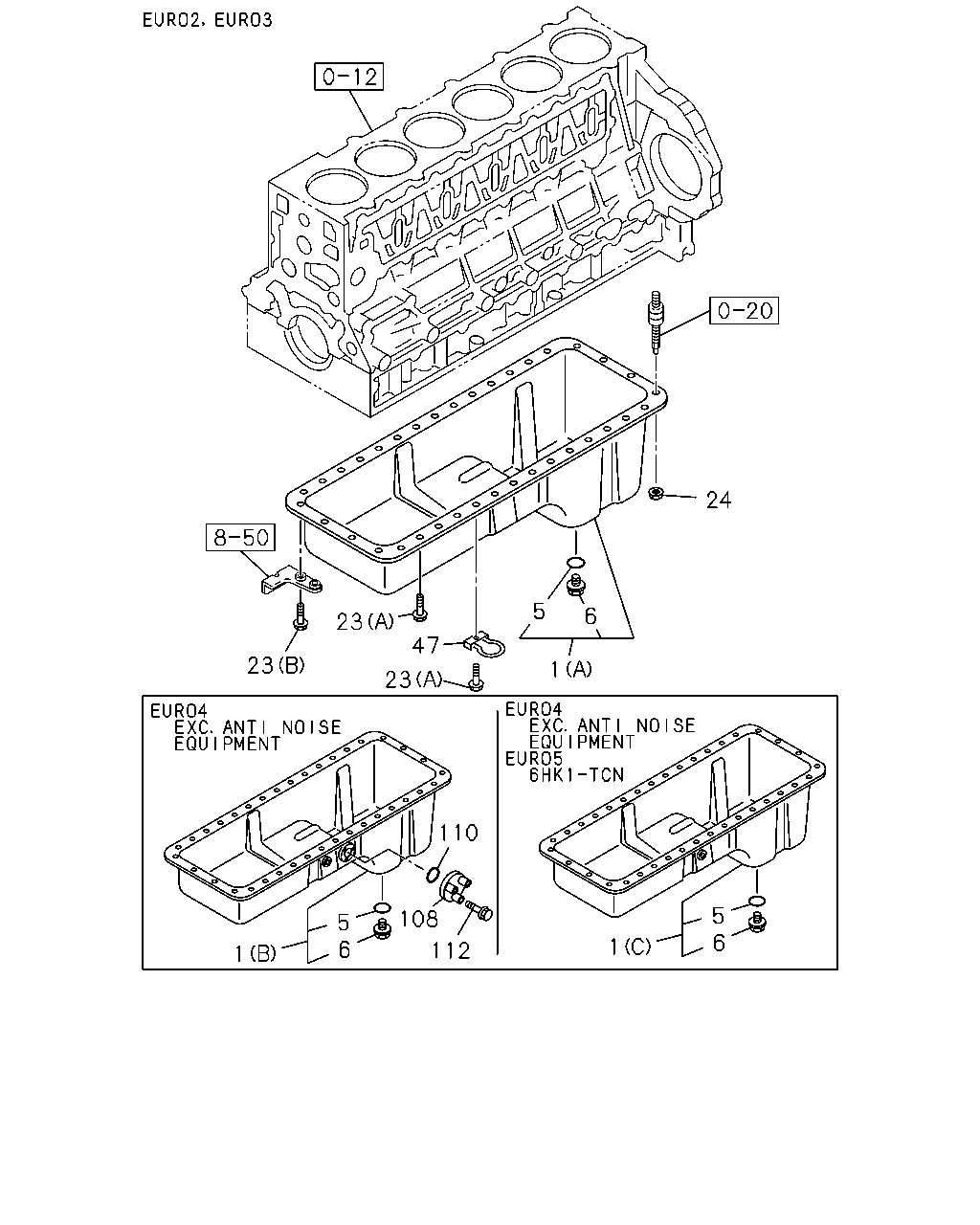

1	PAN ASM; OIL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98179-005-0	01	1	1302-1511		●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-98179-005-0	01	1	1512-		●	●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> (B)	8-98061-544-0	01	1	1302-1402			●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98061-544-0	01	1	1302-1402		●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> (C)	8-98252-601-0	01	1	1403-1505			●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98252-601-0	01	1	1403-1505		●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98252-601-0	01	1	1506-		●	●
1	PAN ASM; OIL EURO5 SPECIFICATION<NT5> (C)	8-98252-601-0	01	1	1506-			●

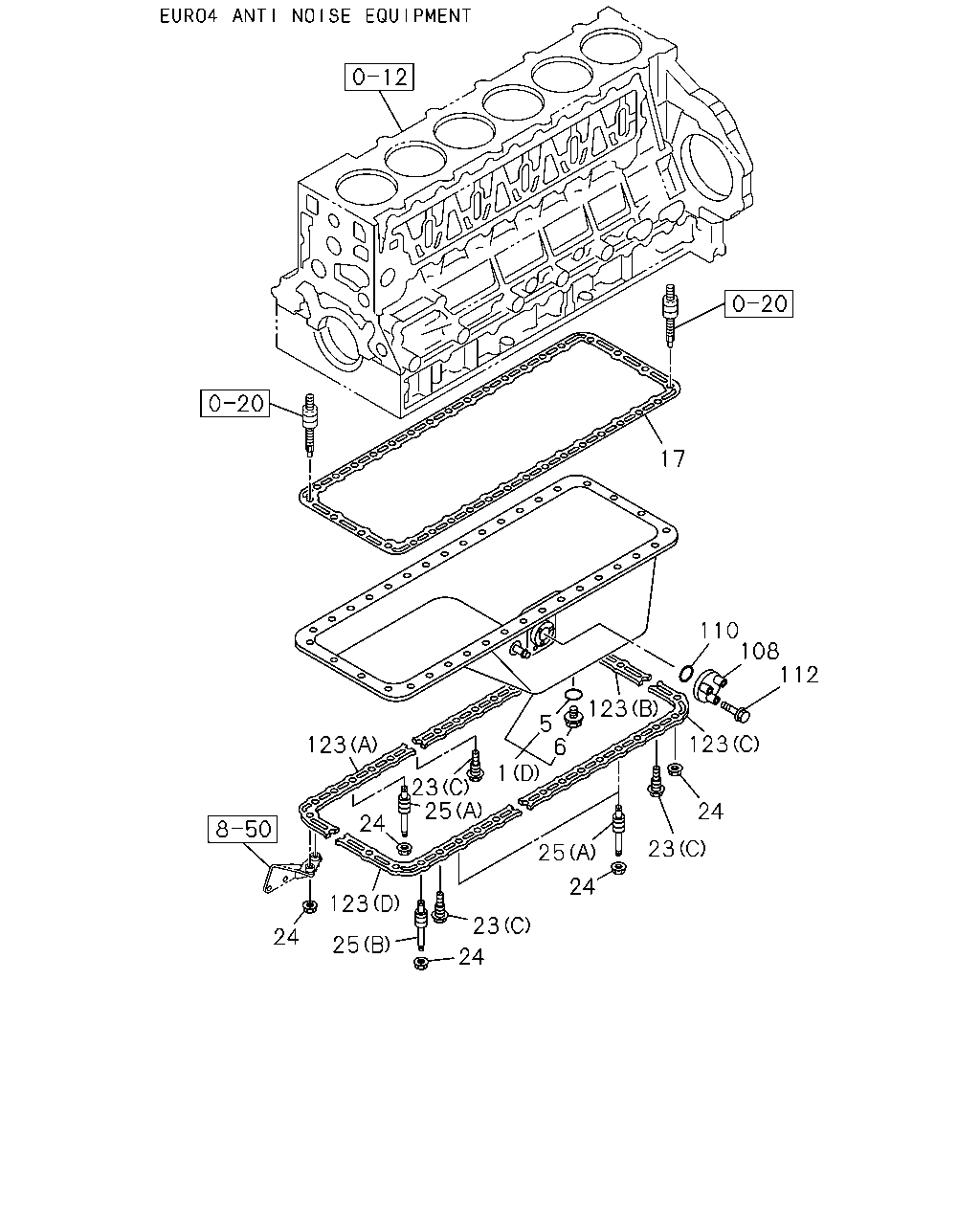

1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98061-543-0	01	1	1302-1404		●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98061-543-0	01	1	1405-1505		●	●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EURO4 SPECIFICATION<NT4> (D)	8-98061-543-0	01	1	1506-		●	●
1	PAN ASM; OIL EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98061-543-0	01	1	1506-	●

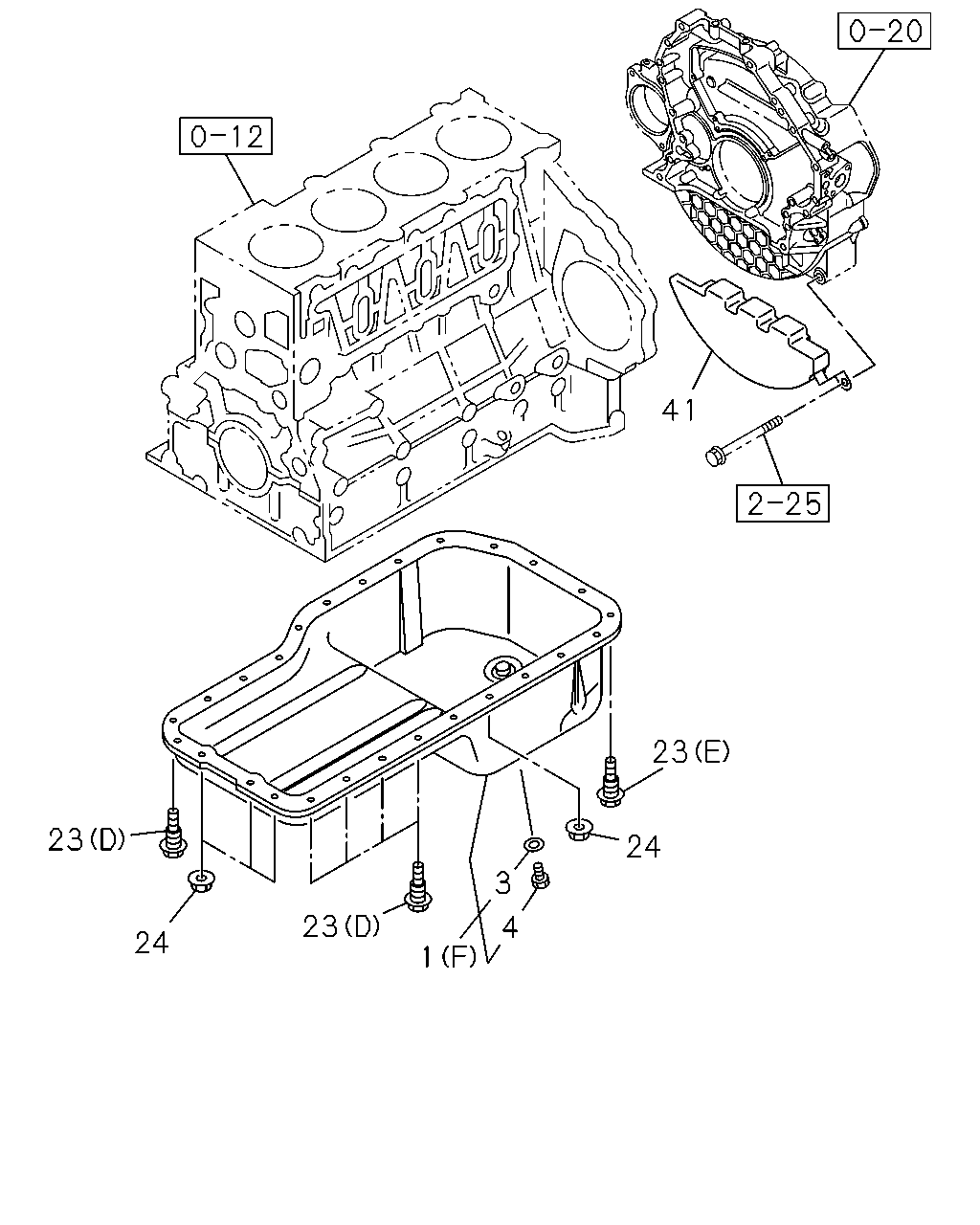

1	PAN ASM; OIL (F)	8-98191-050-0	01	1	1305-				●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-057-0	01	1	1302-1402			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=24.4	1-09623-057-0	01	1	1302-1402		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	1302-1402		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	1403-1505		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	1506-1511		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24.4	1-09623-057-0	01	1	1506-1511	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1512-		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24.4	1-09623-057-0	01	1	1512-	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=24.5	8-94399-398-0	01	1	1302-1402		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=24.5	8-94399-398-0	01	1	1403-1505		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=24.5	8-94399-398-0	01	1	1506-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=24.5	8-94399-398-0	01	1	1506-		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24.5	8-94399-398-0	01	1	1506-	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	1302-1505		●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	1506-	●	●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-94390-617-1	01	1	1302-1404		●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-94390-617-1	01	1	1405-1505		●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-94390-617-1	01	1	1506-		●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5>	8-94390-617-1	01	1	1506-	●
23	BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	23	1	1506-	●
23	BOLT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1302-1505		●	●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511		●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-		●
23	BOLT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1302-1505		●	●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511		●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-		●
23	BOLT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1302-1404		●
23	BOLT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1405-		●	●
23	BOLT; OIL PAN (E) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1305-				●
23	BOLT; OIL PAN (D) M8X14	8-97047-005-0	18	1	1305-				●
24	NUT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1506-1511		●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	04	1	1506-1511			●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	04	1	1506-1511		●
24	NUT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1512-		●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	04	1	1512-			●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	04	1	1512-		●
24	NUT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1302-1505		●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	11	1	1506-	●
24	NUT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	14	1	1302-1404		●
24	NUT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	14	1	1405-		●	●
24	NUT; OIL PAN M8 W/LK WASHER	8-97581-234-0	07	1	1305-				●
25	STUD; OIL PAN (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	03	1	1506-	●
25	STUD; OIL PAN (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	1506-	●
25	STUD; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1302-1404		●
25	STUD; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1405-		●	●
25	STUD; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1302-1404		●
25	STUD; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1405-		●	●
108	COVER; OIL PAN EURO4 SPECIFICATION<NT4>	8-97609-994-0	01	1	1302-1402		●	●
108	COVER; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97609-994-0	01	1	1403-1404		●
108	COVER; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97609-994-0	01	1	1405-1505		●	●
108	COVER; OIL PAN EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97609-994-0	01	1	1506-		●	●
108	COVER; OIL PAN EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97609-994-0	01	1	1506-	●
110	GASKET; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> ID=27	8-98056-488-0	01	1	1302-1402		●	●
110	GASKET; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=27	8-98056-488-0	01	1	1403-1404		●
110	GASKET; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=27	8-98056-488-0	01	1	1405-1505		●	●
110	GASKET; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=27	8-98056-488-0	01	1	1506-		●	●
110	GASKET; SW,OIL LEVEL EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=27	8-98056-488-0	01	1	1506-	●
112	BOLT; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> M6X25 FLANGE	0-28050-625-0	03	1	1302-1402		●	●
112	BOLT; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M6X25 FLANGE	0-28050-625-0	03	1	1403-1404		●
112	BOLT; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M6X25 FLANGE	0-28050-625-0	03	1	1405-1505		●	●
112	BOLT; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M6X25 FLANGE	0-28050-625-0	03	1	1506-		●	●
112	BOLT; SW,OIL LEVEL EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1506-	●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-94391-755-0	01	1	1302-1404		●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-94391-755-0	01	1	1405-1505		●	●
123	RUBBER; SEAL OIL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-94391-755-0	01	1	1506-		●	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (A)	8-94391-755-0	01	1	1506-	●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-94391-757-0	01	1	1302-1404		●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-94391-757-0	01	1	1405-1505		●	●
123	RUBBER; SEAL OIL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-94391-757-0	01	1	1506-		●	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (B)	8-94391-757-0	01	1	1506-	●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-94391-758-0	01	1	1302-1404		●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-94391-758-0	01	1	1405-1505		●	●
123	RUBBER; SEAL OIL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-94391-758-0	01	1	1506-		●	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (C)	8-94391-758-0	01	1	1506-	●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-94392-548-0	01	1	1302-1404		●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-94392-548-0	01	1	1405-1505		●	●
123	RUBBER; SEAL OIL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-94392-548-0	01	1	1506-		●	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (D)	8-94392-548-0	01	1	1506-	●

24 5 6 23 23 23 47 1 5 6 1 110 108 112 5 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAN ASM; OIL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97603-410-2	01	1	1506-	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98179-005-0	01	1	1302-1511		●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-98179-005-0	01	1	1512-		●	●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> (B)	8-98061-544-0	01	1	1302-1402			●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98061-544-0	01	1	1302-1402		●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> (C)	8-98252-601-0	01	1	1403-1505			●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98252-601-0	01	1	1403-1505		●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98252-601-0	01	1	1506-		●	●
1	PAN ASM; OIL EURO5 SPECIFICATION<NT5> (C)	8-98252-601-0	01	1	1506-			●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98061-543-0	01	1	1302-1404		●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98061-543-0	01	1	1405-1505		●	●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EURO4 SPECIFICATION<NT4> (D)	8-98061-543-0	01	1	1506-		●	●
1	PAN ASM; OIL EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98061-543-0	01	1	1506-	●
1	PAN ASM; OIL (F)	8-98191-050-0	01	1	1305-				●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-057-0	01	1	1302-1402			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=24.4	1-09623-057-0	01	1	1302-1402		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	1302-1402		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	1403-1505		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	1506-1511		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24.4	1-09623-057-0	01	1	1506-1511	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1512-		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24.4	1-09623-057-0	01	1	1512-	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=24.5	8-94399-398-0	01	1	1302-1402		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=24.5	8-94399-398-0	01	1	1403-1505		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=24.5	8-94399-398-0	01	1	1506-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=24.5	8-94399-398-0	01	1	1506-		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24.5	8-94399-398-0	01	1	1506-	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	1302-1505		●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	1506-	●	●	●
23	BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	23	1	1506-	●
23	BOLT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1302-1505		●	●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511		●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-		●
23	BOLT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1302-1505		●	●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511		●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-		●
23	BOLT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1302-1404		●
23	BOLT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1405-		●	●
23	BOLT; OIL PAN (E) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1305-				●
23	BOLT; OIL PAN (D) M8X14	8-97047-005-0	18	1	1305-				●
24	NUT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1506-1511		●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	04	1	1506-1511			●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	04	1	1506-1511		●
24	NUT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1512-		●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	04	1	1512-			●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	04	1	1512-		●
24	NUT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1302-1505		●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	11	1	1506-	●
24	NUT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	14	1	1302-1404		●
24	NUT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	14	1	1405-		●	●
24	NUT; OIL PAN M8 W/LK WASHER	8-97581-234-0	07	1	1305-				●
47	CLIP; HOSE,AIR BREATHER EURO3 SPECIFICATION<NT3>	1-11369-115-0	01	1	1302-1506		●	●
47	CLIP; HOSE,AIR BREATHER EURO3 SPECIFICATION<NT3>	8-98303-447-0	01	1	1507-1511		●	●
108	COVER; OIL PAN EURO4 SPECIFICATION<NT4>	8-97609-994-0	01	1	1302-1402		●	●
108	COVER; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97609-994-0	01	1	1403-1404		●
108	COVER; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97609-994-0	01	1	1405-1505		●	●
108	COVER; OIL PAN EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97609-994-0	01	1	1506-		●	●
108	COVER; OIL PAN EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97609-994-0	01	1	1506-	●
110	GASKET; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> ID=27	8-98056-488-0	01	1	1302-1402		●	●
110	GASKET; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=27	8-98056-488-0	01	1	1403-1404		●
110	GASKET; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=27	8-98056-488-0	01	1	1405-1505		●	●
110	GASKET; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=27	8-98056-488-0	01	1	1506-		●	●
110	GASKET; SW,OIL LEVEL EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=27	8-98056-488-0	01	1	1506-	●
112	BOLT; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> M6X25 FLANGE	0-28050-625-0	03	1	1302-1402		●	●
112	BOLT; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M6X25 FLANGE	0-28050-625-0	03	1	1403-1404		●
112	BOLT; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M6X25 FLANGE	0-28050-625-0	03	1	1405-1505		●	●
112	BOLT; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M6X25 FLANGE	0-28050-625-0	03	1	1506-		●	●
112	BOLT; SW,OIL LEVEL EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1506-	●

17 110 108 123 112 123 23 5 6 1 23 25 123 24 123 24 25 24 23 25 24 5 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAN ASM; OIL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97603-410-2	01	1	1506-	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98179-005-0	01	1	1302-1511		●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-98179-005-0	01	1	1512-		●	●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> (B)	8-98061-544-0	01	1	1302-1402			●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98061-544-0	01	1	1302-1402		●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> (C)	8-98252-601-0	01	1	1403-1505			●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98252-601-0	01	1	1403-1505		●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98252-601-0	01	1	1506-		●	●
1	PAN ASM; OIL EURO5 SPECIFICATION<NT5> (C)	8-98252-601-0	01	1	1506-			●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98061-543-0	01	1	1302-1404		●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98061-543-0	01	1	1405-1505		●	●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EURO4 SPECIFICATION<NT4> (D)	8-98061-543-0	01	1	1506-		●	●
1	PAN ASM; OIL EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98061-543-0	01	1	1506-	●
1	PAN ASM; OIL (F)	8-98191-050-0	01	1	1305-				●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-057-0	01	1	1302-1402			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=24.4	1-09623-057-0	01	1	1302-1402		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	1302-1402		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	1403-1505		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	1506-1511		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24.4	1-09623-057-0	01	1	1506-1511	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1512-		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24.4	1-09623-057-0	01	1	1512-	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=24.5	8-94399-398-0	01	1	1302-1402		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=24.5	8-94399-398-0	01	1	1403-1505		●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=24.5	8-94399-398-0	01	1	1506-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=24.5	8-94399-398-0	01	1	1506-		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24.5	8-94399-398-0	01	1	1506-	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	1302-1505		●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	1506-	●	●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-94390-617-1	01	1	1302-1404		●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-94390-617-1	01	1	1405-1505		●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-94390-617-1	01	1	1506-		●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5>	8-94390-617-1	01	1	1506-	●
23	BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	23	1	1506-	●
23	BOLT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1302-1505		●	●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511		●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-		●
23	BOLT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1302-1505		●	●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511		●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-		●
23	BOLT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1302-1404		●
23	BOLT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1405-		●	●
23	BOLT; OIL PAN (E) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1305-				●
23	BOLT; OIL PAN (D) M8X14	8-97047-005-0	18	1	1305-				●
24	NUT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1506-1511		●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	04	1	1506-1511			●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	04	1	1506-1511		●
24	NUT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1512-		●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	04	1	1512-			●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	04	1	1512-		●
24	NUT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1302-1505		●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	11	1	1506-	●
24	NUT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	14	1	1302-1404		●
24	NUT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	14	1	1405-		●	●
24	NUT; OIL PAN M8 W/LK WASHER	8-97581-234-0	07	1	1305-				●
25	STUD; OIL PAN (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	03	1	1506-	●
25	STUD; OIL PAN (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	1506-	●
25	STUD; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1302-1404		●
25	STUD; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1405-		●	●
25	STUD; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1302-1404		●
25	STUD; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1405-		●	●
108	COVER; OIL PAN EURO4 SPECIFICATION<NT4>	8-97609-994-0	01	1	1302-1402		●	●
108	COVER; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97609-994-0	01	1	1403-1404		●
108	COVER; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97609-994-0	01	1	1405-1505		●	●
108	COVER; OIL PAN EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97609-994-0	01	1	1506-		●	●
108	COVER; OIL PAN EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97609-994-0	01	1	1506-	●
110	GASKET; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> ID=27	8-98056-488-0	01	1	1302-1402		●	●
110	GASKET; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=27	8-98056-488-0	01	1	1403-1404		●
110	GASKET; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=27	8-98056-488-0	01	1	1405-1505		●	●
110	GASKET; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=27	8-98056-488-0	01	1	1506-		●	●
110	GASKET; SW,OIL LEVEL EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=27	8-98056-488-0	01	1	1506-	●
112	BOLT; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> M6X25 FLANGE	0-28050-625-0	03	1	1302-1402		●	●
112	BOLT; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M6X25 FLANGE	0-28050-625-0	03	1	1403-1404		●
112	BOLT; SW,OIL LEVEL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M6X25 FLANGE	0-28050-625-0	03	1	1405-1505		●	●
112	BOLT; SW,OIL LEVEL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M6X25 FLANGE	0-28050-625-0	03	1	1506-		●	●
112	BOLT; SW,OIL LEVEL EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1506-	●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-94391-755-0	01	1	1302-1404		●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-94391-755-0	01	1	1405-1505		●	●
123	RUBBER; SEAL OIL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-94391-755-0	01	1	1506-		●	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (A)	8-94391-755-0	01	1	1506-	●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-94391-757-0	01	1	1302-1404		●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-94391-757-0	01	1	1405-1505		●	●
123	RUBBER; SEAL OIL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-94391-757-0	01	1	1506-		●	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (B)	8-94391-757-0	01	1	1506-	●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-94391-758-0	01	1	1302-1404		●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-94391-758-0	01	1	1405-1505		●	●
123	RUBBER; SEAL OIL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-94391-758-0	01	1	1506-		●	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (C)	8-94391-758-0	01	1	1506-	●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-94392-548-0	01	1	1302-1404		●
123	RUBBER; SEAL OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-94392-548-0	01	1	1405-1505		●	●
123	RUBBER; SEAL OIL EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-94392-548-0	01	1	1506-		●	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (D)	8-94392-548-0	01	1	1506-	●

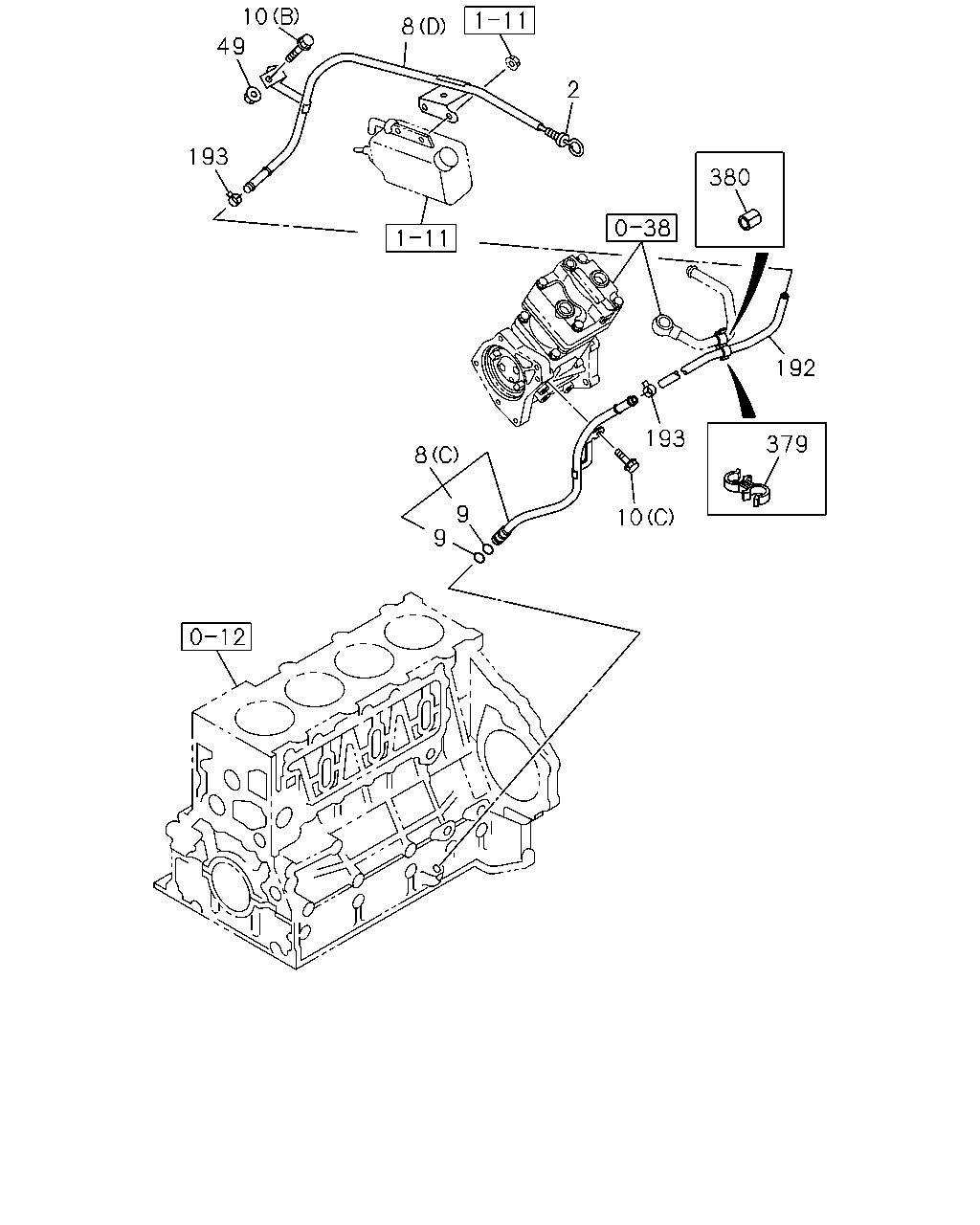

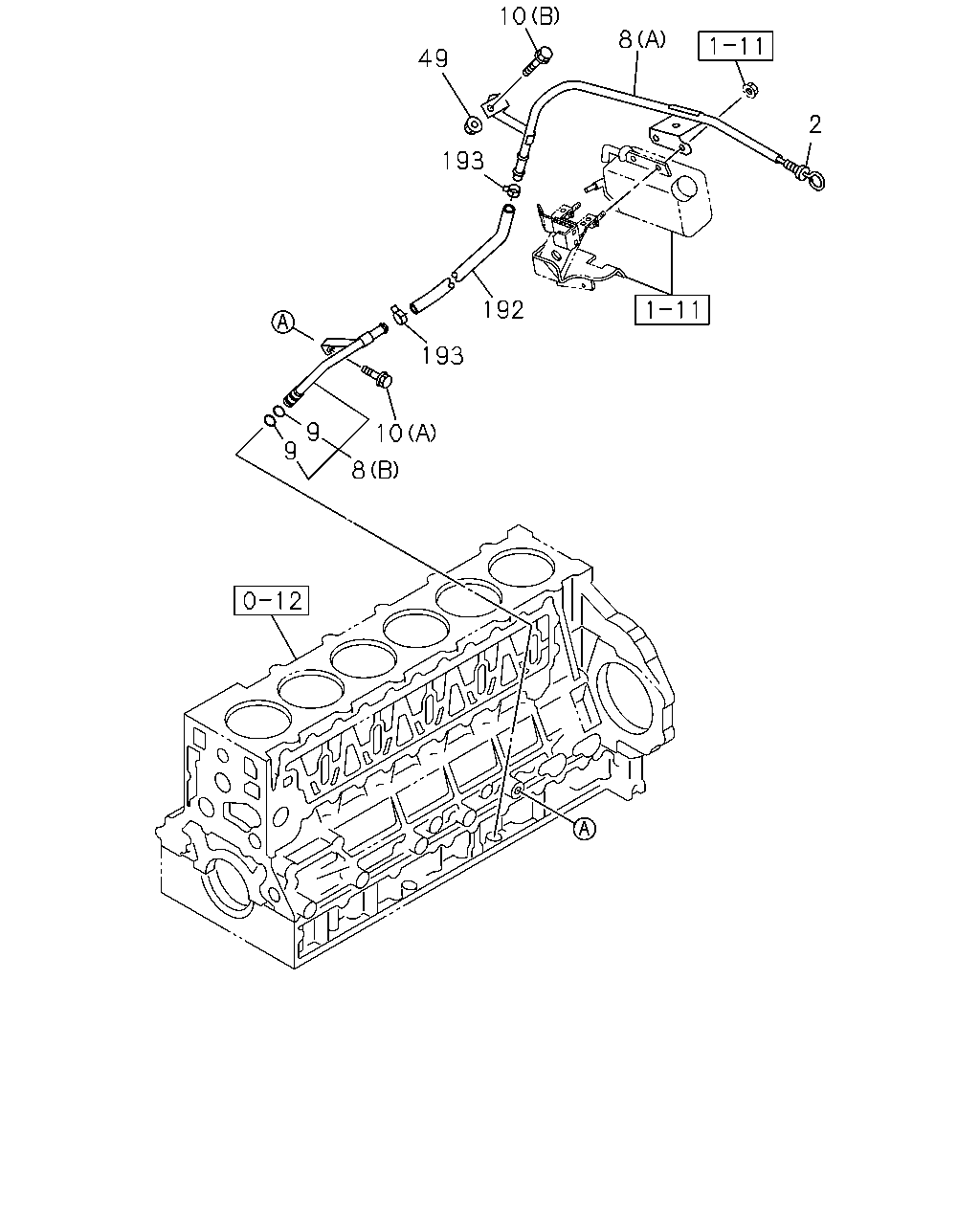

49 10 8 193 192 2 193 10 9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GAUGE; OIL LEVEL	8-98092-600-0	01	1	1302-1405			●
2	GAUGE; OIL LEVEL EXC. RUSSIA EQUIPMENT(B12)	8-98092-600-0	01	1	1302-1405		●
2	GAUGE; OIL LEVEL FVR WIDE SGL CAB(FG****) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98092-600-0	01	1	1406-1505		●	●
2	GAUGE; OIL LEVEL GVR WIDE CAB(GG****)	8-98092-600-0	01	1	1406-1505		●
2	GAUGE; OIL LEVEL FVR WIDE SGL CAB(FG****) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98092-600-0	01	1	1506-	●	●	●
2	GAUGE; OIL LEVEL GVR WIDE CAB(GG****)	8-98092-600-0	01	1	1506-		●
2	GAUGE; OIL LEVEL RUSSIA EQUIPMENT(B12)	8-98218-213-1	01	1	1302-1405		●
2	GAUGE; OIL LEVEL FVR WIDE SGL CAB(FG****) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98218-213-1	01	1	1406-		●	●
2	GAUGE; OIL LEVEL	8-98179-979-0	01	1	1305-1406				●
2	GAUGE; OIL LEVEL	8-98245-516-0	01	1	1407-				●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	1302-1505		●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	1506-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98084-773-0	01	1	1302-1505		●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98084-773-0	01	1	1506-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-98009-115-1	01	1	1305-				●
8	TUBE; GUIDE,OIL LEVEL GAUGE (D)	8-98179-498-0	01	1	1305-				●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	1302-1505		●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	1506-	●	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	1305-				●
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	1302-1505		●	●
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	1506-	●	●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-	●	●	●	●
10	BOLT; GUIDE TUBE (C) M6X12 FLANGE	0-28050-612-0	01	1	1305-				●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	01	1	1302-	●	●	●	●
192	HOSE; GUIDE TUBE L=463	8-98054-844-1	01	1	1302-1505		●	●
192	HOSE; GUIDE TUBE L=463	8-98054-844-1	01	1	1506-	●	●	●
192	HOSE; GUIDE TUBE	8-98206-931-0	01	1	1305-				●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	1302-	●	●	●	●

23 24 23 1 3 24 23 41 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PAN ASM; OIL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97603-410-2	01	1	1506-	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98179-005-0	01	1	1302-1511		●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-98179-005-0	01	1	1512-		●	●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> (B)	8-98061-544-0	01	1	1302-1402			●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98061-544-0	01	1	1302-1402		●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> (C)	8-98252-601-0	01	1	1403-1505			●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98252-601-0	01	1	1403-1505		●
1	PAN ASM; OIL EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98252-601-0	01	1	1506-		●	●
1	PAN ASM; OIL EURO5 SPECIFICATION<NT5> (C)	8-98252-601-0	01	1	1506-			●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98061-543-0	01	1	1302-1404		●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98061-543-0	01	1	1405-1505		●	●
1	PAN ASM; OIL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EURO4 SPECIFICATION<NT4> (D)	8-98061-543-0	01	1	1506-		●	●
1	PAN ASM; OIL EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98061-543-0	01	1	1506-	●
1	PAN ASM; OIL (F)	8-98191-050-0	01	1	1305-				●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1305-				●
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	1305-				●
23	BOLT; OIL PAN (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	23	1	1506-	●
23	BOLT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1302-1505		●	●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X18 FLANGE	0-28080-818-0	28	1	1506-1511		●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X18 FLANGE	0-28080-818-0	28	1	1512-		●
23	BOLT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1302-1505		●	●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X28 FLANGE	8-97329-626-0	02	1	1506-1511		●
23	BOLT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-		●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-			●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (B) M8X28 FLANGE	8-97329-626-0	02	1	1512-		●
23	BOLT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1302-1404		●
23	BOLT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1405-		●	●
23	BOLT; OIL PAN (E) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1305-				●
23	BOLT; OIL PAN (D) M8X14	8-97047-005-0	18	1	1305-				●
24	NUT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1506-1511		●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	04	1	1506-1511			●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	04	1	1506-1511		●
24	NUT; OIL PAN EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1512-		●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	04	1	1512-			●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	04	1	1512-		●
24	NUT; OIL PAN EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	04	1	1302-1505		●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	11	1	1506-	●
24	NUT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	14	1	1302-1404		●
24	NUT; OIL PAN ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	14	1	1405-		●	●
24	NUT; OIL PAN M8 W/LK WASHER	8-97581-234-0	07	1	1305-				●
41	RUBBER; SPACE FVR WIDE SGL CAB(FG****) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-97380-615-0	01	1	1305-				●

10 49 193 8 9 8 2 9 10 193 192 380 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GAUGE; OIL LEVEL	8-98092-600-0	01	1	1302-1405			●
2	GAUGE; OIL LEVEL EXC. RUSSIA EQUIPMENT(B12)	8-98092-600-0	01	1	1302-1405		●
2	GAUGE; OIL LEVEL FVR WIDE SGL CAB(FG****) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98092-600-0	01	1	1406-1505		●	●
2	GAUGE; OIL LEVEL GVR WIDE CAB(GG****)	8-98092-600-0	01	1	1406-1505		●
2	GAUGE; OIL LEVEL FVR WIDE SGL CAB(FG****) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98092-600-0	01	1	1506-	●	●	●
2	GAUGE; OIL LEVEL GVR WIDE CAB(GG****)	8-98092-600-0	01	1	1506-		●
2	GAUGE; OIL LEVEL RUSSIA EQUIPMENT(B12)	8-98218-213-1	01	1	1302-1405		●
2	GAUGE; OIL LEVEL FVR WIDE SGL CAB(FG****) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98218-213-1	01	1	1406-		●	●
2	GAUGE; OIL LEVEL	8-98179-979-0	01	1	1305-1406				●
2	GAUGE; OIL LEVEL	8-98245-516-0	01	1	1407-				●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	1302-1505		●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	1506-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98084-773-0	01	1	1302-1505		●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98084-773-0	01	1	1506-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-98009-115-1	01	1	1305-				●
8	TUBE; GUIDE,OIL LEVEL GAUGE (D)	8-98179-498-0	01	1	1305-				●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	1302-1505		●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	1506-	●	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	1305-				●
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	1302-1505		●	●
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	1506-	●	●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-	●	●	●	●
10	BOLT; GUIDE TUBE (C) M6X12 FLANGE	0-28050-612-0	01	1	1305-				●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	01	1	1302-	●	●	●	●
192	HOSE; GUIDE TUBE L=463	8-98054-844-1	01	1	1302-1505		●	●
192	HOSE; GUIDE TUBE L=463	8-98054-844-1	01	1	1506-	●	●	●
192	HOSE; GUIDE TUBE	8-98206-931-0	01	1	1305-				●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	1302-	●	●	●	●
379	CLIP; PIPE TO HOSE ID=18 & 18	8-94323-068-0	01	1	1305-				●
380	PROTECTOR; PIPE ID=18 L=40	8-98070-445-0	01	1	1305-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
