1-40 — FUEL TANK (#11387) — 106 parça

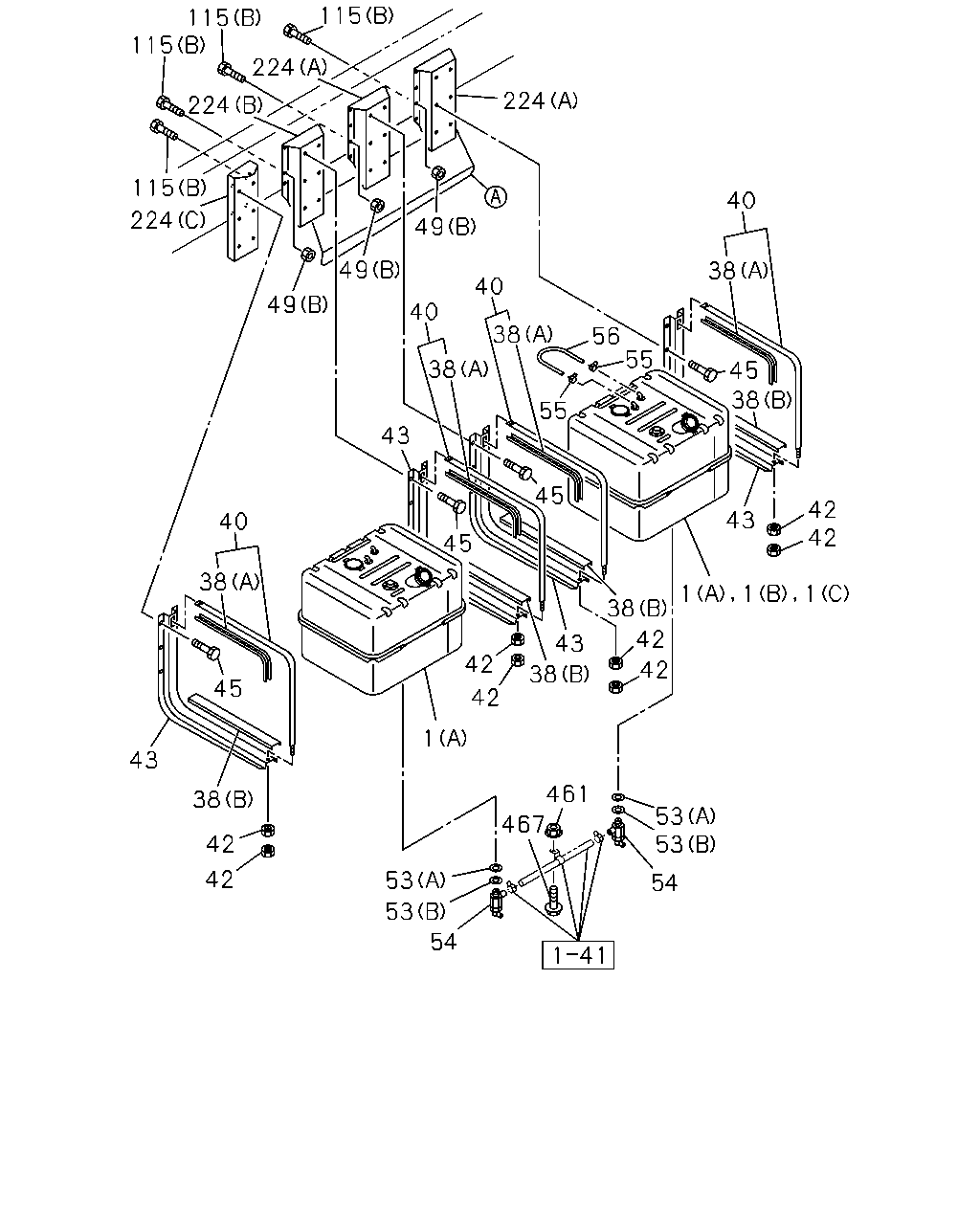

54 53 53 54 53 53 461 467 1 42 42 38 43 42 42 38 1 1 1 42 42 43 38 45 40 38 55 56 55 38 40 38 40 43 45 45 40 38 45 43 38 42 42 49 224 49 49 224 115 224 224 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22401-212-0	01	1	0405-
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0106-0112
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-193-0	02	1	0201-
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0106-0112
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-0404
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-
38	INSULATION; SUPPORT BELT (B) L=580	1-22553-003-0	04	1	0106-
38	INSULATION; SUPPORT BELT (A) L=650	1-22553-022-1	04	1	0106-
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	04	1	0106-
42	NUT; SUPPORT BELT M10	9-09110-510-0	08	1	0106-0512
42	NUT; SUPPORT BELT M10	0-91110-510-0	08	1	0601-
43	BRACKET; FUEL TANK	1-53461-279-4	04	1	0106-
45	BOLT; BRKT,FUEL TANK M12X35 FLANGE	0-28681-235-0	24	1	0106-0512
45	BOLT; BRKT,FUEL TANK M12X35 FLANGE	0-28651-235-0	24	1	0601-
49	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0106-0602
49	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
49	NUT; BRKT (B) M12	9-99110-512-0	12	1	0106-0512
49	NUT; BRKT (B) M12	0-91110-512-0	12	1	0601-
53	GASKET; COCK,FUEL TANK (B) T=1.60	1-22416-001-0	02	1	0106-0112
53	GASKET; COCK,FUEL TANK (A) ID=14.2	8-94462-114-0	02	1	0201-
53	GASKET; COCK,FUEL TANK (A) T=0.80	1-22416-004-0	02	1	0106-0112
53	GASKET; COCK,FUEL TANK (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0201-
54	COCK ASM; FUEL TANK	9-09904-176-0	02	1	0106-0112
54	COCK ASM; FUEL TANK	1-09680-072-0	02	1	0201-
55	CLIP; FUEL PIPE ID=14	1-09704-102-0	02	1	0106-
56	PIPE; FUEL SHUTTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
115	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
115	BOLT; BRKT (B) M12X40 FLANGE	0-28681-240-0	24	1	0106-0512
115	BOLT; BRKT (B) M12X40 FLANGE	0-28651-240-0	24	1	0601-
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	0106-
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	0106-
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	0106-
461	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	0106-0602
461	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
467	BOLT M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
467	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0601-

110 109 113 115 49 115 113 49 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0106-0602
49	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
49	NUT; BRKT (B) M12	9-99110-512-0	12	1	0106-0512
49	NUT; BRKT (B) M12	0-91110-512-0	12	1	0601-
107	PROTECTOR; HEAT,FUEL TANK ISUZU M/T<X9A>	1-22159-311-0	01	1	0106-0108
107	PROTECTOR; HEAT,FUEL TANK	1-22159-311-0	01	1	0109-
107	PROTECTOR; HEAT,FUEL TANK EXC. ISUZU M/T<X9A>	1-22159-276-0	01	1	0106-0108
109	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	07	1	0106-0512
109	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	07	1	0601-
110	NUT; PROTECTOR M8 FLANGE	0-91150-108-0	07	1	0106-0602
110	NUT; PROTECTOR M8 FLANGE	0-91180-108-0	07	1	0603-
113	BRACKET; PROTECTOR,FUEL TANK	1-22119-362-0	02	1	0106-
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
115	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
115	BOLT; BRKT (B) M12X40 FLANGE	0-28681-240-0	24	1	0106-0512
115	BOLT; BRKT (B) M12X40 FLANGE	0-28651-240-0	24	1	0601-

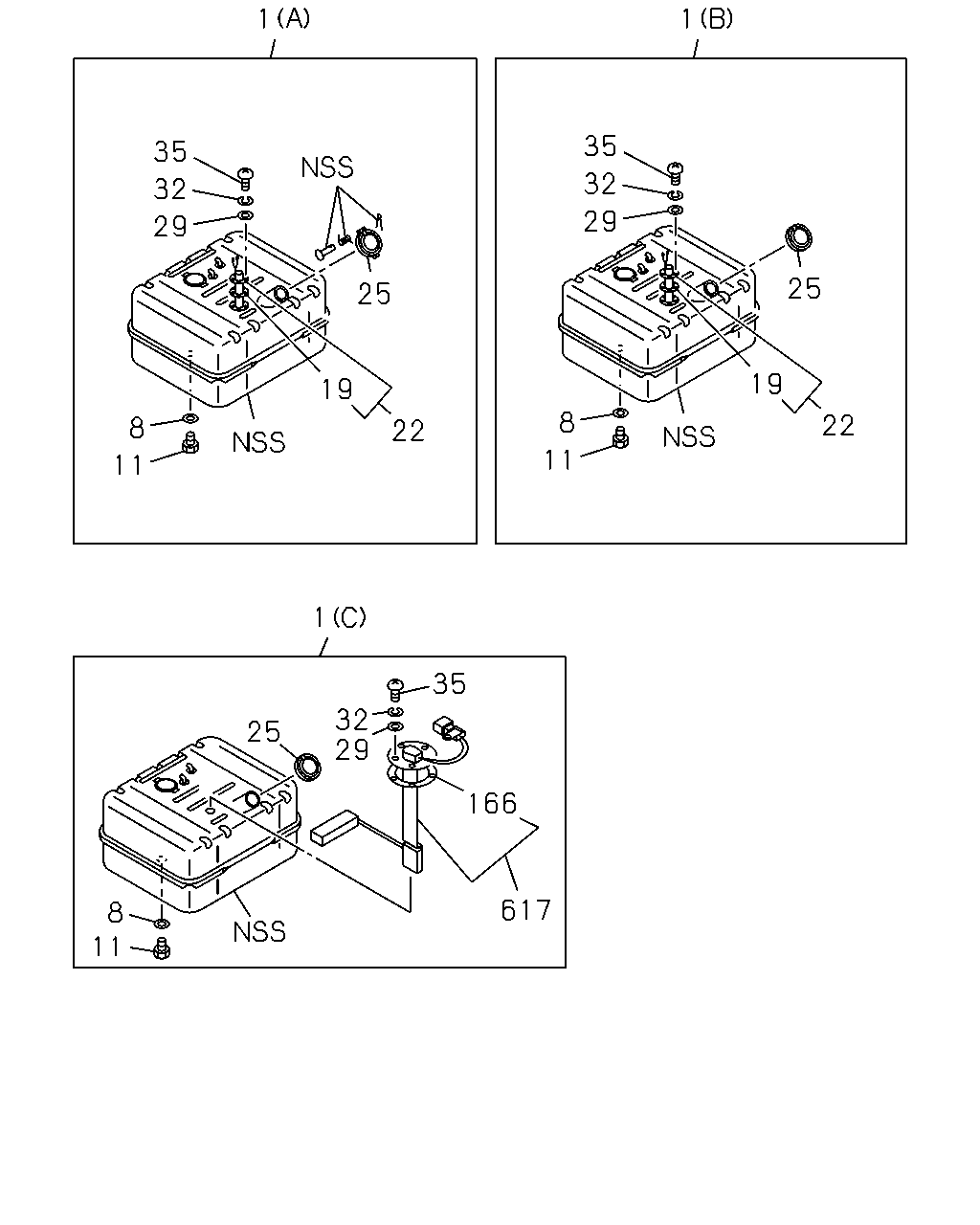

1 1 35 29 32 25 19 8 11 22 1 25 35 32 29 166 617 8 11 8 11 19 25 22 29 35 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22401-212-0	01	1	0405-
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0106-0112
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-193-0	02	1	0201-
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0106-0112
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-0404
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	02	1	0106-0106
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	02	1	0107-0404
8	GASKET; DRAIN PLUG,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	02	1	0405-
11	PLUG; DRAIN,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M14X14	9-09862-156-0	01	1	0405-
11	PLUG; DRAIN,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M14X14	9-09862-156-0	01	1	0405-
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	02	1	0106-0106
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	02	1	0107-0404
11	PLUG; DRAIN,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> M14X14	9-09862-156-0	02	1	0405-
19	GASKET; FUEL TANK UNIT	5-83148-001-0	02	1	0106-0404
19	GASKET; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46>	5-83148-001-0	02	1	0405-
19	GASKET; FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	5-83148-001-0	01	1	0405-
19	GASKET; FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	9-83135-003-0	01	1	0405-
19	GASKET; FUEL TANK UNIT	9-83135-003-0	02	1	0106-0404
19	GASKET; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46>	9-83135-003-0	02	1	0405-
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	0106-
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	0106-0404
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	0405-
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	0106-
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0106-0112
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	02	1	0201-0404
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0405-
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0405-
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	9-09160-505-0	01	1	0405-0605
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	9-09160-505-0	01	1	0405-0605
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	0-91610-505-0	01	1	0606-
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	0-91610-505-0	01	1	0606-
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	02	1	0106-0404
29	WASHER; PL,FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	9-09160-505-0	02	1	0405-0605
29	WASHER; PL,FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	0-91610-505-0	02	1	0606-
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	9-09150-505-0	05	1	0405-0603
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	9-09150-505-0	05	1	0405-0603
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	0-91510-505-0	05	1	0604-
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	0-91510-505-0	05	1	0604-
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	10	1	0106-0404
32	WASHER; LK,FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	9-09150-505-0	10	1	0405-0603
32	WASHER; LK,FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	0-91510-505-0	10	1	0604-
35	SCREW; FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	9-93497-510-0	05	1	0405-0604
35	SCREW; FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	9-93497-510-0	05	1	0405-0604
35	SCREW; FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	0-34218-510-0	05	1	0605-
35	SCREW; FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	0-34218-510-0	05	1	0605-
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	10	1	0106-0404
35	SCREW; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	9-93497-510-0	10	1	0405-0604
35	SCREW; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	0-34218-510-0	10	1	0605-
166	GASKET EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	8-94366-904-0	01	1	0405-
617	PLATE EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22419-021-0	01	1	0405-
