0-13 — OIL PAN AND LEVEL GAUGE
(#113867) — 24 parça
◀

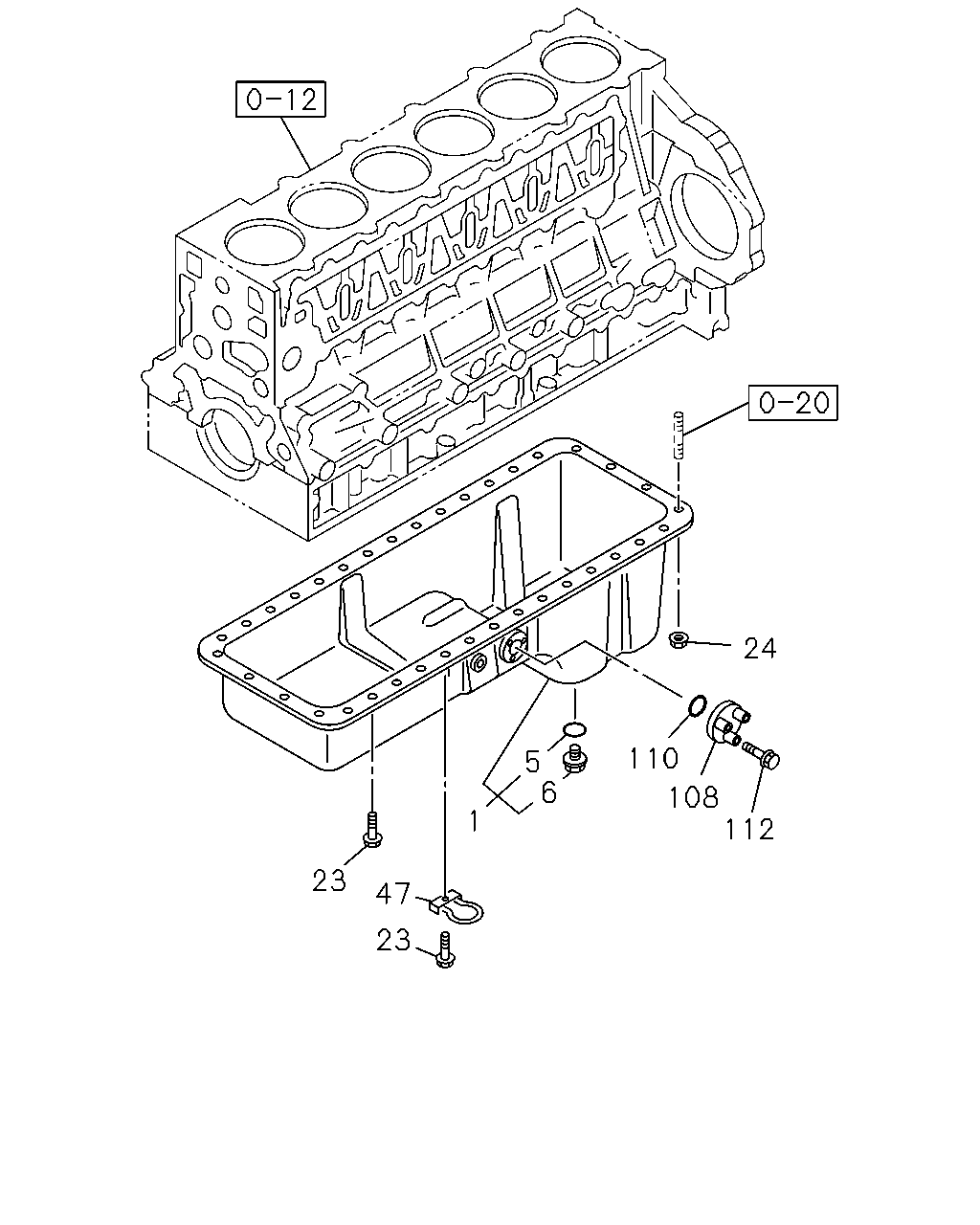

[013A] OIL PAN (15 parça)
[013A] OIL LEVEL GAUGE AND GUIDE TUBE (9 parça)
▶
24
110
108
112
5
6
1
23
47
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
8-98179-005-0
01
1
1302-
1
PAN ASM; OIL
EURO4 SPECIFICATION<NT4>
8-98061-544-0
01
1
1302-1402
1
PAN ASM; OIL
EURO4 SPECIFICATION<NT4>
8-98252-601-0
01
1
1403-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=24.5
8-94399-398-0
01
1
1403-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
1302-1402
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=24.4
1-09623-057-0
01
1
1403-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1302-
23
BOLT; OIL PAN
M8X18 FLANGE
0-28080-818-0
28
1
1302-
23
BOLT; OIL PAN
M8X28 FLANGE
8-97329-626-0
02
1
1302-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
04
1
1302-
47
CLIP; HOSE,AIR BREATHER
EURO3 SPECIFICATION<NT3>
1-11369-115-0
01
1
1302-1506
47
CLIP; HOSE,AIR BREATHER
EURO3 SPECIFICATION<NT3>
8-98303-447-0
01
1
1507-
108
COVER; OIL PAN
EURO4 SPECIFICATION<NT4>
8-97609-994-0
01
1
1302-1402
110
GASKET; SW,OIL LEVEL
EURO4 SPECIFICATION<NT4> ID=27
8-98056-488-0
01
1
1302-1402
112
BOLT; SW,OIL LEVEL
EURO4 SPECIFICATION<NT4> M6X25 FLANGE
0-28050-625-0
03
1
1302-1402
2
8
10
49
193
192
193
10
8
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98092-600-0
01
1
1302-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98063-554-0
01
1
1302-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98084-773-0
01
1
1302-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1302-
10
BOLT; GUIDE TUBE
(B) M10X35 FLANGE
0-28151-035-0
01
1
1302-
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28650-820-0
01
1
1302-
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
01
1
1302-
192
HOSE; GUIDE TUBE
L=463
8-98054-844-1
01
1
1302-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1302-
