0-14 — CAMSHAFT AND VALVE (#113862) — 165 parça

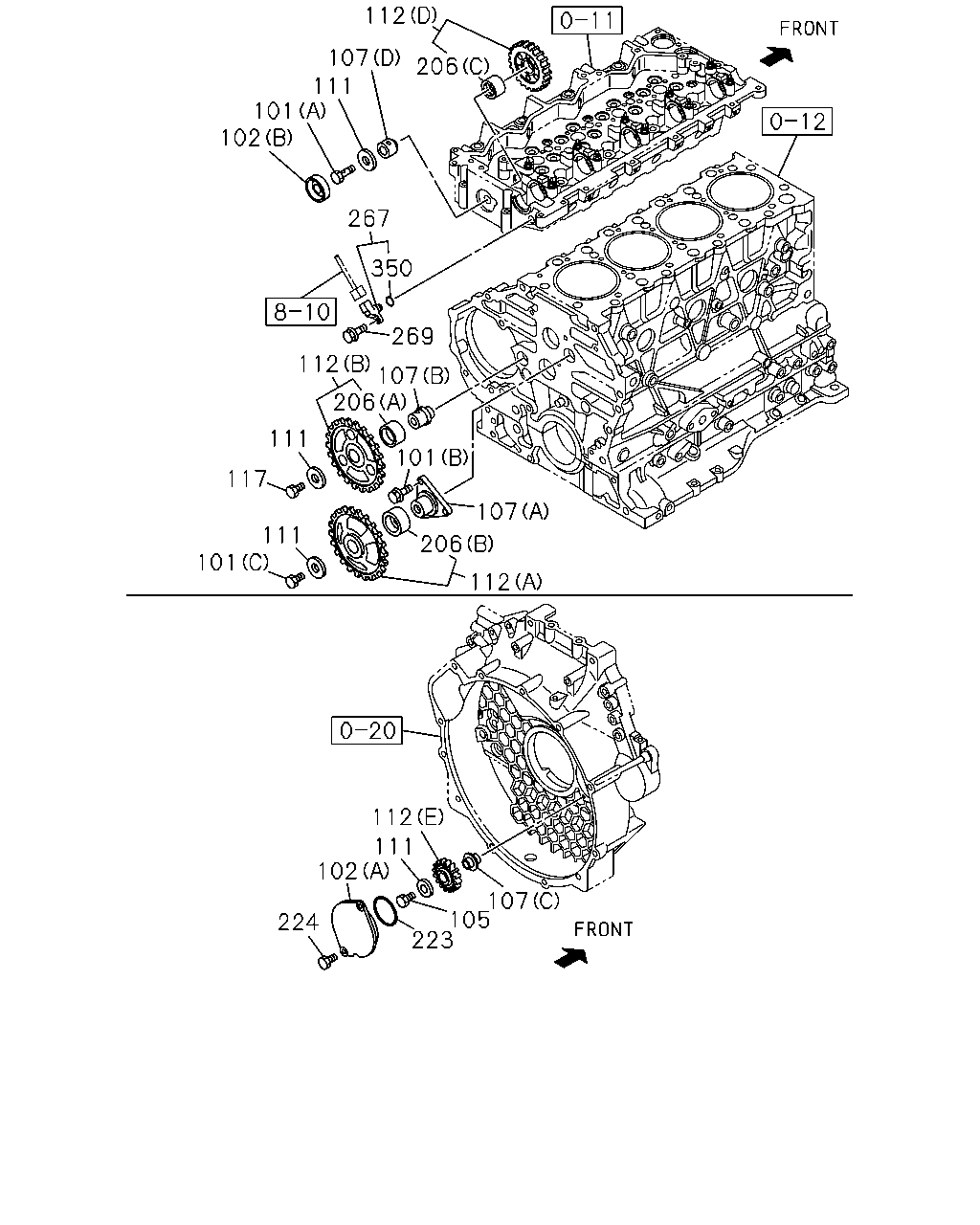

102 101 111 107 112 206 267 350 269 112 206 107 101 107 206 112 101 117 111 112 111 102 224 223 105 107 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1302-	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1302-1310	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1302-	●	●
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	1302-		●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	1302-		●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1302-	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1302-	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1302-	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1302-		●
107	SHAFT; IDLE GEAR (D)	8-97186-398-1	01	1	1302-	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1302-	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2> (B)	8-98060-780-0	01	1	1302-		●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1302-	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1302-	●	●
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4> (B)	8-98145-650-0	01	1	1302-		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1302-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	02	1	1302-		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<NT2> ID=14.5 OD=46	8-97209-728-2	01	1	1302-		●
111	COLLAR; THRUST,IDLE GEAR EURO4 SPECIFICATION<NT4> ID=24 OD=60	8-94396-897-0	01	1	1302-		●
112	GEAR; IDLE (E) Z=34	8-97120-005-1	01	1	1302-	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1302-1402	●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2> (B) Z=72-60-30	8-97600-586-1	01	1	1302-1402		●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-	●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2> (B) Z=72-60-30	8-98254-970-0	01	1	1403-		●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1302-	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1302-	●	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	1302-		●
112	GEAR; IDLE EURO4 SPECIFICATION<NT4> (B) Z=72-60-30	8-98145-647-1	01	1	1302-		●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1302-	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	1302-1402	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1302-	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1302-	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1302-	●
224	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	1302-	●
269	BOLT; SENSOR M6X12 FLANGE	0-28050-612-0	01	1	1302-	●
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8	8-97369-404-0	01	1	1302-	●

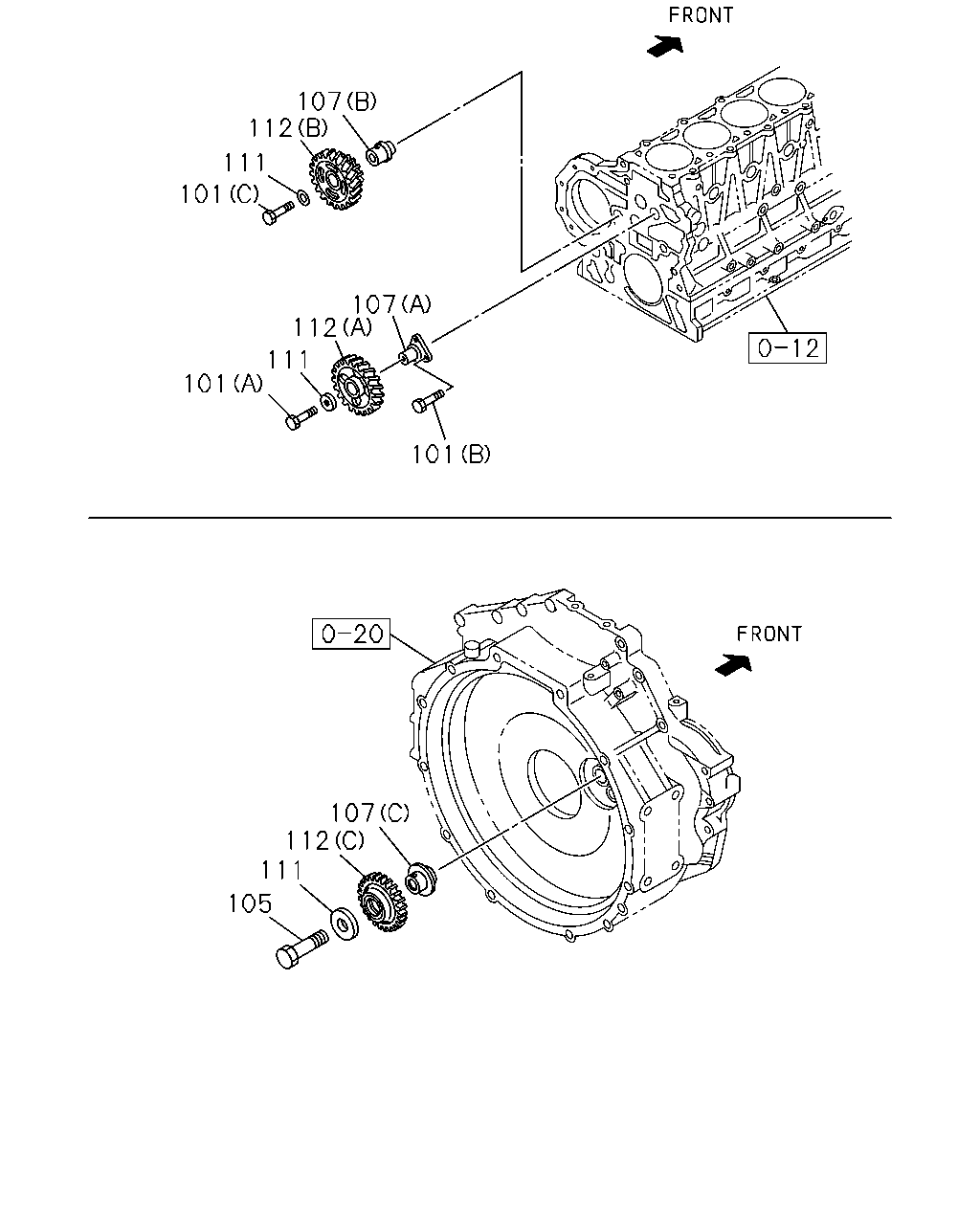

105 111 112 107 101 101 111 112 107 101 111 112 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1302-	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1302-1310	●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1302-	●	●
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	1302-		●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	1302-		●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1302-	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1302-		●
107	SHAFT; IDLE GEAR (D)	8-97186-398-1	01	1	1302-	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1302-	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2> (B)	8-98060-780-0	01	1	1302-		●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1302-	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1302-	●	●
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4> (B)	8-98145-650-0	01	1	1302-		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1302-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	02	1	1302-		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<NT2> ID=14.5 OD=46	8-97209-728-2	01	1	1302-		●
111	COLLAR; THRUST,IDLE GEAR EURO4 SPECIFICATION<NT4> ID=24 OD=60	8-94396-897-0	01	1	1302-		●
112	GEAR; IDLE (E) Z=34	8-97120-005-1	01	1	1302-	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1302-1402	●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2> (B) Z=72-60-30	8-97600-586-1	01	1	1302-1402		●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-	●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2> (B) Z=72-60-30	8-98254-970-0	01	1	1403-		●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1302-	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1302-	●	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	1302-		●
112	GEAR; IDLE EURO4 SPECIFICATION<NT4> (B) Z=72-60-30	8-98145-647-1	01	1	1302-		●

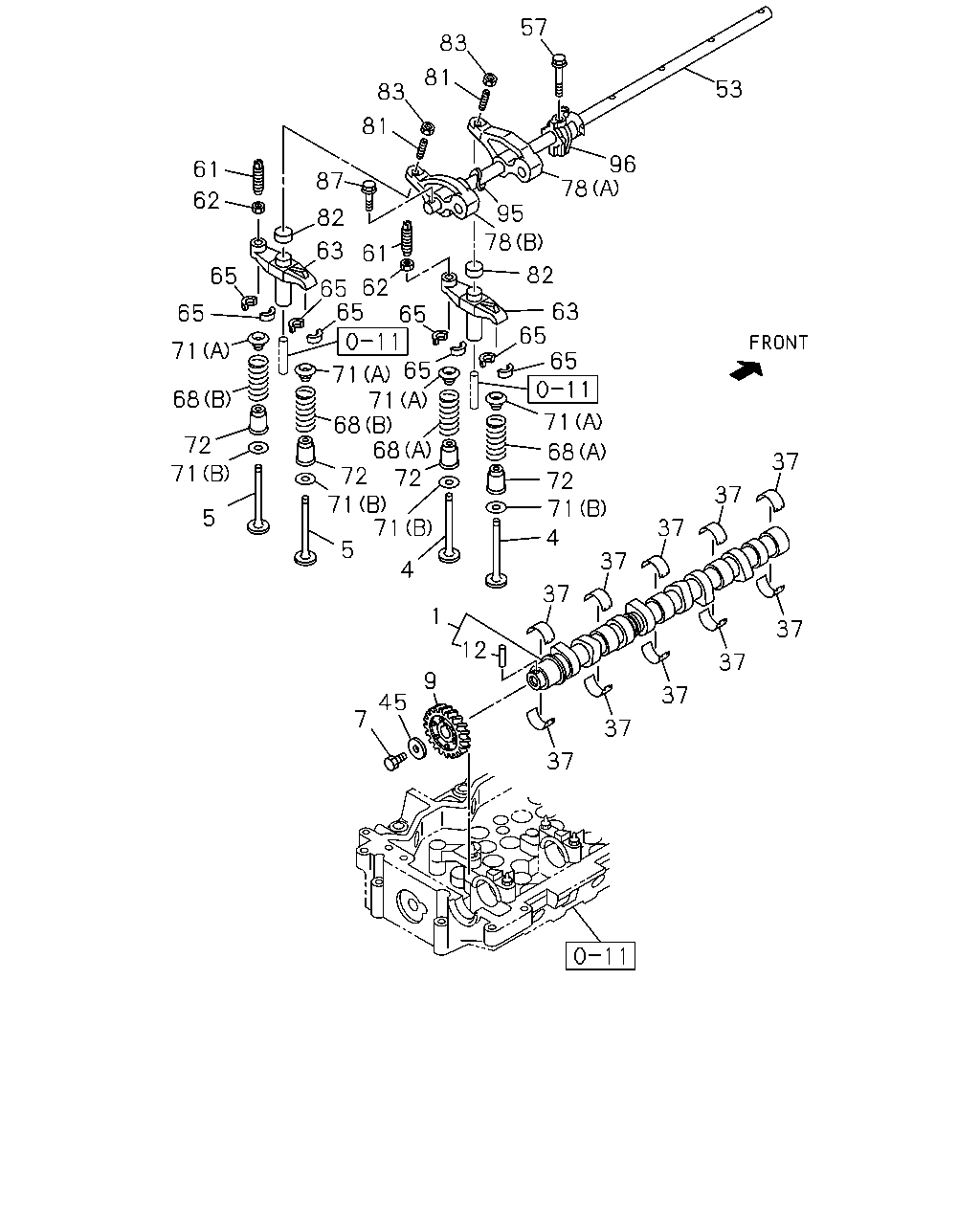

57 53 96 78 83 81 83 81 95 78 63 82 65 71 65 68 71 72 4 4 71 72 68 65 65 71 71 72 68 71 5 5 71 72 68 71 65 65 62 61 87 61 82 62 65 65 63 37 37 37 37 37 37 37 37 37 37 12 5 9 45 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	VALVE; INL	8-94395-882-2	08	1	1302-	●
4	VALVE; INL	8-94395-882-2	12	1	1302-		●
5	VALVE; EXH	8-97209-876-4	08	1	1302-	●
5	VALVE; EXH	8-97209-876-4	12	1	1302-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1302-	●	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1302-	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1302-		●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1302-	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1302-	●
37	METAL; CM/SHF B=16	8-97386-189-0	04	1	1302-		●
37	METAL; CM/SHF B=26	8-97602-699-0	04	1	1302-		●
45	WASHER; GEAR CAM ID=14.5	9-09851-850-3	01	1	1302-	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1302-	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1302-		●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1302-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1302-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1302-		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	1302-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1302-		●
63	BRIDGE	8-94392-002-3	08	1	1302-	●
63	BRIDGE	8-94392-002-3	12	1	1302-		●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1302-	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1302-		●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1302-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1302-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1302-		●
68	SPRING; VLV EURO2 SPECIFICATION<NT2> (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	1302-		●
68	SPRING; VLV EURO4 SPECIFICATION<NT4> (B) EXHAUST MARK RED	8-97210-682-0	12	1	1302-		●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1302-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1302-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1302-		●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1302-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1302-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1302-		●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1302-	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1302-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1302-		●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1302-		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1302-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1302-		●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	1302-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1302-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1302-		●
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28050-840-0	02	1	1302-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1302-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1302-		●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1302-	●

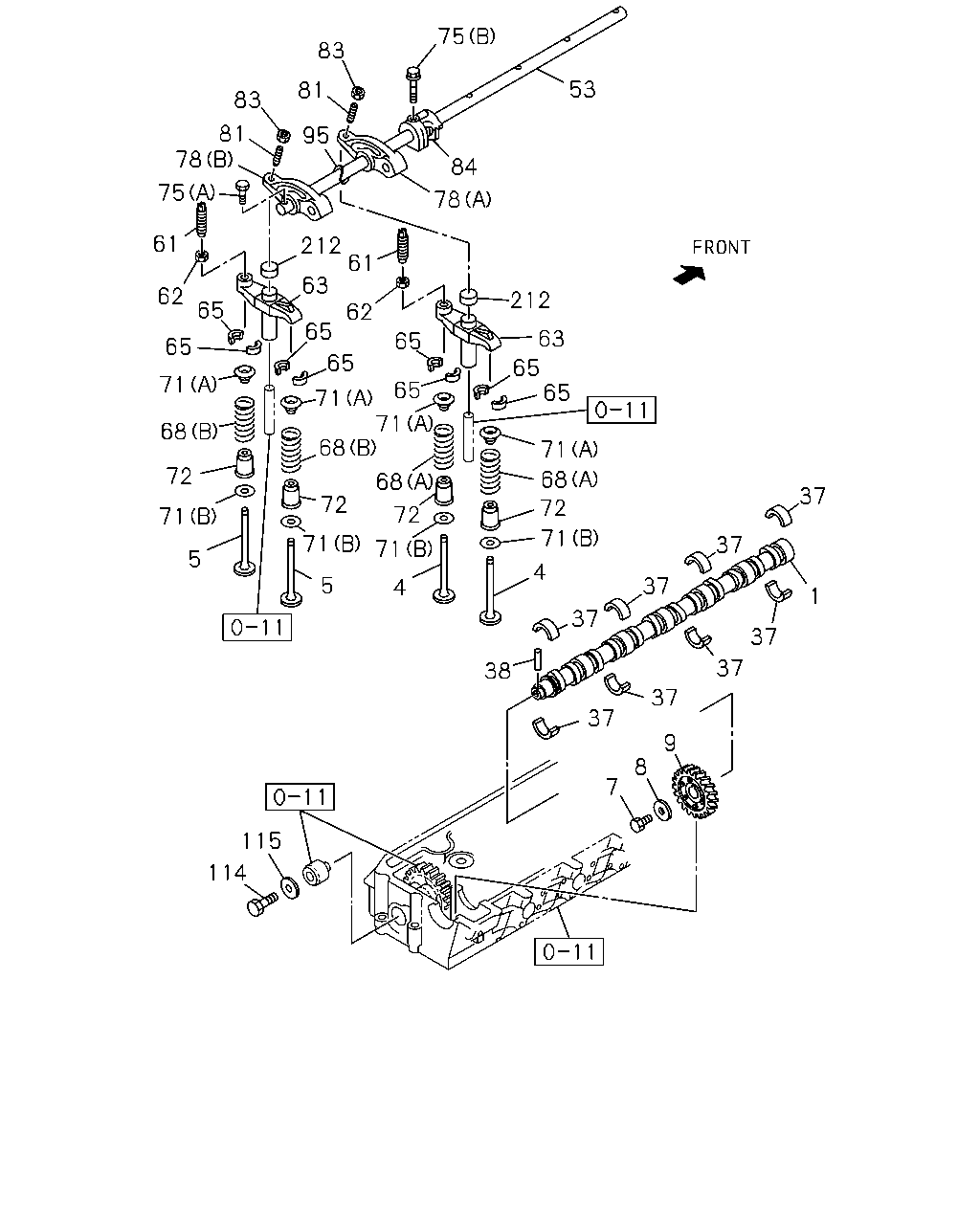

75 83 81 83 81 78 75 212 78 53 84 95 61 62 63 61 62 65 71 65 65 212 65 68 71 65 65 68 71 72 72 71 71 68 71 5 4 4 5 72 68 71 72 71 65 63 65 38 37 37 37 37 1 37 37 37 37 9 8 7 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97262-166-0	01	1	1302-	●
1	CAMSHAFT	8-97601-438-0	01	1	1302-1311		●
1	CAMSHAFT	8-98227-261-1	01	1	1312-		●
4	VALVE; INL	8-94395-882-2	08	1	1302-	●
4	VALVE; INL	8-94395-882-2	12	1	1302-		●
5	VALVE; EXH	8-97209-876-4	08	1	1302-	●
5	VALVE; EXH	8-97209-876-4	12	1	1302-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1302-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1302-		●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1302-	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1302-		●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1302-	●
37	METAL; CM/SHF B=16	8-97386-189-0	04	1	1302-		●
37	METAL; CM/SHF B=26	8-97602-699-0	04	1	1302-		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	1302-		●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1302-	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1302-		●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1302-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1302-		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	1302-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1302-		●
63	BRIDGE	8-94392-002-3	08	1	1302-	●
63	BRIDGE	8-94392-002-3	12	1	1302-		●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1302-	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1302-		●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1302-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1302-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1302-		●
68	SPRING; VLV EURO2 SPECIFICATION<NT2> (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	1302-		●
68	SPRING; VLV EURO4 SPECIFICATION<NT4> (B) EXHAUST MARK RED	8-97210-682-0	12	1	1302-		●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1302-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1302-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1302-		●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1302-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1302-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1302-		●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	1302-		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	1302-		●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1302-	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1302-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1302-		●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1302-		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1302-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1302-		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1302-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1302-		●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	1302-		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1302-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1302-		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	1302-		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	1302-		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
