Isuzu WW
▶
TRUCKS
▶
FVR
▶
11519 - FVR/GVR-RHD EURO2/4
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#113859) — 63 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCS ENG
C - 6HK1-TCN ENG
◀

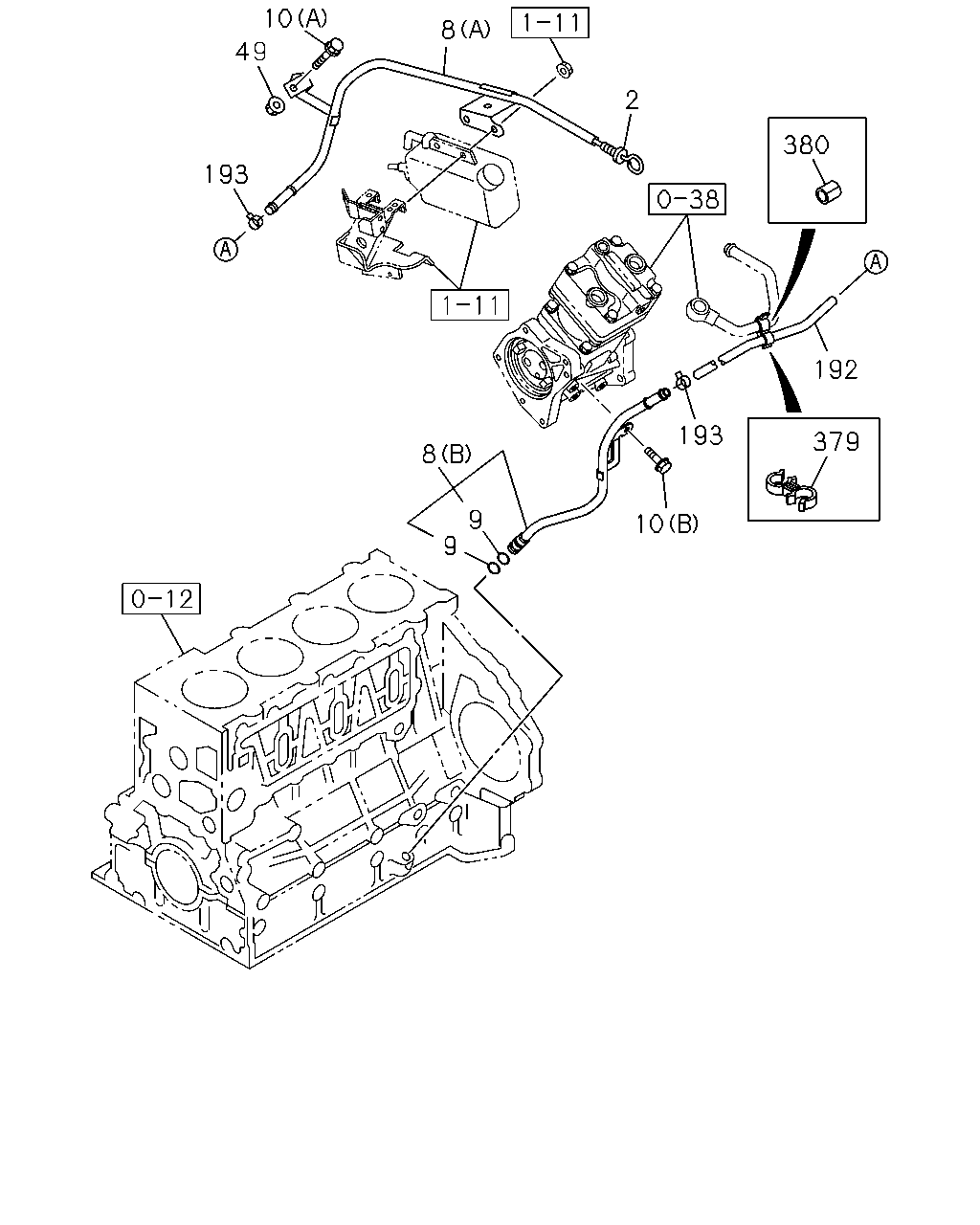

[013A] 4HK1;OIL LEVEL GAUGE AND GUIDE TUBE (18 parça)
[013A] 6HK1;OIL LEVEL GAUGE AND GUIDE TUBE (16 parça)

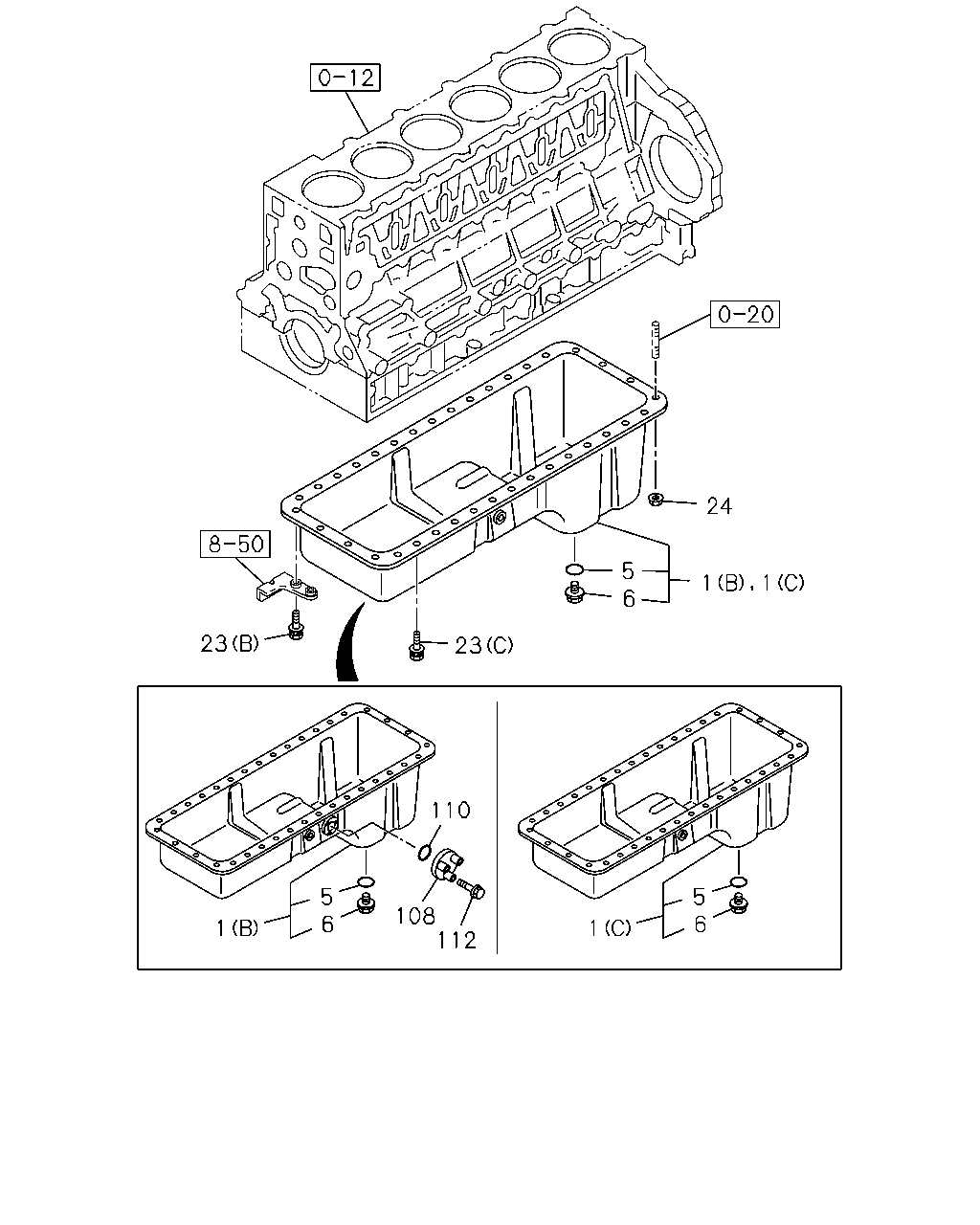

[013A] 6HK1;OIL PAN (17 parça)

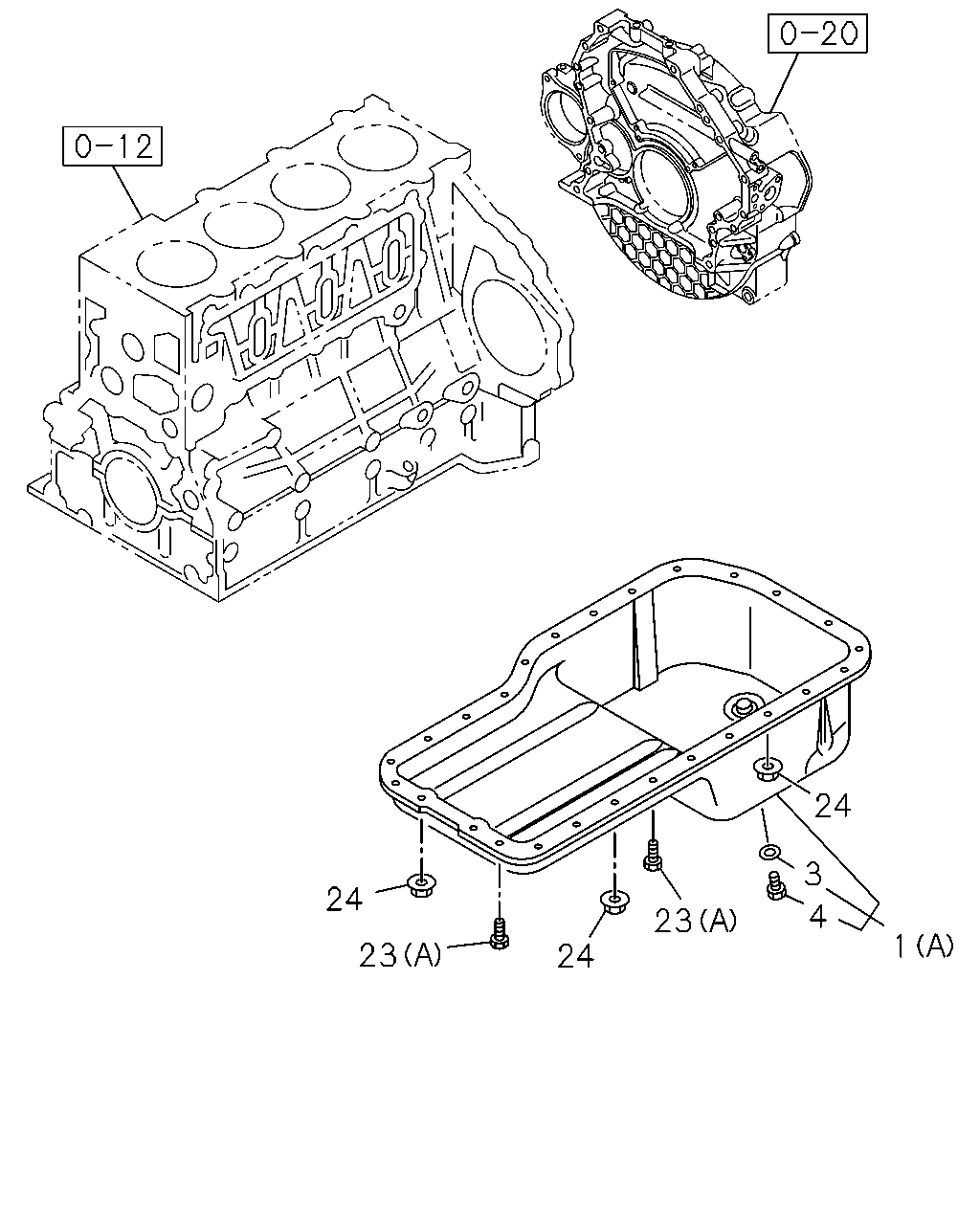

[013A] 4HK1;OIL PAN (12 parça)
▶
49
10
193
8
2
192
379
193
10
8
9
9
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
GAUGE; OIL LEVEL
8-98179-979-0
01
1
1302-1406
●
2
GAUGE; OIL LEVEL
8-98245-516-0
01
1
1407-
●
2
GAUGE; OIL LEVEL
8-98092-600-0
01
1
1302-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98179-498-0
01
1
1302-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98009-115-1
01
1
1302-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
8-98084-773-0
01
1
1302-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(D)
8-98063-554-0
01
1
1302-
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1302-
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1302-
●
10
BOLT; GUIDE TUBE
(B) M6X12 FLANGE
0-28050-612-0
01
1
1302-
●
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28650-820-0
01
1
1302-
●
●
●
10
BOLT; GUIDE TUBE
(C) M10X35 FLANGE
0-28151-035-0
01
1
1302-
●
●
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
01
1
1302-
●
●
●
192
HOSE; GUIDE TUBE
8-98206-931-0
01
1
1302-
●
192
HOSE; GUIDE TUBE
L=463
8-98054-844-1
01
1
1302-
●
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1302-
●
●
●
379
CLIP; PIPE TO HOSE
ID=18 & 18
8-94323-068-0
01
1
1302-
●
380
PROTECTOR; PIPE
ID=18 L=40
8-98070-445-0
01
1
1302-
●
49
10
8
2
193
192
193
10
8
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
GAUGE; OIL LEVEL
8-98179-979-0
01
1
1302-1406
●
2
GAUGE; OIL LEVEL
8-98245-516-0
01
1
1407-
●
2
GAUGE; OIL LEVEL
8-98092-600-0
01
1
1302-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98179-498-0
01
1
1302-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98009-115-1
01
1
1302-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
8-98084-773-0
01
1
1302-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(D)
8-98063-554-0
01
1
1302-
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1302-
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1302-
●
10
BOLT; GUIDE TUBE
(B) M6X12 FLANGE
0-28050-612-0
01
1
1302-
●
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28650-820-0
01
1
1302-
●
●
●
10
BOLT; GUIDE TUBE
(C) M10X35 FLANGE
0-28151-035-0
01
1
1302-
●
●
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
01
1
1302-
●
●
●
192
HOSE; GUIDE TUBE
8-98206-931-0
01
1
1302-
●
192
HOSE; GUIDE TUBE
L=463
8-98054-844-1
01
1
1302-
●
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1302-
●
●
●
23
23
24
5
6
1
1
110
108
112
5
6
1
1
5
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PAN ASM; OIL
(A)
8-98191-050-0
01
1
1302-
●
1
PAN ASM; OIL
EURO4 SPECIFICATION<NT4> (B)
8-98061-544-0
01
1
1302-1402
●
●
1
PAN ASM; OIL
EURO4 SPECIFICATION<NT4> (C)
8-98252-601-0
01
1
1403-
●
●
1
PAN ASM; OIL
EURO2 SPECIFICATION<NT2> (B)
8-98179-005-0
01
1
1302-
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=24.5
8-94399-398-0
01
1
1403-
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
1302-1402
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=24.4
1-09623-057-0
01
1
1403-
●
●
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1302-
●
●
23
BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
1302-
●
23
BOLT; OIL PAN
(A) M8X14
8-97047-005-0
18
1
1302-
●
23
BOLT; OIL PAN
(C) M8X18 FLANGE
0-28080-818-0
28
1
1302-
●
●
23
BOLT; OIL PAN
(B) M8X28 FLANGE
8-97329-626-0
02
1
1302-
●
●
24
NUT; OIL PAN
M8 W/LK WASHER
8-97581-234-0
07
1
1302-
●
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
04
1
1302-
●
●
108
COVER; OIL PAN
EURO4 SPECIFICATION<NT4>
8-97609-994-0
01
1
1302-1402
●
●
110
GASKET; SW,OIL LEVEL
EURO4 SPECIFICATION<NT4> ID=27
8-98056-488-0
01
1
1302-1402
●
●
112
BOLT; SW,OIL LEVEL
EURO4 SPECIFICATION<NT4> M6X25 FLANGE
0-28050-625-0
03
1
1302-1402
●
●
24
23
24
4
1
24
3
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PAN ASM; OIL
(A)
8-98191-050-0
01
1
1302-
●
1
PAN ASM; OIL
EURO4 SPECIFICATION<NT4> (B)
8-98061-544-0
01
1
1302-1402
●
●
1
PAN ASM; OIL
EURO4 SPECIFICATION<NT4> (C)
8-98252-601-0
01
1
1403-
●
●
1
PAN ASM; OIL
EURO2 SPECIFICATION<NT2> (B)
8-98179-005-0
01
1
1302-
●
●
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
1302-
●
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
1302-
●
23
BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
1302-
●
23
BOLT; OIL PAN
(A) M8X14
8-97047-005-0
18
1
1302-
●
23
BOLT; OIL PAN
(C) M8X18 FLANGE
0-28080-818-0
28
1
1302-
●
●
23
BOLT; OIL PAN
(B) M8X28 FLANGE
8-97329-626-0
02
1
1302-
●
●
24
NUT; OIL PAN
M8 W/LK WASHER
8-97581-234-0
07
1
1302-
●
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
04
1
1302-
●
●
