Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#113858) — 206 parça

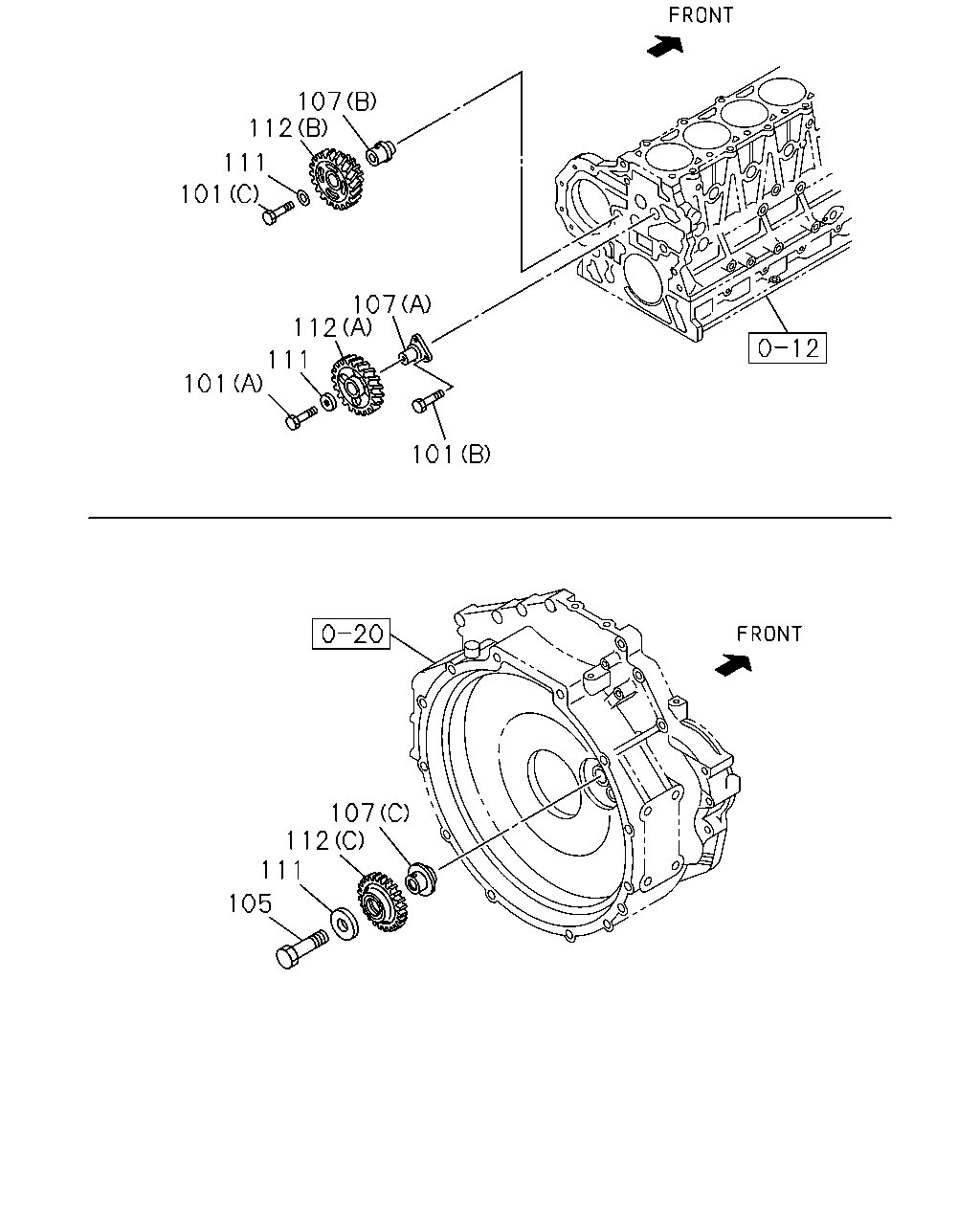

107 112 111 101 107 112 111 101 107 112 111 105 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	1302-	●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	1302-	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1302-1304	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1305-	●	●
101	BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	1305-		●
101	BOLT; THRUST COLLAR (E) M14X25	9-92361-425-0	01	1	1305-1310		●
101	BOLT; THRUST COLLAR (E) M14X25	0-23951-425-0	01	1	1311-		●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1302-	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1305-		●
107	SHAFT; IDLE GEAR (C)	8-94334-682-0	01	1	1302-1304	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1305-	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1302-1304	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1305-	●	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98060-780-0	01	1	1302-1304	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98060-780-0	01	1	1305-1511	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1305-1511		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2> (B)	8-98060-780-0	01	1	1512-	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1512-		●
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4> (B)	8-98145-650-0	01	1	1302-1505	●
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98145-650-0	01	1	1506-	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-97186-398-1	01	1	1305-		●
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4> (D)	8-97606-990-1	01	1	1305-		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	02	1	1302-	●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=14.5 OD=46	8-97209-728-2	01	1	1302-1511	●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<NT2> ID=14.5 OD=46	8-97209-728-2	01	1	1512-	●
111	COLLAR; THRUST,IDLE GEAR EURO4 SPECIFICATION<NT4> ID=24 OD=60	8-94396-897-0	01	1	1302-1505	●
111	COLLAR; THRUST,IDLE GEAR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=24 OD=60	8-94396-897-0	01	1	1506-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1305-		●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1302-1304	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1305-	●	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	1302-	●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) Z=72-60-30	8-97600-586-1	01	1	1302-1304	●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) Z=72-60-30	8-97600-586-1	01	1	1305-1402	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1305-1402		●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) Z=72-60-30	8-98254-970-0	01	1	1403-1511	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-1511		●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2> (B) Z=72-60-30	8-98254-970-0	01	1	1512-	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1512-		●
112	GEAR; IDLE EURO4 SPECIFICATION<NT4> (B) Z=72-60-30	8-98145-647-1	01	1	1302-1505	●
112	GEAR; IDLE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) Z=72-60-30	8-98145-647-1	01	1	1506-	●
112	GEAR; IDLE (E) Z=34	8-97120-005-1	01	1	1305-		●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) Z=41	8-97606-929-0	01	1	1305-		●
112	GEAR; IDLE EURO4 SPECIFICATION<NT4> (D) Z=41	8-98058-320-1	01	1	1305-		●

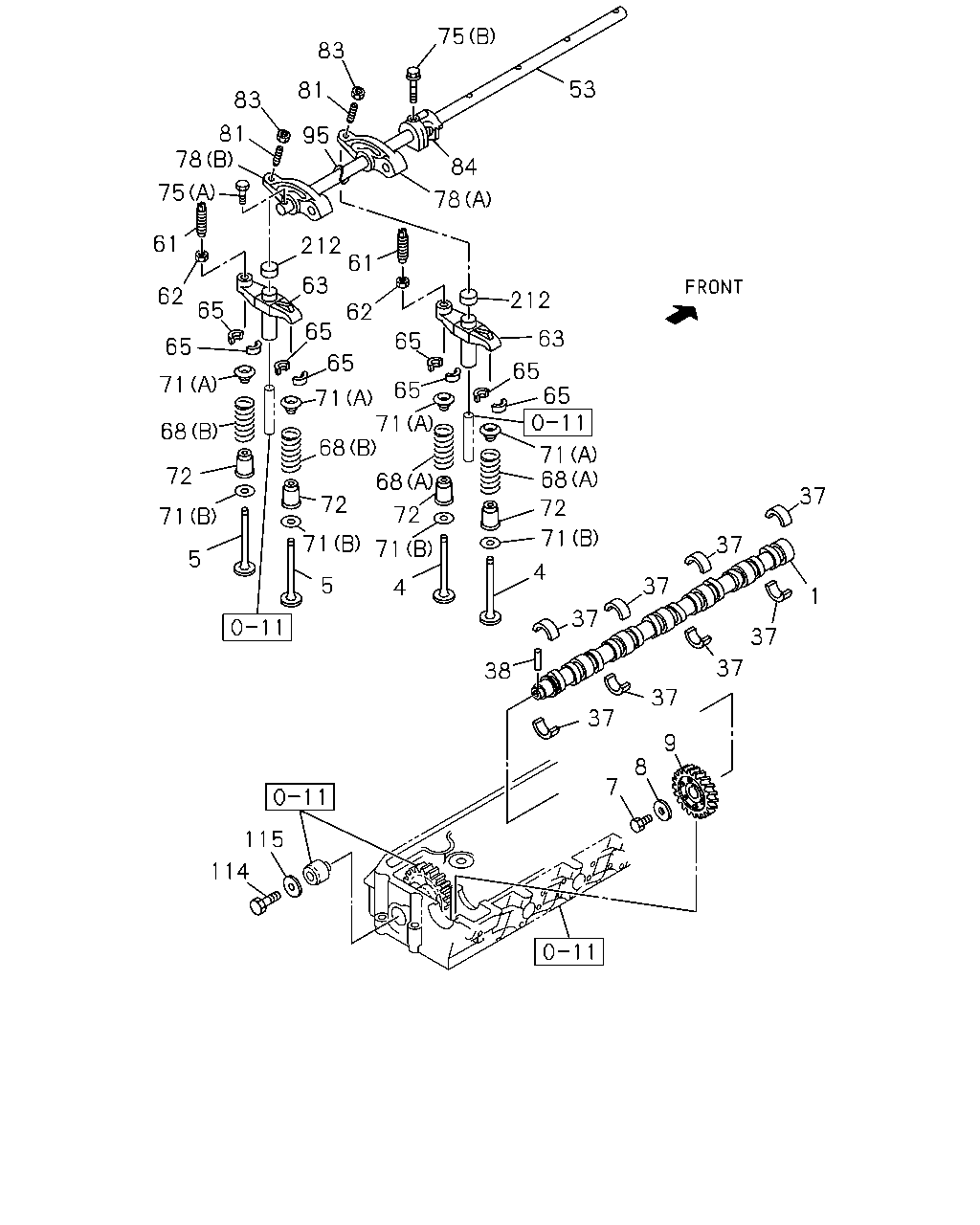

75 53 84 78 212 65 63 65 71 72 68 71 4 38 37 37 37 37 37 37 37 37 1 7 9 8 115 114 4 71 72 68 71 65 65 61 62 212 63 65 71 65 68 72 71 5 83 81 95 83 81 78 75 61 62 65 65 71 68 71 72 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97601-438-0	01	1	1302-1311	●
1	CAMSHAFT	8-98227-261-1	01	1	1312-	●
1	CAMSHAFT	8-97262-166-0	01	1	1305-		●
4	VALVE; INL	8-94395-882-2	12	1	1302-	●
4	VALVE; INL	8-94395-882-2	08	1	1305-		●
5	VALVE; EXH	8-97209-876-4	12	1	1302-	●
5	VALVE; EXH	8-97209-876-4	08	1	1305-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1302-1304	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1305-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1302-	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1302-	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1305-		●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	1302-	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	1302-	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1305-		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	1302-	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1302-	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1305-		●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1302-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1305-		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1302-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	1305-		●
63	BRIDGE	8-94392-002-3	12	1	1302-	●
63	BRIDGE	8-94392-002-3	08	1	1305-		●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1302-	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1305-		●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1302-	●
68	SPRING; VLV EURO2 SPECIFICATION<NT2> (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	1302-	●
68	SPRING; VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) EXHAUST MARK RED	8-97210-682-0	12	1	1302-1505	●
68	SPRING; VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) EXHAUST MARK RED	8-97210-682-0	12	1	1506-1511	●
68	SPRING; VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) EXHAUST MARK RED	8-97210-682-0	12	1	1512-	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1305-		●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1305-		●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1302-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1302-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1305-		●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1305-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1302-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1305-		●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	1302-	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	1302-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1302-	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1302-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1305-		●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1305-		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1302-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1305-		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1302-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1305-		●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	1302-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1302-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1305-		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	1302-	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	1302-	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	1302-	●

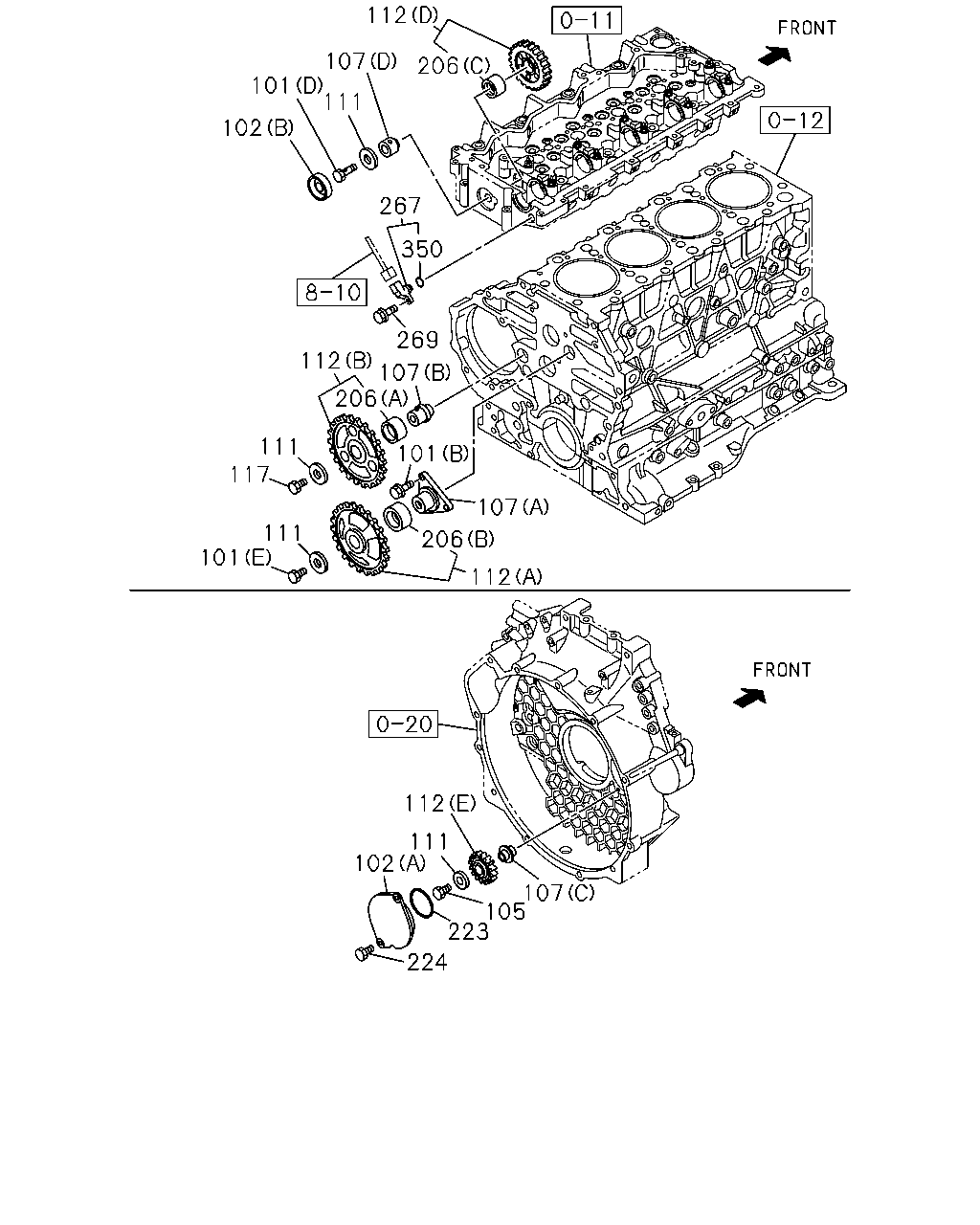

107 105 223 224 102 112 111 112 206 107 101 111 101 117 111 206 107 269 112 350 267 111 101 102 107 112 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	1302-	●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	1302-	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1302-1304	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1305-	●	●
101	BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	1305-		●
101	BOLT; THRUST COLLAR (E) M14X25	9-92361-425-0	01	1	1305-1310		●
101	BOLT; THRUST COLLAR (E) M14X25	0-23951-425-0	01	1	1311-		●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1305-		●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1305-		●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1302-	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1305-		●
107	SHAFT; IDLE GEAR (C)	8-94334-682-0	01	1	1302-1304	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1305-	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1302-1304	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1305-	●	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98060-780-0	01	1	1302-1304	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98060-780-0	01	1	1305-1511	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1305-1511		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2> (B)	8-98060-780-0	01	1	1512-	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1512-		●
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4> (B)	8-98145-650-0	01	1	1302-1505	●
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98145-650-0	01	1	1506-	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-97186-398-1	01	1	1305-		●
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4> (D)	8-97606-990-1	01	1	1305-		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	02	1	1302-	●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ID=14.5 OD=46	8-97209-728-2	01	1	1302-1511	●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<NT2> ID=14.5 OD=46	8-97209-728-2	01	1	1512-	●
111	COLLAR; THRUST,IDLE GEAR EURO4 SPECIFICATION<NT4> ID=24 OD=60	8-94396-897-0	01	1	1302-1505	●
111	COLLAR; THRUST,IDLE GEAR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=24 OD=60	8-94396-897-0	01	1	1506-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1305-		●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1302-1304	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1305-	●	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	1302-	●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) Z=72-60-30	8-97600-586-1	01	1	1302-1304	●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) Z=72-60-30	8-97600-586-1	01	1	1305-1402	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1305-1402		●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) Z=72-60-30	8-98254-970-0	01	1	1403-1511	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-1511		●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2> (B) Z=72-60-30	8-98254-970-0	01	1	1512-	●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1512-		●
112	GEAR; IDLE EURO4 SPECIFICATION<NT4> (B) Z=72-60-30	8-98145-647-1	01	1	1302-1505	●
112	GEAR; IDLE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) Z=72-60-30	8-98145-647-1	01	1	1506-	●
112	GEAR; IDLE (E) Z=34	8-97120-005-1	01	1	1305-		●
112	GEAR; IDLE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) Z=41	8-97606-929-0	01	1	1305-		●
112	GEAR; IDLE EURO4 SPECIFICATION<NT4> (D) Z=41	8-98058-320-1	01	1	1305-		●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1305-		●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	1305-1402		●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-		●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1305-		●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1305-		●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1305-		●
224	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1305-		●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	1305-		●
269	BOLT; SENSOR M6X12 FLANGE	0-28050-612-0	01	1	1305-		●
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8	8-97369-404-0	01	1	1305-		●

57 83 81 83 81 87 82 63 61 65 62 65 65 61 62 65 65 71 68 72 71 5 5 71 71 72 72 68 68 71 71 65 4 4 71 72 68 71 65 65 63 82 78 95 53 78 96 37 37 37 37 37 37 37 37 37 37 12 1 9 45 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97601-438-0	01	1	1302-1311	●
1	CAMSHAFT	8-98227-261-1	01	1	1312-	●
1	CAMSHAFT	8-97262-166-0	01	1	1305-		●
4	VALVE; INL	8-94395-882-2	12	1	1302-	●
4	VALVE; INL	8-94395-882-2	08	1	1305-		●
5	VALVE; EXH	8-97209-876-4	12	1	1302-	●
5	VALVE; EXH	8-97209-876-4	08	1	1305-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1302-1304	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1305-	●	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1302-	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1305-		●
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	1305-		●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	1302-	●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	1302-	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1305-		●
45	WASHER; GEAR CAM ID=14.5	9-09851-850-3	01	1	1305-		●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1302-	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1305-		●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1305-		●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1302-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1305-		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1302-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	1305-		●
63	BRIDGE	8-94392-002-3	12	1	1302-	●
63	BRIDGE	8-94392-002-3	08	1	1305-		●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1302-	●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1305-		●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1302-	●
68	SPRING; VLV EURO2 SPECIFICATION<NT2> (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	1302-	●
68	SPRING; VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) EXHAUST MARK RED	8-97210-682-0	12	1	1302-1505	●
68	SPRING; VLV EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) EXHAUST MARK RED	8-97210-682-0	12	1	1506-1511	●
68	SPRING; VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) EXHAUST MARK RED	8-97210-682-0	12	1	1512-	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1305-		●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1305-		●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1302-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1302-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1305-		●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1305-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1302-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1305-		●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1302-	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1302-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1305-		●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1305-		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1302-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1305-		●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	1305-		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1302-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1305-		●
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28050-840-0	02	1	1305-		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1302-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1305-		●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1305-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
