0-13 — OIL PAN AND LEVEL GAUGE (#113856) — 57 parça

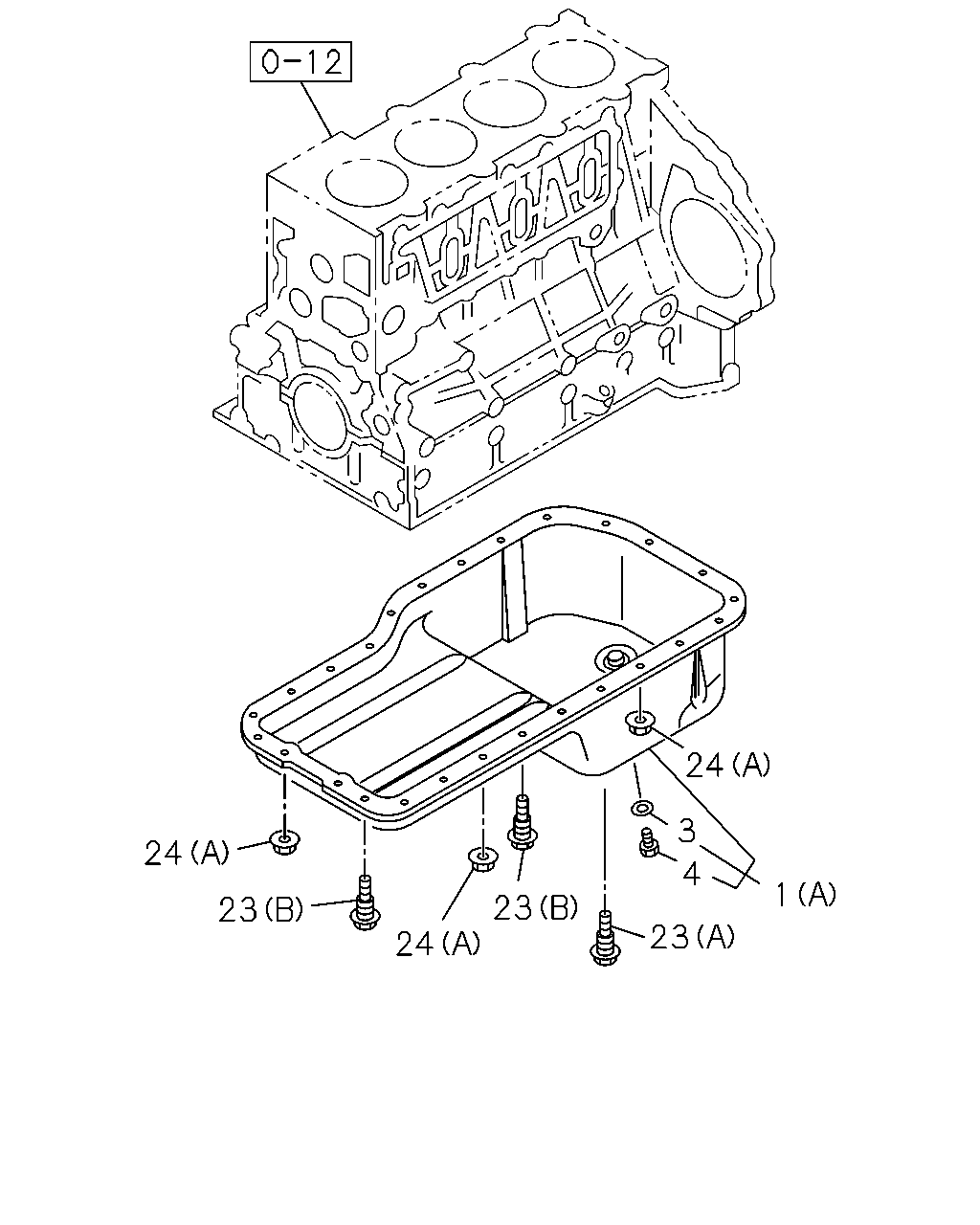

24 23 24 23 23 1 4 24 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL EURO5 SPECIFICATION<NT5> (B)	8-97386-772-0	01	1	1506-	●
1	PAN ASM; OIL (A)	8-98191-050-0	01	1	1302-1511	●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A)	8-98191-050-0	01	1	1512-	●
1	PAN ASM; OIL (A)	8-98191-050-0	01	1	1512-		●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1302-	●	●
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	1302-	●	●
23	BOLT; OIL PAN EURO5 SPECIFICATION<NT5> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1506-	●
23	BOLT; OIL PAN (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1302-1511	●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1512-	●
23	BOLT; OIL PAN (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1512-		●
23	BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	1302-1511	●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (B) M8X14	8-97047-005-0	18	1	1512-	●
23	BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	1512-		●
24	NUT; OIL PAN EURO5 SPECIFICATION<NT5> (B) M8 FLANGE	0-91180-108-0	13	1	1506-	●
24	NUT; OIL PAN (A) M8 W/LK WASHER	8-97581-234-0	07	1	1302-1511	●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) M8 W/LK WASHER	8-97581-234-0	07	1	1512-	●
24	NUT; OIL PAN (A) M8 W/LK WASHER	8-97581-234-0	07	1	1512-		●

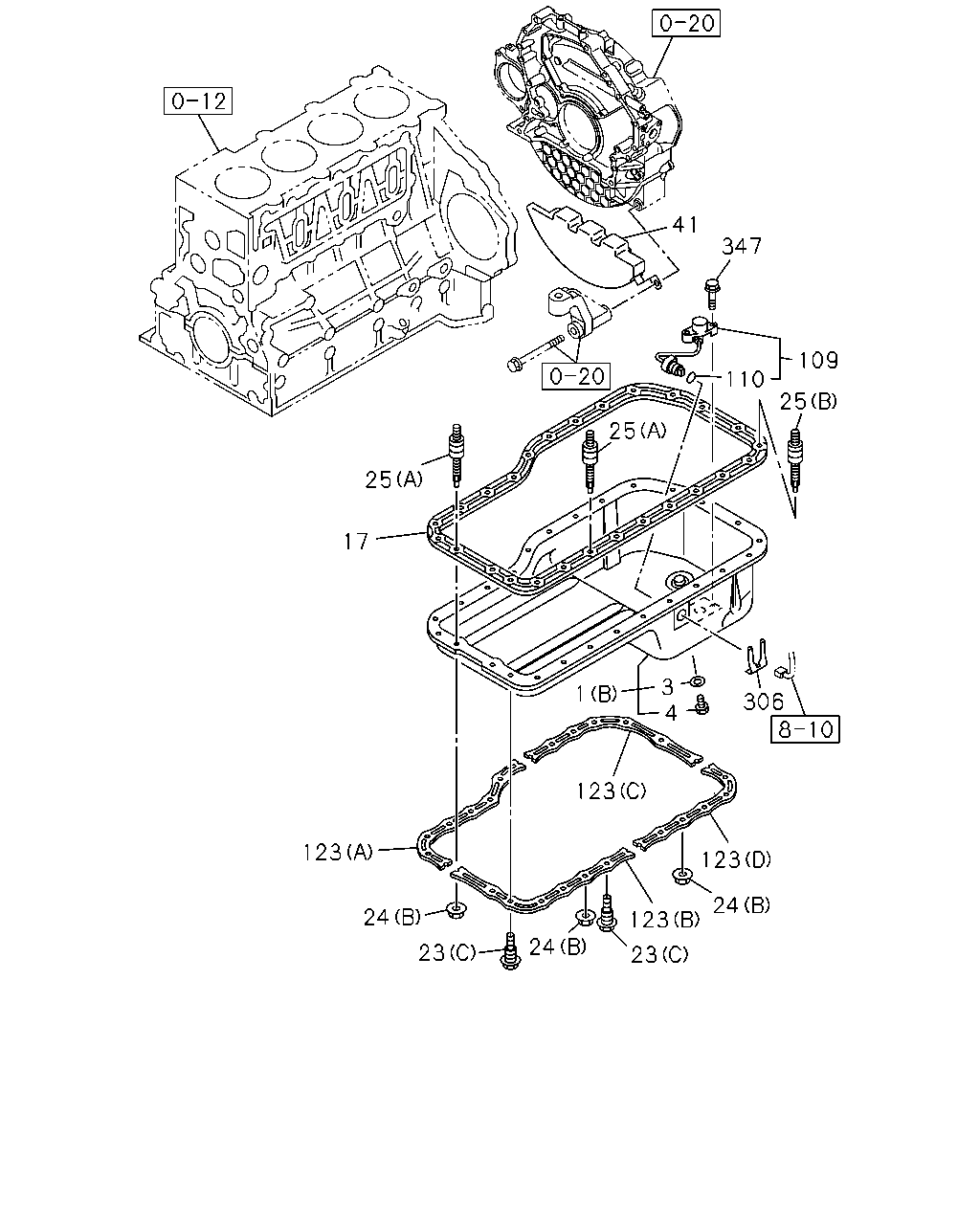

41 347 110 109 25 25 25 17 1 3 4 306 123 123 24 123 24 24 123 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL EURO5 SPECIFICATION<NT5> (B)	8-97386-772-0	01	1	1506-	●
1	PAN ASM; OIL (A)	8-98191-050-0	01	1	1302-1511	●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A)	8-98191-050-0	01	1	1512-	●
1	PAN ASM; OIL (A)	8-98191-050-0	01	1	1512-		●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1302-	●	●
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	1302-	●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5>	8-97364-386-0	01	1	1506-	●
23	BOLT; OIL PAN EURO5 SPECIFICATION<NT5> (C) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1506-	●
23	BOLT; OIL PAN (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1302-1511	●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1512-	●
23	BOLT; OIL PAN (A) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1512-		●
23	BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	1302-1511	●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (B) M8X14	8-97047-005-0	18	1	1512-	●
23	BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	1512-		●
24	NUT; OIL PAN EURO5 SPECIFICATION<NT5> (B) M8 FLANGE	0-91180-108-0	13	1	1506-	●
24	NUT; OIL PAN (A) M8 W/LK WASHER	8-97581-234-0	07	1	1302-1511	●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) M8 W/LK WASHER	8-97581-234-0	07	1	1512-	●
24	NUT; OIL PAN (A) M8 W/LK WASHER	8-97581-234-0	07	1	1512-		●
25	STUD; OIL PAN EURO5 SPECIFICATION<NT5> (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1506-	●
25	STUD; OIL PAN EURO5 SPECIFICATION<NT5> (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1506-	●
41	RUBBER; SPACE EURO5 SPECIFICATION<NT5>	8-97380-615-0	01	1	1506-	●
109	SWITCH; OIL LEVEL EURO5 SPECIFICATION<NT5>	8-97328-993-1	01	1	1506-	●
110	GASKET; SW,OIL LEVEL EURO5 SPECIFICATION<NT5>	8-98048-191-0	01	1	1506-	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (A)	8-97186-988-0	01	1	1506-	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (B)	8-97186-994-0	01	1	1506-	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (C)	8-97186-998-0	01	1	1506-	●
123	RUBBER; SEAL OIL EURO5 SPECIFICATION<NT5> (D)	8-97187-000-0	01	1	1506-	●
306	CLIP; CONNECTOR EURO5 SPECIFICATION<NT5>	8-97229-219-0	01	1	1506-	●
347	BOLT; OIL LEVEL SW EURO5 SPECIFICATION<NT5> M6X25 FLANGE	0-28650-625-0	02	1	1506-	●

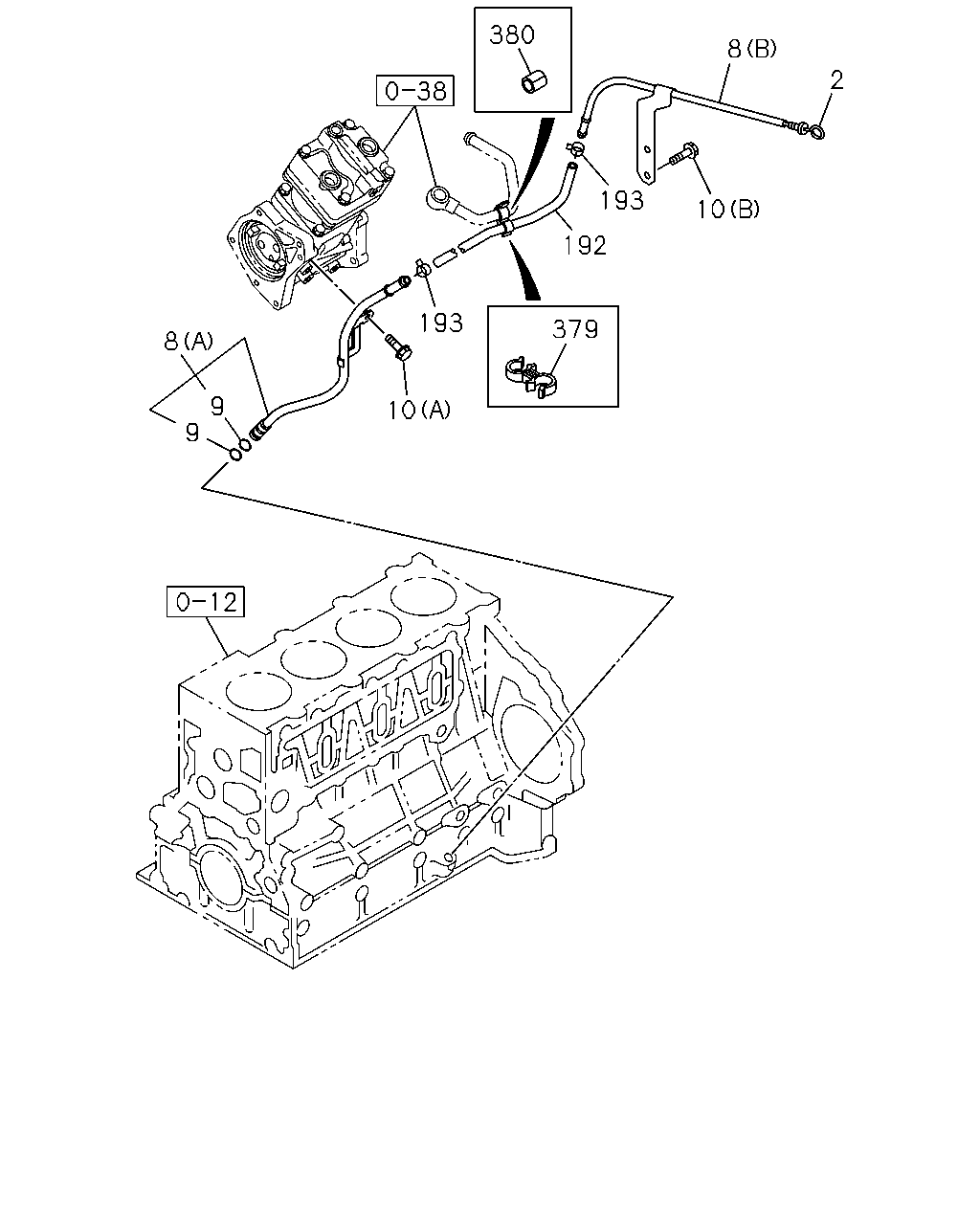

10 193 8 9 9 380 192 193 8 2 10 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GAUGE; OIL LEVEL	8-98085-153-0	01	1	1302-1406	●	●
2	GAUGE; OIL LEVEL	8-98245-514-0	01	1	1407-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98009-115-1	01	1	1302-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98010-328-1	01	1	1302-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	1302-	●	●
10	BOLT; GUIDE TUBE (A) M6X12 FLANGE	0-28050-612-0	01	1	1302-	●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●
192	HOSE; GUIDE TUBE L=300	1-09360-978-0	01	1	1302-	●	●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	1302-	●	●
379	CLIP; PIPE TO HOSE ID=18 & 18	8-94323-068-0	01	1	1302-	●	●
380	PROTECTOR; PIPE ID=18 L=40	8-98070-445-0	01	1	1302-	●	●
