1-31 — AIR DUCT (#11385) — 126 parça

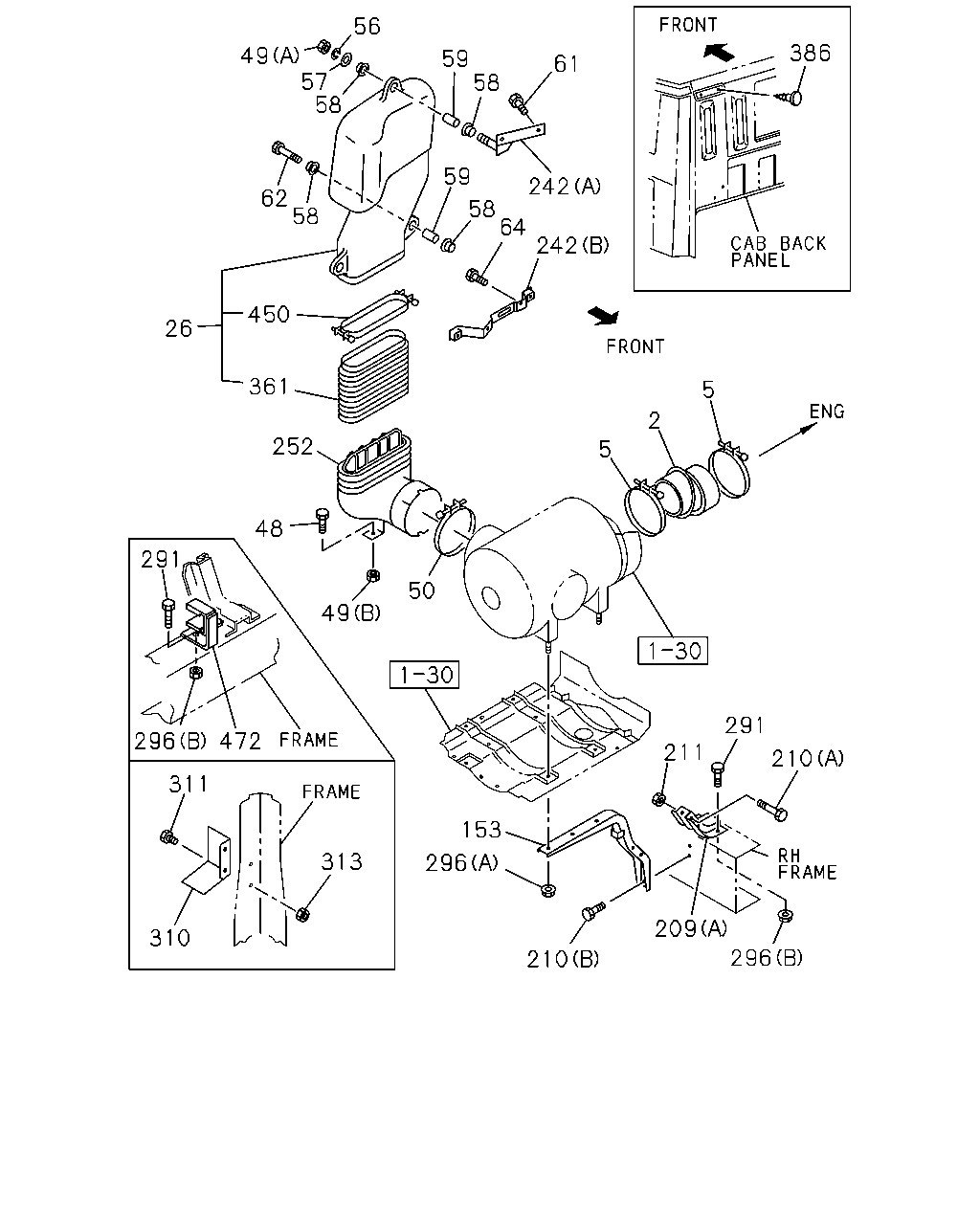

386 61 58 59 56 49 57 58 62 58 59 58 64 242 242 450 26 361 252 48 50 49 291 296 472 311 313 310 210 296 153 296 209 210 291 211 5 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-871-0	01	1	0106-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0106-
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-938-0	01	1	0106-
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-152-0	01	1	0106-
48	BOLT; AIR DUCT M10X25 FLANGE	0-28681-025-0	01	1	0106-0512
48	BOLT; AIR DUCT M10X25 FLANGE	0-28651-025-0	01	1	0601-
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0106-
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0106-0602
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0106-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0106-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-185-0	02	1	0106-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-185-0	01	1	0106-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0106-0110
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0106-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0106-0110
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	0106-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	0106-
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0106-
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0106-
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17>	1-79998-228-0	03	1	0106-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0106-
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28081-080-0	01	1	0106-0512
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28051-080-0	01	1	0601-
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X26	1-09030-044-1	01	1	0106-
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	0106-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0106-
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0106-
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0106-
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0106-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0106-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0106-0512
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0106-0512
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-0602
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0106-
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0106-
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0106-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0106-
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-191-0	01	1	0106-
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0106-0512
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0106-0602
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0106-0602
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-
310	PROTECTOR; HEAT,ACL	1-14181-287-1	01	1	0106-
311	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
311	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0601-
313	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	0106-0602
313	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	01	1	0603-
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0106-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0106-
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0106-
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0106-

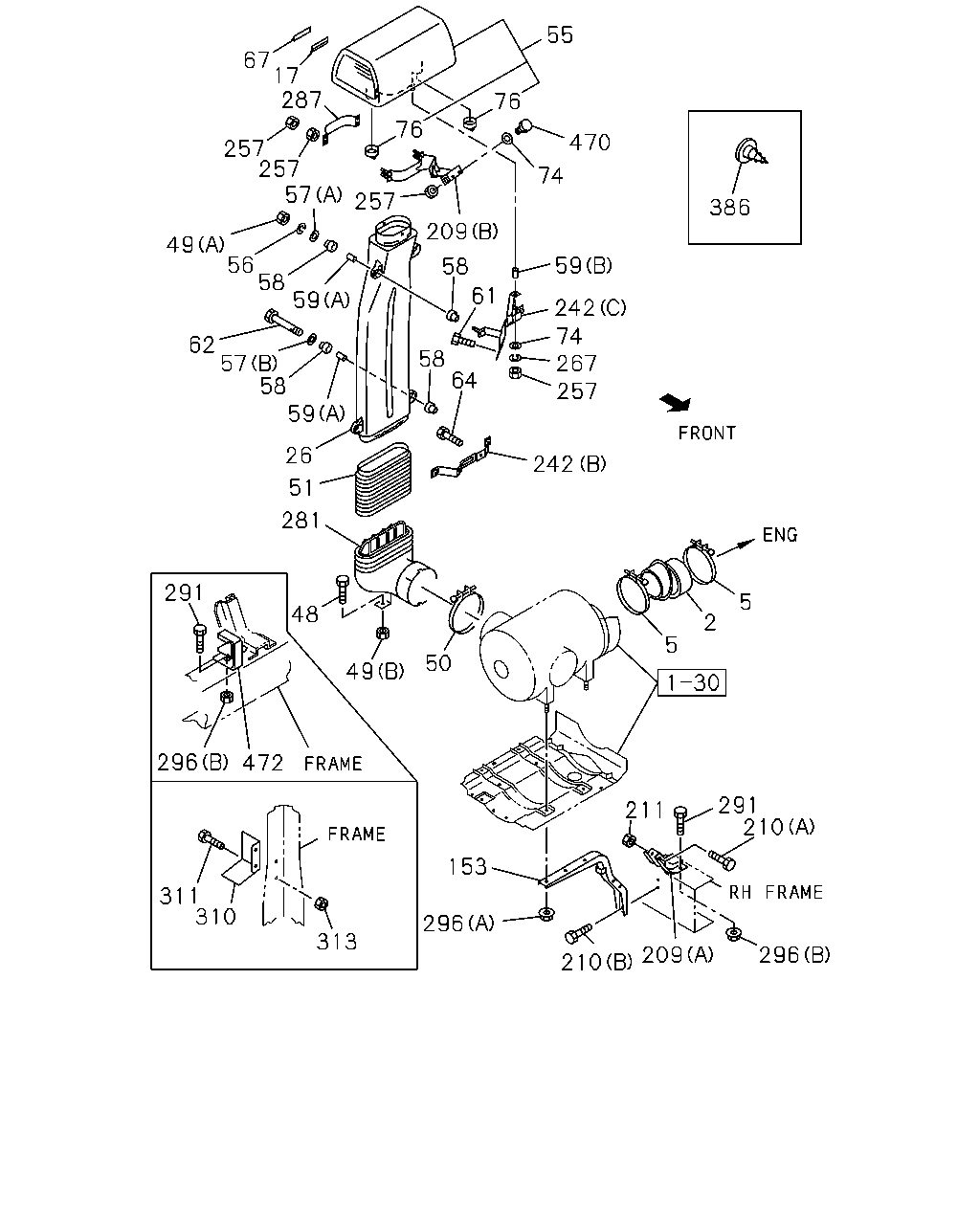

386 55 470 76 74 76 67 17 287 257 257 57 257 209 58 61 59 242 74 267 257 242 64 58 59 58 56 49 62 57 58 59 26 51 281 291 48 49 50 472 296 311 310 313 153 296 210 296 210 291 211 5 2 5 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-871-0	01	1	0106-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0106-
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	0106-
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-938-0	01	1	0106-
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-152-0	01	1	0106-
48	BOLT; AIR DUCT M10X25 FLANGE	0-28681-025-0	01	1	0106-0512
48	BOLT; AIR DUCT M10X25 FLANGE	0-28651-025-0	01	1	0601-
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0106-
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0106-0602
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0106-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0106-
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	0106-
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	0106-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-185-0	02	1	0106-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-185-0	01	1	0106-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0106-0110
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0106-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0106-0110
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	0106-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	0106-
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0106-
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0106-
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17>	1-79998-228-0	03	1	0106-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0106-
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28081-080-0	01	1	0106-0512
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28051-080-0	01	1	0601-
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X26	1-09030-044-1	01	1	0106-
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	0106-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0106-
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	0106-
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	0106-
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	0106-
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0106-
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0106-
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0106-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0106-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0106-0512
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0106-0512
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-0602
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0106-
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0106-
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0106-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0106-
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	0106-
267	WASHER; LK,ACL PRE CLEANER<W17> ID=10	1-09985-180-0	01	1	0106-
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-191-0	01	1	0106-
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	0106-
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0106-0512
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0106-0602
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0106-0602
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-
310	PROTECTOR; HEAT,ACL	1-14181-287-1	01	1	0106-
311	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
311	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0601-
313	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	0106-0602
313	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	01	1	0603-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0106-
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	0106-
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
