0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#113848) — 113 parça

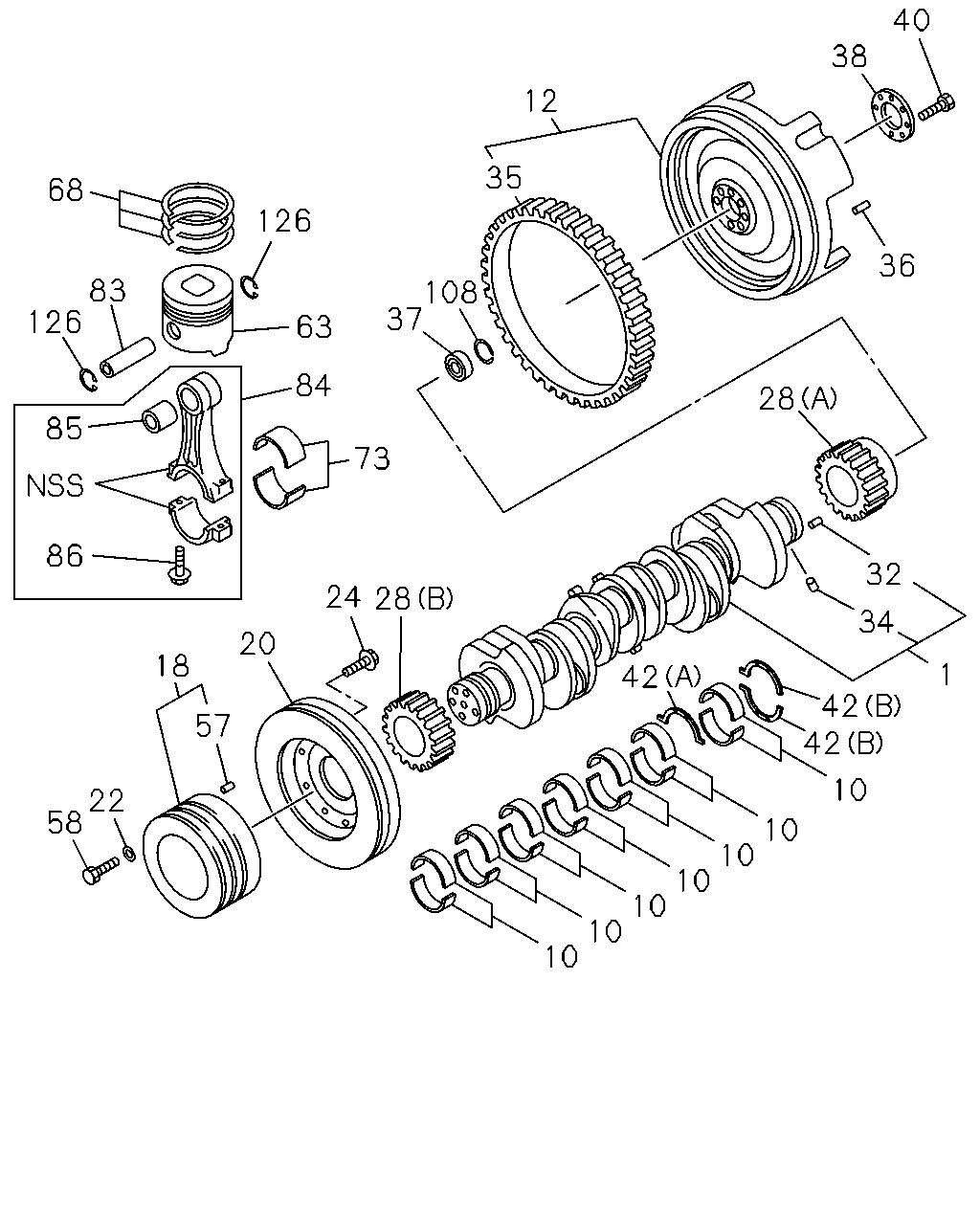

1 32 28 36 40 38 12 35 108 37 73 24 28 20 84 63 126 68 85 83 126 86 18 57 22 58 10 10 10 10 10 10 42 42 10 34 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97603-004-0	01	1	1302-	●
1	CRANKSHAFT	8-98029-270-0	01	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1302-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1302-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1302-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1305-		●
12	FLYWHEEL	8-97602-463-2	01	1	1302-	●
12	FLYWHEEL	8-98056-355-2	01	1	1305-		●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1302-	●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1302-	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1302-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1302-	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1305-		●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1302-	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1302-	●
28	GEAR; CR/SHF (C) Z=42	8-94394-342-4	01	1	1305-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1302-	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1302-1304	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1305-	●	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1302-	●
35	GEAR; RING Z=143	8-97375-675-1	01	1	1305-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	1302-	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	1302-	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	1302-	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1302-1304	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1305-	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	1302-	●
40	BOLT; FLYWHEEL M16X51	8-94334-870-1	08	1	1305-		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1302-1304	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1305-	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1302-1304	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1305-	●	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1302-	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1305-		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1302-	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO5 SPECIFICATION<NT5> NON GRADE	8-98215-307-0	06	1	1506-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1302-1405	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> NON GRADE	8-98041-141-2	06	1	1406-1511	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> NON GRADE	8-98041-141-2	06	1	1512-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98215-307-0	04	1	1305-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1302-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1305-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1302-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1302-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1305-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1305-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1302-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1305-		●
84	ROD ASM; CONN	8-98018-425-3	06	1	1302-	●
84	ROD ASM; CONN	8-98018-425-3	04	1	1305-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1302-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1305-		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1302-	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1305-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	1302-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1302-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1305-		●

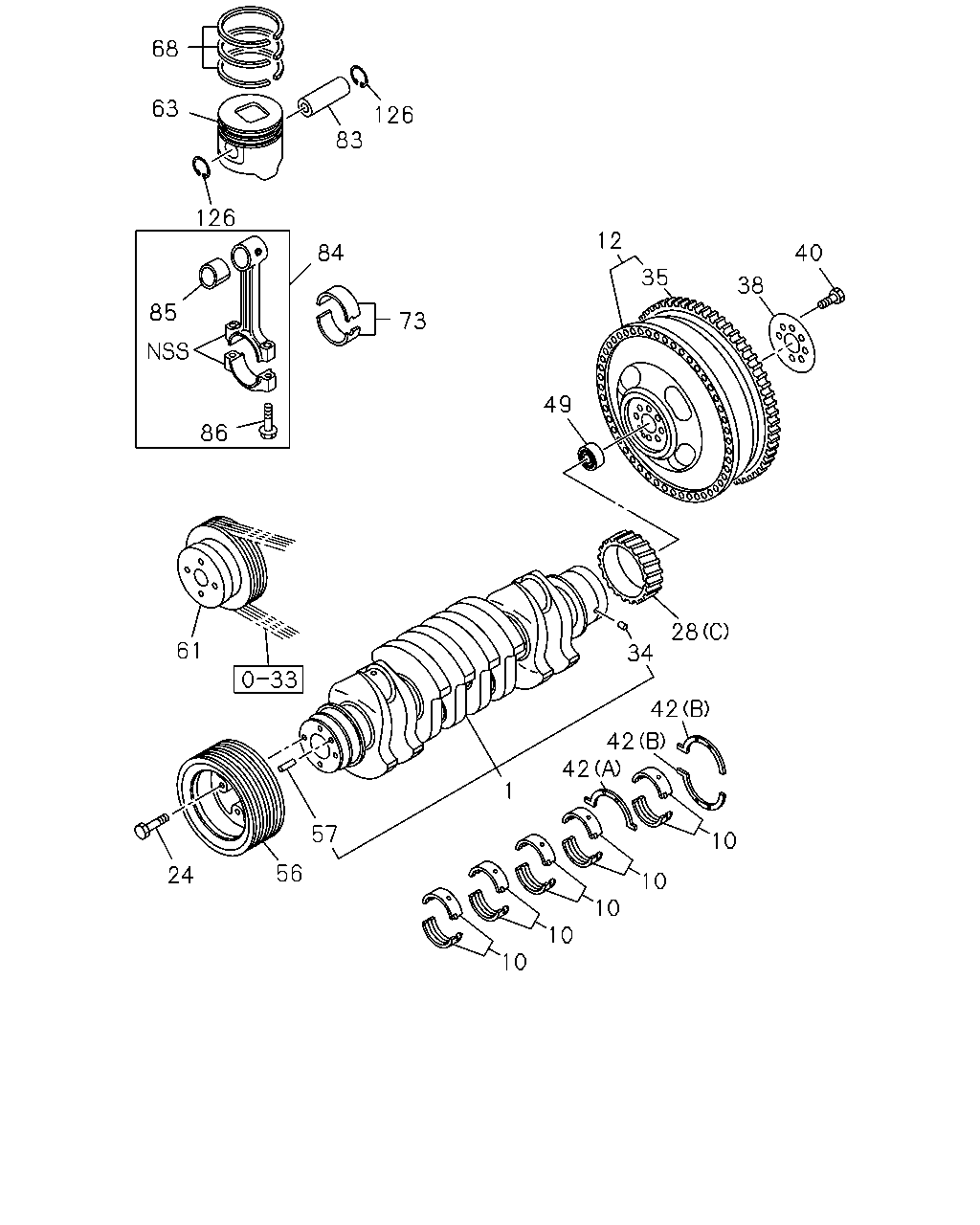

68 63 83 126 84 126 73 85 86 61 24 56 57 49 12 38 35 40 28 34 42 42 42 10 10 10 10 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97603-004-0	01	1	1302-	●
1	CRANKSHAFT	8-98029-270-0	01	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1302-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1302-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1302-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1305-		●
12	FLYWHEEL	8-97602-463-2	01	1	1302-	●
12	FLYWHEEL	8-98056-355-2	01	1	1305-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1302-	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1305-		●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1302-	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1302-	●
28	GEAR; CR/SHF (C) Z=42	8-94394-342-4	01	1	1305-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1302-1304	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1305-	●	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1302-	●
35	GEAR; RING Z=143	8-97375-675-1	01	1	1305-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1302-1304	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1305-	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	1302-	●
40	BOLT; FLYWHEEL M16X51	8-94334-870-1	08	1	1305-		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1302-1304	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1305-	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1302-1304	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1305-	●	●
49	BEARING; PILOT	8-97258-239-0	01	1	1305-		●
49	BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1305-		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1305-		●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1302-	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1305-		●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1305-		●
63	PISTON ALSO INCLUDED IN LINER SET. EURO5 SPECIFICATION<NT5> NON GRADE	8-98215-307-0	06	1	1506-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1302-1405	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> NON GRADE	8-98041-141-2	06	1	1406-1511	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> NON GRADE	8-98041-141-2	06	1	1512-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98215-307-0	04	1	1305-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1302-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1305-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1302-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1302-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1305-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1305-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1302-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1305-		●
84	ROD ASM; CONN	8-98018-425-3	06	1	1302-	●
84	ROD ASM; CONN	8-98018-425-3	04	1	1305-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1302-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1305-		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1302-	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1305-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1302-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1305-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
