◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#113834) — 120 parça

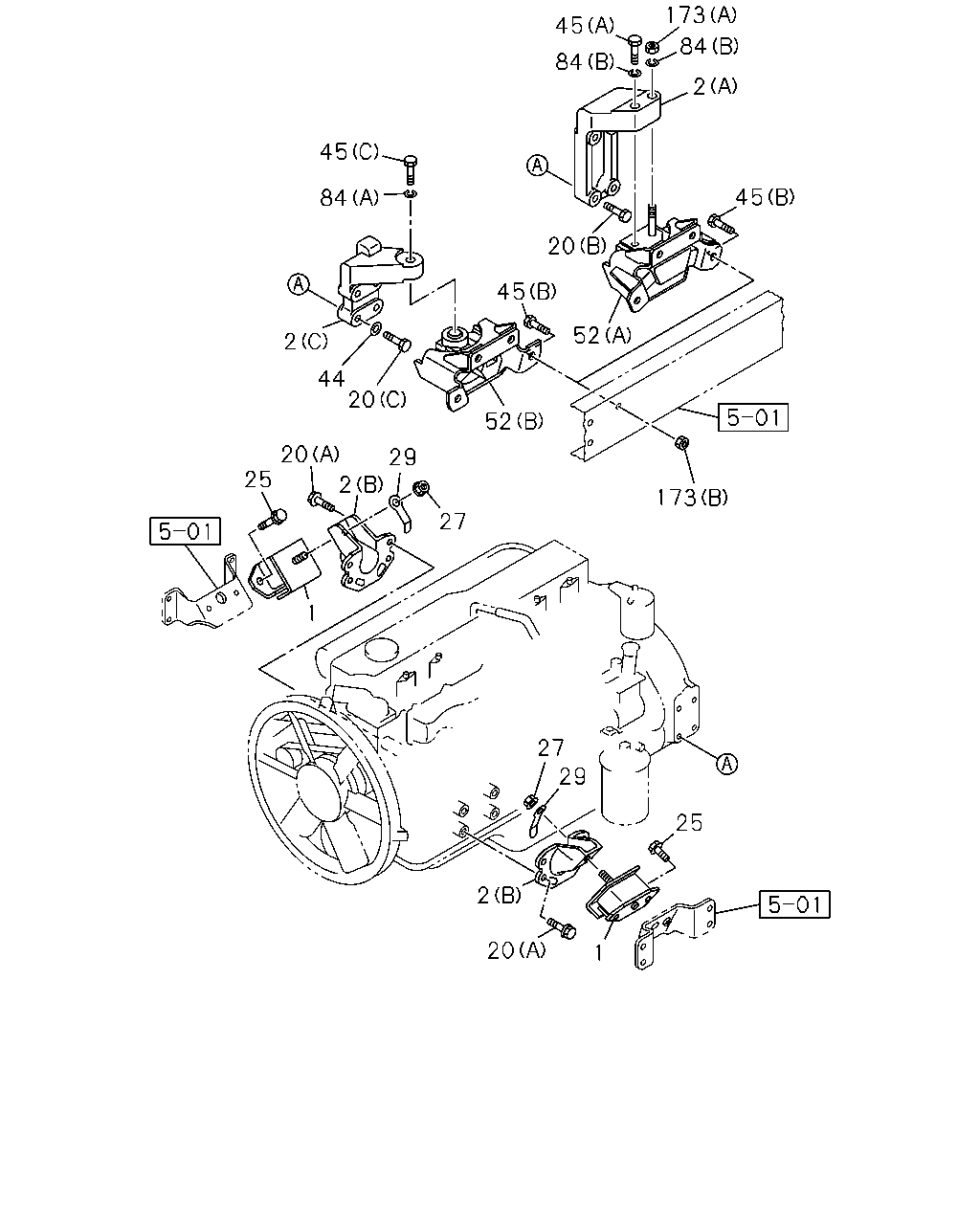

çizim 326269
173 45 84 84 2 45 20 45 52 173 52 20 44 2 20 25 29 27 2 27 29 25 2 20 45 84 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1302-1505 ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1506- ● ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1305- ●
2 FOOT; ENG
MZW6P M/T(RSZ) (D) 		8-97611-988-0 01 1 1302-1511 ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (D) 		8-97611-988-0 01 1 1512- ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-97611-988-0 01 1 1512- ●
2 FOOT; ENG
EURO4 SPECIFICATION<NT4> MZW6P M/T(RSZ) EXC. GLOW SYSTEM DELETE<7RK> (D) 		8-97611-988-0 01 1 1512- ●
2 FOOT; ENG
MZW6P M/T(RSZ) (D) 		8-97611-989-0 01 1 1302-1511 ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (D) 		8-97611-989-0 01 1 1512- ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-97611-989-0 01 1 1512- ●
2 FOOT; ENG
EURO4 SPECIFICATION<NT4> MZW6P M/T(RSZ) EXC. GLOW SYSTEM DELETE<7RK> (D) 		8-97611-989-0 01 1 1512- ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1302-1505 ● ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1506- ● ● ●
2 FOOT; ENG
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-97611-990-0 01 1 1302-1505 ● ●
2 FOOT; ENG
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-97611-990-0 01 1 1506-1511 ● ●
2 FOOT; ENG
(A) 		8-97611-990-0 01 1 1506-1511 ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-97611-990-0 01 1 1512- ●
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-97611-990-0 01 1 1512- ●
2 FOOT; ENG
(A) 		8-97611-990-0 01 1 1512- ● ●
2 FOOT; ENG
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-97611-991-0 01 1 1302-1505 ● ●
2 FOOT; ENG
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-97611-991-0 01 1 1506-1511 ● ●
2 FOOT; ENG
(A) 		8-97611-991-0 01 1 1506-1511 ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-97611-991-0 01 1 1512- ●
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-97611-991-0 01 1 1512- ●
2 FOOT; ENG
(A) 		8-97611-991-0 01 1 1512- ● ●
2 FOOT; ENG
(C) 		8-97376-076-1 02 1 1305- ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) (D) M12X50 		0-16956-250-0 08 1 1302-1511 ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (D) M12X50 		0-16956-250-0 08 1 1512- ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M12X50 		0-16956-250-0 08 1 1512- ●
20 BOLT; ENG FOOT
EURO4 SPECIFICATION<NT4> MZW6P M/T(RSZ) EXC. GLOW SYSTEM DELETE<7RK> (D) M12X50 		0-16956-250-0 08 1 1512- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1302-1505 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1506- ● ● ●
20 BOLT; ENG FOOT
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) M12X55 		8-94399-884-1 08 1 1302-1505 ● ●
20 BOLT; ENG FOOT
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) M12X55 		8-94399-884-1 08 1 1506-1511 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 1506-1511 ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12X55 		8-94399-884-1 08 1 1512- ●
20 BOLT; ENG FOOT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) M12X55 		8-94399-884-1 08 1 1512- ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 1512- ● ●
20 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28161-030-0 08 1 1305- ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1302- ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 1302- ● ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1302- ● ● ● ●
44 WASHER; LK,ENG FOOT
MZW6P M/T(RSZ) ID=12.5 		0-91614-512-0 08 1 1302-1511 ●
44 WASHER; LK,ENG FOOT
MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> ID=12.5 		0-91614-512-0 08 1 1512- ●
44 WASHER; LK,ENG FOOT
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=12.5 		0-91614-512-0 08 1 1512- ●
44 WASHER; LK,ENG FOOT
EURO4 SPECIFICATION<NT4> MZW6P M/T(RSZ) EXC. GLOW SYSTEM DELETE<7RK> ID=12.5 		0-91614-512-0 08 1 1512- ●
45 BOLT; CUSHION RUBBER TO FRAME
MZW6P M/T(RSZ) (C) M18X65 		8-94393-260-1 02 1 1302- ●
45 BOLT; CUSHION RUBBER TO FRAME
(B) M14X50 		0-29261-450-0 08 1 1302-1505 ● ●
45 BOLT; CUSHION RUBBER TO FRAME
(B) M14X50 		0-29261-450-0 08 1 1506- ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) M16X60 		0-10956-660-0 02 1 1302- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
MZW6P M/T(RSZ) (B) 		8-98013-021-1 02 1 1302- ●
52 RUBBER; CUSHION,ENG MTG,RR
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-98013-022-1 02 1 1302- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		8-97039-277-0 02 1 1305- ●
84 WASHER; PL,ENG MTG RR TO FRAME
MZW6P M/T(RSZ) (A) ID=19 OD=36 		0-91614-618-0 02 1 1302- ●
84 WASHER; PL,ENG MTG RR TO FRAME
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=17 		9-09164-516-0 04 1 1302- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
(C) ID=10.5 OD=32 		0-91614-810-0 04 1 1305- ●
173 NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE 		0-91180-214-0 08 1 1302-1505 ● ●
173 NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE 		0-91180-214-0 08 1 1506- ● ● ●
173 NUT; ENG MTG RR TO FRAME
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) M16 		0-91110-516-0 02 1 1302- ● ●
173 NUT; ENG MTG RR TO FRAME
(C) M10 FLANGE 		0-91180-210-0 04 1 1305- ●

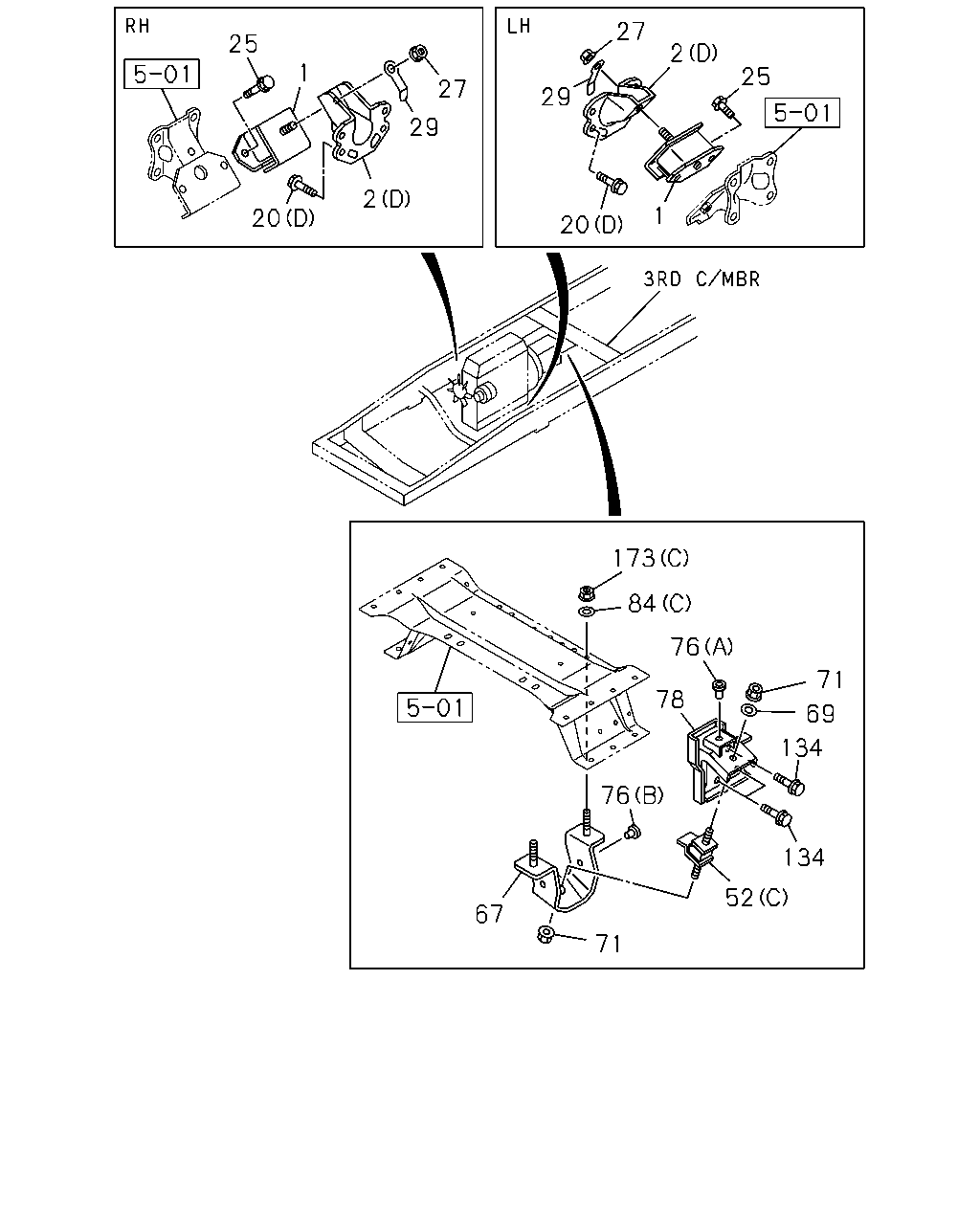

çizim 351886
25 27 29 2 20 27 25 29 20 1 173 84 76 71 69 134 134 52 71 67 76 78 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1302-1505 ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1506- ● ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-184-0 02 1 1305- ●
2 FOOT; ENG
MZW6P M/T(RSZ) (D) 		8-97611-988-0 01 1 1302-1511 ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (D) 		8-97611-988-0 01 1 1512- ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-97611-988-0 01 1 1512- ●
2 FOOT; ENG
EURO4 SPECIFICATION<NT4> MZW6P M/T(RSZ) EXC. GLOW SYSTEM DELETE<7RK> (D) 		8-97611-988-0 01 1 1512- ●
2 FOOT; ENG
MZW6P M/T(RSZ) (D) 		8-97611-989-0 01 1 1302-1511 ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (D) 		8-97611-989-0 01 1 1512- ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-97611-989-0 01 1 1512- ●
2 FOOT; ENG
EURO4 SPECIFICATION<NT4> MZW6P M/T(RSZ) EXC. GLOW SYSTEM DELETE<7RK> (D) 		8-97611-989-0 01 1 1512- ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1302-1505 ● ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1506- ● ● ●
2 FOOT; ENG
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-97611-990-0 01 1 1302-1505 ● ●
2 FOOT; ENG
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-97611-990-0 01 1 1506-1511 ● ●
2 FOOT; ENG
(A) 		8-97611-990-0 01 1 1506-1511 ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-97611-990-0 01 1 1512- ●
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-97611-990-0 01 1 1512- ●
2 FOOT; ENG
(A) 		8-97611-990-0 01 1 1512- ● ●
2 FOOT; ENG
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-97611-991-0 01 1 1302-1505 ● ●
2 FOOT; ENG
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-97611-991-0 01 1 1506-1511 ● ●
2 FOOT; ENG
(A) 		8-97611-991-0 01 1 1506-1511 ●
2 FOOT; ENG
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-97611-991-0 01 1 1512- ●
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-97611-991-0 01 1 1512- ●
2 FOOT; ENG
(A) 		8-97611-991-0 01 1 1512- ● ●
2 FOOT; ENG
(C) 		8-97376-076-1 02 1 1305- ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) (D) M12X50 		0-16956-250-0 08 1 1302-1511 ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (D) M12X50 		0-16956-250-0 08 1 1512- ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M12X50 		0-16956-250-0 08 1 1512- ●
20 BOLT; ENG FOOT
EURO4 SPECIFICATION<NT4> MZW6P M/T(RSZ) EXC. GLOW SYSTEM DELETE<7RK> (D) M12X50 		0-16956-250-0 08 1 1512- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1302-1505 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1506- ● ● ●
20 BOLT; ENG FOOT
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) M12X55 		8-94399-884-1 08 1 1302-1505 ● ●
20 BOLT; ENG FOOT
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) M12X55 		8-94399-884-1 08 1 1506-1511 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 1506-1511 ●
20 BOLT; ENG FOOT
MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> GLOW SYSTEM DELETE<7RK> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12X55 		8-94399-884-1 08 1 1512- ●
20 BOLT; ENG FOOT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) M12X55 		8-94399-884-1 08 1 1512- ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 1512- ● ●
20 BOLT; ENG FOOT
(C) M10X30 FLANGE 		0-28161-030-0 08 1 1305- ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1302- ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 1302- ● ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1302- ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
MZW6P M/T(RSZ) (B) 		8-98013-021-1 02 1 1302- ●
52 RUBBER; CUSHION,ENG MTG,RR
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) 		8-98013-022-1 02 1 1302- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		8-97039-277-0 02 1 1305- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-98055-142-0 02 1 1305- ●
69 WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4 		1-09503-045-0 02 1 1305- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91180-110-0 04 1 1305- ●
76 STOPPER; ENG MTG RUBBER
(A) 		8-94111-904-0 02 1 1305- ●
76 STOPPER; ENG MTG RUBBER
(B) 		8-97039-947-1 04 1 1305- ●
78 BRACKET; ENG MTG,RR 8-98180-441-1 01 1 1305- ●
78 BRACKET; ENG MTG,RR 8-98180-442-1 01 1 1305- ●
84 WASHER; PL,ENG MTG RR TO FRAME
MZW6P M/T(RSZ) (A) ID=19 OD=36 		0-91614-618-0 02 1 1302- ●
84 WASHER; PL,ENG MTG RR TO FRAME
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=17 		9-09164-516-0 04 1 1302- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
(C) ID=10.5 OD=32 		0-91614-810-0 04 1 1305- ●
134 BOLT; SUPPORT BRKT
M14X35 FLANGE 		0-28751-435-0 08 1 1305- ●
173 NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE 		0-91180-214-0 08 1 1302-1505 ● ●
173 NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE 		0-91180-214-0 08 1 1506- ● ● ●
173 NUT; ENG MTG RR TO FRAME
FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A) M16 		0-91110-516-0 02 1 1302- ● ●
173 NUT; ENG MTG RR TO FRAME
(C) M10 FLANGE 		0-91180-210-0 04 1 1305- ●
