10863 - EXR RHD FUEL TANK 200L+200L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

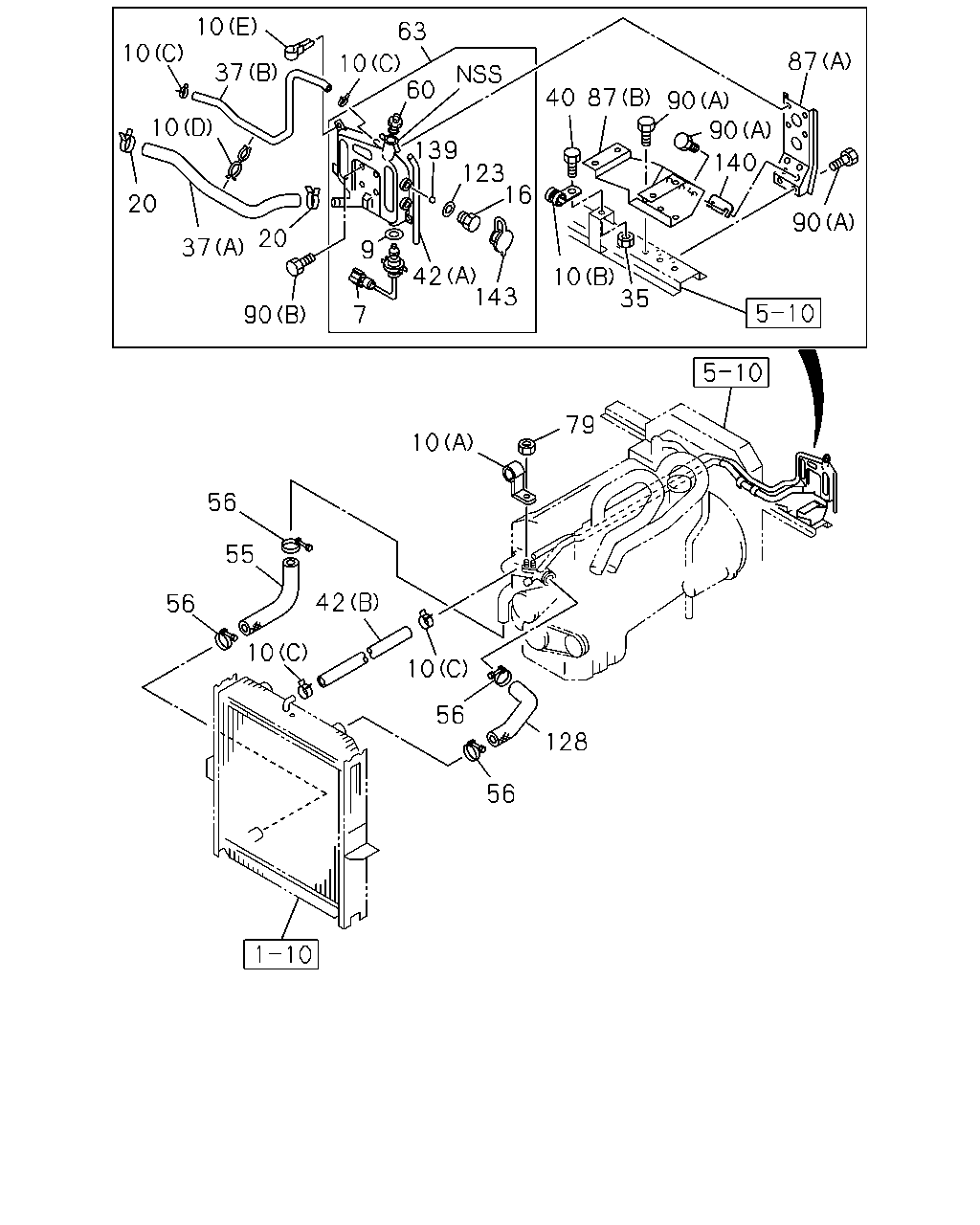

1-11 — RADIATOR HOSE AND SUB TANK
(#11383) — 34 parça
10
10
37
10
20
37
20
90
7
9
42
143
16
123
139
60
10
63
40
87
90
87
90
140
90
35
10
79
10
56
55
56
10
42
10
56
56
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0106-
9
GASKET; SWITCH
ID=28 T=2.5
1-09630-126-0
01
1
0106-
10
CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20
1-09700-606-0
01
1
0106-
10
CLIP; RUBBER HOSE
(B) ID=43 L=40
1-09700-624-2
01
1
0106-
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
04
1
0106-
10
CLIP; RUBBER HOSE
(D) ID=44 & 16
1-09709-125-0
04
1
0106-
10
CLIP; RUBBER HOSE
(E) ID=14 L=44
9-09917-427-0
02
1
0106-
16
PLUG; TANK
1-21464-514-0
02
1
0106-0205
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0106-
35
NUT
M10 FLANGE
0-91150-210-0
01
1
0106-0602
35
NUT
M10 FLANGE
0-91180-210-0
01
1
0603-
37
HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000
0-03559-300-0
01
1
0106-
37
HOSE; RUBBER
(A)
1-21437-583-0
01
1
0106-
40
BOLT; CLIP
M10X25 FLANGE
0-28681-025-0
01
1
0106-0512
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
01
1
0601-
42
HOSE; RUBBER
(B) L=560 SERVICED BY L=3000
0-03559-300-0
01
1
0106-
42
HOSE; RUBBER
(A) L=850
1-21489-154-0
01
1
0106-
55
HOSE; WATER,RAD OUTLET
1-21437-448-2
01
1
0106-
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
0106-
60
CAP; SUB TANK
1-21450-137-0
01
1
0106-
63
TANK ASM; SUB
1-21481-144-0
01
1
0106-0205
63
TANK ASM; SUB
1-21481-146-0
01
1
0206-
79
NUT; CLIP,HOSE
M8 FLANGE
0-91150-108-0
01
1
0106-0602
79
NUT; CLIP,HOSE
M8 FLANGE
0-91180-108-0
01
1
0603-
87
BRACKET; SUB TANK
(B)
1-21489-155-0
01
1
0106-
87
BRACKET; SUB TANK
(A)
1-21489-156-0
01
1
0106-
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28680-820-0
06
1
0106-0512
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28650-820-0
06
1
0601-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0106-
123
GASKET
ID=26.2
8-94399-716-1
02
1
0106-0205
128
HOSE; WATER,RAD INL
1-21437-495-1
01
1
0106-
139
FLOAT
1-21489-161-0
02
1
0106-0205
140
SHIM
T=0.8
1-53458-716-0
AR
1
0106-
143
COVER; PLUG
1-82389-017-0
02
1
0106-0205
