◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#113829) — 266 parça

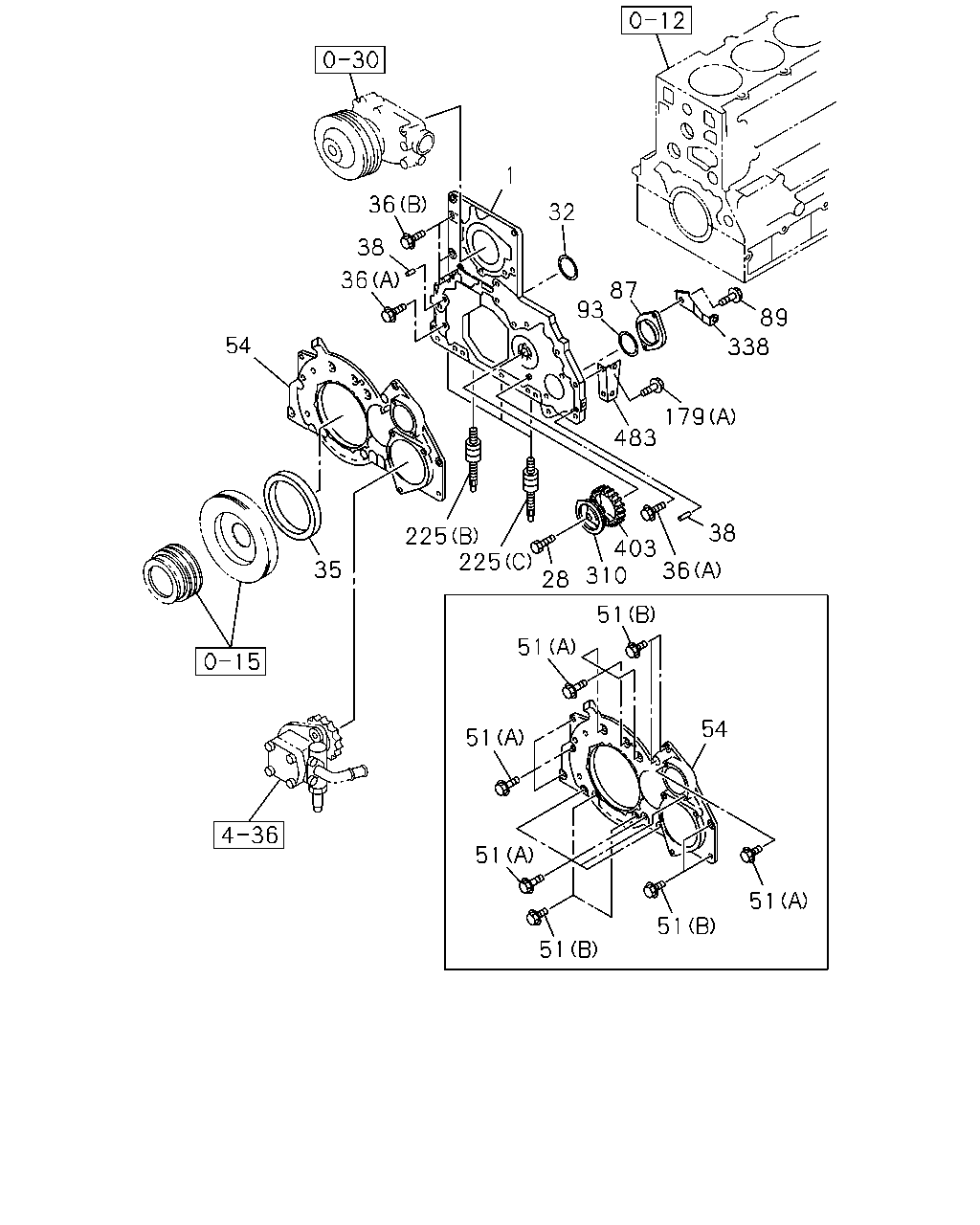

çizim 326208
1 87 93 32 89 338 179 483 38 36 403 310 28 225 225 35 54 36 38 36 51 51 51 54 51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CASE; TIMING GEAR
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-94396-434-6 01 1 1302-1505 ● ●
1 CASE; TIMING GEAR
EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-94396-434-6 01 1 1506-1511 ● ●
1 CASE; TIMING GEAR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> 		8-94396-434-6 01 1 1506-1511 ●
1 CASE; TIMING GEAR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-94396-434-6 01 1 1506-1511 ●
1 CASE; TIMING GEAR
EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-94396-434-6 01 1 1512- ● ●
1 CASE; TIMING GEAR
EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> 		8-94396-434-6 01 1 1512- ●
1 CASE; TIMING GEAR
EURO2 SPECIFICATION<NT2> 		8-94396-434-6 01 1 1512- ●
1 CASE; TIMING GEAR
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-94392-282-1 01 1 1302-1404 ●
1 CASE; TIMING GEAR
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-94392-282-1 01 1 1405-1505 ● ●
1 CASE; TIMING GEAR
EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-94392-282-1 01 1 1506- ● ●
1 CASE; TIMING GEAR
EURO5 SPECIFICATION<NT5> 		8-94392-282-1 01 1 1506- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 1302-1505 ● ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 1506- ● ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 1302-1505 ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 1506- ● ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 1302-1505 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 1506- ● ● ●
36 BOLT; GEAR CASE
(B) M8X35 FLANGE 		0-28050-835-0 04 1 1302-1505 ● ●
36 BOLT; GEAR CASE
(B) M8X35 FLANGE 		0-28050-835-0 04 1 1506- ● ● ●
36 BOLT; GEAR CASE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1302-1505 ● ●
36 BOLT; GEAR CASE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1506- ● ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 1302-1505 ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 1506- ● ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 1302-1505 ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 1506- ● ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 1302-1505 ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 1506- ● ● ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 1302-1505 ● ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 1506- ● ● ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 1302-1505 ● ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 1506- ● ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 1302-1505 ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 1506- ● ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7 		1-09623-465-0 01 1 1302-1505 ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7 		1-09623-465-0 01 1 1506- ● ● ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ● ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ● ● ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1302-1505 ● ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1506- ● ● ●
225 STUD; OIL PAN
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X28 L=38 		8-94396-512-0 04 1 1302-1505 ● ●
225 STUD; OIL PAN
EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X28 L=38 		8-94396-512-0 04 1 1506-1511 ● ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (A) M8X28 L=38 		8-94396-512-0 04 1 1506-1511 ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X28 L=38 		8-94396-512-0 04 1 1506-1511 ●
225 STUD; OIL PAN
EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X28 L=38 		8-94396-512-0 04 1 1512- ● ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (A) M8X28 L=38 		8-94396-512-0 04 1 1512- ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<NT2> (A) M8X28 L=38 		8-94396-512-0 04 1 1512- ●
225 STUD; OIL PAN
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1302-1404 ●
225 STUD; OIL PAN
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1405-1505 ● ●
225 STUD; OIL PAN
EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1506- ● ●
225 STUD; OIL PAN
(B) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1506- ●
225 STUD; OIL PAN
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1302-1404 ●
225 STUD; OIL PAN
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1405-1505 ● ●
225 STUD; OIL PAN
EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1506- ● ●
225 STUD; OIL PAN
(C) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1506- ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 1302-1505 ● ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 1506- ● ● ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 1302-1505 ● ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 1506- ● ● ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 1302-1505 ● ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 1506- ● ● ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 1302-1505 ● ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 1506- ● ● ●

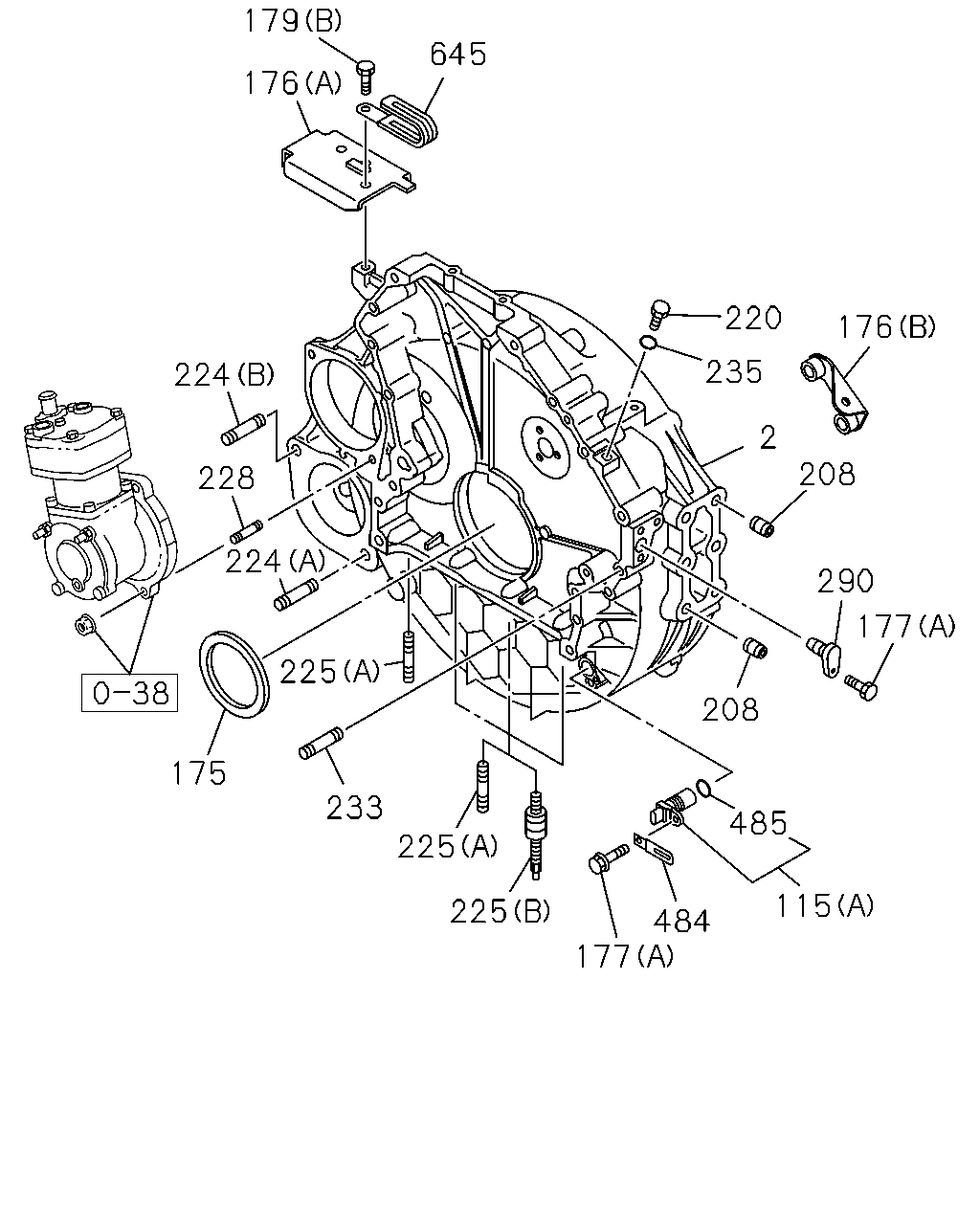

çizim 326210
179 645 176 224 228 224 225 233 225 225 177 115 485 208 177 290 208 2 235 176 220 175 484
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1302-1505 ● ●
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1506- ● ● ●
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1305-1509 ●
2 HOUSING; FLYWHEEL 8-98328-140-0 01 1 1510- ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-97606-943-0 01 1 1302-1505 ● ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-97606-943-0 01 1 1506- ● ● ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		8-98019-024-0 01 1 1302-1505 ● ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		8-98019-024-0 01 1 1506- ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1302-1304 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1305-1505 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1506- ● ● ● ●
176 BRACKET; HARNESS
(A) 		8-98076-212-0 01 1 1302-1505 ● ●
176 BRACKET; HARNESS
(A) 		8-98076-212-0 01 1 1506- ● ● ●
176 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (B) 		8-98211-088-0 01 1 1302- ● ●
177 BOLT; SENSOR
(B) M6X12 FLANGE 		0-28050-612-0 01 1 1302-1505 ● ●
177 BOLT; SENSOR
(B) M6X12 FLANGE 		0-28050-612-0 01 1 1506- ● ● ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1302-1505 ● ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1506- ● ● ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1302-1505 ● ●
179 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ● ● ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1302-1505 ● ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1506- ● ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 1302-1505 ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 1506- ● ● ●
220 PLUG; GEAR CHECK HOLE
M12X10 		5-13265-001-0 01 1 1302-1505 ● ●
220 PLUG; GEAR CHECK HOLE
M12X10 		5-13265-001-0 01 1 1506- ● ● ●
224 STUD; STARTER
(A) M14X35 L=56 		0-44011-435-0 01 1 1302-1505 ● ●
224 STUD; STARTER
(A) M14X35 L=56 		0-44011-435-0 01 1 1506- ● ● ●
224 STUD; STARTER
(B) M14X45 L=66 		0-44011-445-0 01 1 1302-1505 ● ●
224 STUD; STARTER
(B) M14X45 L=66 		0-44011-445-0 01 1 1506- ● ● ●
225 STUD; OIL PAN
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X28 L=38 		8-94396-512-0 04 1 1302-1505 ● ●
225 STUD; OIL PAN
EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X28 L=38 		8-94396-512-0 04 1 1506-1511 ● ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,EURO5 SPECIFICATION<NT5> (A) M8X28 L=38 		8-94396-512-0 04 1 1506-1511 ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X28 L=38 		8-94396-512-0 04 1 1506-1511 ●
225 STUD; OIL PAN
EURO4 SPECIFICATION<NT4> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X28 L=38 		8-94396-512-0 04 1 1512- ● ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<NT2>,EURO5 SPECIFICATION<NT5> (A) M8X28 L=38 		8-94396-512-0 04 1 1512- ●
225 STUD; OIL PAN
EURO2 SPECIFICATION<NT2> (A) M8X28 L=38 		8-94396-512-0 04 1 1512- ●
225 STUD; OIL PAN
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1302-1404 ●
225 STUD; OIL PAN
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1405-1505 ● ●
225 STUD; OIL PAN
EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1506- ● ●
225 STUD; OIL PAN
(B) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1506- ●
225 STUD; OIL PAN
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1302-1404 ●
225 STUD; OIL PAN
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1405-1505 ● ●
225 STUD; OIL PAN
EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1506- ● ●
225 STUD; OIL PAN
(C) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1506- ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 1302-1505 ● ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 1506- ● ● ●
233 STUD; BRKT
M12X67 L=82 		1-09302-112-0 01 1 1302-1505 ● ●
233 STUD; BRKT
M12X67 L=82 		1-09302-112-0 01 1 1506- ● ● ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 1302-1312 ● ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1401-1505 ● ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1506- ● ● ●
290 PLUG; SENSOR HOLE 8-97101-974-0 01 1 1302-1505 ● ●
290 PLUG; SENSOR HOLE 8-97101-974-0 01 1 1506- ● ● ●
484 CLIP; BAND
L=80 		5-09700-307-1 01 1 1302-1505 ● ●
484 CLIP; BAND
L=80 		5-09700-307-1 01 1 1506- ● ● ●
485 GASKET; SENSOR
ID=14.2 OD=18.8 		8-97369-404-0 02 1 1302-1505 ● ●
485 GASKET; SENSOR
ID=14.2 OD=18.8 		8-97369-404-0 02 1 1506- ● ● ●
645 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> ID=18 L=44 		8-97367-985-1 01 1 1302-1505 ● ●
645 CLIP; HARNESS
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=18 L=44 		8-97367-985-1 01 1 1506- ●
645 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> ID=18 L=44 		8-97367-985-1 01 1 1506- ●
645 CLIP; HARNESS
EURO5 SPECIFICATION<NT5> ID=18 L=44 		8-97367-985-1 01 1 1506- ●

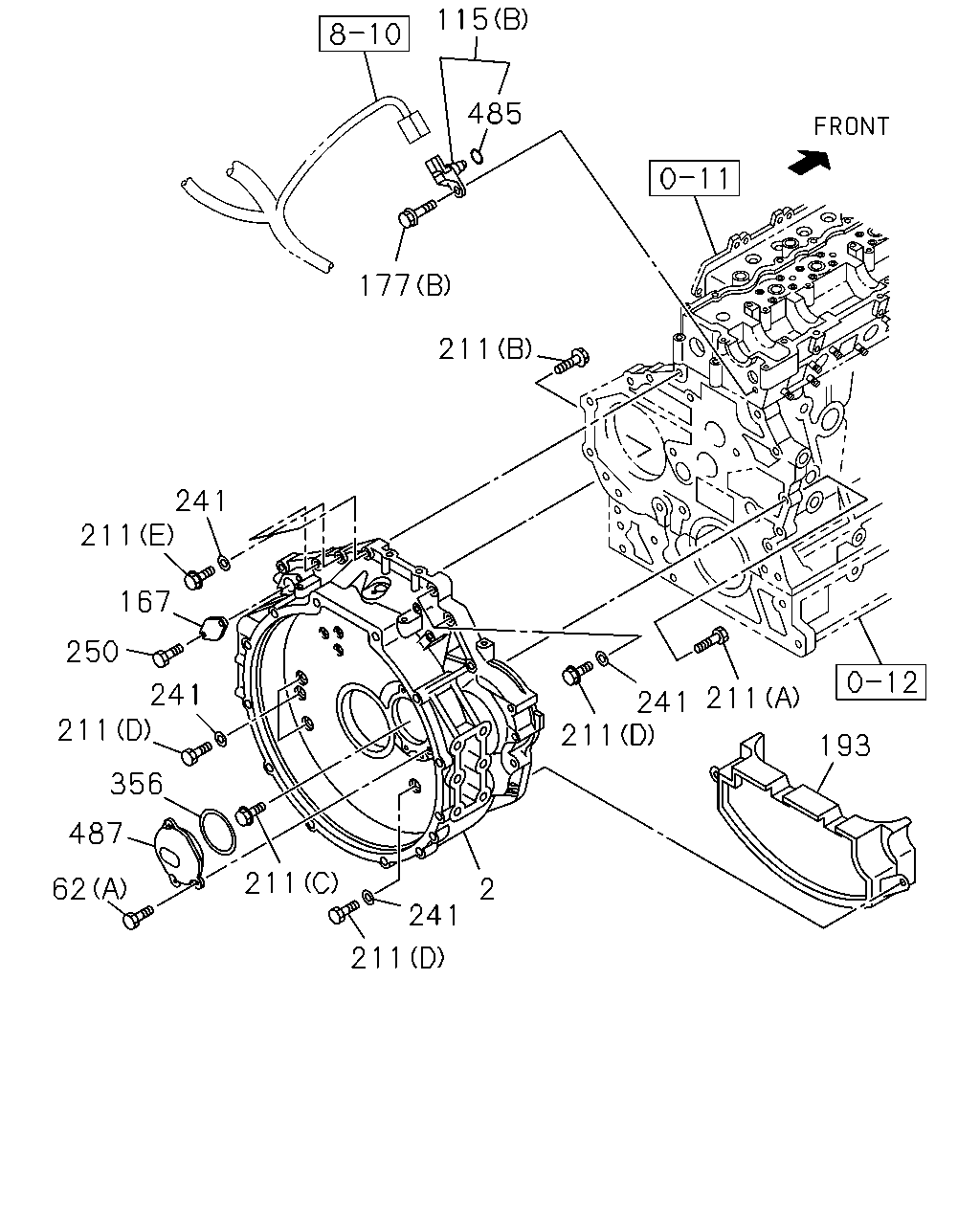

çizim 326227
115 485 211 211 241 211 211 241 211 211 211 241 167 356 487 62 241 193 2 177 250
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1302-1505 ● ●
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1506- ● ● ●
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1305-1509 ●
2 HOUSING; FLYWHEEL 8-98328-140-0 01 1 1510- ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 1302-1505 ● ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 1506- ● ● ●
62 BOLT; COVER
(E) M8X25 FLANGE 		0-28650-825-0 06 1 1305- ●
62 BOLT; COVER
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1305- ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 06 1 1305- ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1305- ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-97606-943-0 01 1 1302-1505 ● ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-97606-943-0 01 1 1506- ● ● ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		8-98019-024-0 01 1 1302-1505 ● ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		8-98019-024-0 01 1 1506- ● ● ●
167 COVER; OIL 1-11219-163-0 01 1 1302-1505 ● ●
167 COVER; OIL 1-11219-163-0 01 1 1506- ● ● ●
177 BOLT; SENSOR
(B) M6X12 FLANGE 		0-28050-612-0 01 1 1302-1505 ● ●
177 BOLT; SENSOR
(B) M6X12 FLANGE 		0-28050-612-0 01 1 1506- ● ● ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1302-1505 ● ●
177 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1506- ● ● ●
193 SPACER; STAY TO OIL,PAN
EURO4 SPECIFICATION<NT4> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98019-738-1 01 1 1506- ● ●
193 SPACER; STAY TO OIL,PAN
EURO5 SPECIFICATION<NT5> 		8-98019-738-1 01 1 1506- ●
193 SPACER; STAY TO OIL,PAN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98019-738-1 01 1 1506- ●
193 SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98019-738-1 01 1 1302-1404 ●
193 SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98019-738-1 01 1 1405-1505 ● ●
193 SPACER; STAY TO OIL,PAN
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94392-984-0 01 1 1506- ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 1302-1505 ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 1506- ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1302-1304 ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1305-1505 ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1506- ● ● ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 1302-1505 ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 1506- ● ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<NT2> (D) M12X70 		0-16956-270-0 09 1 1302- ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<NT2> (E) M12X90 		0-16956-290-0 02 1 1302- ● ●
211 BOLT; HSG
EURO3 SPECIFICATION<NT3> (D) M12X70 		0-16956-270-0 11 1 1302-1511 ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M12X70 		0-16956-270-0 08 1 1512- ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (D) M12X70 		0-16956-270-0 08 1 1512- ●
211 BOLT; HSG
EURO5 SPECIFICATION<NT5> (D) M12X70 		0-16956-270-0 08 1 1512- ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (D) M12X70 		0-16956-270-0 08 1 1302-1505 ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M12X70 		0-16956-270-0 08 1 1506-1511 ● ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (E) M12X90 		0-16956-290-0 03 1 1302-1505 ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M12X90 		0-16956-290-0 03 1 1506-1511 ● ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M12X90 		0-16956-290-0 03 1 1512- ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (E) M12X90 		0-16956-290-0 03 1 1512- ●
211 BOLT; HSG
EURO5 SPECIFICATION<NT5> (E) M12X90 		0-16956-290-0 03 1 1512- ●
211 BOLT; HSG
(F) M10X40 FLANGE 		0-28751-040-0 01 1 1305- ●
211 BOLT; HSG
(G) M12X30 FLANGE 		8-97135-419-0 01 1 1305- ●
211 BOLT; HSG
(H) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1305- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 1302-1505 ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 1506- ● ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 1302-1505 ● ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 1506- ● ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 1302-1505 ● ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 1506- ● ● ●
485 GASKET; SENSOR
ID=14.2 OD=18.8 		8-97369-404-0 02 1 1302-1505 ● ●
485 GASKET; SENSOR
ID=14.2 OD=18.8 		8-97369-404-0 02 1 1506- ● ● ●
487 COVER; HOLE 8-98023-824-1 01 1 1302-1505 ● ●
487 COVER; HOLE 8-98023-824-1 01 1 1506- ● ● ●

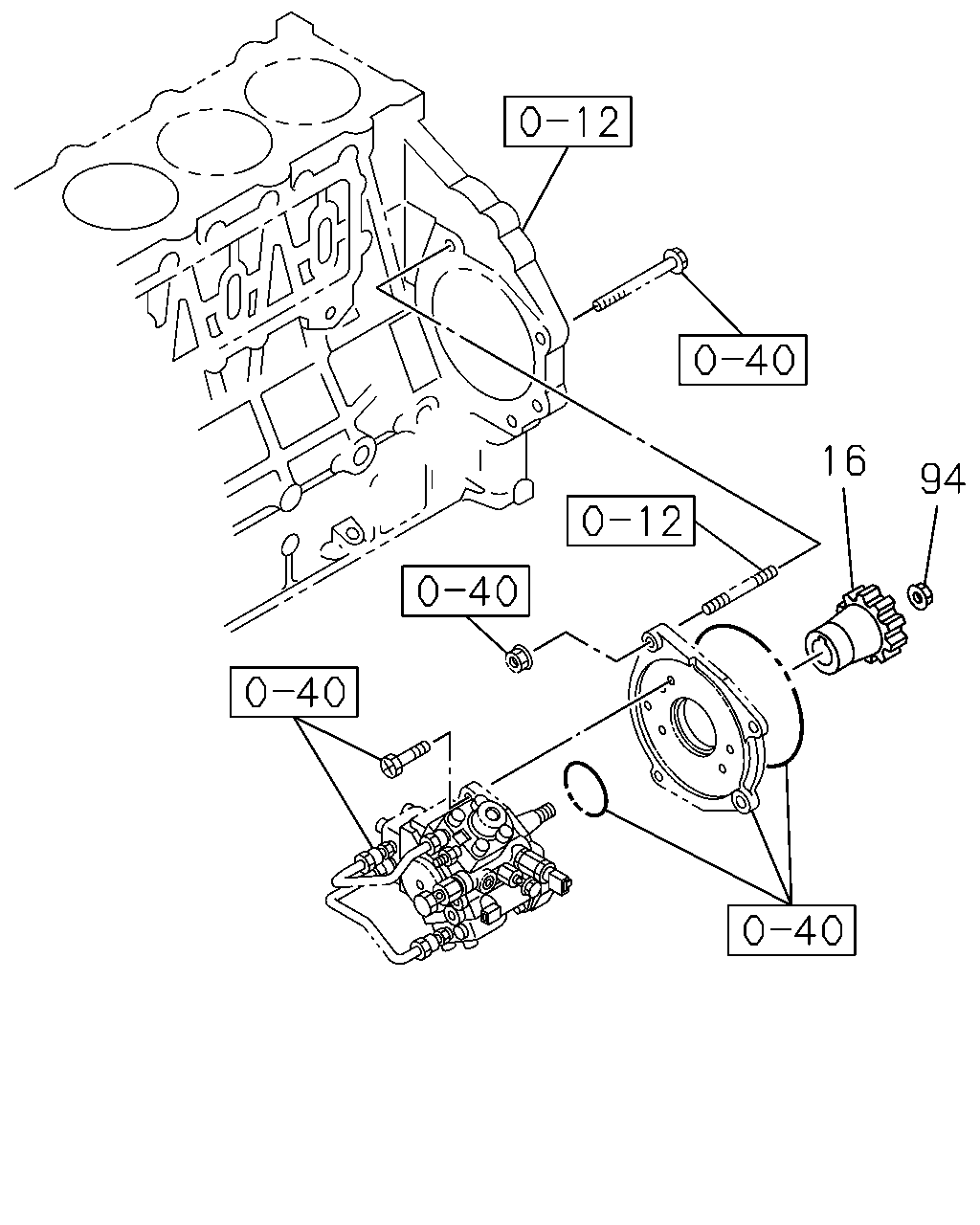

çizim 326241
16 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 GEAR; INJ PUMP DRIVE
Z=35 		8-97601-153-1 01 1 1302-1505 ● ●
16 GEAR; INJ PUMP DRIVE
Z=35 		8-97601-153-1 01 1 1506- ● ● ●
94 NUT; GEAR
M14 FLANGE 		0-91180-214-0 01 1 1302-1505 ● ●
94 NUT; GEAR
M14 FLANGE 		0-91180-214-0 01 1 1506- ● ● ●

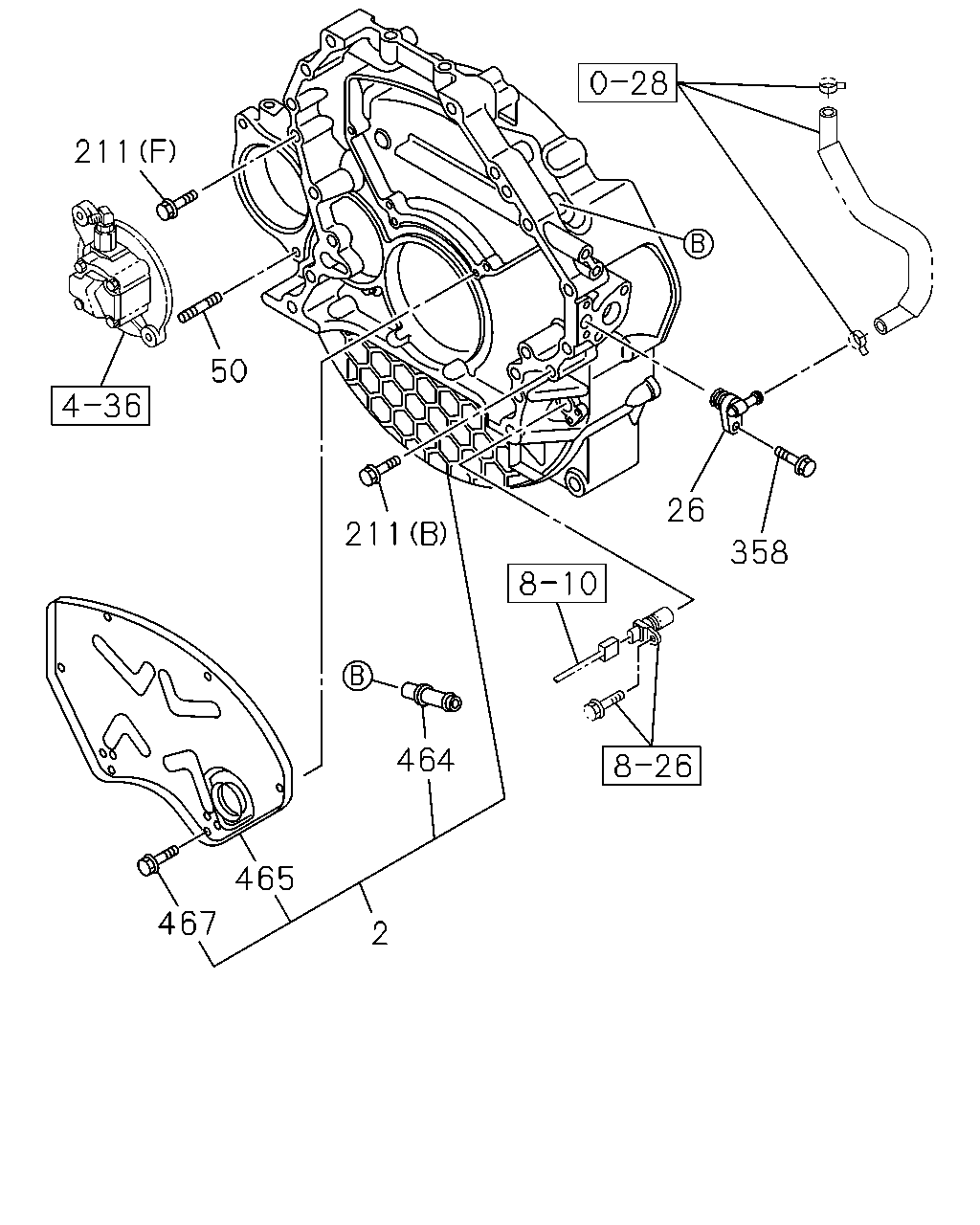

çizim 350127
211 50 358 26 464 465 2 467 211
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1302-1505 ● ●
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1506- ● ● ●
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1305-1509 ●
2 HOUSING; FLYWHEEL 8-98328-140-0 01 1 1510- ●
26 ADAPTER 8-97354-819-0 01 1 1305- ●
50 STUD
M10X25 L=48.5 		0-49241-025-0 01 1 1305- ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 1302-1505 ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 1506- ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1302-1304 ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1305-1505 ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1506- ● ● ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 1302-1505 ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 1506- ● ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<NT2> (D) M12X70 		0-16956-270-0 09 1 1302- ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<NT2> (E) M12X90 		0-16956-290-0 02 1 1302- ● ●
211 BOLT; HSG
EURO3 SPECIFICATION<NT3> (D) M12X70 		0-16956-270-0 11 1 1302-1511 ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M12X70 		0-16956-270-0 08 1 1512- ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (D) M12X70 		0-16956-270-0 08 1 1512- ●
211 BOLT; HSG
EURO5 SPECIFICATION<NT5> (D) M12X70 		0-16956-270-0 08 1 1512- ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (D) M12X70 		0-16956-270-0 08 1 1302-1505 ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M12X70 		0-16956-270-0 08 1 1506-1511 ● ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (E) M12X90 		0-16956-290-0 03 1 1302-1505 ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M12X90 		0-16956-290-0 03 1 1506-1511 ● ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M12X90 		0-16956-290-0 03 1 1512- ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (E) M12X90 		0-16956-290-0 03 1 1512- ●
211 BOLT; HSG
EURO5 SPECIFICATION<NT5> (E) M12X90 		0-16956-290-0 03 1 1512- ●
211 BOLT; HSG
(F) M10X40 FLANGE 		0-28751-040-0 01 1 1305- ●
211 BOLT; HSG
(G) M12X30 FLANGE 		8-97135-419-0 01 1 1305- ●
211 BOLT; HSG
(H) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1305- ●
358 BOLT; ADAPTER
M6X16 FLANGE 		0-28050-616-0 01 1 1305- ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 1305- ●
465 PLATE; FLYWHEEL HSG 8-97388-568-1 01 1 1305- ●
467 BOLT; PLATE
M6X10 		8-98030-649-0 06 1 1305- ●

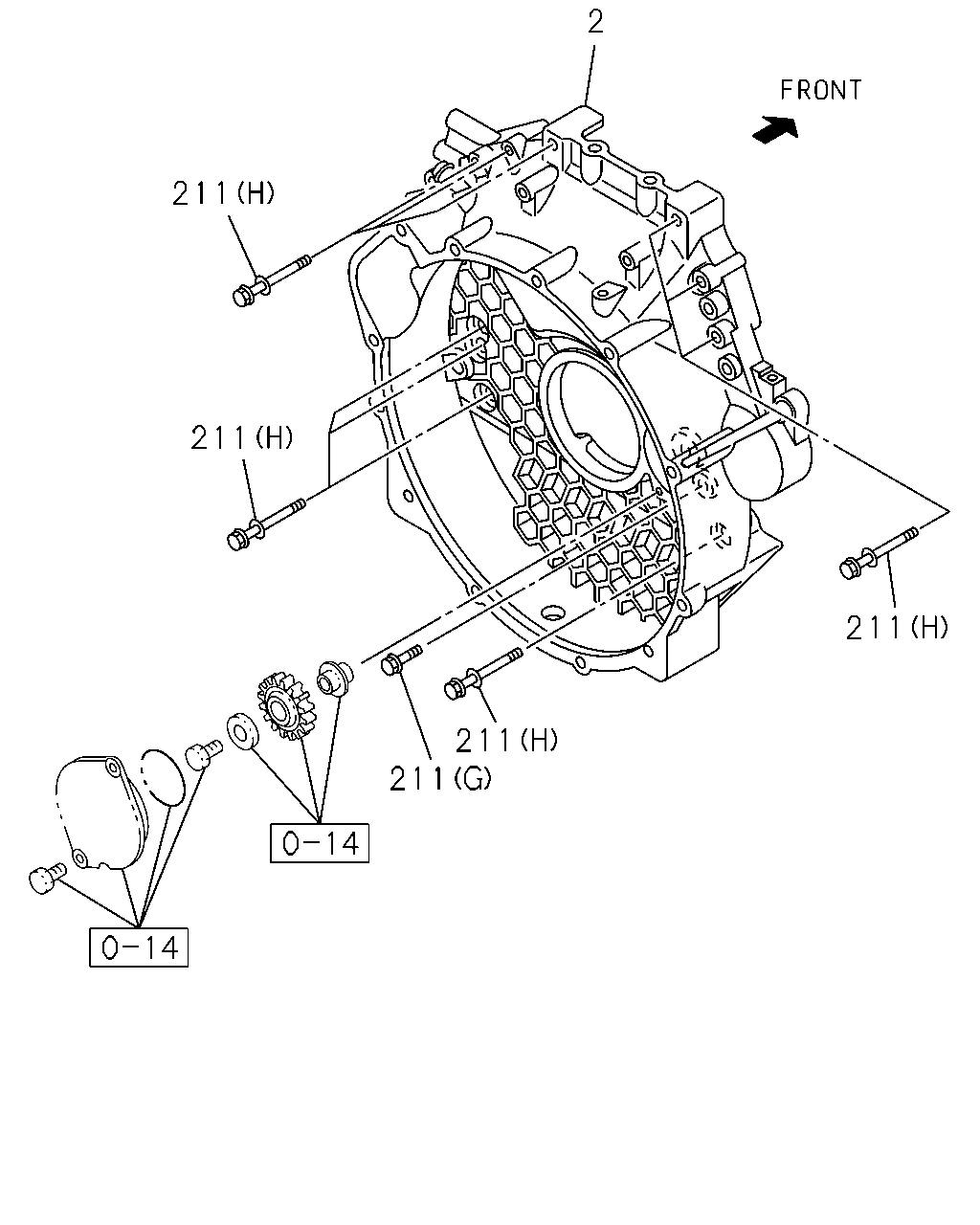

çizim 350152
2 211 211 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1302-1505 ● ●
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1506- ● ● ●
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1305-1509 ●
2 HOUSING; FLYWHEEL 8-98328-140-0 01 1 1510- ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 1302-1505 ● ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 1506- ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1302-1304 ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1305-1505 ● ● ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1506- ● ● ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 1302-1505 ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 1506- ● ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<NT2> (D) M12X70 		0-16956-270-0 09 1 1302- ● ●
211 BOLT; HSG
EURO2 SPECIFICATION<NT2> (E) M12X90 		0-16956-290-0 02 1 1302- ● ●
211 BOLT; HSG
EURO3 SPECIFICATION<NT3> (D) M12X70 		0-16956-270-0 11 1 1302-1511 ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M12X70 		0-16956-270-0 08 1 1512- ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (D) M12X70 		0-16956-270-0 08 1 1512- ●
211 BOLT; HSG
EURO5 SPECIFICATION<NT5> (D) M12X70 		0-16956-270-0 08 1 1512- ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (D) M12X70 		0-16956-270-0 08 1 1302-1505 ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) M12X70 		0-16956-270-0 08 1 1506-1511 ● ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (E) M12X90 		0-16956-290-0 03 1 1302-1505 ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M12X90 		0-16956-290-0 03 1 1506-1511 ● ● ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E) M12X90 		0-16956-290-0 03 1 1512- ●
211 BOLT; HSG
EURO4 SPECIFICATION<NT4> (E) M12X90 		0-16956-290-0 03 1 1512- ●
211 BOLT; HSG
EURO5 SPECIFICATION<NT5> (E) M12X90 		0-16956-290-0 03 1 1512- ●
211 BOLT; HSG
(F) M10X40 FLANGE 		0-28751-040-0 01 1 1305- ●
211 BOLT; HSG
(G) M12X30 FLANGE 		8-97135-419-0 01 1 1305- ●
211 BOLT; HSG
(H) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1305- ●

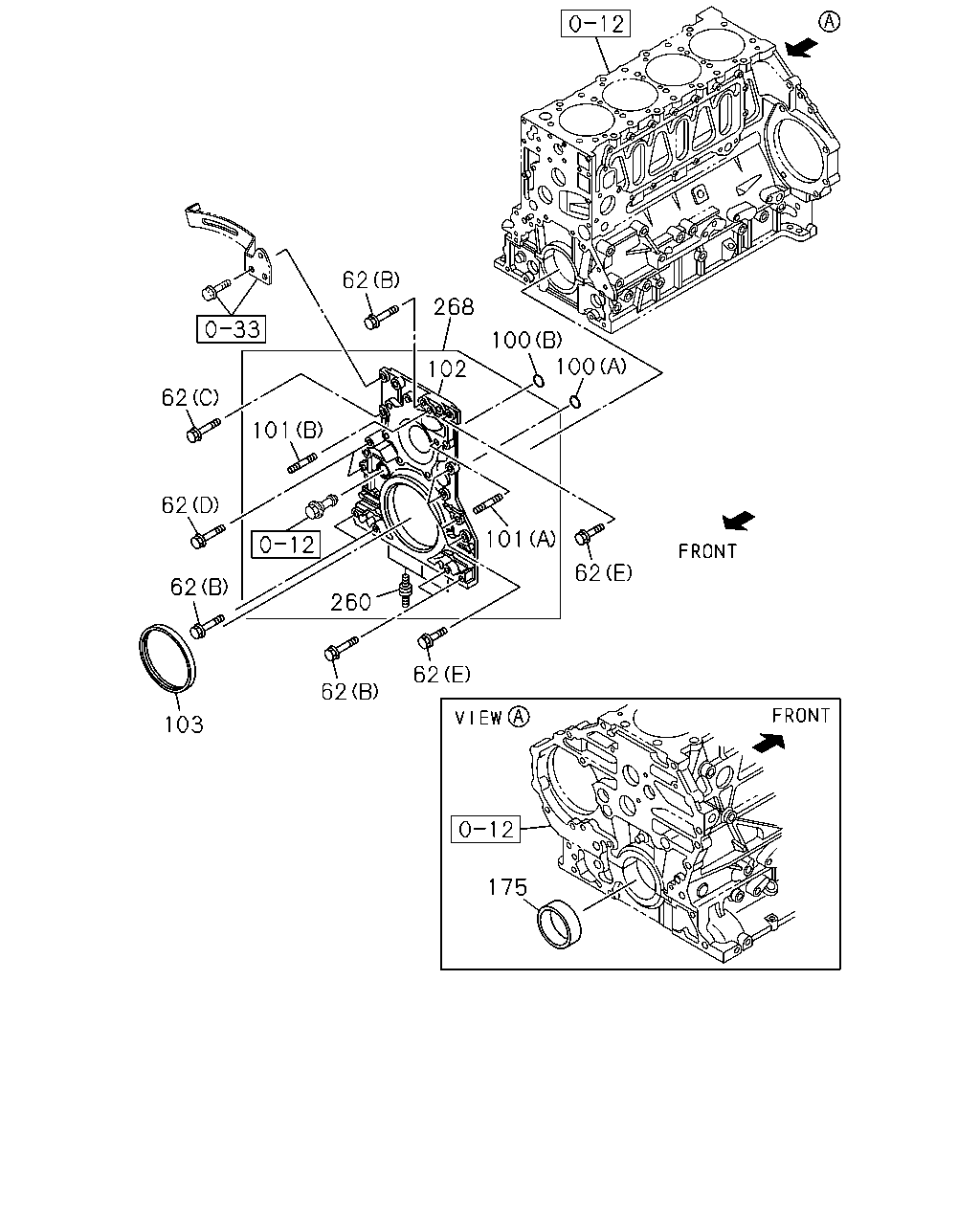

çizim 351943
62 268 102 100 62 62 62 103 62 260 101 101 62 175 62 100
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 1302-1505 ● ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 1506- ● ● ●
62 BOLT; COVER
(E) M8X25 FLANGE 		0-28650-825-0 06 1 1305- ●
62 BOLT; COVER
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1305- ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 06 1 1305- ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1305- ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 1305- ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 1305- ●
101 STUD; WATER PUMP
(B) M8X18 L=30 		0-41010-818-0 01 1 1305- ●
101 STUD; WATER PUMP
(A) M8X18 L=29 		8-97028-541-0 01 1 1305- ●
102 RETAINER; FRT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-98039-932-2 01 1 1305- ●
102 RETAINER; FRT
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-98081-351-1 01 1 1305- ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1305- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1302-1304 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1305-1505 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1506- ● ● ● ●
260 STUD; OIL PAN
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M8X20 L=32 		0-41010-820-0 04 1 1305- ●
268 COVER; FRT
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-97148-937-3 01 1 1305- ●
268 COVER; FRT
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-98096-851-1 01 1 1305- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
