Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#113818) — 76 parça

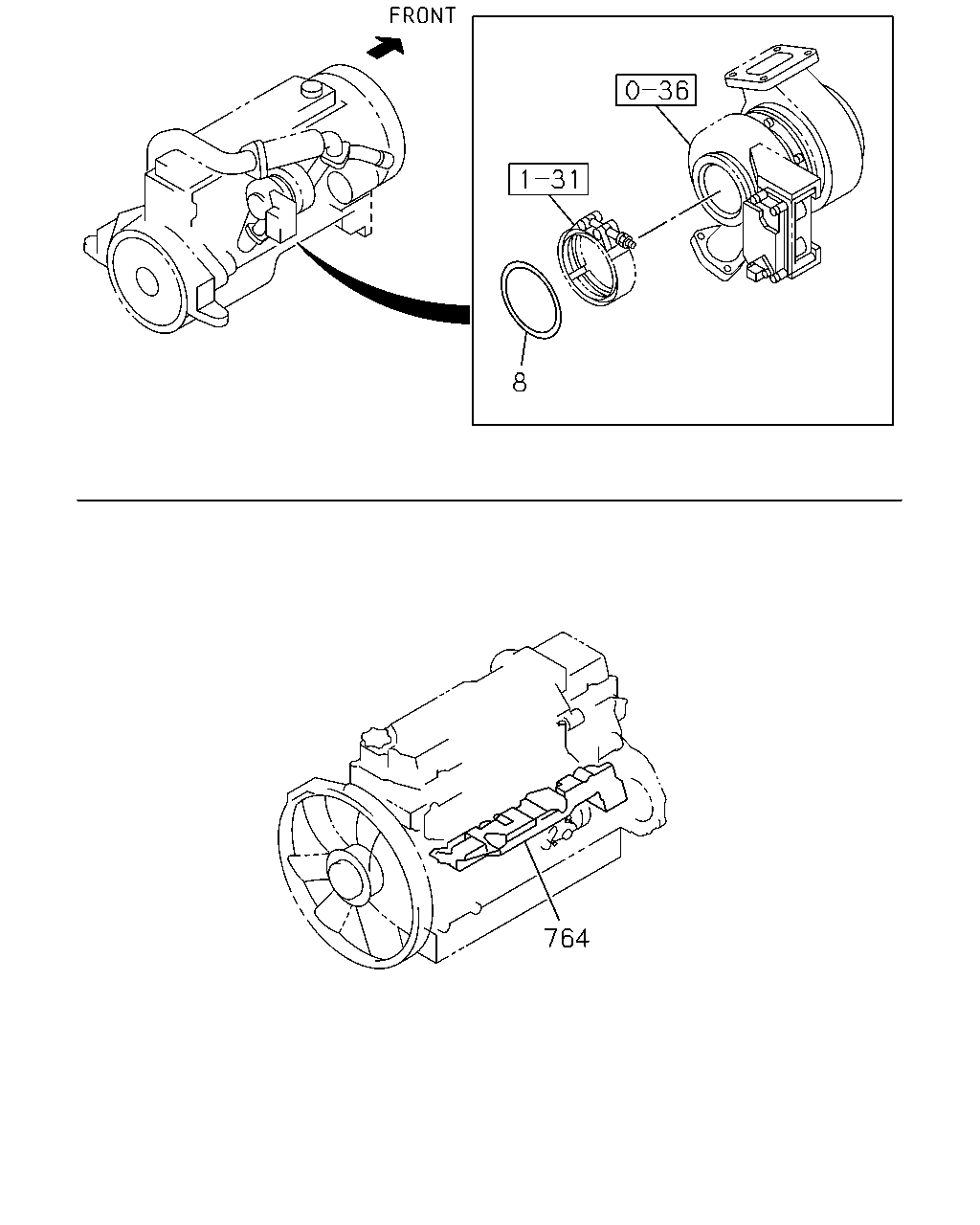

8 764

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>	8-98196-271-0	01	1	1302-	●
	764	SPACER; INL COVER EURO4 SPECIFICATION<NT4>	8-98023-639-2	01	1	1302-	●

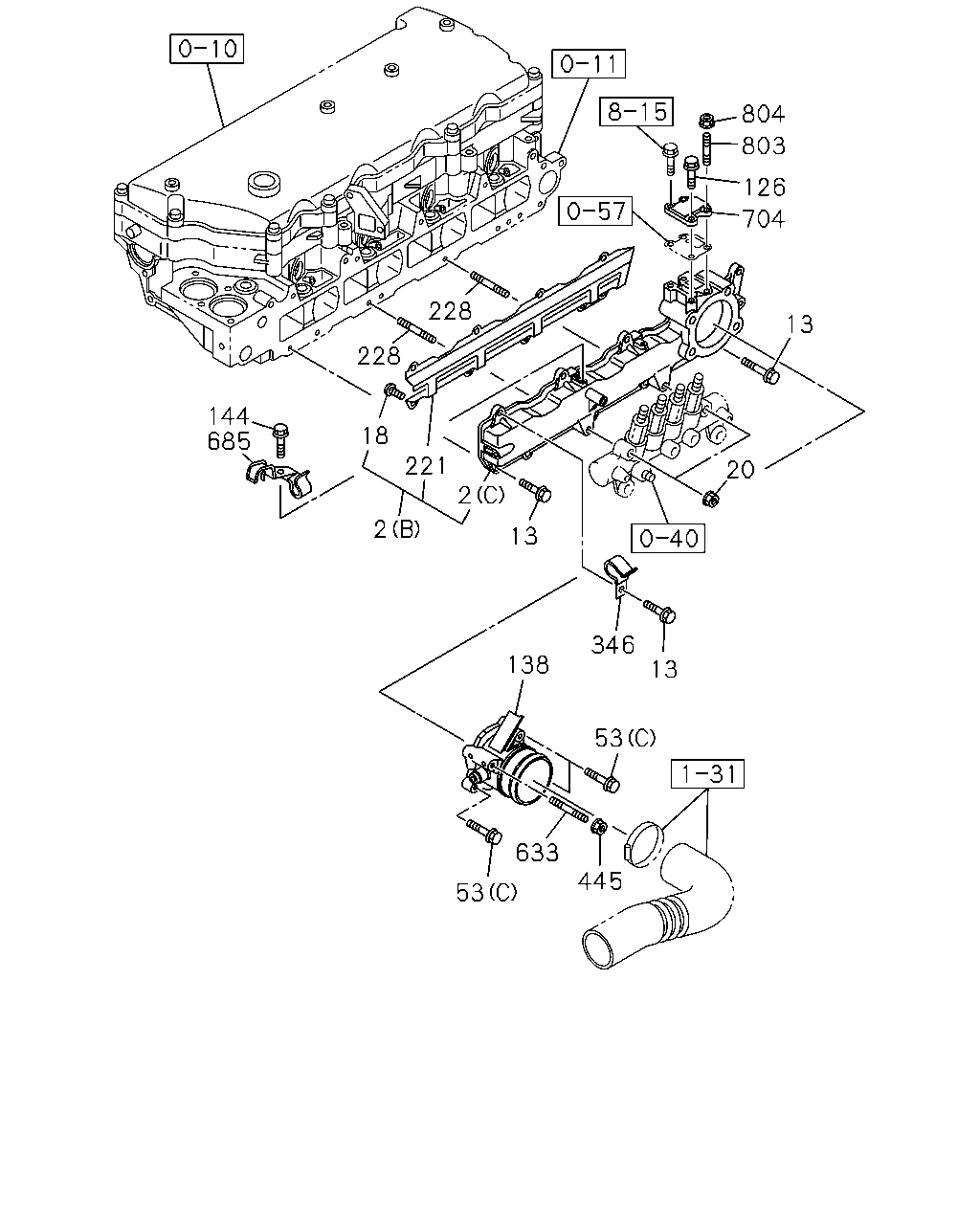

804 704 126 803 20 13 13 2 221 18 228 228 2 144 685 346 13 138 53 633 445 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (C)	8-97387-039-0	01	1	1302-		●
2	COVER; INL (B)	8-97387-038-0	01	1	1302-1409		●
2	COVER; INL (A)	8-98061-091-0	01	1	1302-	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28050-830-0	09	1	1302-		●
13	BOLT; INL MANIF M8X80 FLANGE	0-28050-880-0	01	1	1302-		●
18	SCREW; PLATE,INL CVR M6X10	9-03490-610-0	09	1	1302-1409		●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	1302-		●
53	BOLT; INL PIPE (C) M8X30 FLANGE	0-28650-830-0	03	1	1302-		●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28050-830-0	02	1	1302-	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1302-	●
126	BOLT; COVER M8X25 FLANGE	0-28650-825-0	01	1	1302-		●
138	PIPE; INL	8-98217-016-0	01	1	1302-		●
144	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	01	1	1302-		●
221	PLATE; INL COVER	8-97379-202-0	01	1	1302-1409		●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	1302-		●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1302-		●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91180-108-0	01	1	1302-		●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1302-		●
685	BRACKET; HARNESS	8-97331-921-1	01	1	1302-		●
704	COVER	8-98062-651-1	01	1	1302-1408		●
704	COVER	8-98260-138-0	01	1	1409-		●
803	STUD; COVER M8X20 L=32	0-41010-820-0	02	1	1302-		●
804	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1302-		●

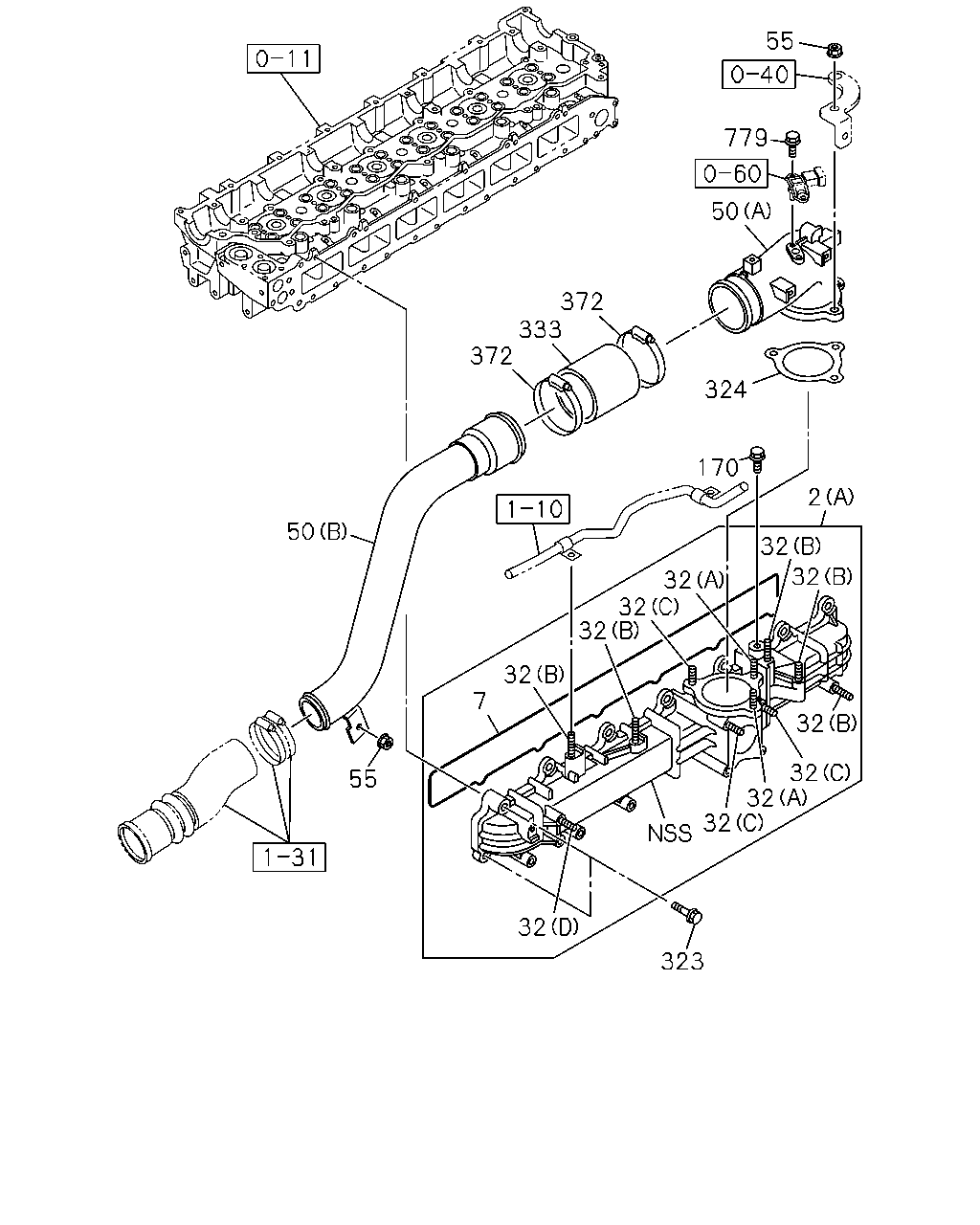

55 779 50 372 333 324 170 372 2 32 32 32 32 32 7 32 32 32 32 32 323 32 55 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (C)	8-97387-039-0	01	1	1302-		●
2	COVER; INL (B)	8-97387-038-0	01	1	1302-1409		●
2	COVER; INL (A)	8-98061-091-0	01	1	1302-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	1302-	●
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	1302-	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	1302-	●
32	STUD; INL PIPE (A) M8X40 L=52	0-41010-840-0	02	1	1302-	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	1302-	●
50	PIPE; INL (B)	8-97607-412-2	01	1	1302-	●
50	PIPE; INL EURO2 SPECIFICATION<NT2> (A)	8-98061-804-1	01	1	1302-	●
50	PIPE; INL EURO4 SPECIFICATION<NT4> (C)	8-97604-940-0	01	1	1302-1305	●
50	PIPE; INL EURO4 SPECIFICATION<NT4> (C)	8-98239-524-0	01	1	1306-	●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	04	1	1302-	●
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	1302-	●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	1302-	●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	1302-	●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	1302-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-777-0	01	1	1302-	●
333	HOSE; RUBBER,INL PIPE	8-97611-306-0	01	1	1302-	●
372	CLIP; HOSE ID=77-99	1-09707-141-0	02	1	1302-	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	1302-	●

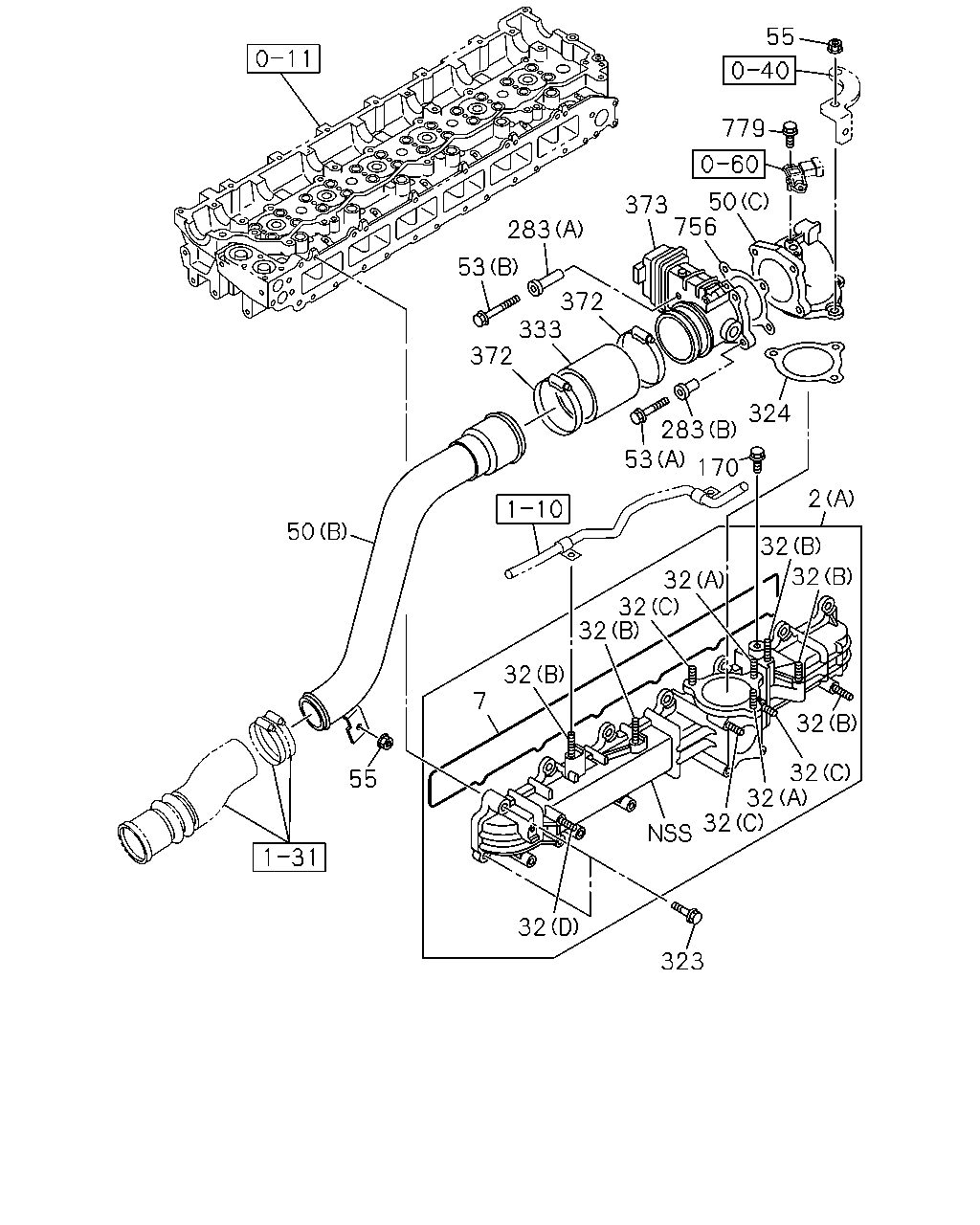

55 779 50 373 283 53 756 372 333 372 324 283 53 2 170 32 32 32 32 32 32 32 32 32 32 323 32 7 55 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (C)	8-97387-039-0	01	1	1302-		●
2	COVER; INL (B)	8-97387-038-0	01	1	1302-1409		●
2	COVER; INL (A)	8-98061-091-0	01	1	1302-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	1302-	●
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	1302-	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	1302-	●
32	STUD; INL PIPE (A) M8X40 L=52	0-41010-840-0	02	1	1302-	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	1302-	●
50	PIPE; INL (B)	8-97607-412-2	01	1	1302-	●
50	PIPE; INL EURO2 SPECIFICATION<NT2> (A)	8-98061-804-1	01	1	1302-	●
50	PIPE; INL EURO4 SPECIFICATION<NT4> (C)	8-97604-940-0	01	1	1302-1305	●
50	PIPE; INL EURO4 SPECIFICATION<NT4> (C)	8-98239-524-0	01	1	1306-	●
53	BOLT; INL PIPE (C) M8X30 FLANGE	0-28650-830-0	03	1	1302-		●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28050-830-0	02	1	1302-	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1302-	●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	04	1	1302-	●
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	1302-	●
283	RUBBER EURO4 SPECIFICATION<NT4> (B) L=18	8-97219-650-0	02	1	1302-	●
283	RUBBER EURO4 SPECIFICATION<NT4> (A) L=58	8-97387-995-1	02	1	1302-	●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	1302-	●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	1302-	●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	1302-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-777-0	01	1	1302-	●
333	HOSE; RUBBER,INL PIPE	8-97611-306-0	01	1	1302-	●
372	CLIP; HOSE ID=77-99	1-09707-141-0	02	1	1302-	●
373	THROTTLE ASM; INT EURO4 SPECIFICATION<NT4>	8-98061-061-3	01	1	1302-	●
756	GASKET; INTAKE,THROTTLE EURO4 SPECIFICATION<NT4> ID=88	8-97387-009-0	01	1	1302-	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	1302-	●

203 208

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	203	TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	1302-		●
	208	BRACKET; CATCH TANK,OIL	8-98075-767-0	01	1	1302-		●
