Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#113816) — 198 parça

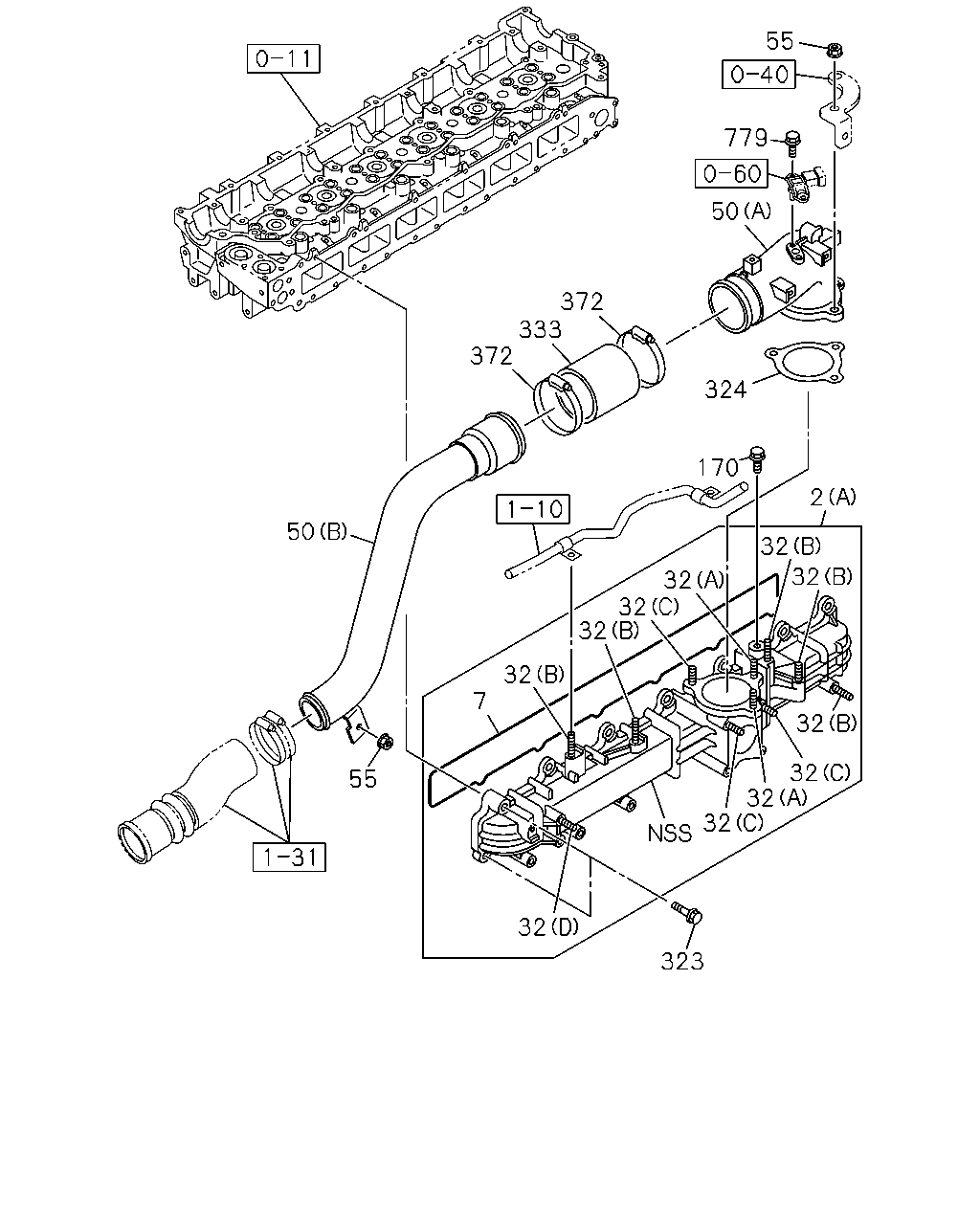

372 333 372 50 32 7 55 32 323 32 32 32 32 32 32 2 32 32 32 170 324 55 50 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL EURO5 SPECIFICATION<NT5> (A)	8-98239-918-0	01	1	1506-	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-97387-039-0	01	1	1305-		●
2	COVER; INL (A)	8-98061-091-0	01	1	1302-1405	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A)	8-98061-091-0	01	1	1406-1511	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-98061-091-0	01	1	1512-	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97387-038-0	01	1	1305-1409		●
2	COVER; INL EURO3 SPECIFICATION<NT3> (B)	8-97387-038-0	01	1	1410-1511		●
2	COVER; INL EURO4 SPECIFICATION<NT4> (C)	8-98085-730-1	01	1	1305-		●
2	COVER; INL EURO4 SPECIFICATION<NT4> (D)	8-98115-667-1	01	1	1305-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	1302-	●
32	STUD; INL PIPE EURO5 SPECIFICATION<NT5> (C) M8X28 L=40	0-41010-828-0	05	1	1506-	●
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	1302-	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	1302-1405	●
32	STUD; INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (C) M8X28 L=40	0-41010-828-0	03	1	1406-1511	●
32	STUD; INL PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) M8X28 L=40	0-41010-828-0	03	1	1512-	●
32	STUD; INL PIPE (A) M8X40 L=52	0-41010-840-0	02	1	1302-1405	●
32	STUD; INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) M8X40 L=52	0-41010-840-0	02	1	1406-1511	●
32	STUD; INL PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M8X40 L=52	0-41010-840-0	02	1	1512-	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	1302-	●
50	PIPE; INL (B)	8-97607-412-2	01	1	1302-	●
50	PIPE; INL EURO2 SPECIFICATION<NT2> (A)	8-98061-804-1	01	1	1302-	●
50	PIPE; INL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	8-97604-940-0	01	1	1302-1305	●
50	PIPE; INL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	8-98239-524-0	01	1	1306-1505	●
50	PIPE; INL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C)	8-98239-524-0	01	1	1506-1511	●
50	PIPE; INL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98239-524-0	01	1	1512-	●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	04	1	1302-	●
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	1302-	●
170	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	02	1	1305-1308		●
170	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28050-820-0	02	1	1309-1511		●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	1302-	●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	1302-	●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	1302-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78	8-97601-777-0	01	1	1302-	●
333	HOSE; RUBBER,INL PIPE ID=80 OD=90 L=80	8-97611-306-0	01	1	1302-	●
372	CLIP; HOSE ID=77-99	1-09707-141-0	02	1	1302-	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	1302-	●

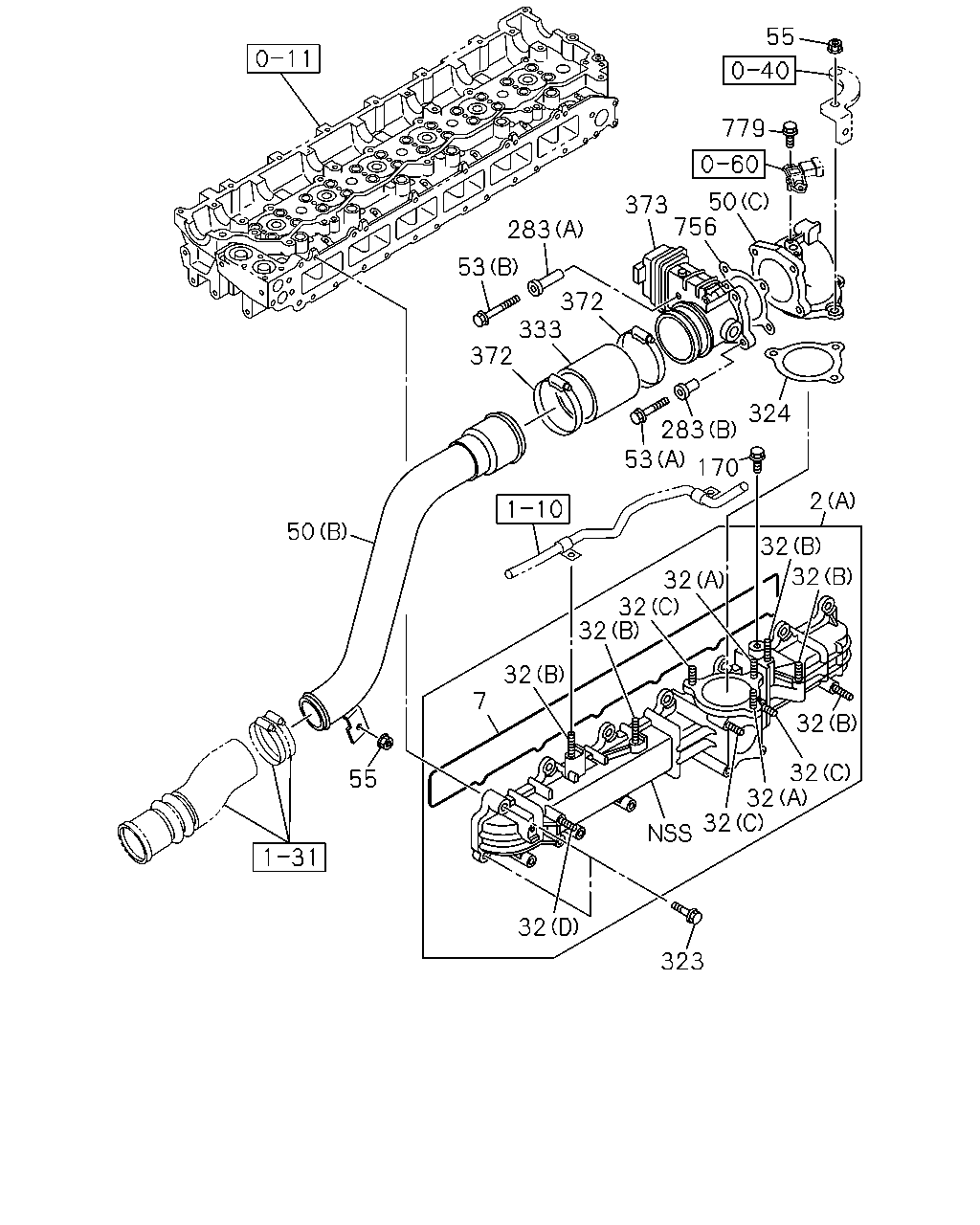

323 32 32 32 32 32 32 32 32 32 32 32 7 2 55 50 53 283 324 53 372 333 372 283 373 50 779 55 170 756

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL EURO5 SPECIFICATION<NT5> (A)	8-98239-918-0	01	1	1506-	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-97387-039-0	01	1	1305-		●
2	COVER; INL (A)	8-98061-091-0	01	1	1302-1405	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A)	8-98061-091-0	01	1	1406-1511	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-98061-091-0	01	1	1512-	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97387-038-0	01	1	1305-1409		●
2	COVER; INL EURO3 SPECIFICATION<NT3> (B)	8-97387-038-0	01	1	1410-1511		●
2	COVER; INL EURO4 SPECIFICATION<NT4> (C)	8-98085-730-1	01	1	1305-		●
2	COVER; INL EURO4 SPECIFICATION<NT4> (D)	8-98115-667-1	01	1	1305-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	1302-	●
32	STUD; INL PIPE EURO5 SPECIFICATION<NT5> (C) M8X28 L=40	0-41010-828-0	05	1	1506-	●
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	1302-	●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	1302-1405	●
32	STUD; INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (C) M8X28 L=40	0-41010-828-0	03	1	1406-1511	●
32	STUD; INL PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) M8X28 L=40	0-41010-828-0	03	1	1512-	●
32	STUD; INL PIPE (A) M8X40 L=52	0-41010-840-0	02	1	1302-1405	●
32	STUD; INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A) M8X40 L=52	0-41010-840-0	02	1	1406-1511	●
32	STUD; INL PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M8X40 L=52	0-41010-840-0	02	1	1512-	●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	1302-	●
50	PIPE; INL (B)	8-97607-412-2	01	1	1302-	●
50	PIPE; INL EURO2 SPECIFICATION<NT2> (A)	8-98061-804-1	01	1	1302-	●
50	PIPE; INL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	8-97604-940-0	01	1	1302-1305	●
50	PIPE; INL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C)	8-98239-524-0	01	1	1306-1505	●
50	PIPE; INL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (C)	8-98239-524-0	01	1	1506-1511	●
50	PIPE; INL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98239-524-0	01	1	1512-	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28050-830-0	02	1	1302-1505	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) M8X30 FLANGE	0-28050-830-0	02	1	1506-1511	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X30 FLANGE	0-28050-830-0	02	1	1512-	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1302-1304	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1305-1505	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1305-1505		●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) M8X70 FLANGE	0-28050-870-0	02	1	1506-1511	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1506-1511		●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X70 FLANGE	0-28050-870-0	02	1	1512-	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1512-		●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	03	1	1305-		●
55	NUT; INL PIPE M8 FLANGE	0-91180-108-0	04	1	1302-	●
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	1302-	●
170	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	02	1	1305-1308		●
170	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28050-820-0	02	1	1309-1511		●
283	RUBBER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) L=18	8-97219-650-0	02	1	1302-1505	●
283	RUBBER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) L=18	8-97219-650-0	02	1	1506-1511	●
283	RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) L=18	8-97219-650-0	02	1	1512-	●
283	RUBBER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) L=58	8-97387-995-1	02	1	1302-1505	●
283	RUBBER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) L=58	8-97387-995-1	02	1	1506-1511	●
283	RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) L=58	8-97387-995-1	02	1	1512-	●
283	RUBBER EURO4 SPECIFICATION<NT4> (A) L=58	8-97387-995-1	04	1	1305-		●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	1302-	●
323	BOLT; DUCT M8X25 FLANGE	0-28650-825-0	06	1	1302-	●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	1302-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78	8-97601-777-0	01	1	1302-	●
333	HOSE; RUBBER,INL PIPE ID=80 OD=90 L=80	8-97611-306-0	01	1	1302-	●
372	CLIP; HOSE ID=77-99	1-09707-141-0	02	1	1302-	●
373	THROTTLE ASM; INT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>	8-98061-061-3	01	1	1302-1505	●
373	THROTTLE ASM; INT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5>	8-98061-061-3	01	1	1506-1511	●
373	THROTTLE ASM; INT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98061-061-3	01	1	1512-	●
756	GASKET; INTAKE,THROTTLE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=88	8-97387-009-0	01	1	1302-1505	●
756	GASKET; INTAKE,THROTTLE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> ID=88	8-97387-009-0	01	1	1506-1511	●
756	GASKET; INTAKE,THROTTLE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=88	8-97387-009-0	01	1	1512-	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	1302-	●

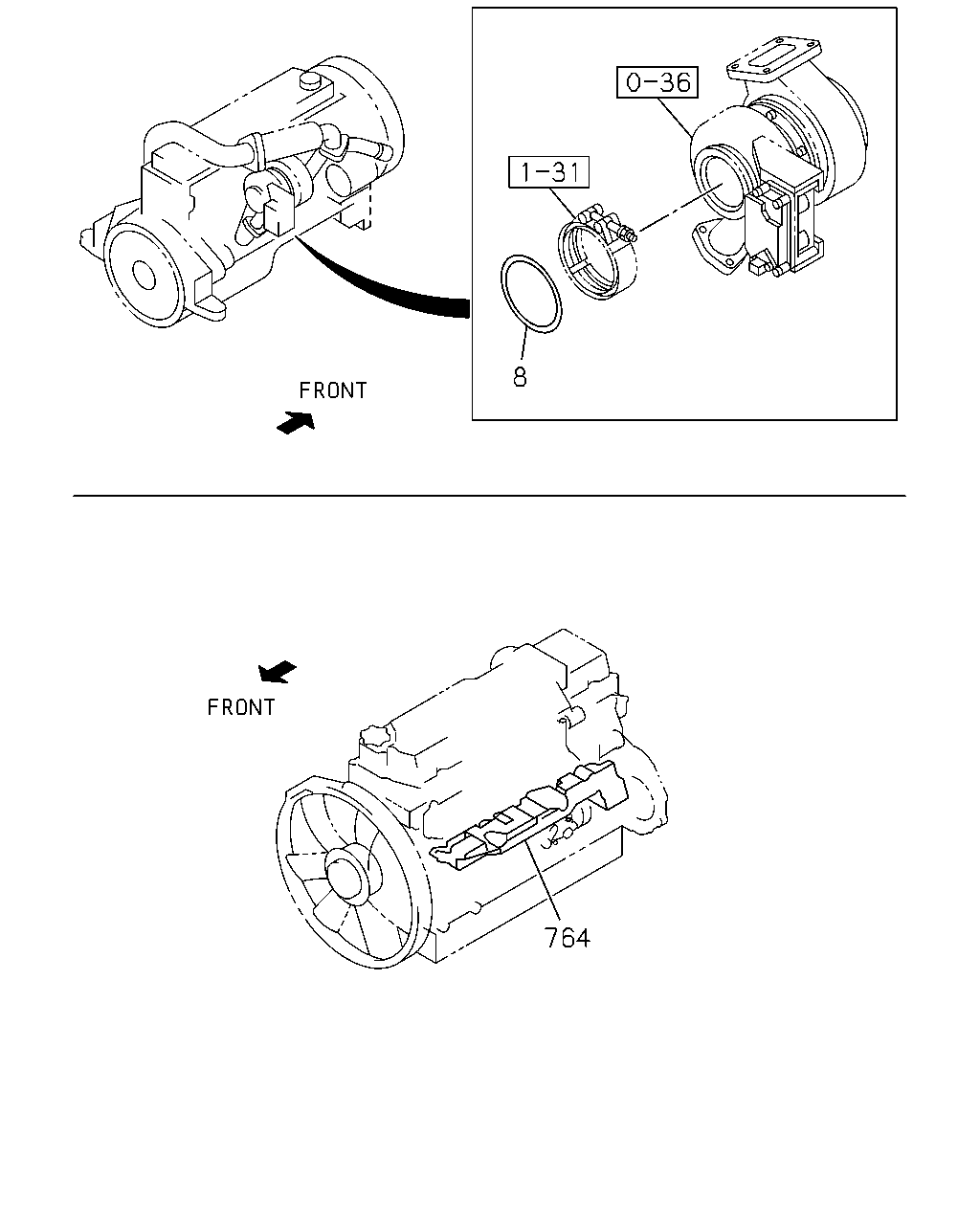

764 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>	8-98196-271-0	01	1	1302-1505	●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98196-271-0	01	1	1506-	●
764	SPACER; INL COVER EURO4 SPECIFICATION<NT4>	8-98023-639-2	01	1	1302-1505	●
764	SPACER; INL COVER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98023-639-2	01	1	1506-	●

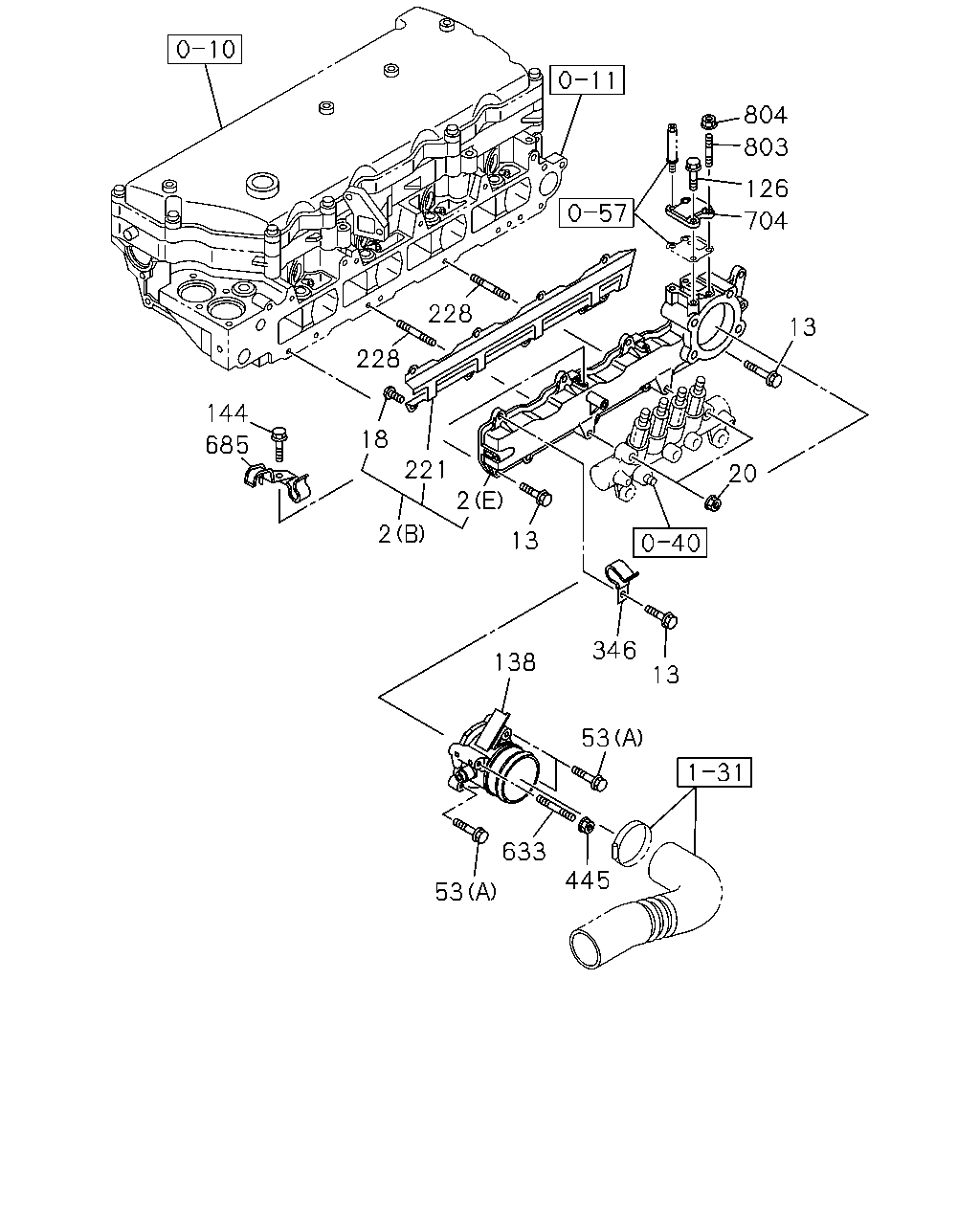

13 704 126 803 804 228 228 144 685 18 221 2 13 2 346 13 138 53 633 445 53 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL EURO5 SPECIFICATION<NT5> (A)	8-98239-918-0	01	1	1506-	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-97387-039-0	01	1	1305-		●
2	COVER; INL (A)	8-98061-091-0	01	1	1302-1405	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A)	8-98061-091-0	01	1	1406-1511	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-98061-091-0	01	1	1512-	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97387-038-0	01	1	1305-1409		●
2	COVER; INL EURO3 SPECIFICATION<NT3> (B)	8-97387-038-0	01	1	1410-1511		●
2	COVER; INL EURO4 SPECIFICATION<NT4> (C)	8-98085-730-1	01	1	1305-		●
2	COVER; INL EURO4 SPECIFICATION<NT4> (D)	8-98115-667-1	01	1	1305-		●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X30 FLANGE	0-28050-830-0	09	1	1305-		●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X80 FLANGE	0-28050-880-0	01	1	1305-		●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28050-825-0	02	1	1305-		●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28050-830-0	02	1	1305-		●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X60 FLANGE	0-28050-860-0	05	1	1305-		●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X120 FLANGE	0-28055-812-0	03	1	1305-		●
18	SCREW; PLATE,INL CVR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6X10	9-03490-610-0	09	1	1305-1409		●
18	SCREW; PLATE,INL CVR EURO3 SPECIFICATION<NT3> M6X10	9-03490-610-0	09	1	1410-1511		●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	1305-		●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28050-830-0	02	1	1302-1505	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) M8X30 FLANGE	0-28050-830-0	02	1	1506-1511	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X30 FLANGE	0-28050-830-0	02	1	1512-	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1302-1304	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1305-1505	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1305-1505		●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) M8X70 FLANGE	0-28050-870-0	02	1	1506-1511	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1506-1511		●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X70 FLANGE	0-28050-870-0	02	1	1512-	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1512-		●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	03	1	1305-		●
126	BOLT; COVER EURO2 SPECIFICATION<NT2> M8X25 FLANGE	0-28650-825-0	01	1	1305-		●
138	PIPE; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98217-016-0	01	1	1305-		●
144	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X12 FLANGE	0-28050-812-0	01	1	1305-		●
221	PLATE; INL COVER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97379-202-0	01	1	1305-1409		●
221	PLATE; INL COVER EURO3 SPECIFICATION<NT3>	8-97379-202-0	01	1	1410-1511		●
228	STUD; INL COVER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X117 L=128	8-97111-477-0	02	1	1305-		●
228	STUD; INL COVER EURO4 SPECIFICATION<NT4> M8X126 L=137	8-97378-069-0	02	1	1305-		●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1305-		●
445	NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	01	1	1305-		●
445	NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1305-		●
633	STUD; THROTTLE BODY EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X71 L=83	9-09830-212-0	01	1	1305-		●
633	STUD; THROTTLE BODY EURO4 SPECIFICATION<NT4> M8X71 L=83	9-09830-212-0	02	1	1305-		●
685	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97331-921-1	01	1	1305-		●
704	COVER EURO2 SPECIFICATION<NT2>	8-98062-651-1	01	1	1305-1408		●
704	COVER EURO2 SPECIFICATION<NT2>	8-98260-138-0	01	1	1409-		●
803	STUD; COVER EURO2 SPECIFICATION<NT2> M8X20 L=32	0-41010-820-0	02	1	1305-		●
804	NUT; COVER EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	1305-		●

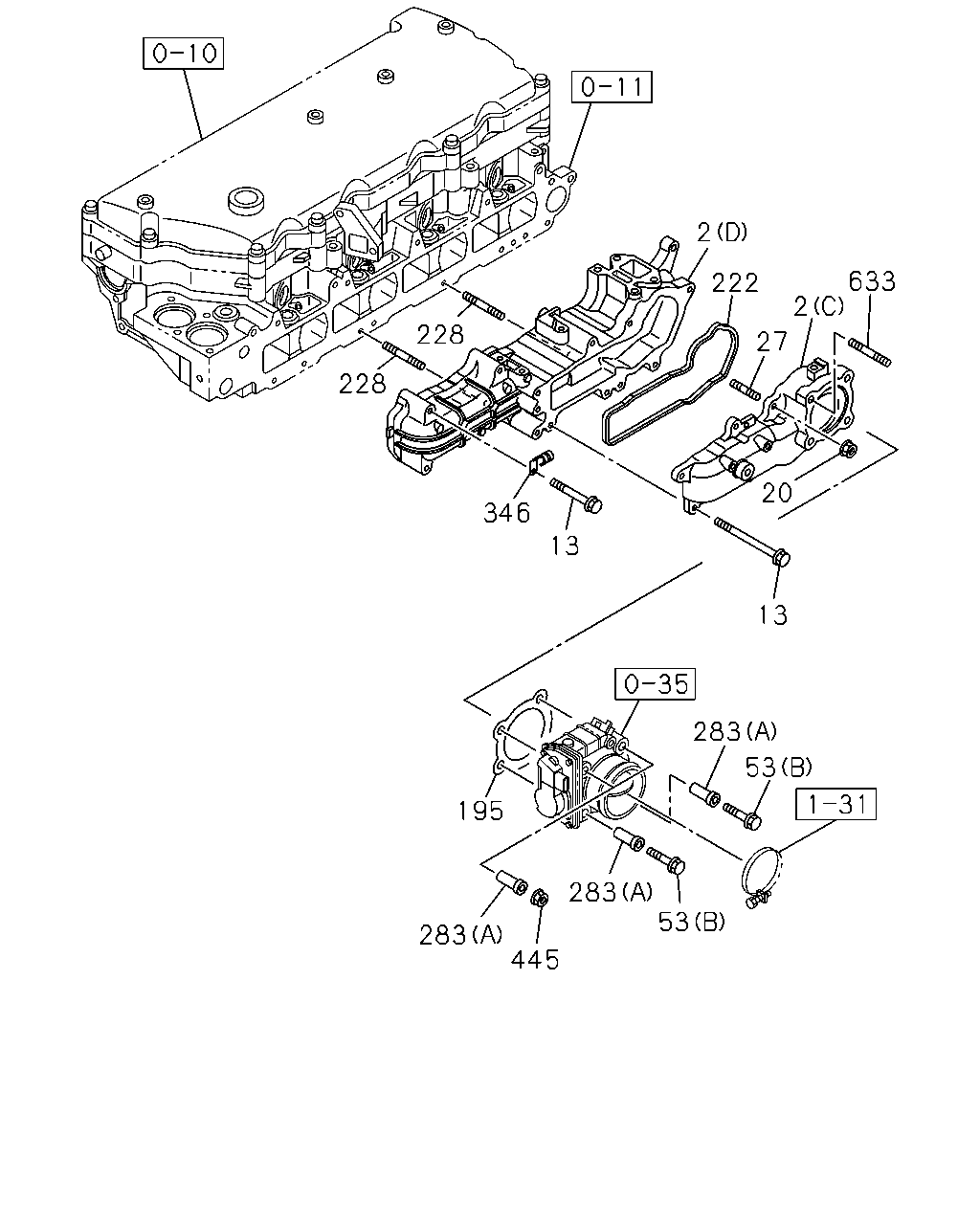

53 53 283 195 283 445 283 13 13 346 228 228 222 27 2 633 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL EURO5 SPECIFICATION<NT5> (A)	8-98239-918-0	01	1	1506-	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-97387-039-0	01	1	1305-		●
2	COVER; INL (A)	8-98061-091-0	01	1	1302-1405	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>, EURO4 SPECIFICATION<NT4> (A)	8-98061-091-0	01	1	1406-1511	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-98061-091-0	01	1	1512-	●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97387-038-0	01	1	1305-1409		●
2	COVER; INL EURO3 SPECIFICATION<NT3> (B)	8-97387-038-0	01	1	1410-1511		●
2	COVER; INL EURO4 SPECIFICATION<NT4> (C)	8-98085-730-1	01	1	1305-		●
2	COVER; INL EURO4 SPECIFICATION<NT4> (D)	8-98115-667-1	01	1	1305-		●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X30 FLANGE	0-28050-830-0	09	1	1305-		●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X80 FLANGE	0-28050-880-0	01	1	1305-		●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28050-825-0	02	1	1305-		●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28050-830-0	02	1	1305-		●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X60 FLANGE	0-28050-860-0	05	1	1305-		●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X120 FLANGE	0-28055-812-0	03	1	1305-		●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	1305-		●
27	STUD; INL MANIF EURO4 SPECIFICATION<NT4> M8X25 L=37	0-41010-825-0	02	1	1305-		●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28050-830-0	02	1	1302-1505	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) M8X30 FLANGE	0-28050-830-0	02	1	1506-1511	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X30 FLANGE	0-28050-830-0	02	1	1512-	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1302-1304	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1305-1505	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1305-1505		●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) M8X70 FLANGE	0-28050-870-0	02	1	1506-1511	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1506-1511		●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X70 FLANGE	0-28050-870-0	02	1	1512-	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X70 FLANGE	0-28050-870-0	02	1	1512-		●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	03	1	1305-		●
195	GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-98032-612-0	01	1	1305-		●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>	8-98032-611-0	01	1	1305-		●
228	STUD; INL COVER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X117 L=128	8-97111-477-0	02	1	1305-		●
228	STUD; INL COVER EURO4 SPECIFICATION<NT4> M8X126 L=137	8-97378-069-0	02	1	1305-		●
283	RUBBER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) L=18	8-97219-650-0	02	1	1302-1505	●
283	RUBBER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (B) L=18	8-97219-650-0	02	1	1506-1511	●
283	RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) L=18	8-97219-650-0	02	1	1512-	●
283	RUBBER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) L=58	8-97387-995-1	02	1	1302-1505	●
283	RUBBER EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> (A) L=58	8-97387-995-1	02	1	1506-1511	●
283	RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) L=58	8-97387-995-1	02	1	1512-	●
283	RUBBER EURO4 SPECIFICATION<NT4> (A) L=58	8-97387-995-1	04	1	1305-		●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1305-		●
445	NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	01	1	1305-		●
445	NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1305-		●
633	STUD; THROTTLE BODY EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X71 L=83	9-09830-212-0	01	1	1305-		●
633	STUD; THROTTLE BODY EURO4 SPECIFICATION<NT4> M8X71 L=83	9-09830-212-0	02	1	1305-		●

203 208 208 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	1302-	●
170	BOLT; BRKT EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28050-820-0	02	1	1305-1308		●
170	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28050-820-0	02	1	1309-1511		●
203	TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	1305-1308		●
203	TANK; CATCH,PRESSURE CONT VLV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97088-685-1	01	1	1309-		●
208	BRACKET; CATCH TANK,OIL EURO2 SPECIFICATION<NT2> (A)	8-98075-767-0	01	1	1305-		●
208	BRACKET; CATCH TANK,OIL EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B)	8-98215-518-1	01	1	1305-1308		●
208	BRACKET; CATCH TANK,OIL EURO3 SPECIFICATION<NT3> (B)	8-98215-518-1	01	1	1309-1511		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
