1-01 — ACCELERATOR PEDAL AND CONTROL (#11381) — 118 parça

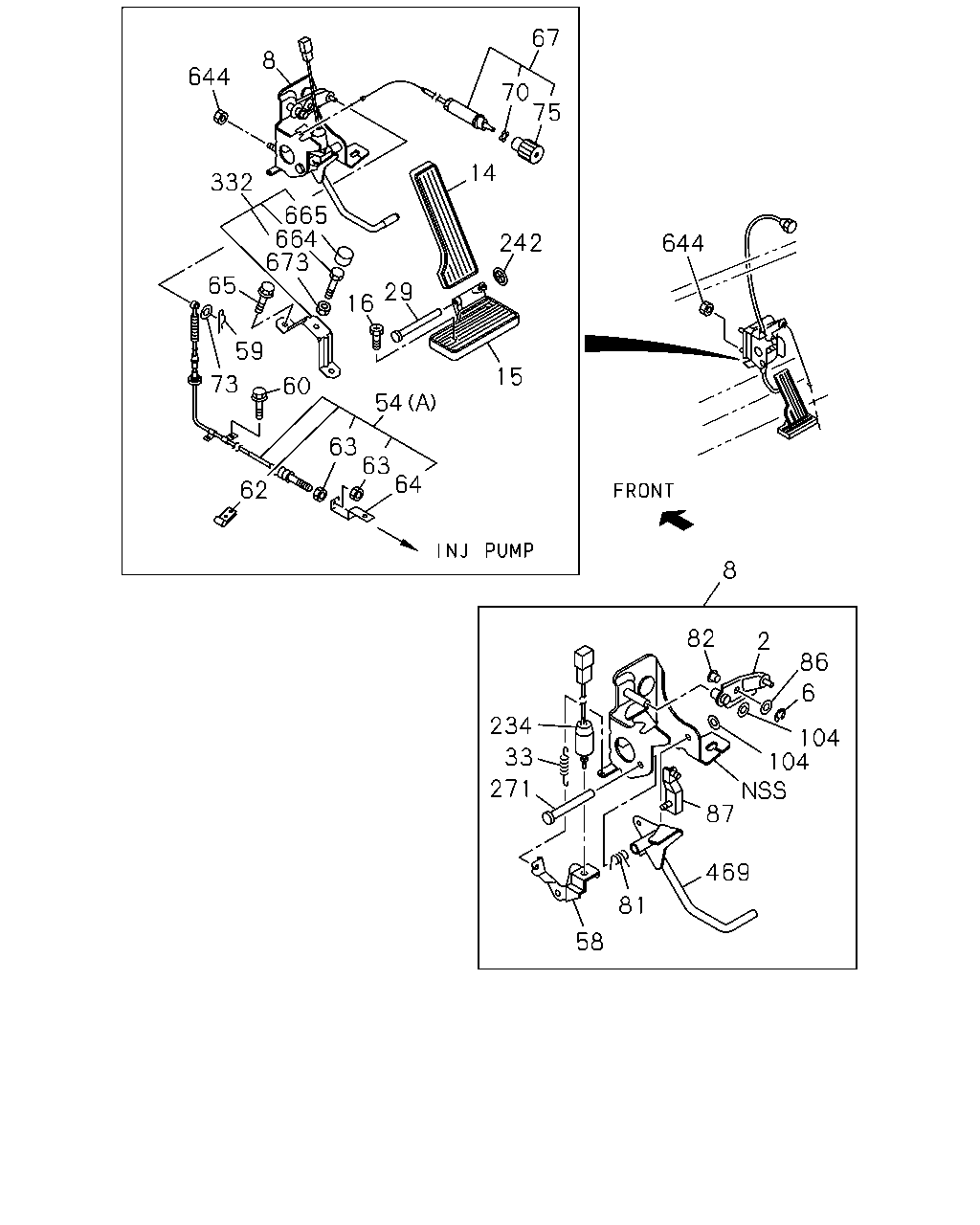

644 67 70 75 14 242 8 644 332 665 664 673 65 16 29 15 54 59 73 60 62 63 63 64 8 82 2 86 6 104 104 87 469 81 58 271 33 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LEVER; ENG CONT	1-71907-210-2	01	1	0106-
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0106-0604
6	RING; SNAP,LINK TO LINK ID=4	0-91805-504-0	02	1	0605-
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0106-
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0106-
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0106-
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0106-
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0106-
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0106-
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	0106-
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	0106-
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0106-
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0106-
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	0106-
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0106-
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	0106-
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0106-
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	0106-0204
67	CABLE ASM; IDLE CONT L=315	1-73908-423-0	01	1	0205-
70	NUT; CONT CABLE	1-73908-045-1	01	1	0106-
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0106-0605
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	0106-0109
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0204
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0106-
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0106-
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0106-
87	LINK; ENG CONT	1-71907-211-1	01	1	0106-
104	NUT; ENG CONT D=17.5	8-94368-617-0	02	1	0106-
234	SWITCH; ACCEL	1-82380-114-3	01	1	0106-
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0106-
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0106-
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0106-
469	LEVER ASM	1-71907-209-5	01	1	0106-
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0106-0304
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0106-
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0106-
673	NUT; STOPPER M8	9-09111-408-0	01	1	0106-0512
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-

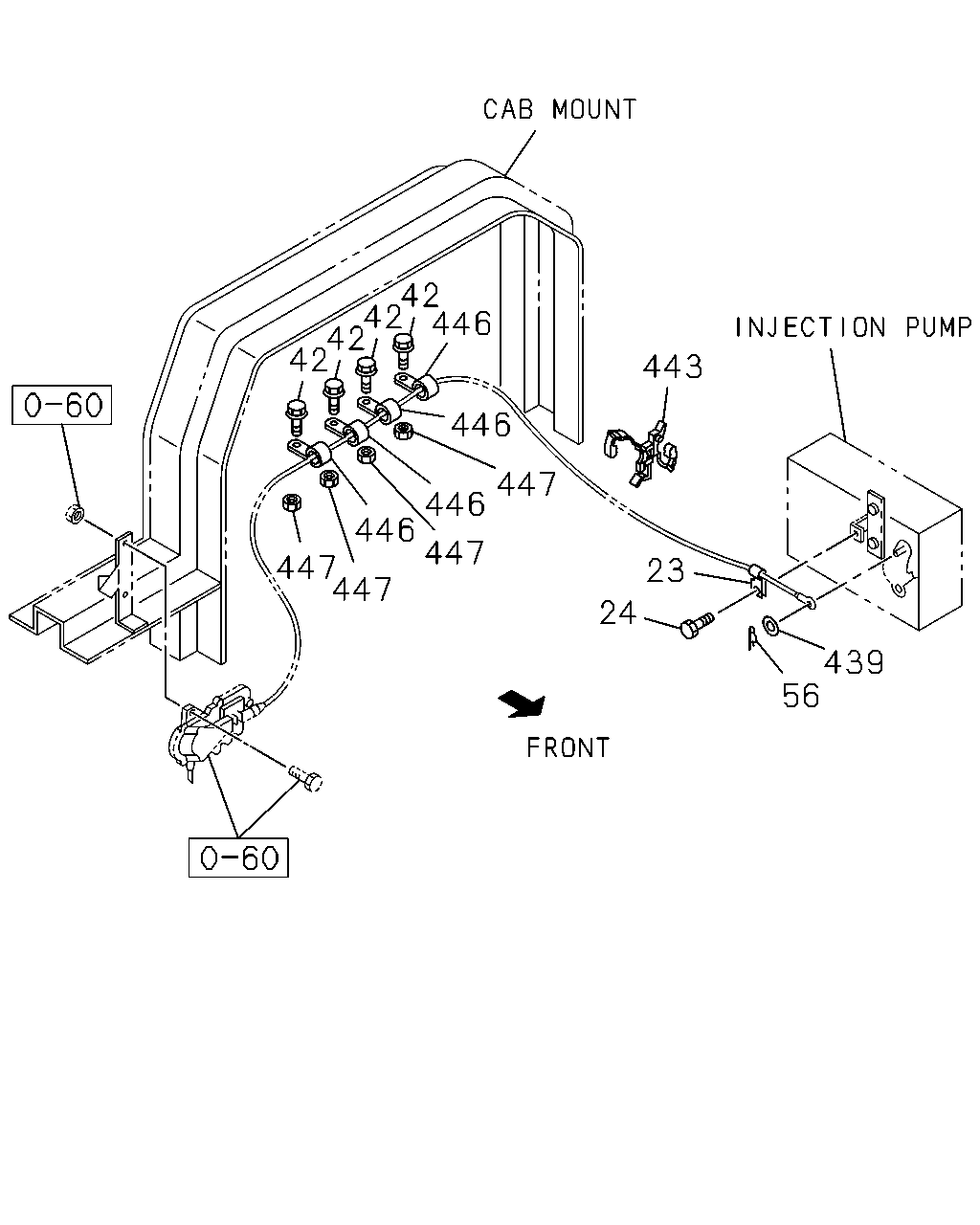

443 446 42 42 42 42 446 447 446 447 446 447 447 24 23 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BRACKET; FUEL CUT CABLE RLD GOVERNOR(SD7)	1-14319-138-0	01	1	0106-0108
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	0109-
24	BOLT; BRKT RLD GOVERNOR(SD7) M8X25 FLANGE	0-28680-825-0	01	1	0106-0108
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0109-0512
24	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
42	BOLT; BRKT,ENG CONT CABLE RLD GOVERNOR(SD7) M8X25 FLANGE	0-28680-825-0	04	1	0106-0108
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	0109-0304
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	05	1	0305-0512
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28650-825-0	05	1	0601-
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0106-
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0106-0605
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-
443	CLIP; CABLE RLD GOVERNOR(SD7) ID=6-10 & 6-10	1-09709-192-1	01	1	0106-0108
443	CLIP; CABLE ID=6-10 & 6-10	1-09709-192-1	01	1	0109-
446	CLIP; ENG CONT RLD GOVERNOR(SD7) ID=7 L=28	9-09524-655-0	04	1	0106-0108
446	CLIP; ENG CONT ID=7 L=28	9-09524-655-0	04	1	0109-0304
446	CLIP; ENG CONT ID=7 L=28	9-09524-655-0	05	1	0305-0606
446	CLIP; ENG CONT ID=7 L=28	0-95234-655-0	05	1	0607-
447	NUT; BRKT,CONT WIRE RLD GOVERNOR(SD7) M8 FLANGE	0-91150-108-0	04	1	0106-0108
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	0109-0304
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	05	1	0305-0602
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91180-108-0	05	1	0603-

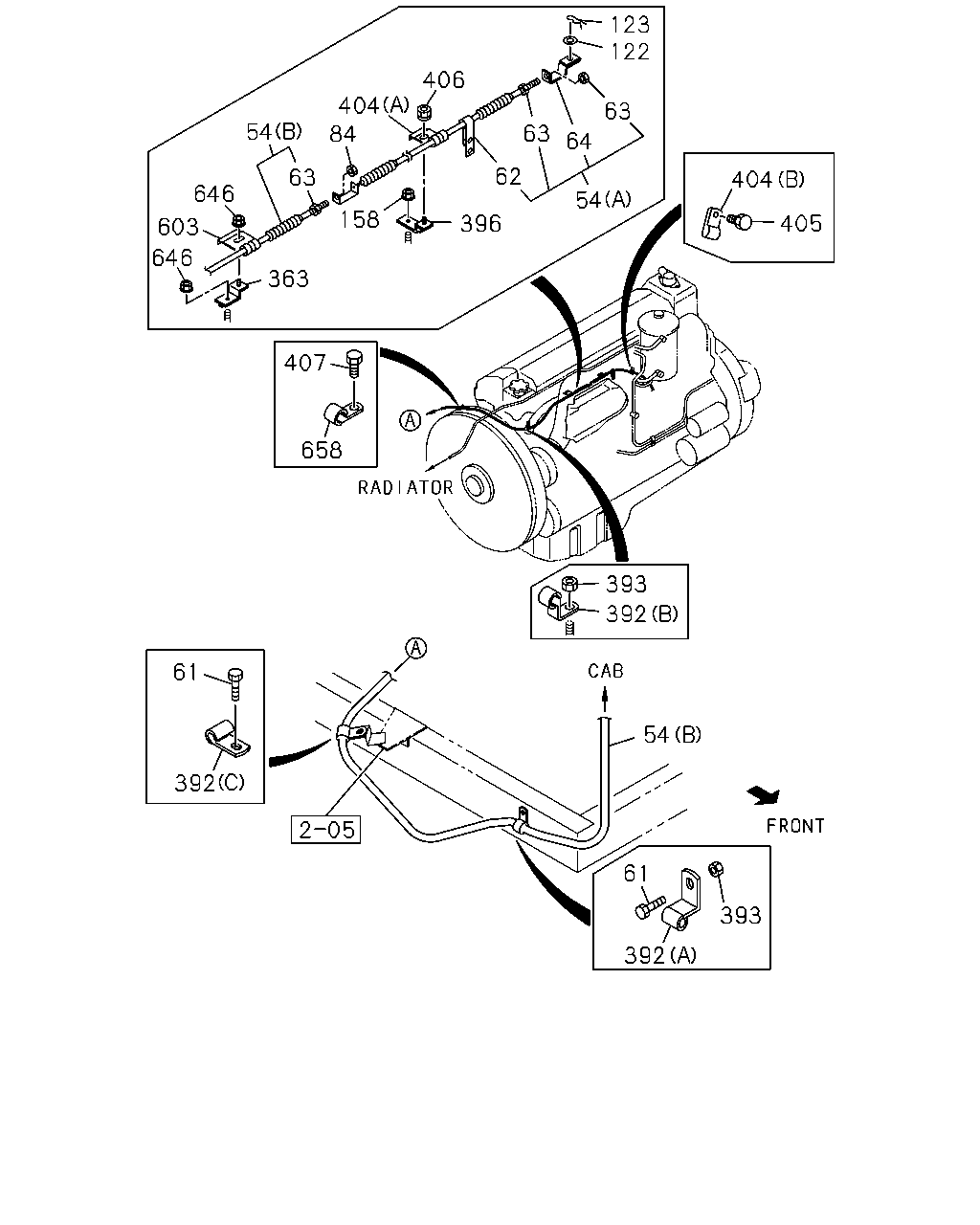

123 122 63 64 63 62 54 404 405 396 406 404 84 54 63 646 603 646 363 407 658 393 392 54 61 393 392 392 61 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	0106-
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	0106-
61	BOLT; BRKT TO FRAME ENG CONT CABLE RLD GOVERNOR(SD7) M8X25 FLANGE	0-28680-825-0	02	1	0106-0108
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	02	1	0109-0512
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X25 FLANGE	0-28650-825-0	02	1	0601-
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	0106-
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0106-
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	0106-
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0106-
84	NUT; ENG CONT LEVER RLD GOVERNOR(SD7) M8 FLANGE	0-91150-108-0	01	1	0106-0108
84	NUT; ENG CONT LEVER M8 FLANGE	0-91150-108-0	01	1	0109-0501
84	NUT; ENG CONT LEVER M8	9-09110-408-0	01	1	0502-0512
84	NUT; ENG CONT LEVER M8	0-91110-508-0	01	1	0601-
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	0106-0605
122	WASHER; PL,CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	0106-
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0602
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
363	SPACER; BRKT,ENG CONT SHAFT RLD GOVERNOR(SD7)	1-47477-804-3	01	1	0106-0108
363	SPACER; BRKT,ENG CONT SHAFT	1-47477-804-3	01	1	0109-
392	CLIP; ACCEL CONT CABLE RLD GOVERNOR(SD7) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-0108
392	CLIP; ACCEL CONT CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0109-
392	CLIP; ACCEL CONT CABLE RLD GOVERNOR(SD7) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-0108
392	CLIP; ACCEL CONT CABLE (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0109-
392	CLIP; ACCEL CONT CABLE RLD GOVERNOR(SD7) (A) ID=11 L=20	9-09525-035-0	01	1	0106-0108
392	CLIP; ACCEL CONT CABLE (A) ID=11 L=20	9-09525-035-0	01	1	0109-0606
392	CLIP; ACCEL CONT CABLE (A) ID=11 L=20	0-95235-035-0	01	1	0607-
393	NUT; CLIP TO FRAME RLD GOVERNOR(SD7) M8 FLANGE	0-91150-108-0	01	1	0106-0108
393	NUT; CLIP TO FRAME RLD GOVERNOR(SD7) M8 FLANGE	0-91150-108-0	01	1	0106-0108
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	0109-0602
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	0109-0602
393	NUT; CLIP TO FRAME M8 FLANGE	0-91180-108-0	01	1	0603-
393	NUT; CLIP TO FRAME M8 FLANGE	0-91180-108-0	01	1	0603-
396	BRACKET; CLIP	1-47478-055-0	01	1	0106-
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0106-
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	02	1	0106-0606
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	02	1	0607-
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	0106-0512
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28050-616-0	02	1	0601-
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0106-0512
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
407	BOLT; CLIP TO ENG RLD GOVERNOR(SD7) M8X25 FLANGE	0-28680-825-0	02	1	0106-0108
407	BOLT; CLIP TO ENG M8X25 FLANGE	0-28680-825-0	02	1	0109-0512
407	BOLT; CLIP TO ENG M8X25 FLANGE	0-28650-825-0	02	1	0601-
603	BRACKET; ENG CONT SHAFT RLD GOVERNOR(SD7)	1-14319-140-0	01	1	0106-0108
603	BRACKET; ENG CONT SHAFT	1-14319-140-0	01	1	0109-
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-108-0	02	1	0106-0602
646	NUT; BRKT,LEVER M8 FLANGE	0-91180-108-0	02	1	0603-
658	CLIP; ENG CONT CABLE RLD GOVERNOR(SD7) ID=7 L=20	9-09524-635-0	02	1	0106-0108
658	CLIP; ENG CONT CABLE ID=7 L=20	9-09524-635-0	02	1	0109-0606
658	CLIP; ENG CONT CABLE ID=7 L=20	0-95234-635-0	02	1	0607-
