Sayfa 0-25 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11505 - FRR(LHD) SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶

0-25 — INLET MANIFOLD (#113809) — 144 parça

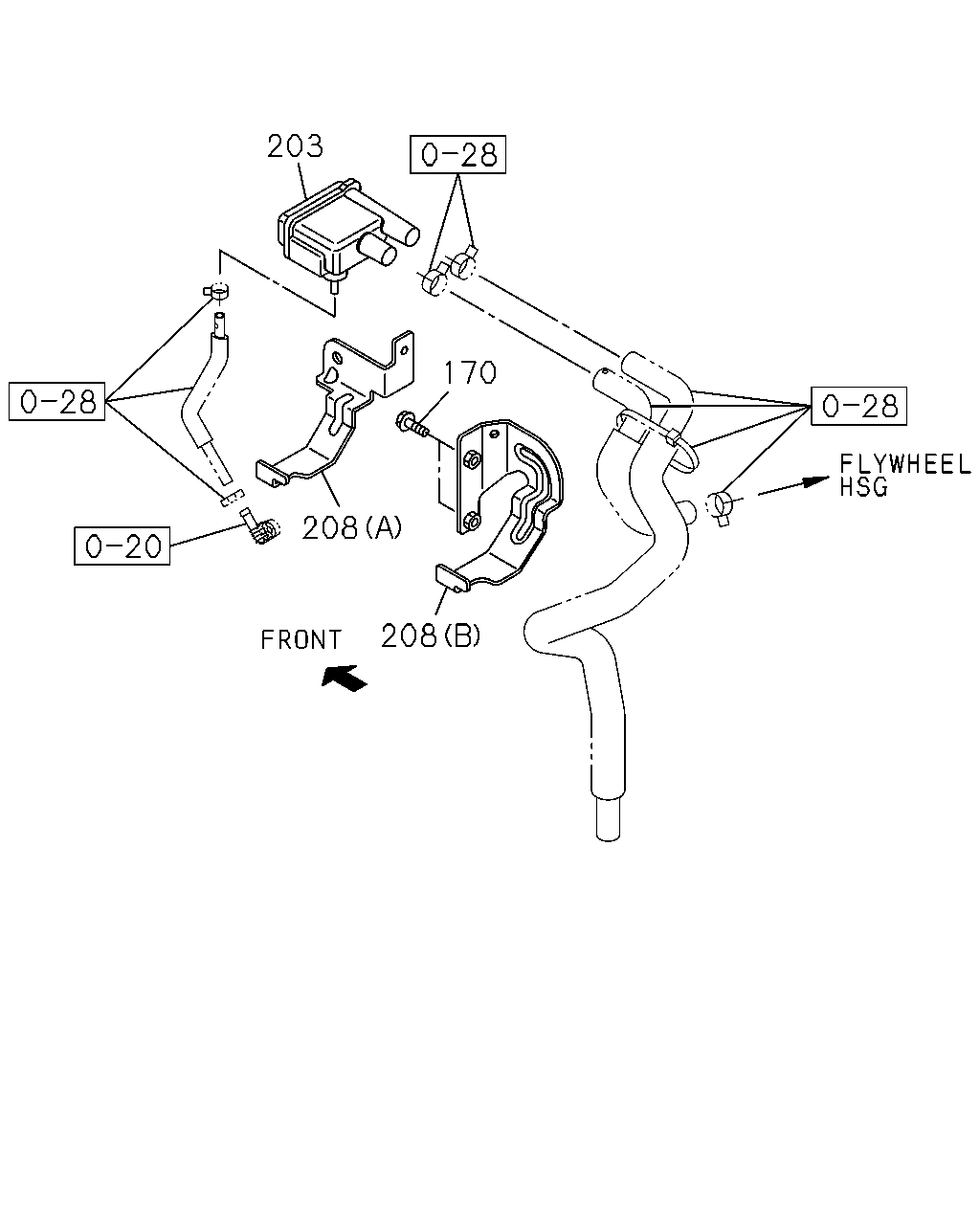

170 208 203 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28050-820-0	02	1	1302-1511	●	●
203	TANK; CATCH,PRESSURE CONT VLV EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97088-685-1	01	1	1302-1511	●
203	TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	1302-1511		●
203	TANK; CATCH,PRESSURE CONT VLV EURO2 SPECIFICATION<NT2>	8-97088-685-1	01	1	1512-	●
203	TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	1512-		●
208	BRACKET; CATCH TANK,OIL EURO2 SPECIFICATION<NT2> (A)	8-98075-767-0	01	1	1302-	●	●
208	BRACKET; CATCH TANK,OIL EURO3 SPECIFICATION<NT3> (B)	8-98215-518-1	01	1	1302-1511	●	●

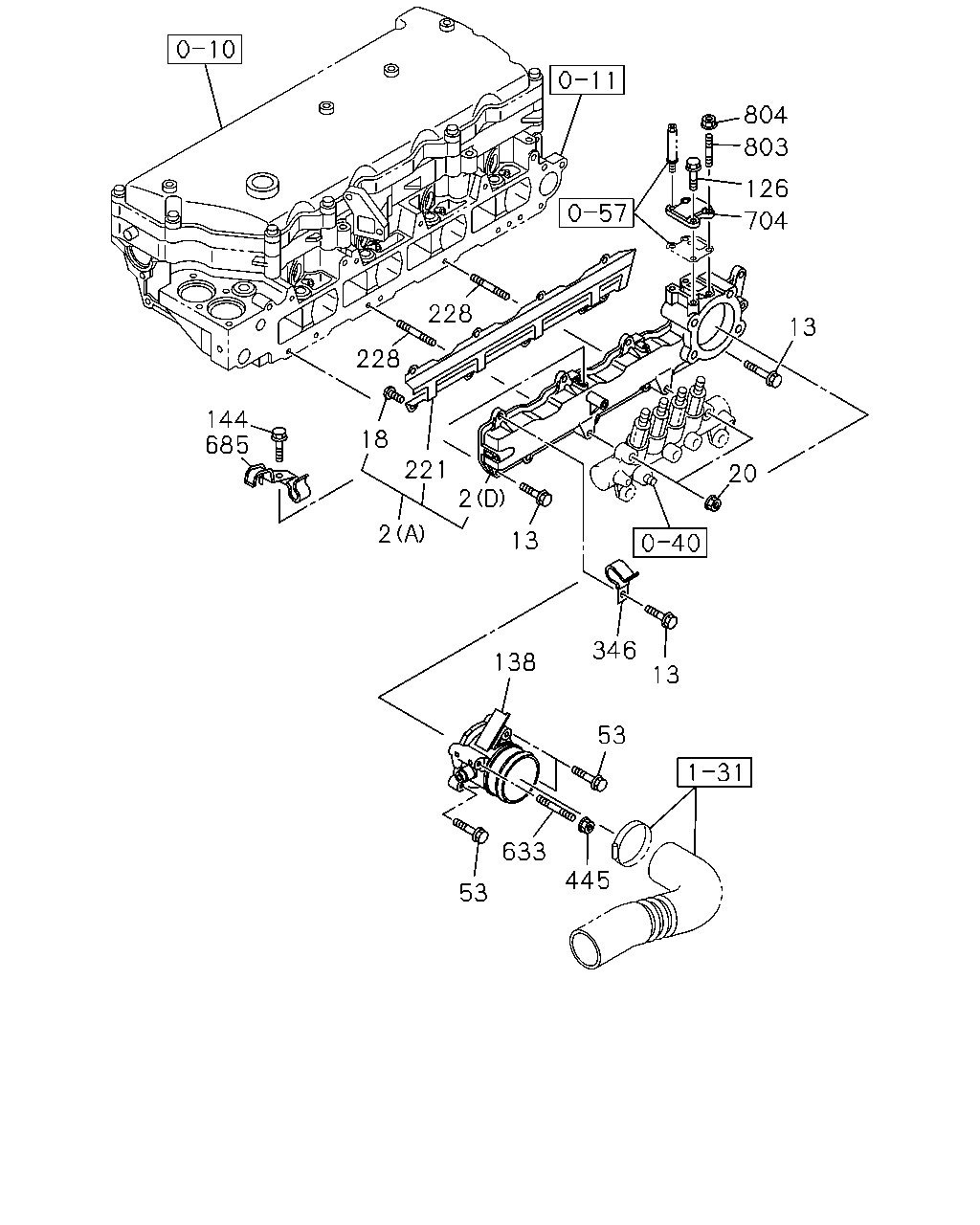

13 704 126 803 804 20 13 346 53 445 633 53 138 13 2 221 2 18 228 228 144 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-97387-039-0	01	1	1302-1511	●
2	COVER; INL (D)	8-97387-039-0	01	1	1302-1511		●
2	COVER; INL EURO2 SPECIFICATION<NT2> (D)	8-97387-039-0	01	1	1512-	●
2	COVER; INL (D)	8-97387-039-0	01	1	1512-		●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97387-038-0	01	1	1302-1409	●
2	COVER; INL (A)	8-97387-038-0	01	1	1302-1409		●
2	COVER; INL EURO3 SPECIFICATION<NT3> (A)	8-97387-038-0	01	1	1410-1511	●	●
2	COVER; INL EURO4 SPECIFICATION<NT4> (B)	8-98085-730-1	01	1	1302-1505	●
2	COVER; INL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98085-730-1	01	1	1506-	●
2	COVER; INL EURO4 SPECIFICATION<NT4> (C)	8-98115-667-1	01	1	1302-1505	●
2	COVER; INL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98115-667-1	01	1	1506-	●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X30 FLANGE	0-28050-830-0	09	1	1302-1511	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28050-830-0	09	1	1302-1511		●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2> M8X30 FLANGE	0-28050-830-0	09	1	1512-	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28050-830-0	09	1	1512-		●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X80 FLANGE	0-28050-880-0	01	1	1302-1511	●
13	BOLT; INL MANIF M8X80 FLANGE	0-28050-880-0	01	1	1302-1511		●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2> M8X80 FLANGE	0-28050-880-0	01	1	1512-	●
13	BOLT; INL MANIF M8X80 FLANGE	0-28050-880-0	01	1	1512-		●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28050-825-0	02	1	1302-1505	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X25 FLANGE	0-28050-825-0	02	1	1506-	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28050-830-0	02	1	1302-1505	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X30 FLANGE	0-28050-830-0	02	1	1506-	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X60 FLANGE	0-28050-860-0	05	1	1302-1505	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X60 FLANGE	0-28050-860-0	05	1	1506-	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X120 FLANGE	0-28055-812-0	03	1	1302-1505	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X120 FLANGE	0-28055-812-0	03	1	1506-	●
18	SCREW; PLATE,INL CVR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M6X10	9-03490-610-0	09	1	1302-1409	●
18	SCREW; PLATE,INL CVR M6X10	9-03490-610-0	09	1	1302-1409		●
18	SCREW; PLATE,INL CVR EURO3 SPECIFICATION<NT3> M6X10	9-03490-610-0	09	1	1410-1511	●	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X30 FLANGE	0-28650-830-0	03	1	1302-1511	●
53	BOLT; INL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1302-1511		●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2> M8X30 FLANGE	0-28650-830-0	03	1	1512-	●
53	BOLT; INL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1512-		●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> M8X70 FLANGE	0-28050-870-0	02	1	1302-1505	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X70 FLANGE	0-28050-870-0	02	1	1506-	●
126	BOLT; COVER EURO2 SPECIFICATION<NT2> M8X25 FLANGE	0-28650-825-0	01	1	1302-	●	●
138	PIPE; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98217-016-0	01	1	1302-1511	●
138	PIPE; INL	8-98217-016-0	01	1	1302-1511		●
138	PIPE; INL EURO2 SPECIFICATION<NT2>	8-98217-016-0	01	1	1512-	●
138	PIPE; INL	8-98217-016-0	01	1	1512-		●
144	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X12 FLANGE	0-28050-812-0	01	1	1302-1511	●
144	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	01	1	1302-1511		●
144	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> M8X12 FLANGE	0-28050-812-0	01	1	1512-	●
144	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	01	1	1512-		●
221	PLATE; INL COVER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97379-202-0	01	1	1302-1409	●
221	PLATE; INL COVER	8-97379-202-0	01	1	1302-1409		●
221	PLATE; INL COVER EURO3 SPECIFICATION<NT3>	8-97379-202-0	01	1	1410-1511	●	●
228	STUD; INL COVER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X117 L=128	8-97111-477-0	02	1	1302-1511	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	1302-1511		●
228	STUD; INL COVER EURO2 SPECIFICATION<NT2> M8X117 L=128	8-97111-477-0	02	1	1512-	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	1512-		●
228	STUD; INL COVER EURO4 SPECIFICATION<NT4> M8X126 L=137	8-97378-069-0	02	1	1302-1505	●
228	STUD; INL COVER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X126 L=137	8-97378-069-0	02	1	1506-	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1302-	●	●
445	NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	01	1	1302-1511	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91180-108-0	01	1	1302-1511		●
445	NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	1512-	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91180-108-0	01	1	1512-		●
445	NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
445	NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1506-	●
633	STUD; THROTTLE BODY EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X71 L=83	9-09830-212-0	01	1	1302-1511	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1302-1511		●
633	STUD; THROTTLE BODY EURO2 SPECIFICATION<NT2> M8X71 L=83	9-09830-212-0	01	1	1512-	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1512-		●
633	STUD; THROTTLE BODY EURO4 SPECIFICATION<NT4> M8X71 L=83	9-09830-212-0	02	1	1302-1505	●
633	STUD; THROTTLE BODY EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X71 L=83	9-09830-212-0	02	1	1506-	●
685	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97331-921-1	01	1	1302-1511	●
685	BRACKET; HARNESS	8-97331-921-1	01	1	1302-1511		●
685	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>	8-97331-921-1	01	1	1512-	●
685	BRACKET; HARNESS	8-97331-921-1	01	1	1512-		●
704	COVER EURO2 SPECIFICATION<NT2>	8-98062-651-1	01	1	1302-1408	●	●
704	COVER EURO2 SPECIFICATION<NT2>	8-98260-138-0	01	1	1409-	●	●
803	STUD; COVER EURO2 SPECIFICATION<NT2> M8X20 L=32	0-41010-820-0	02	1	1302-	●	●
804	NUT; COVER EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	1302-	●	●

228 228 2 346 222 633 2 27 20 13 13 195 283 53 53 283 283 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D)	8-97387-039-0	01	1	1302-1511	●
2	COVER; INL (D)	8-97387-039-0	01	1	1302-1511		●
2	COVER; INL EURO2 SPECIFICATION<NT2> (D)	8-97387-039-0	01	1	1512-	●
2	COVER; INL (D)	8-97387-039-0	01	1	1512-		●
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97387-038-0	01	1	1302-1409	●
2	COVER; INL (A)	8-97387-038-0	01	1	1302-1409		●
2	COVER; INL EURO3 SPECIFICATION<NT3> (A)	8-97387-038-0	01	1	1410-1511	●	●
2	COVER; INL EURO4 SPECIFICATION<NT4> (B)	8-98085-730-1	01	1	1302-1505	●
2	COVER; INL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98085-730-1	01	1	1506-	●
2	COVER; INL EURO4 SPECIFICATION<NT4> (C)	8-98115-667-1	01	1	1302-1505	●
2	COVER; INL EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-98115-667-1	01	1	1506-	●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X30 FLANGE	0-28050-830-0	09	1	1302-1511	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28050-830-0	09	1	1302-1511		●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2> M8X30 FLANGE	0-28050-830-0	09	1	1512-	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28050-830-0	09	1	1512-		●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X80 FLANGE	0-28050-880-0	01	1	1302-1511	●
13	BOLT; INL MANIF M8X80 FLANGE	0-28050-880-0	01	1	1302-1511		●
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2> M8X80 FLANGE	0-28050-880-0	01	1	1512-	●
13	BOLT; INL MANIF M8X80 FLANGE	0-28050-880-0	01	1	1512-		●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28050-825-0	02	1	1302-1505	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X25 FLANGE	0-28050-825-0	02	1	1506-	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28050-830-0	02	1	1302-1505	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X30 FLANGE	0-28050-830-0	02	1	1506-	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X60 FLANGE	0-28050-860-0	05	1	1302-1505	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X60 FLANGE	0-28050-860-0	05	1	1506-	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> M8X120 FLANGE	0-28055-812-0	03	1	1302-1505	●
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X120 FLANGE	0-28055-812-0	03	1	1506-	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
27	STUD; INL MANIF EURO4 SPECIFICATION<NT4> M8X25 L=37	0-41010-825-0	02	1	1302-1505	●
27	STUD; INL MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X25 L=37	0-41010-825-0	02	1	1506-	●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X30 FLANGE	0-28650-830-0	03	1	1302-1511	●
53	BOLT; INL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1302-1511		●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2> M8X30 FLANGE	0-28650-830-0	03	1	1512-	●
53	BOLT; INL PIPE M8X30 FLANGE	0-28650-830-0	03	1	1512-		●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> M8X70 FLANGE	0-28050-870-0	02	1	1302-1505	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X70 FLANGE	0-28050-870-0	02	1	1506-	●
195	GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>	8-98032-612-0	01	1	1302-1505	●
195	GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98032-612-0	01	1	1506-	●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>	8-98032-611-0	01	1	1302-1505	●
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98032-611-0	01	1	1506-	●
228	STUD; INL COVER EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X117 L=128	8-97111-477-0	02	1	1302-1511	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	1302-1511		●
228	STUD; INL COVER EURO2 SPECIFICATION<NT2> M8X117 L=128	8-97111-477-0	02	1	1512-	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	1512-		●
228	STUD; INL COVER EURO4 SPECIFICATION<NT4> M8X126 L=137	8-97378-069-0	02	1	1302-1505	●
228	STUD; INL COVER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X126 L=137	8-97378-069-0	02	1	1506-	●
283	RUBBER EURO4 SPECIFICATION<NT4> L=58	8-97387-995-1	04	1	1302-1505	●
283	RUBBER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> L=58	8-97387-995-1	04	1	1506-	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1302-	●	●
445	NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	01	1	1302-1511	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91180-108-0	01	1	1302-1511		●
445	NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	1512-	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91180-108-0	01	1	1512-		●
445	NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
445	NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1506-	●
633	STUD; THROTTLE BODY EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X71 L=83	9-09830-212-0	01	1	1302-1511	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1302-1511		●
633	STUD; THROTTLE BODY EURO2 SPECIFICATION<NT2> M8X71 L=83	9-09830-212-0	01	1	1512-	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1512-		●
633	STUD; THROTTLE BODY EURO4 SPECIFICATION<NT4> M8X71 L=83	9-09830-212-0	02	1	1302-1505	●
633	STUD; THROTTLE BODY EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X71 L=83	9-09830-212-0	02	1	1506-	●
