Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#113804) — 168 parça

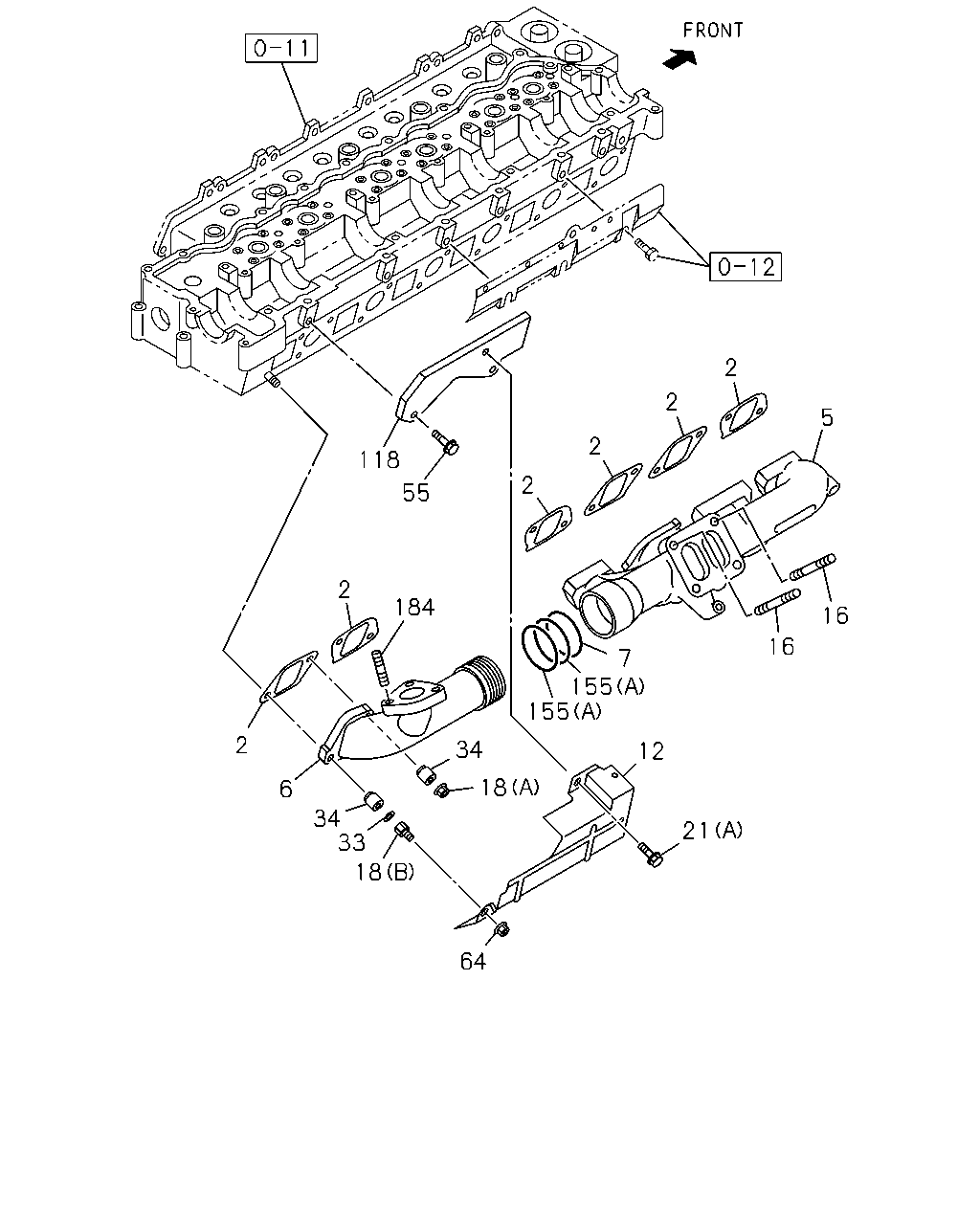

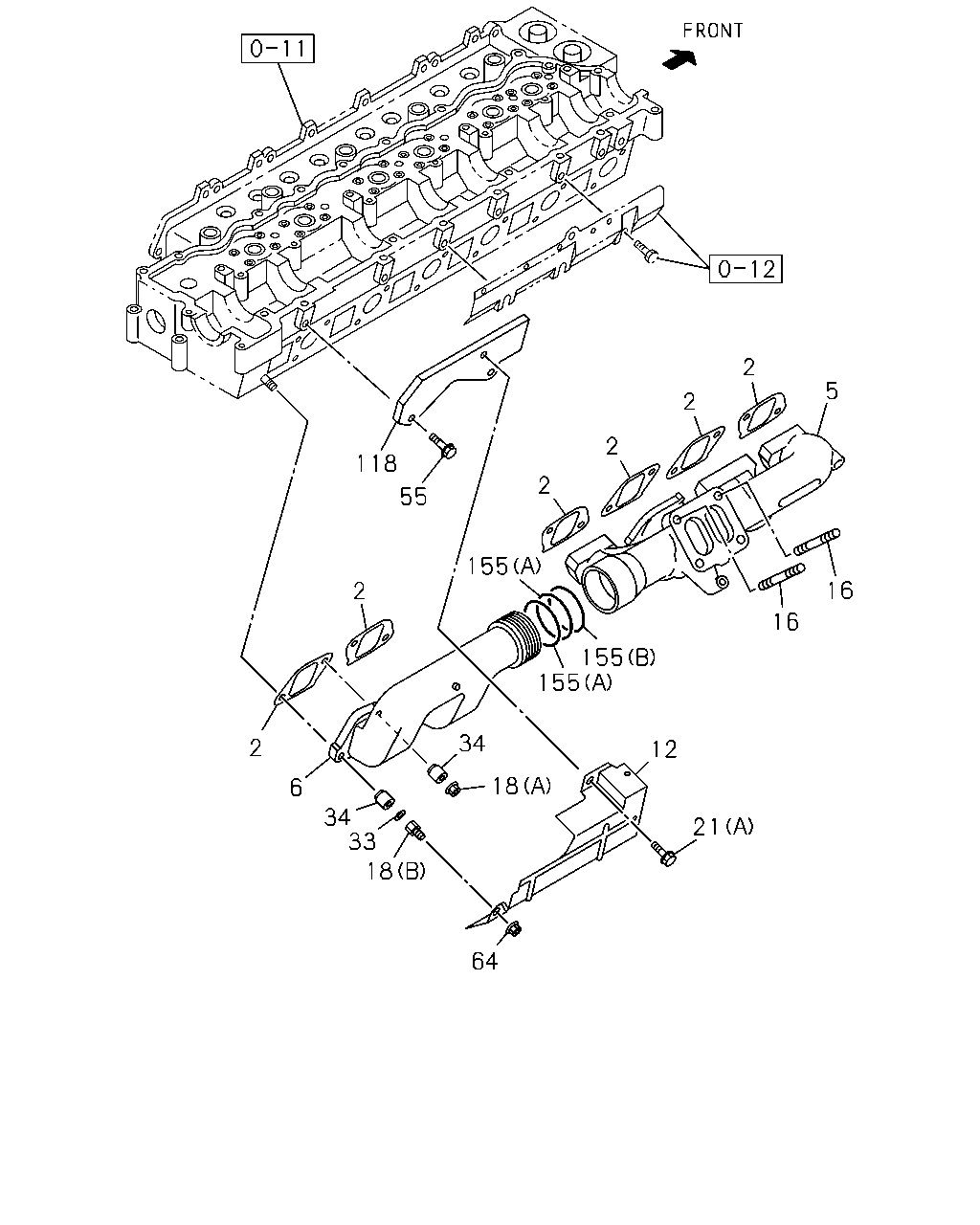

118 55 2 2 6 34 33 18 18 34 155 2 2 2 2 5 16 16 21 12 155 155 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	1302-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97146-499-2	01	1	1305-		●
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97602-056-0	01	1	1302-1511	●
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	1512-	●
5	MANIFOLD; EXH,FRT EURO4 SPECIFICATION<NT4>	8-97604-942-1	01	1	1302-1505	●
5	MANIFOLD; EXH,FRT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97604-942-1	01	1	1506-	●
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<NT2>	8-97600-970-0	01	1	1302-	●
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3>	8-97601-630-0	01	1	1302-1511	●
6	MANIFOLD; EXH,RR EURO4 SPECIFICATION<NT4>	8-97604-944-0	01	1	1302-1505	●
6	MANIFOLD; EXH,RR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97604-944-0	01	1	1506-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97601-632-0	01	1	1302-1511	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	1512-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO4 SPECIFICATION<NT4>	8-97610-717-3	01	1	1302-1505	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97610-717-3	01	1	1506-	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X25 L=40	9-04731-025-0	02	1	1302-1304	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X25 L=40	9-04731-025-0	02	1	1305-1511	●	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	1512-	●	●
16	STUD; EXH PIPE TO MANIF EURO4 SPECIFICATION<NT4> M10X30 L=45	1-09302-106-0	02	1	1305-		●
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	1302-	●
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1302-	●
18	NUT; EXH MANIF (C) M10	0-91110-510-0	02	1	1305-		●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-1511	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (B) M8X14 FLANGE	8-97378-075-0	04	1	1302-1505	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X14 FLANGE	8-97378-075-0	04	1	1506-	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X12 FLANGE	8-97108-669-0	02	1	1305-		●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	02	1	1302-	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	1302-	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	1305-		●
55	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●
55	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	1302-	●
118	BRACKET; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97603-366-0	01	1	1302-1511	●
118	BRACKET; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>	8-97603-366-0	01	1	1512-	●
155	RING; SEAL,EXH MANIF (A)	1-14149-184-0	02	1	1302-	●
155	RING; SEAL,EXH MANIF EURO2 SPECIFICATION<NT2> (B) STAMP RH	1-14149-151-0	01	1	1302-	●

118 55 2 2 2 2 5 16 16 7 155 155 184 2 2 6 34 33 18 64 18 34 12 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	1302-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97146-499-2	01	1	1305-		●
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97602-056-0	01	1	1302-1511	●
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	1512-	●
5	MANIFOLD; EXH,FRT EURO4 SPECIFICATION<NT4>	8-97604-942-1	01	1	1302-1505	●
5	MANIFOLD; EXH,FRT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97604-942-1	01	1	1506-	●
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<NT2>	8-97600-970-0	01	1	1302-	●
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3>	8-97601-630-0	01	1	1302-1511	●
6	MANIFOLD; EXH,RR EURO4 SPECIFICATION<NT4>	8-97604-944-0	01	1	1302-1505	●
6	MANIFOLD; EXH,RR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97604-944-0	01	1	1506-	●
7	RING; SEAL,EXH MANIF EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> STAMP RH	1-14149-151-0	01	1	1302-1505	●
7	RING; SEAL,EXH MANIF EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> STAMP RH	1-14149-151-0	01	1	1506-1511	●
7	RING; SEAL,EXH MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> STAMP RH	1-14149-151-0	01	1	1512-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97601-632-0	01	1	1302-1511	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	1512-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO4 SPECIFICATION<NT4>	8-97610-717-3	01	1	1302-1505	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97610-717-3	01	1	1506-	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X25 L=40	9-04731-025-0	02	1	1302-1304	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X25 L=40	9-04731-025-0	02	1	1305-1511	●	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	1512-	●	●
16	STUD; EXH PIPE TO MANIF EURO4 SPECIFICATION<NT4> M10X30 L=45	1-09302-106-0	02	1	1305-		●
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	1302-	●
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1302-	●
18	NUT; EXH MANIF (C) M10	0-91110-510-0	02	1	1305-		●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-1511	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (B) M8X14 FLANGE	8-97378-075-0	04	1	1302-1505	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X14 FLANGE	8-97378-075-0	04	1	1506-	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X12 FLANGE	8-97108-669-0	02	1	1305-		●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	02	1	1302-	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	1302-	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	1305-		●
55	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X16 FLANGE	0-28050-816-0	02	1	1302-1511	●
55	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	1302-	●
118	BRACKET; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97603-366-0	01	1	1302-1511	●
118	BRACKET; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>	8-97603-366-0	01	1	1512-	●
155	RING; SEAL,EXH MANIF (A)	1-14149-184-0	02	1	1302-	●
155	RING; SEAL,EXH MANIF EURO2 SPECIFICATION<NT2> (B) STAMP RH	1-14149-151-0	01	1	1302-	●
184	STUD; EXH MANIFOLD EURO3 SPECIFICATION<NT3> M8X25 L=36	8-97378-062-0	03	1	1302-1511	●

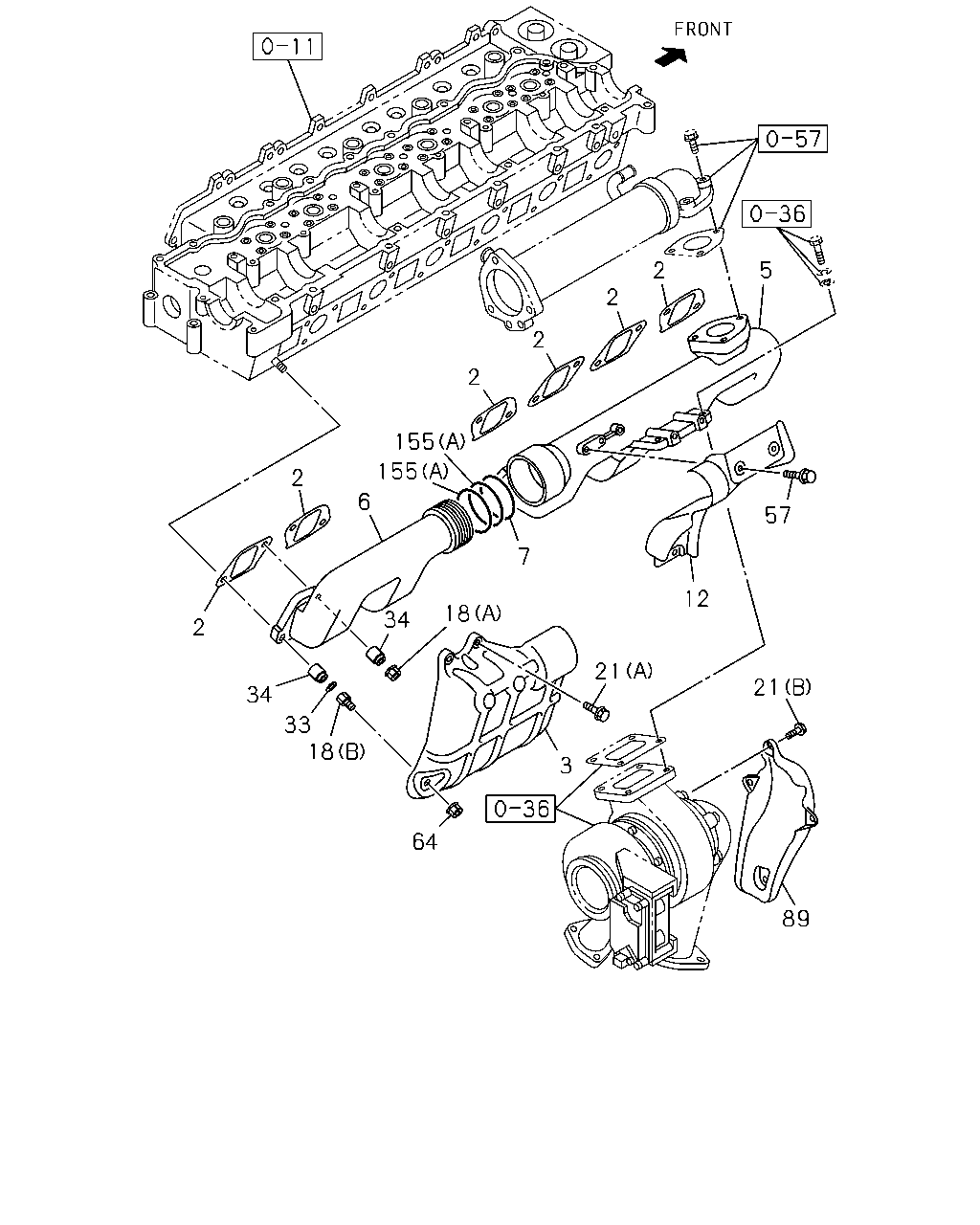

2 6 155 155 2 2 2 2 5 57 7 12 21 21 89 3 64 18 33 34 34 18 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	1302-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97146-499-2	01	1	1305-		●
3	PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION<NT4>	8-98205-395-0	01	1	1302-1505	●
3	PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98205-395-0	01	1	1506-	●
3	PROTECTOR; HEAT,EXH MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97039-753-1	01	1	1305-		●
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97602-056-0	01	1	1302-1511	●
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	1512-	●
5	MANIFOLD; EXH,FRT EURO4 SPECIFICATION<NT4>	8-97604-942-1	01	1	1302-1505	●
5	MANIFOLD; EXH,FRT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97604-942-1	01	1	1506-	●
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<NT2>	8-97600-970-0	01	1	1302-	●
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3>	8-97601-630-0	01	1	1302-1511	●
6	MANIFOLD; EXH,RR EURO4 SPECIFICATION<NT4>	8-97604-944-0	01	1	1302-1505	●
6	MANIFOLD; EXH,RR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97604-944-0	01	1	1506-	●
7	RING; SEAL,EXH MANIF EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> STAMP RH	1-14149-151-0	01	1	1302-1505	●
7	RING; SEAL,EXH MANIF EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>, EURO5 SPECIFICATION<NT5> STAMP RH	1-14149-151-0	01	1	1506-1511	●
7	RING; SEAL,EXH MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> STAMP RH	1-14149-151-0	01	1	1512-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97601-632-0	01	1	1302-1511	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	1512-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO4 SPECIFICATION<NT4>	8-97610-717-3	01	1	1302-1505	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97610-717-3	01	1	1506-	●
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	1302-	●
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1302-	●
18	NUT; EXH MANIF (C) M10	0-91110-510-0	02	1	1305-		●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-1511	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (B) M8X14 FLANGE	8-97378-075-0	04	1	1302-1505	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X14 FLANGE	8-97378-075-0	04	1	1506-	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X12 FLANGE	8-97108-669-0	02	1	1305-		●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	02	1	1302-	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	1302-	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	1305-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO4 SPECIFICATION<NT4> M8X14 FLANGE	8-97378-075-0	03	1	1302-1505	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X14 FLANGE	8-97378-075-0	03	1	1506-	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	1302-	●
89	PROTECTOR; HEAT EURO4 SPECIFICATION<NT4>	8-97611-985-3	01	1	1302-1505	●
89	PROTECTOR; HEAT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97611-985-3	01	1	1506-	●
155	RING; SEAL,EXH MANIF (A)	1-14149-184-0	02	1	1302-	●
155	RING; SEAL,EXH MANIF EURO2 SPECIFICATION<NT2> (B) STAMP RH	1-14149-151-0	01	1	1302-	●

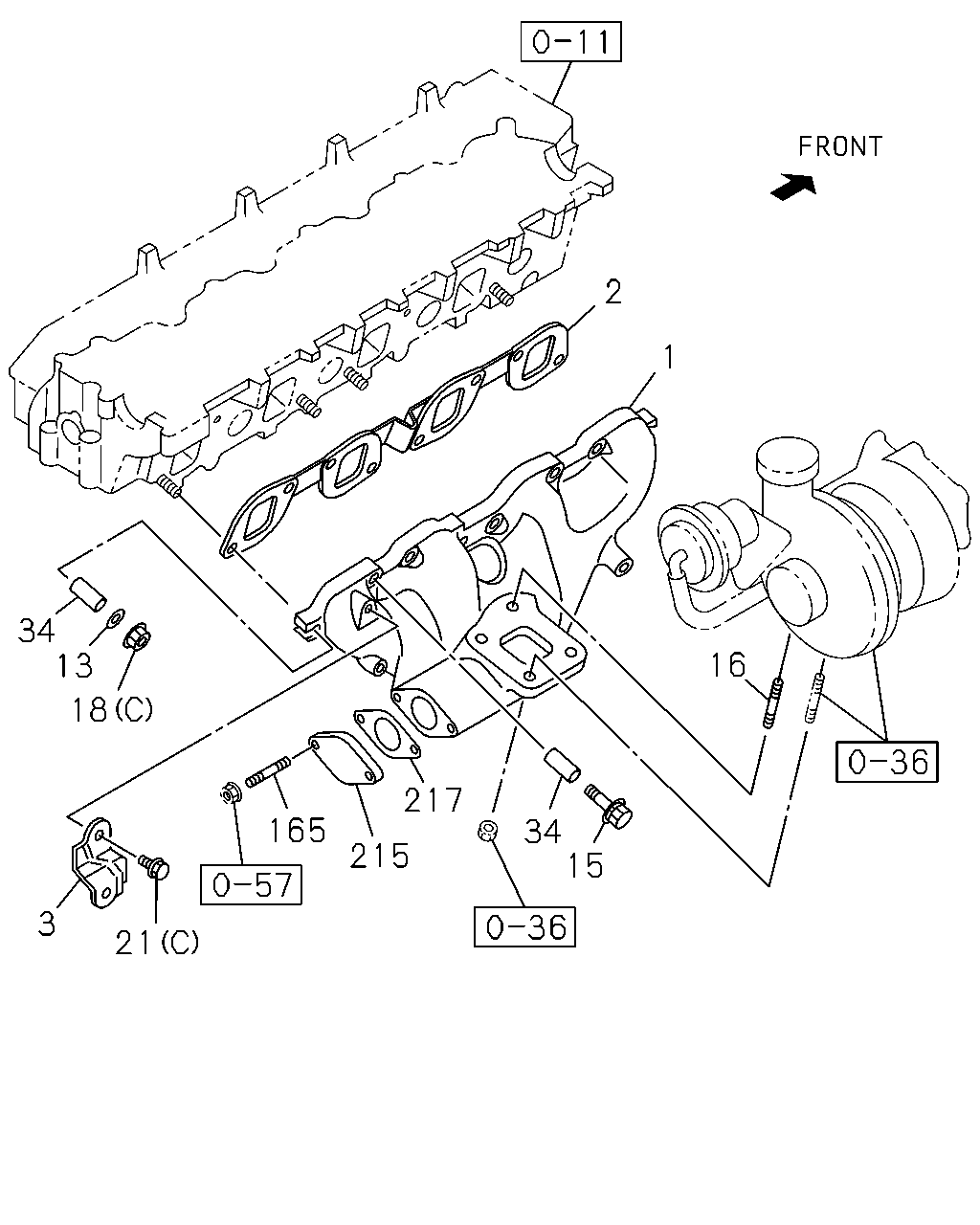

16 34 15 215 165 18 34 217 21 3 1 2 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98027-968-1	01	1	1305-		●
1	MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4>	8-97387-873-4	01	1	1305-1405		●
1	MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4>	8-98271-447-0	01	1	1406-		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	1302-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97146-499-2	01	1	1305-		●
3	PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION<NT4>	8-98205-395-0	01	1	1302-1505	●
3	PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98205-395-0	01	1	1506-	●
3	PROTECTOR; HEAT,EXH MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-97039-753-1	01	1	1305-		●
13	WASHER; LK,EXH MANIF T=2.2	1-09556-015-0	02	1	1305-		●
15	BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	1305-		●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X25 L=40	9-04731-025-0	02	1	1302-1304	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X25 L=40	9-04731-025-0	02	1	1305-1511	●	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	1512-	●	●
16	STUD; EXH PIPE TO MANIF EURO4 SPECIFICATION<NT4> M10X30 L=45	1-09302-106-0	02	1	1305-		●
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	1302-	●
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1302-	●
18	NUT; EXH MANIF (C) M10	0-91110-510-0	02	1	1305-		●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-1511	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	1512-	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (B) M8X14 FLANGE	8-97378-075-0	04	1	1302-1505	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X14 FLANGE	8-97378-075-0	04	1	1506-	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (C) M6X12 FLANGE	8-97108-669-0	02	1	1305-		●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	1302-	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	1305-		●
165	STUD; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X45 L=57	8-94105-162-1	02	1	1305-		●
165	STUD; EGR PIPE EURO4 SPECIFICATION<NT4> M8X25 L=36	8-94476-282-0	03	1	1305-		●
215	PLATE; BOSS,EXH MANIF EURO2 SPECIFICATION<NT2>	8-98170-965-0	01	1	1305-		●
217	GASKET; EXH MANIF TO PLATE EURO2 SPECIFICATION<NT2>	8-94340-670-0	01	1	1305-		●

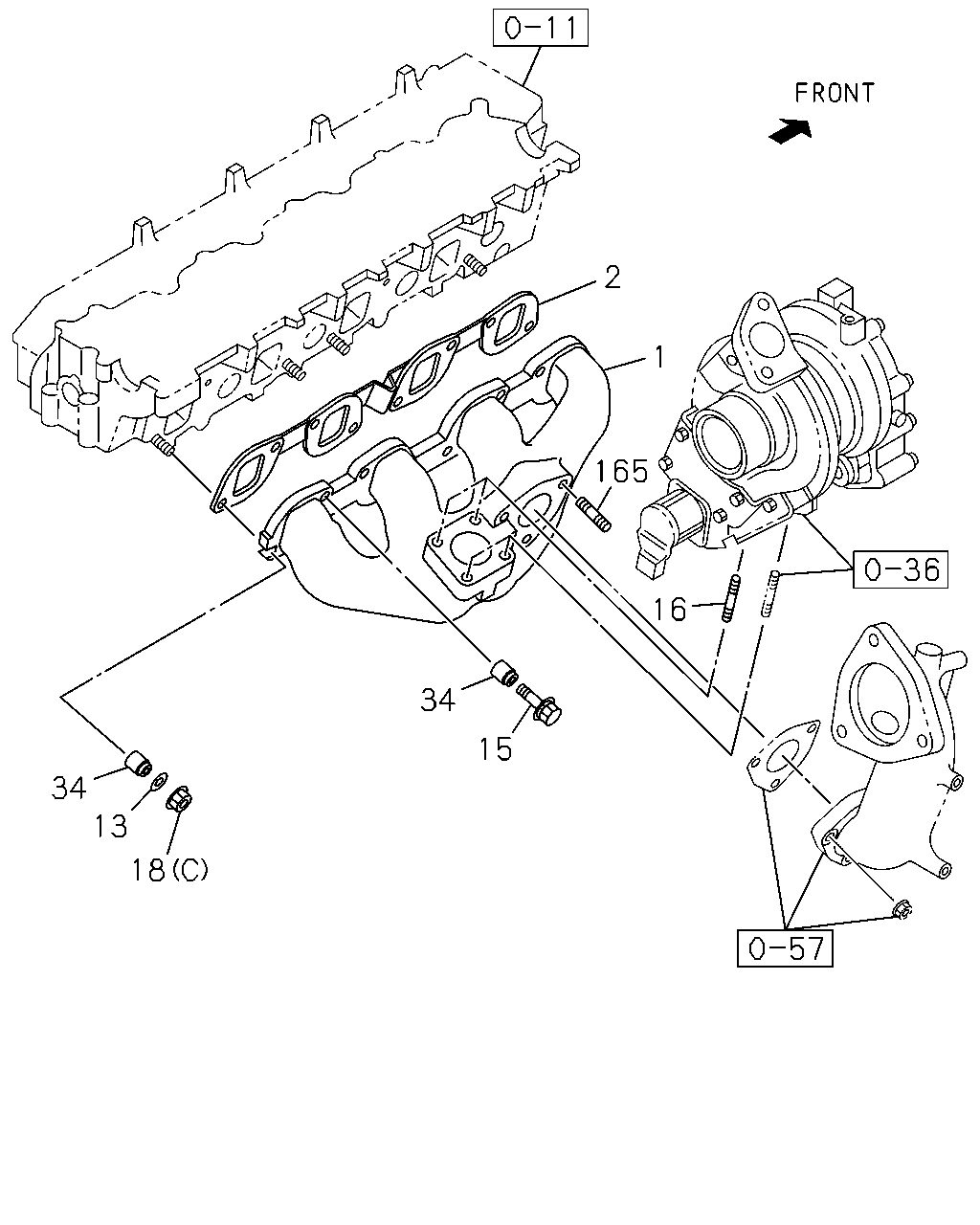

2 15 34 16 18 13 34 165 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; EXHAUST EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98027-968-1	01	1	1305-		●
1	MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4>	8-97387-873-4	01	1	1305-1405		●
1	MANIFOLD; EXHAUST EURO4 SPECIFICATION<NT4>	8-98271-447-0	01	1	1406-		●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	1302-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97146-499-2	01	1	1305-		●
13	WASHER; LK,EXH MANIF T=2.2	1-09556-015-0	02	1	1305-		●
15	BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	1305-		●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X25 L=40	9-04731-025-0	02	1	1302-1304	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M10X25 L=40	9-04731-025-0	02	1	1305-1511	●	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	1512-	●	●
16	STUD; EXH PIPE TO MANIF EURO4 SPECIFICATION<NT4> M10X30 L=45	1-09302-106-0	02	1	1305-		●
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	1302-	●
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1302-	●
18	NUT; EXH MANIF (C) M10	0-91110-510-0	02	1	1305-		●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	1302-	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	1305-		●
165	STUD; EGR PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> M8X45 L=57	8-94105-162-1	02	1	1305-		●
165	STUD; EGR PIPE EURO4 SPECIFICATION<NT4> M8X25 L=36	8-94476-282-0	03	1	1305-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
