0-30 — WATER PUMP AND CORROSION RESISTOR (#113796) — 70 parça

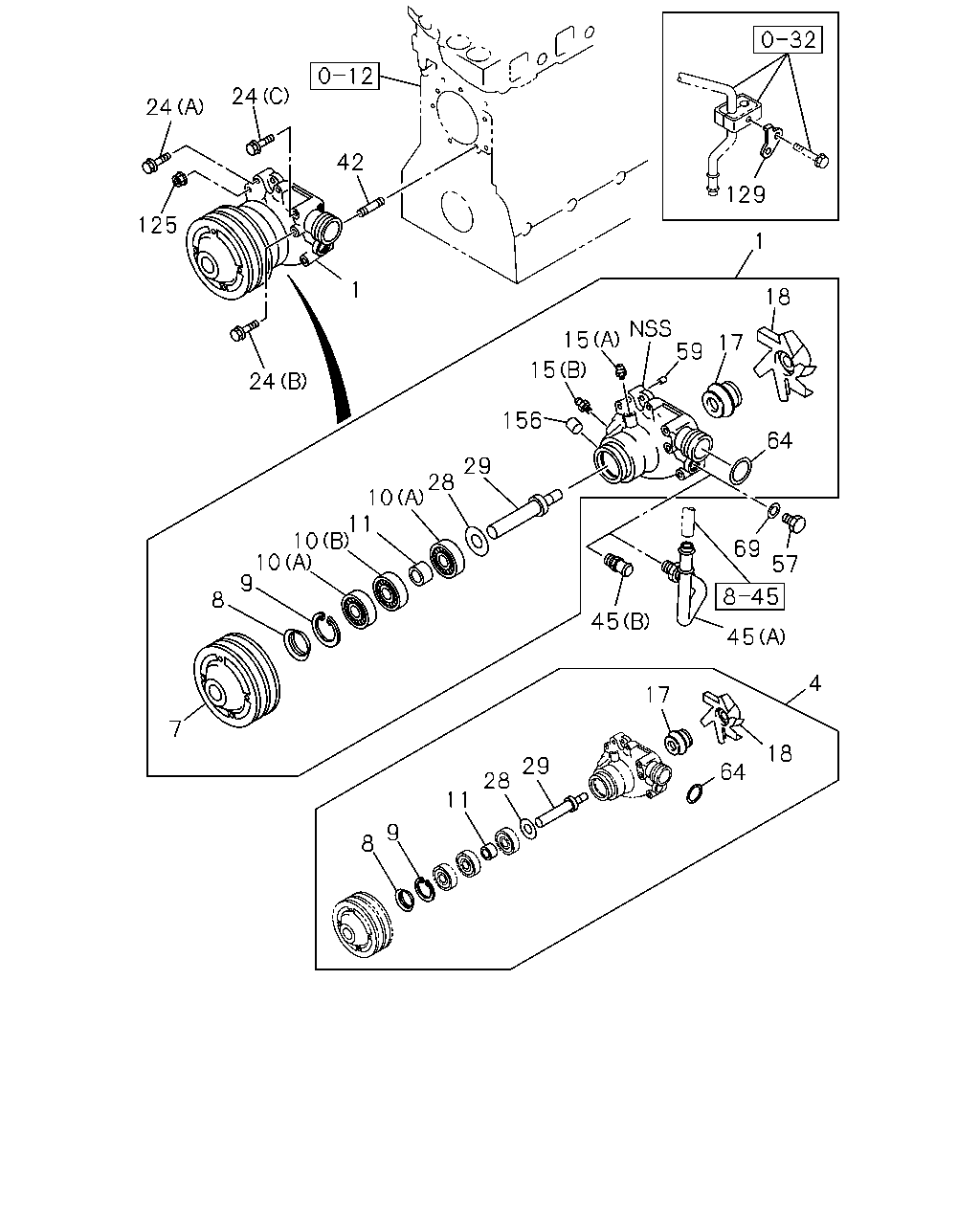

çizim 331130
7 8 9 10 10 11 10 28 29 8 9 11 28 29 17 64 18 4 45 45 69 57 156 15 15 59 17 18 64 129 1 24 1 42 24 24 125
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; WATER,W/GASKET 1-87310-835-0 01 1 1302-1312 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-902-0 01 1 1401-1405 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-974-0 01 1 1406-1505 ● ●
1 PUMP ASM; WATER,W/GASKET 1-87310-974-0 01 1 1506- ● ● ●
4 REPAIR KIT; WATER PUMP 1-87813-949-0 01 1 1302-1312 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-167-0 01 1 1401-1405 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-615-0 01 1 1406-1505 ● ●
4 REPAIR KIT; WATER PUMP 1-87814-615-0 01 1 1506- ● ● ●
7 PULLEY; WATER PUMP 8-97616-657-0 01 1 1302-1405 ● ●
7 PULLEY; WATER PUMP 8-98281-099-0 01 1 1406-1505 ● ●
7 PULLEY; WATER PUMP 8-98281-099-0 01 1 1506- ● ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 1302-1505 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 1506- ● ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 1302-1505 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 1506- ● ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 1302-1505 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 1506- ● ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 1302-1505 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 1506- ● ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 1302-1505 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 1506- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302-1505 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1506- ● ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 1302-1505 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 1506- ● ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1302-1312 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406-1505 ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1506- ● ● ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 1302-1505 ● ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 1506- ● ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 1302-1505 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 1506- ● ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 1302-1505 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 1506- ● ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 1302-1505 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 1506- ● ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 1302-1505 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 1506- ● ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 1302-1405 ● ●
29 SHAFT; WATER PUMP 8-98280-700-0 01 1 1406-1505 ● ●
29 SHAFT; WATER PUMP 8-98280-700-0 01 1 1506- ● ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 1302-1505 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 1506- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94392-827-1 01 1 1302-1511 ● ●
45 JOINT; HTR HOSE,WATER PUMP
EURO2 SPECIFICATION<NT2> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94392-827-1 01 1 1512- ● ●
45 JOINT; HTR HOSE,WATER PUMP
EURO4 SPECIFICATION<NT4> (B) 		8-94396-180-0 01 1 1302-1505 ● ●
45 JOINT; HTR HOSE,WATER PUMP
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-94396-180-0 01 1 1506- ●
45 JOINT; HTR HOSE,WATER PUMP
EURO4 SPECIFICATION<NT4> (B) 		8-94396-180-0 01 1 1506- ●
45 JOINT; HTR HOSE,WATER PUMP
EURO5 SPECIFICATION<NT5> (B) 		8-94396-180-0 01 1 1506- ●
57 PLUG; HTR,WATER PUMP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M20 		9-99202-320-0 01 1 1302-1511 ● ●
57 PLUG; HTR,WATER PUMP
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M20 		9-99202-320-0 01 1 1512- ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 1302-1505 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 1506- ● ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 1302-1505 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 1506- ● ● ●
69 GASKET; PLUG,HTR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20.5 OD=28.0 		9-09571-420-0 01 1 1302-1511 ● ●
69 GASKET; PLUG,HTR
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20.5 OD=28.0 		9-09571-420-0 01 1 1512- ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 1302-1505 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 1506- ● ● ●
129 BRACKET; CLIP
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98066-087-0 01 1 1302-1505 ● ●
129 BRACKET; CLIP
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98066-087-0 01 1 1506-1511 ● ● ●
129 BRACKET; CLIP
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98066-087-0 01 1 1512- ● ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 1302-1505 ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 1506- ● ● ●

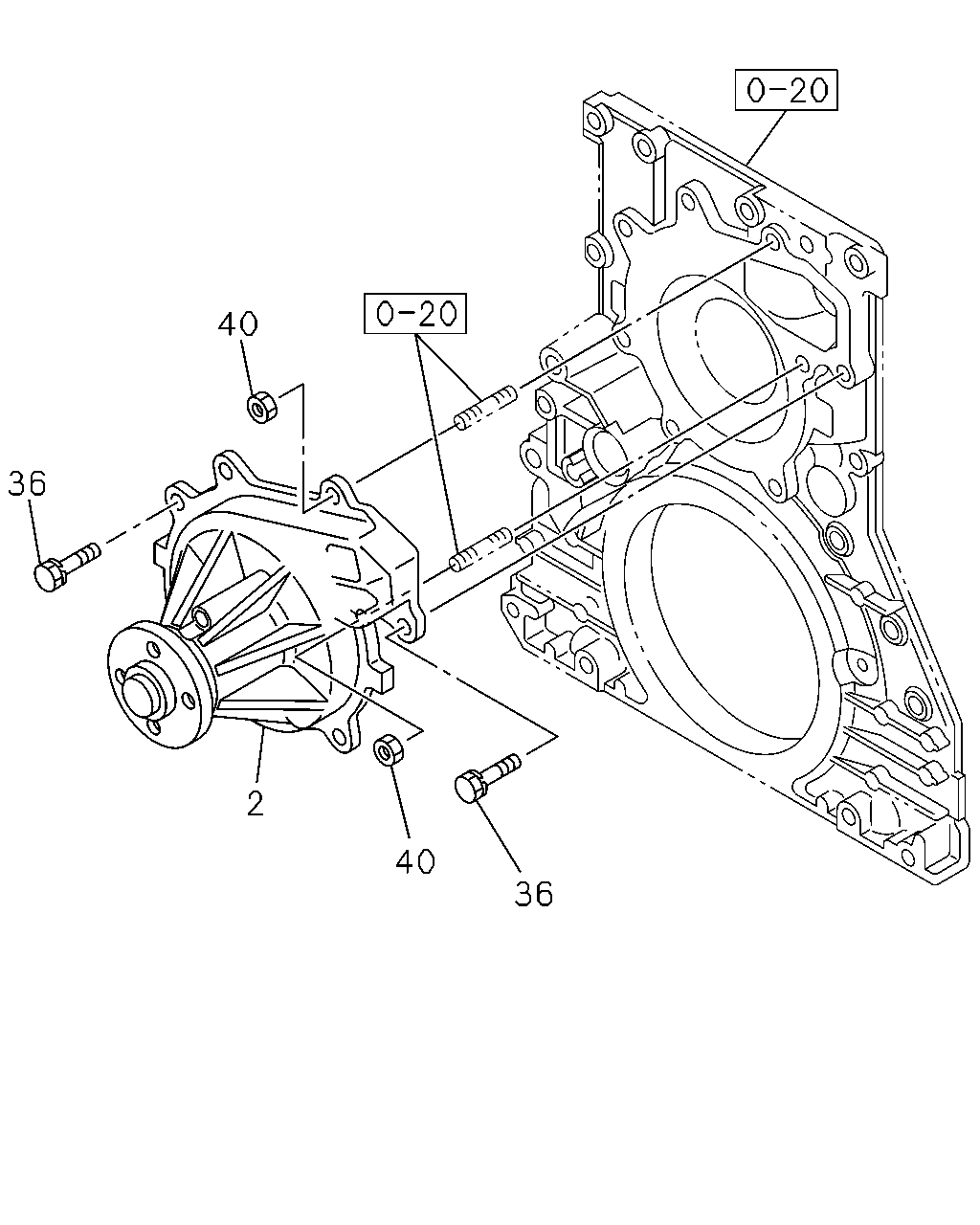

çizim 352498
40 36 2 40 36
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 PUMP ASM; WATER
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-97363-478-0 01 1 1305- ●
2 PUMP ASM; WATER
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) 		8-98078-831-2 01 1 1305- ●
2 PUMP ASM; WATER
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), IRAN EQUIPMENT(D8T),PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) BEST VALUE PARTS 		5-87610-089-0 01 1 1305- ●
36 BOLT; WATER PUMP TO C/BL
M8X40 FLANGE 		0-28650-840-0 06 1 1305- ●
40 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 02 1 1305- ●
