◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11513 - FTR-RHD EURO2 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#113793) — 24 parça

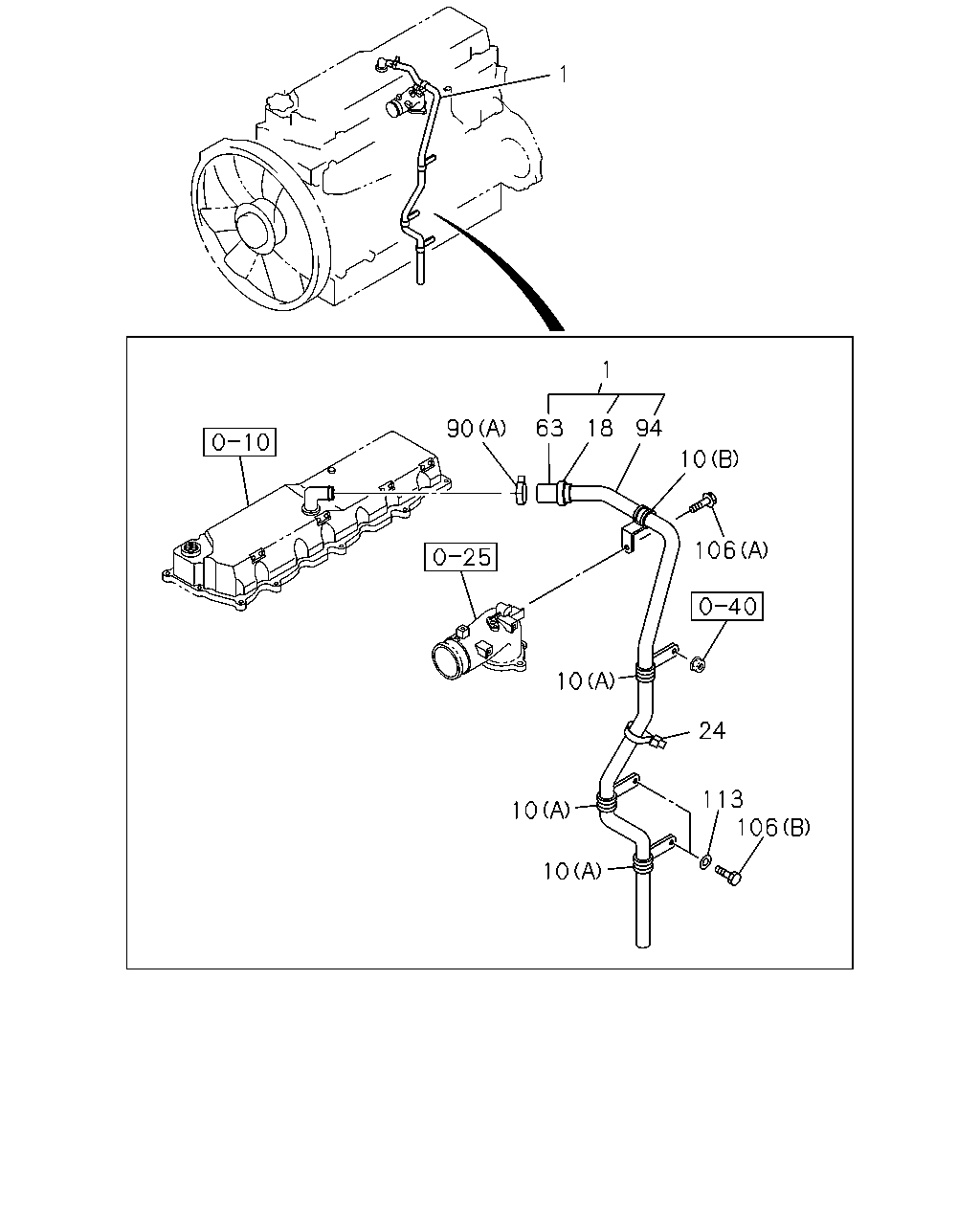

çizim 326337
106 10 10 10 113 24 106 94 18 63 90 10 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BREATHER; AIR 8-94392-083-3 01 1 1302- ●
10 CLIP; AIR BREATHER
(A) ID=32 L=75 		1-09700-704-1 03 1 1302- ●
10 CLIP; AIR BREATHER
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1302- ●
18 CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6 		8-94362-518-0 01 1 1302- ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 01 1 1302- ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1302- ●
90 CLIP; RUBBER HOSE
(A) ID=33.6 		8-94362-518-0 01 1 1302- ●
90 CLIP; RUBBER HOSE
(B) ID=11 		8-94238-570-0 01 1 1305- ●
90 CLIP; RUBBER HOSE
(C) ID=11.5 		8-97138-011-0 01 1 1305- ●
94 HOSE; BREATHER TO PIPE
L=1260 		8-94392-082-0 01 1 1302- ●
106 BOLT; DRAIN PIPE
(A) M6X12 FLANGE 		0-28050-612-0 01 1 1302- ●
106 BOLT; DRAIN PIPE
(B) M10X16 FLANGE 		0-28151-016-0 02 1 1302- ●
113 WASHER; PL,CLIP
ID=10.5 		0-91610-510-0 02 1 1302- ●

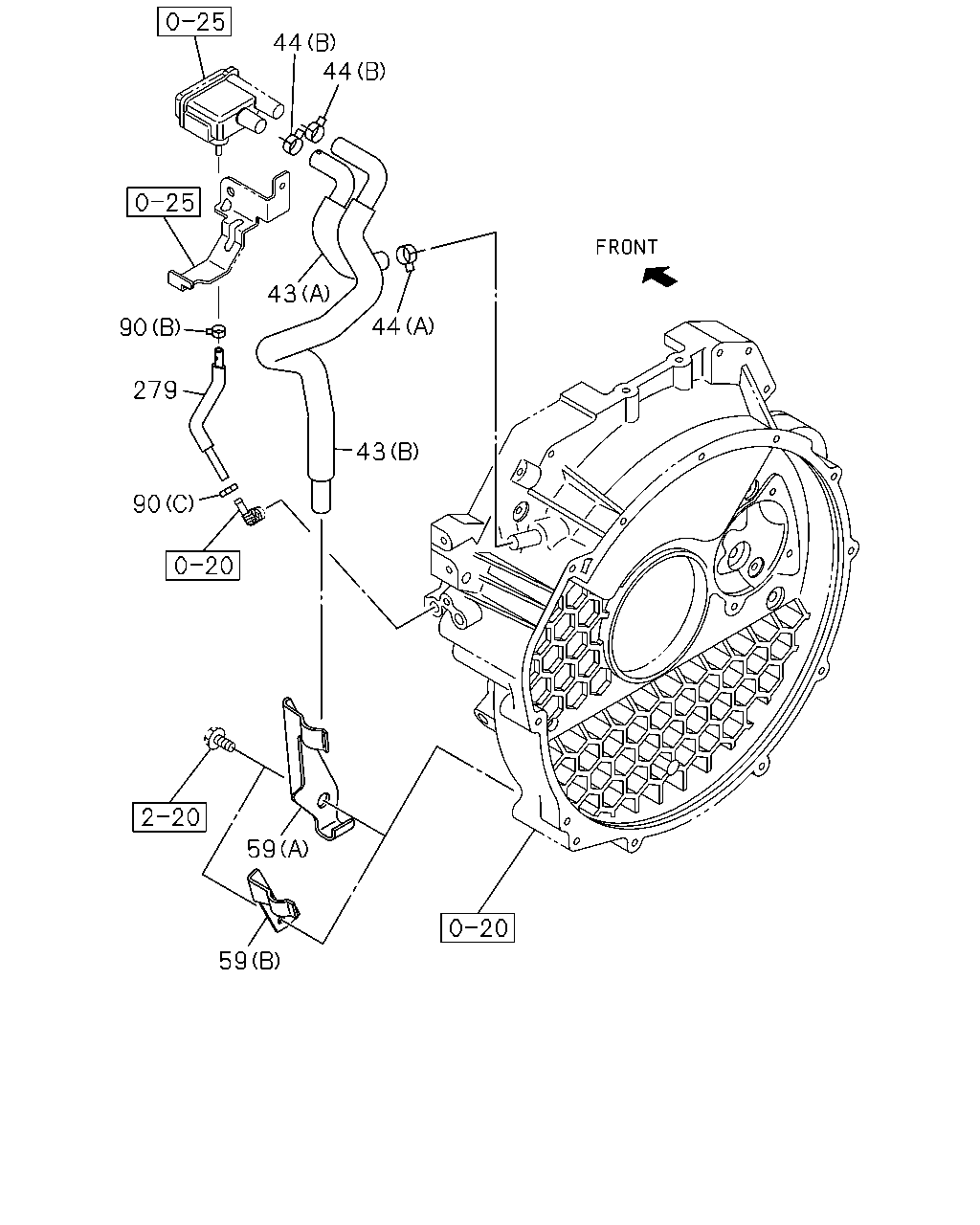

çizim 351873
44 44 43 44 90 279 90 43 59 59
BalonParca AdiParca NoAdetTipApplied Date A B
43 HOSE; PCV
(A) 		8-97149-012-3 01 1 1305- ●
43 HOSE; PCV
(B) 		8-98027-841-0 01 1 1305-1308 ●
43 HOSE; PCV
(B) 		8-98249-509-0 01 1 1309- ●
44 CLIP; HOSE,PCV
(A) ID=21 		8-94242-034-0 01 1 1305- ●
44 CLIP; HOSE,PCV
(B) ID=22.7 		8-94466-382-0 02 1 1305- ●
59 CLIP; HOSE
(A) 		8-98208-930-1 01 1 1305-1308 ●
59 CLIP; HOSE
(B) 		8-98249-517-0 01 1 1309- ●
90 CLIP; RUBBER HOSE
(A) ID=33.6 		8-94362-518-0 01 1 1302- ●
90 CLIP; RUBBER HOSE
(B) ID=11 		8-94238-570-0 01 1 1305- ●
90 CLIP; RUBBER HOSE
(C) ID=11.5 		8-97138-011-0 01 1 1305- ●
279 HOSE; RUBBER,OIL DRAIN 8-98075-714-0 01 1 1305- ●
