0-28 — VENTILATION SYSTEM (#113785) — 163 parça

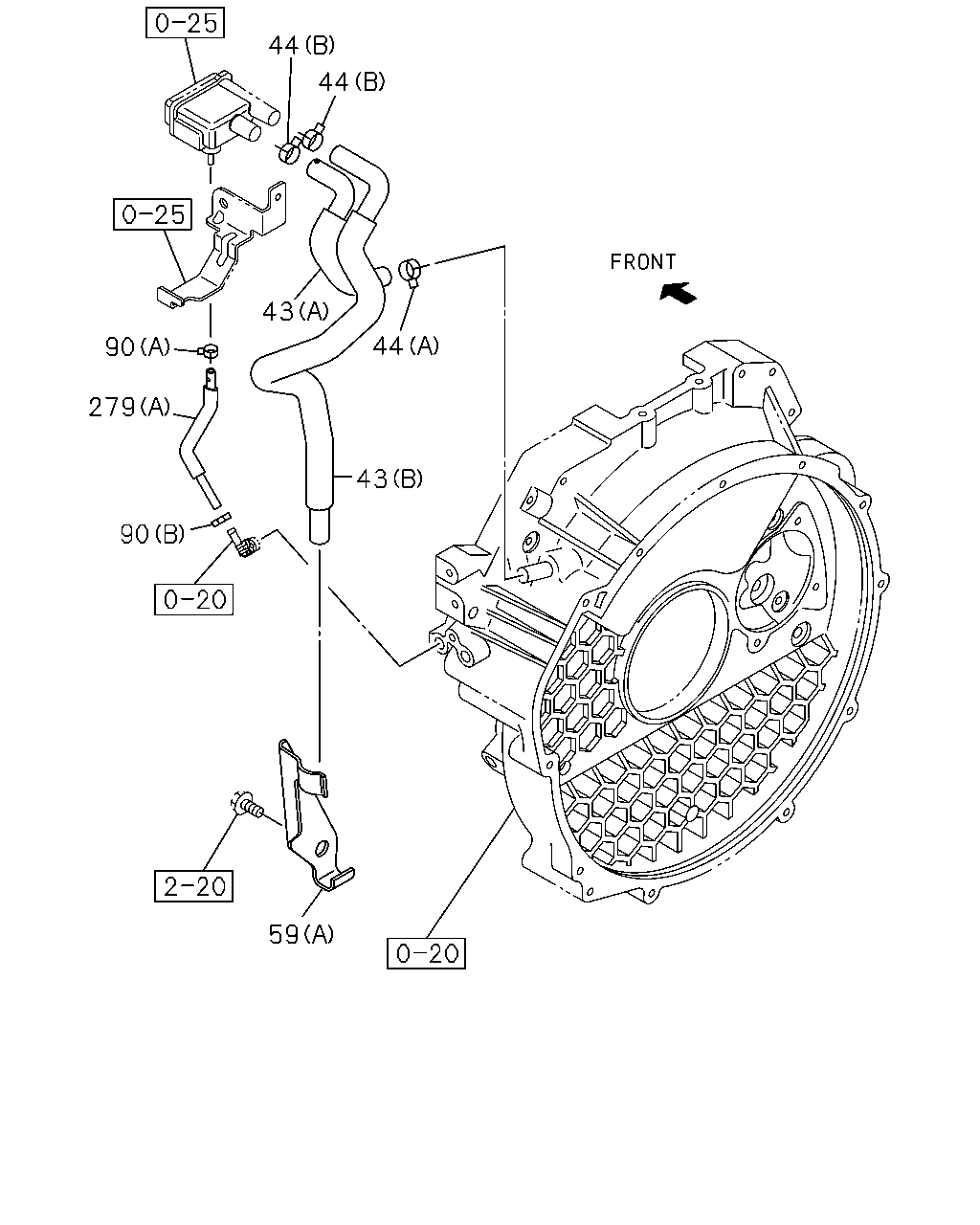

44 44 43 90 279 90 59 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (D)	8-98215-654-1	01	1	1302-1308	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (E)	8-98057-033-0	01	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (C)	8-98215-656-1	01	1	1302-1308	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1302-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98027-841-0	01	1	1302-1308	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1302-1308	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	1309-	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1302-1308	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (B) ID=22.7	8-94466-382-0	02	1	1309-	●
59	CLIP; HOSE (A)	8-98208-930-1	01	1	1302-1308	●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2> (F)	8-98249-517-0	01	1	1309-	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (D) ID=35 L=33	1-09700-945-0	02	1	1302-		●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (C) ID=30X2 L=28	1-09701-266-0	01	1	1302-		●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (B) ID=28.5	1-09707-150-0	03	1	1302-		●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (E) ID=31.2	8-97237-146-0	01	1	1302-		●	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=28	1-09707-124-0	03	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (F) ID=13	8-94238-571-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=14	1-09704-102-0	02	1	1302-		●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (C) ID=33.6	8-94362-518-0	01	1	1302-		●	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (B)	8-98215-655-0	01	1	1302-1308	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (D)	8-97386-653-1	01	1	1309-	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1302-	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (C) L=190	0-02709-190-0	01	1	1302-		●	●

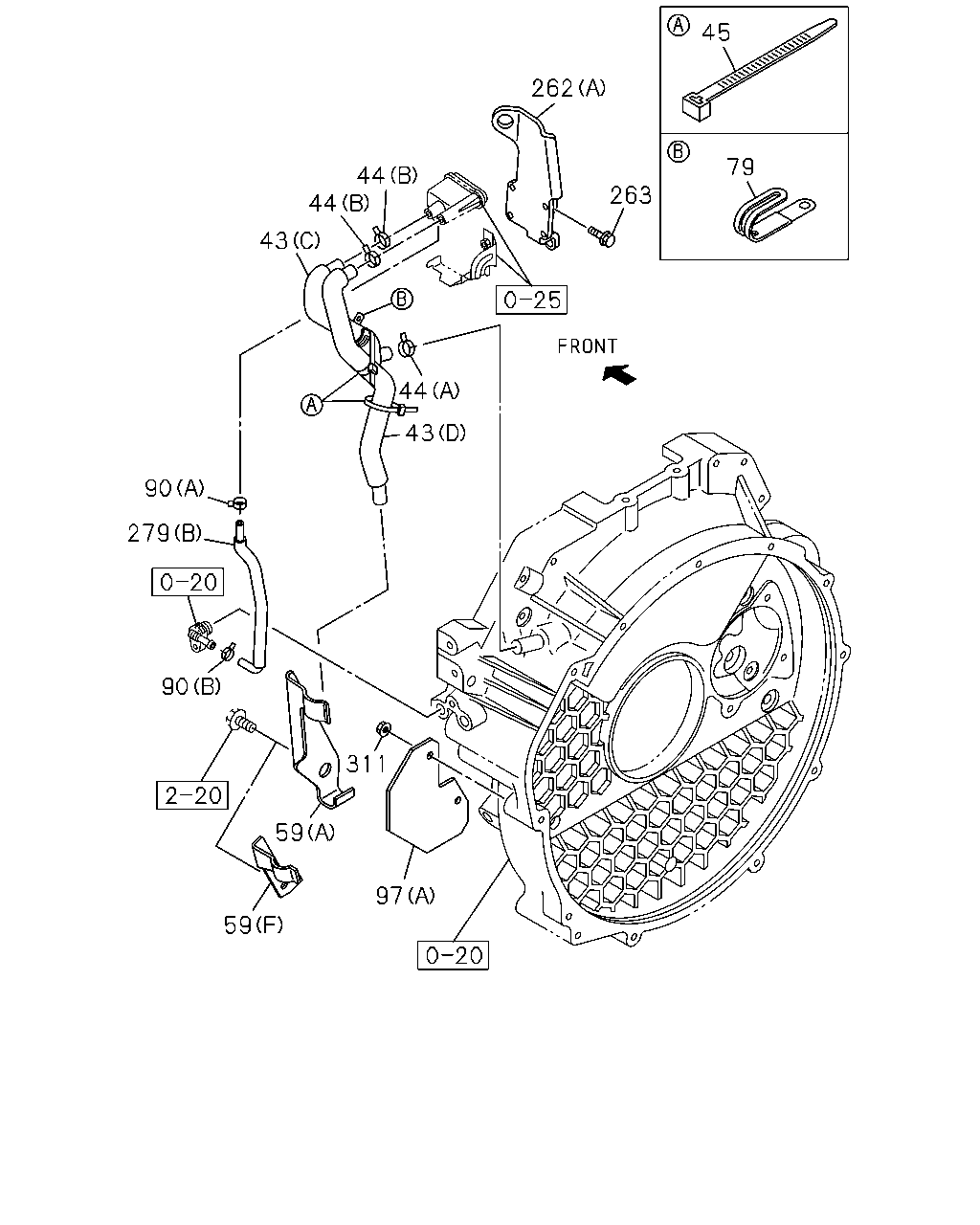

263 79 45 262 44 44 43 44 90 279 90 311 59 59 97 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (D)	8-98215-654-1	01	1	1302-1308	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (E)	8-98057-033-0	01	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (C)	8-98215-656-1	01	1	1302-1308	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1302-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98027-841-0	01	1	1302-1308	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●
44	CLIP; HOSE,PCV (A) ID=21	8-94242-034-0	01	1	1302-1308	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	1309-	●
44	CLIP; HOSE,PCV (B) ID=22.7	8-94466-382-0	02	1	1302-1308	●
44	CLIP; HOSE,PCV EURO2 SPECIFICATION<NT2> (B) ID=22.7	8-94466-382-0	02	1	1309-	●
45	CLIP; PCV HOSE EURO4 SPECIFICATION<NT4> L=202	8-98143-872-0	02	1	1302-1308	●
59	CLIP; HOSE (A)	8-98208-930-1	01	1	1302-1308	●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2> (F)	8-98249-517-0	01	1	1309-	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (D) ID=35 L=33	1-09700-945-0	02	1	1302-		●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (C) ID=30X2 L=28	1-09701-266-0	01	1	1302-		●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (B) ID=28.5	1-09707-150-0	03	1	1302-		●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (E) ID=31.2	8-97237-146-0	01	1	1302-		●	●
79	CLIP; PCV HOSE EURO4 SPECIFICATION<NT4> L=36	8-94224-891-1	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=28	1-09707-124-0	03	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (F) ID=13	8-94238-571-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=14	1-09704-102-0	02	1	1302-		●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (C) ID=33.6	8-94362-518-0	01	1	1302-		●	●
97	BRACKET; HOSE TRANSMISSION SIDE PTO GEAR=36/16(C5L) EURO4 SPECIFICATION<NT4> (A)	8-98249-125-0	01	1	1307-1308	●
97	BRACKET; HOSE EURO4 SPECIFICATION<NT4> (B)	8-98093-946-3	01	1	1309-	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4> (A)	8-98036-498-0	01	1	1302-1501	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4> (A)	8-98296-130-0	01	1	1502-	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4> (B)	8-97610-919-1	01	1	1302-		●	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M12X30 FLANGE	0-28151-230-0	03	1	1302-	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28751-025-0	02	1	1302-		●	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (B)	8-98215-655-0	01	1	1302-1308	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (D)	8-97386-653-1	01	1	1309-	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1302-	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (C) L=190	0-02709-190-0	01	1	1302-		●	●
311	NUT; BRKT TRANSMISSION SIDE PTO GEAR=36/16(C5L) EURO4 SPECIFICATION<NT4> M10 FLANGE	0-91180-110-0	02	1	1307-1308	●

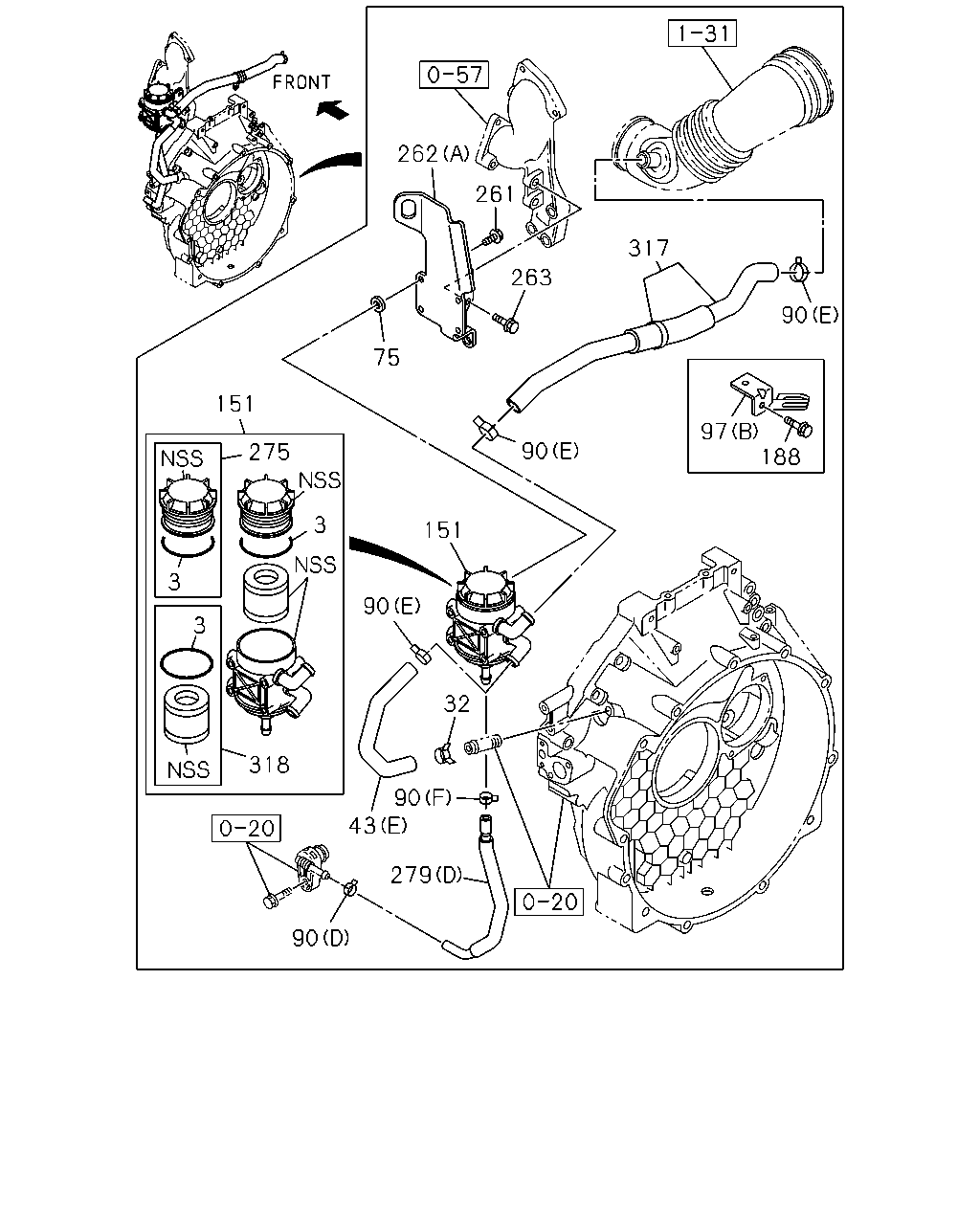

151 275 3 3 3 318 90 43 279 90 32 90 151 75 261 262 263 90 317 90 188 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>	8-97385-921-0	01	1	1302-1308		●	●
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>	8-97385-921-0	01	1	1309-	●	●	●
32	CLIP; VENT HOSE EURO4 SPECIFICATION<NT4> ID=21	8-94242-034-0	01	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (D)	8-98215-654-1	01	1	1302-1308	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (E)	8-98057-033-0	01	1	1309-	●
43	HOSE; PCV EURO4 SPECIFICATION<NT4> (C)	8-98215-656-1	01	1	1302-1308	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (A)	8-97149-012-3	01	1	1302-	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98027-841-0	01	1	1302-1308	●
43	HOSE; PCV EURO2 SPECIFICATION<NT2> (B)	8-98249-509-0	01	1	1309-	●
75	WASHER EURO4 SPECIFICATION<NT4> ID=9 OD=18 T=5	9-14149-173-0	04	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=28	1-09707-124-0	03	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (F) ID=13	8-94238-571-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=14	1-09704-102-0	02	1	1302-		●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (C) ID=33.6	8-94362-518-0	01	1	1302-		●	●
97	BRACKET; HOSE TRANSMISSION SIDE PTO GEAR=36/16(C5L) EURO4 SPECIFICATION<NT4> (A)	8-98249-125-0	01	1	1307-1308	●
97	BRACKET; HOSE EURO4 SPECIFICATION<NT4> (B)	8-98093-946-3	01	1	1309-	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97324-682-1	01	1	1309-	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97602-262-2	01	1	1302-		●	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X12 FLANGE	0-28050-812-0	01	1	1309-	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M6X12 FLANGE	0-28050-612-0	01	1	1302-		●	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	1302-		●	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	04	1	1309-	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	04	1	1302-		●	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4> (A)	8-98036-498-0	01	1	1302-1501	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4> (A)	8-98296-130-0	01	1	1502-	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4> (B)	8-97610-919-1	01	1	1302-		●	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M12X30 FLANGE	0-28151-230-0	03	1	1302-	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28751-025-0	02	1	1302-		●	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97389-360-0	01	1	1309-	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97606-319-0	01	1	1302-		●	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (B)	8-98215-655-0	01	1	1302-1308	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (D)	8-97386-653-1	01	1	1309-	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1302-	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (C) L=190	0-02709-190-0	01	1	1302-		●	●
317	HOSE; RUBBER,OIL SEPARATOR EURO4 SPECIFICATION<NT4>	8-98251-379-0	01	1	1309-	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-98002-346-0	01	1	1309-	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-97606-318-0	01	1	1302-		●	●

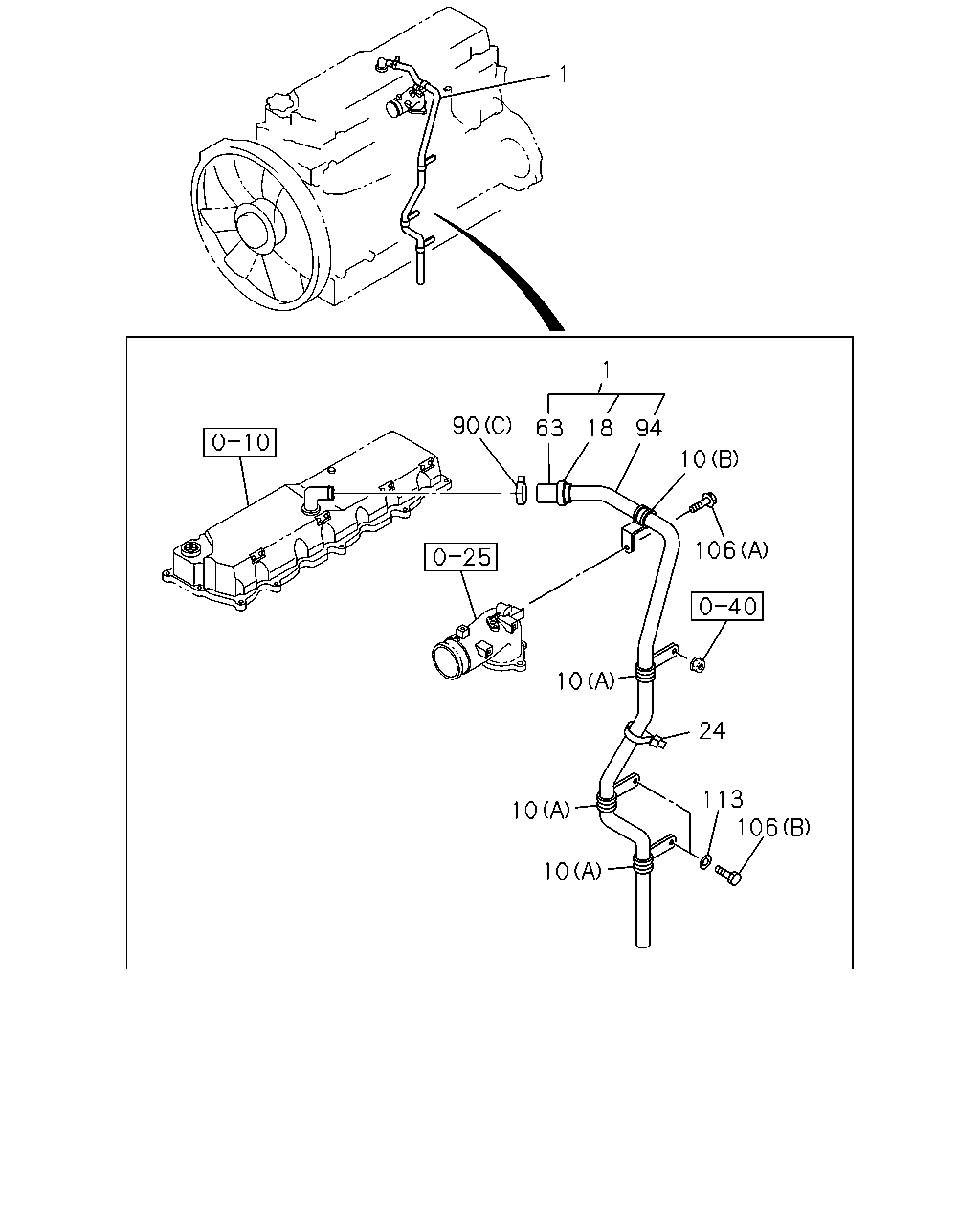

1 1 106 10 94 18 63 90 10 24 113 106 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BREATHER; AIR EURO2 SPECIFICATION<NT2>	8-94392-083-3	01	1	1302-		●	●
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (A) ID=32 L=75	1-09700-704-1	03	1	1302-		●	●
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-		●	●
18	CLIP; RUBBER HOSE,AIR BREATHER EURO2 SPECIFICATION<NT2> ID=33.6	8-94362-518-0	01	1	1302-		●	●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	8-98216-430-0	01	1	1302-		●	●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02728-070-0	01	1	1302-		●	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=28	1-09707-124-0	03	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (F) ID=13	8-94238-571-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=14	1-09704-102-0	02	1	1302-		●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (C) ID=33.6	8-94362-518-0	01	1	1302-		●	●
94	HOSE; BREATHER TO PIPE EURO2 SPECIFICATION<NT2> L=1260	8-94392-082-0	01	1	1302-		●	●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (A) M6X12 FLANGE	0-28050-612-0	01	1	1302-		●	●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	02	1	1302-		●	●
113	WASHER; PL,CLIP EURO2 SPECIFICATION<NT2> ID=10.5	0-91610-510-0	02	1	1302-		●	●

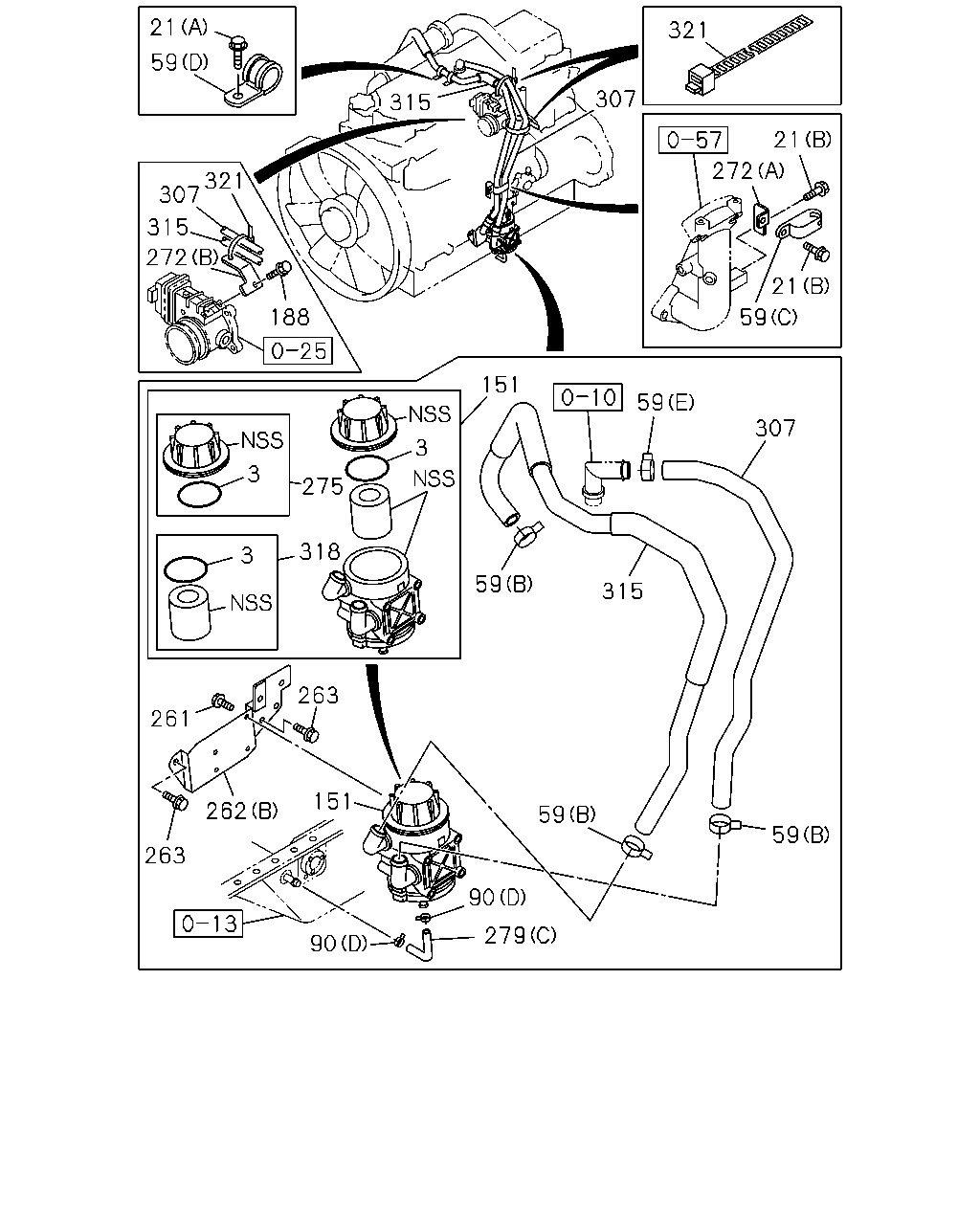

21 59 321 307 315 272 188 3 3 318 275 3 261 263 262 151 263 90 90 279 59 59 151 59 307 315 59 59 21 21 272 321 307 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>	8-97385-921-0	01	1	1302-1308		●	●
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>	8-97385-921-0	01	1	1309-	●	●	●
21	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	02	1	1302-		●	●
21	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	02	1	1302-		●	●
59	CLIP; HOSE (A)	8-98208-930-1	01	1	1302-1308	●
59	CLIP; HOSE EURO2 SPECIFICATION<NT2> (F)	8-98249-517-0	01	1	1309-	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (D) ID=35 L=33	1-09700-945-0	02	1	1302-		●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (C) ID=30X2 L=28	1-09701-266-0	01	1	1302-		●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (B) ID=28.5	1-09707-150-0	03	1	1302-		●	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (E) ID=31.2	8-97237-146-0	01	1	1302-		●	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (E) ID=28	1-09707-124-0	03	1	1309-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (F) ID=13	8-94238-571-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (A) ID=11	8-94238-570-0	01	1	1302-1308	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (A) ID=11	8-94238-570-0	01	1	1309-	●
90	CLIP; RUBBER HOSE (B) ID=11.5	8-97138-011-0	01	1	1302-	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (D) ID=14	1-09704-102-0	02	1	1302-		●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (C) ID=33.6	8-94362-518-0	01	1	1302-		●	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97324-682-1	01	1	1309-	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97602-262-2	01	1	1302-		●	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X12 FLANGE	0-28050-812-0	01	1	1309-	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M6X12 FLANGE	0-28050-612-0	01	1	1302-		●	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	1302-		●	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	04	1	1309-	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	04	1	1302-		●	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4> (A)	8-98036-498-0	01	1	1302-1501	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4> (A)	8-98296-130-0	01	1	1502-	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4> (B)	8-97610-919-1	01	1	1302-		●	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M12X30 FLANGE	0-28151-230-0	03	1	1302-	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28751-025-0	02	1	1302-		●	●
272	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (A)	8-97607-396-1	01	1	1302-		●	●
272	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-97607-397-0	01	1	1302-		●	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97389-360-0	01	1	1309-	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97606-319-0	01	1	1302-		●	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (B)	8-98215-655-0	01	1	1302-1308	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (D)	8-97386-653-1	01	1	1309-	●
279	HOSE; RUBBER,OIL DRAIN EURO2 SPECIFICATION<NT2> (A)	8-98075-714-0	01	1	1302-	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4> (C) L=190	0-02709-190-0	01	1	1302-		●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO4 SPECIFICATION<NT4>	8-98054-285-2	01	1	1302-		●	●
315	HOSE; RUBBER EURO4 SPECIFICATION<NT4>	8-98054-286-2	01	1	1302-		●	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-98002-346-0	01	1	1309-	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-97606-318-0	01	1	1302-		●	●
321	CLIP; HOSE,SEPARATOR EURO4 SPECIFICATION<NT4> L=300	1-09707-001-1	02	1	1302-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
